Urinals

Commercial urinals for offices, schools, pubs, stadiums, healthcare facilities and public buildings. The range covers wall hung ceramic urinal bowls, urinal troughs, stainless steel urinals and waterless urinals, with urinal frames and fittings for complete installations. All products are specified for commercial use and built to withstand continuous high footfall. Free delivery on every order.

Urinal Troughs Stainless Steel Urinals Urinal Frames Urinal Fittings

How to Specify Commercial Urinals

The starting point is always the expected user numbers and the type of building. For offices and workplaces, minimum provision is set by the Workplace (Health, Safety and Welfare) Regulations. For public venues, stadiums and transport hubs, provision is calculated from peak occupancy. In both cases, getting the number right at specification stage avoids costly remediation later.

Individual urinal bowls suit settings where hygiene presentation matters and user numbers are moderate. Each bowl flushes independently and can be isolated for maintenance without taking the whole run out of service. Troughs are the more practical choice for very high footfall locations where the priority is throughput and ease of cleaning rather than individual presentation.

The flush method is the next consideration. Automatic sensor flush controls are increasingly standard as they prevent over flushing, reduce water consumption and remove the need for users to touch any surface. Manual flush valves are lower cost and simpler to maintain. Waterless urinals remove the flush requirement entirely and are worth considering on any project with a sustainability brief.

For the material choice, ceramic is the standard for most applications. Stainless steel is specified where durability in hostile environments is the overriding requirement. Both are available across bowl and trough formats and both carry the same installation footprint, so switching between them does not affect the structural or plumbing requirements of the installation.

Frequently Asked Questions

What is the standard spacing for commercial urinals?

Building Regulations Part M recommends a minimum centre to centre spacing of 600mm between individual urinal bowls. For accessible provision, a wider bay of at least 700mm is recommended. Urinal troughs remove the spacing calculation entirely as they serve multiple users from a single continuous unit. Always check the current Building Regulations and any project specific specification for exact requirements.

What is the difference between a urinal bowl and a urinal trough?

A urinal bowl is an individual ceramic unit designed for single user use. Multiple bowls are installed in a row, each with its own flush. A urinal trough is a continuous channel unit that serves multiple users simultaneously from a single flush. Troughs are more economical to install in high footfall settings as they require fewer fittings and a single supply connection per run. Bowls offer a more individual and often more hygienic appearance.

Do waterless urinals really work?

Yes. Waterless urinals use a liquid seal trap or replaceable cartridge to contain odour without any flush water. They are effective when correctly maintained. The cartridge or trap seal requires periodic replacement depending on usage levels. Waterless urinals eliminate water consumption entirely and reduce plumbing costs as no flush supply is needed, making them a practical option for buildings with sustainability targets.

How many urinals do I need for a commercial building?

The Workplace (Health, Safety and Welfare) Regulations 1992 set minimum provision levels. For male only use, one urinal is required for every 25 male employees for workplaces with up to 100 employees. Above this, additional provision is required. For public buildings and venues, provision is typically calculated based on peak occupancy rather than employee numbers. A specifier or facilities consultant can advise on the correct provision for your building type.

What is a urinal frame and do I need one?

A urinal frame is a concealed steel support structure that fixes to the wall and carries the weight of the urinal bowl. It allows the urinal to be wall hung without relying on the wall substrate alone, and positions the bowl at the correct height. Frames are required where the wall construction cannot support the direct fixing load, or where the specification calls for a clean concealed installation. They are also used where back to wall plumbing concealment is needed.

Sort by

View as

Save £-635.00

KWC DVS KWC DVS Campus Stainless Steel Urinal

£635.00

| /

KWC DVS Campus Stainless Steel Urinal The KWC DVS Campus Urinal is manufactured from a durable stainless steel. Its smooth, oval-shaped bowl an...
View full details

£635.00

| /
Sale

KWC DVS Centinel Urinal Trough Kit Concealed

from £740.00

| /

Urinal Trough Kit with Concealed Cistern The Centinel Urinal Trough Kit With Concealed Cistern is a sleek, wall-mounted stainless steel urinal ...
View full details

from £740.00

| /
Sale

KWC DVS Centinel Urinal Trough Kit With Exposed Cistern

from £679.00

| /

Urinal Trough Kit with Exposed Cistern This Centinel Urinal Trough Kit With Exposed Cistern features a sturdy stainless steel design and visibl...
View full details

from £679.00

| /
Sale

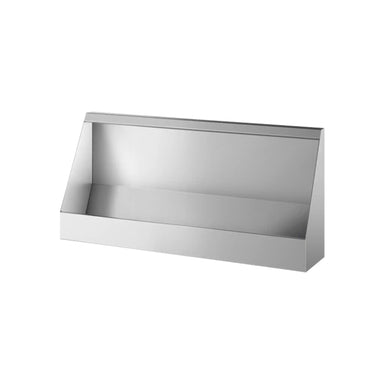

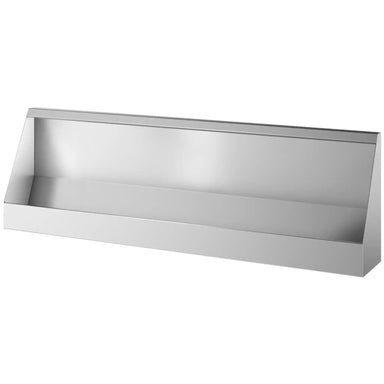

Delabie Delabie Urinal Trough

from £850.43

| /

Delabie Wall Hung Stainless Steel Trough Urinal A wall hung stainless steel trough urinal ...
View full details

from £850.43

| /
Save £-688.04

Delabie Delabie Vandal Resistant Delta Urinal

£688.04

| /

Delta Vandal Resistant Urinal The Delabie DELTA is a wall hung individual rimless urinal m...
View full details

£688.04

| /
Sale

Delabie Delabie LP Urinal Trough

from £968.95

| /

LP Urinal Trough The Delabie LP individual urinal is a floor standing commercial stainless steel urinal measuring 600 x 1020 x 300mm with b...
View full details

from £968.95

| /
Sale

Delabie Delabie L Stall Urinal Troughs

from £913.56

| /

L Stall Urinal Trough The Delabie L floor recessed stall urinal trough is a single stall c...
View full details

from £913.56

| /
Sale

Delabie Delabie Delta Urinal

from £594.00

| /

Delta Wall Hung Urinal The Delabie DELTA wall hung individual rimless urinal measures 585m...
View full details

from £594.00

| /
Save £-399.27

Delabie Delabie Fino Waterless Urinal

£399.27

| /

Fino Waterless Urinal The Delabie FINO WF Waterless Urinal is a wall hung individual waterless urinal measuring 420mm height x 290mm width ...
View full details

£399.27

| /
Sale

Delabie Delabie Fino Urinal

from £399.27

| /

Fino Wall Hung Urinal The Delabie FINO is a wall hung individual rimless urinal for commer...
View full details

from £399.27

| /
Save £-435.00

Dolphin Solutions Dolphin Urinal

£435.00

| /

Urinal By Dolphin Looking for a modern, space-saving urinal? The Dolphin Urinal is a great option for public restrooms or ...
View full details

£435.00

| /
Save £-950.00

KWC DVS KWC DVS Campus Urinal For Exposed Pipework

£950.00

| /

Campus Urinal for Wall Mounted Flush Valves The KWC DVS Campus Urinal for Wall Mounted Flush Valves is a single urinal that attaches to the wal...
View full details

£950.00

| /
Sale

KWC DVS KWC DVS Campus Urinal Stand

from £639.00

| /

KWC DVS Campus Stainless Steel Urinal Stand The KWC DVS urinal stand is manufactured using 1.5mm thick stainless steel in ...
View full details

from £639.00

| /
