Delabie Wall Hung Stainless Steel Trough Urinal
A wall hung stainless steel trough urinal for multi user commercial and public washrooms. Available in 1200mm, 1800mm, and 2400mm widths to suit 2, 3, or 4 users. The body is 1.2mm polished satin 304 stainless steel. Tough, corrosion resistant, and straightforward to keep clean.
Every unit comes supplied with a perforated stainless steel sparge pipe and all fixings. The sparge pipe runs the full length of the trough and delivers an even rinse at just 0.3 litres per use, regardless of trough size. Supply connects via a ½" top inlet, waste discharges through a 1½" vertical outlet. No trap is included and must be specified separately. Stainless steel dividers are available separately and clip on at any position to create individual user bays.
It is possible to order custom sizes or custom drainage. Please get in contact for more information
Key Features
- Supplied complete: Comes with a perforated stainless steel sparge pipe and all wall fixing elements included.
- Even rinse across the full length: The sparge pipe runs the entire width of the trough, so every part of the surface gets rinsed, not just the area below the inlet.
- Water efficient: Just 0.3 litres per use at 0.1 L/sec per service, consistent across all three trough sizes.
- Dividers clip on anywhere: Stainless steel dividers are available separately and fix directly onto the trough at any point along its length, with no fixed spacing.
- ½" top inlet: Compatible with any flush valve or cistern. Supply connection is exposed at the top.
- 1½" vertical waste: Drains vertically. No trap included. Must be specified separately.
- 304 stainless steel construction: 1.2mm polished satin finish. Resistant to corrosion and easy to clean in high use environments.
- 30 year warranty: Backed by a 30 year manufacturer's warranty.

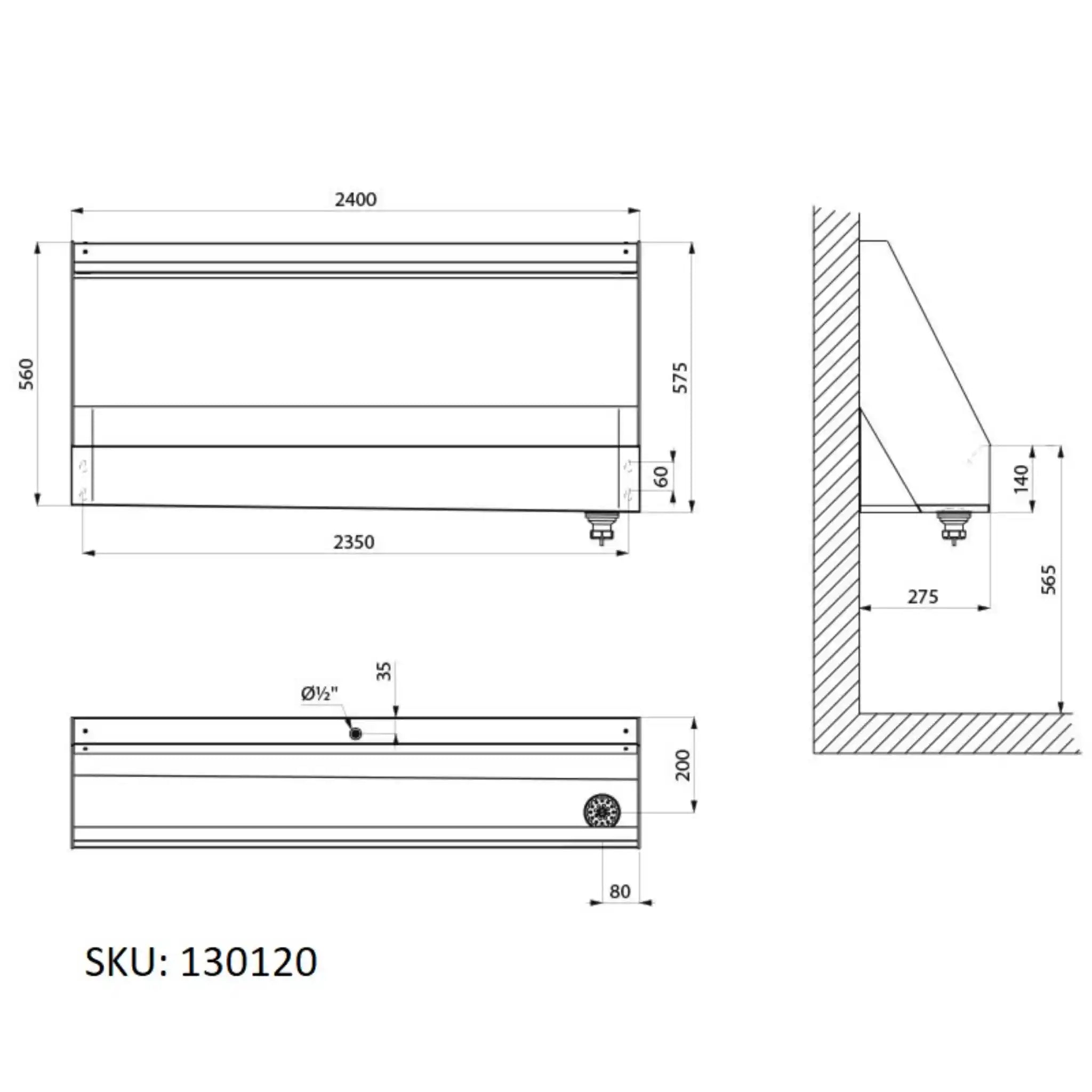

Delabie Urinal Trough Specifications
| Material | 304 stainless steel |
|---|---|
| Finish | Polished satin |
| Height | 575mm |
| Depth | 275mm |
| Steel thickness | 1.2mm |
Delabie Urinal Trough Manuals & Downloads
Frequently Asked Questions
Is a trap included?
No. A trap must be specified and installed separately.

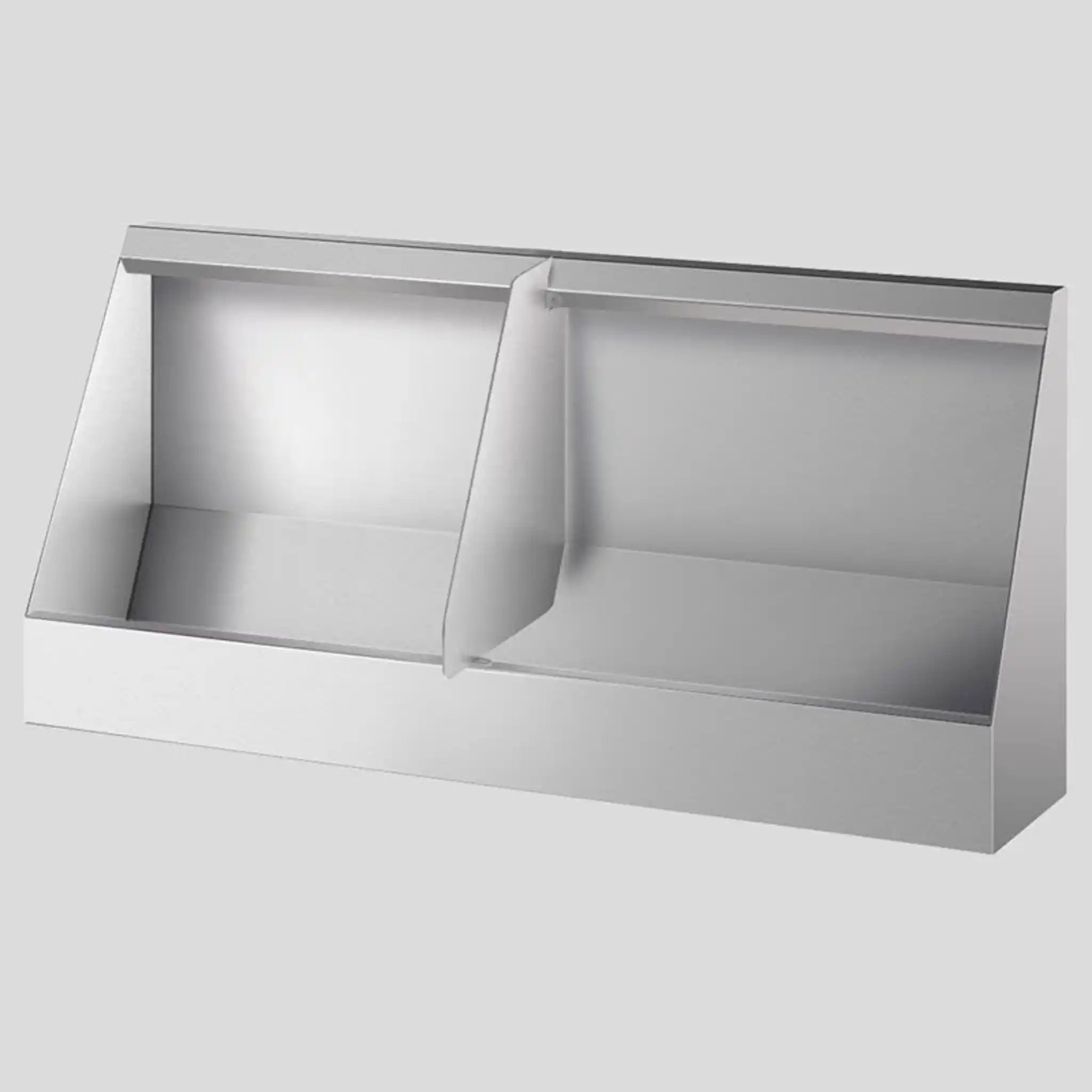

Can dividers be added to create individual user positions?
Yes. Stainless steel dividers are available separately and clip directly onto the trough at any position along its length. There is no fixed spacing requirement.
What do I need to know when fitting two units side by side?
All standard variants drain on the right. If you are installing two units side by side, contact us to order one with drainage on the left so both waste outlets point away from the join.
What flush valve or cistern do I need?
The trough connects via a ½" top inlet and works with any flush valve or cistern delivering the required flow. The sparge system is rated at 0.1 L/sec per service. Flush controls are not included and must be specified separately.
Why does the 0.3L per use figure stay the same across different trough sizes?
The 0.3L per use figure refers to consumption per user position, not per trough. Each service point uses 0.3L. A 4 user trough uses 1.2L total per flush cycle, the same per head as the 2 user version.
Available Variants
All variants share: 304 polished satin stainless steel, 575mm height, 275mm depth, 1.2mm steel thickness, ½" top inlet, 1½" vertical waste, drain on right, 30 year warranty.
| SKU | Width | Users | Weight |
|---|---|---|---|
| 130100 | 1200mm | 2 | 17.5kg |
| 130110 | 1800mm | 3 | 24.8kg |
| 130120 | 2400mm | 4 | 32.1kg |
