£620.00 ex VAT
£744.00 inc VAT
SKU: BS550

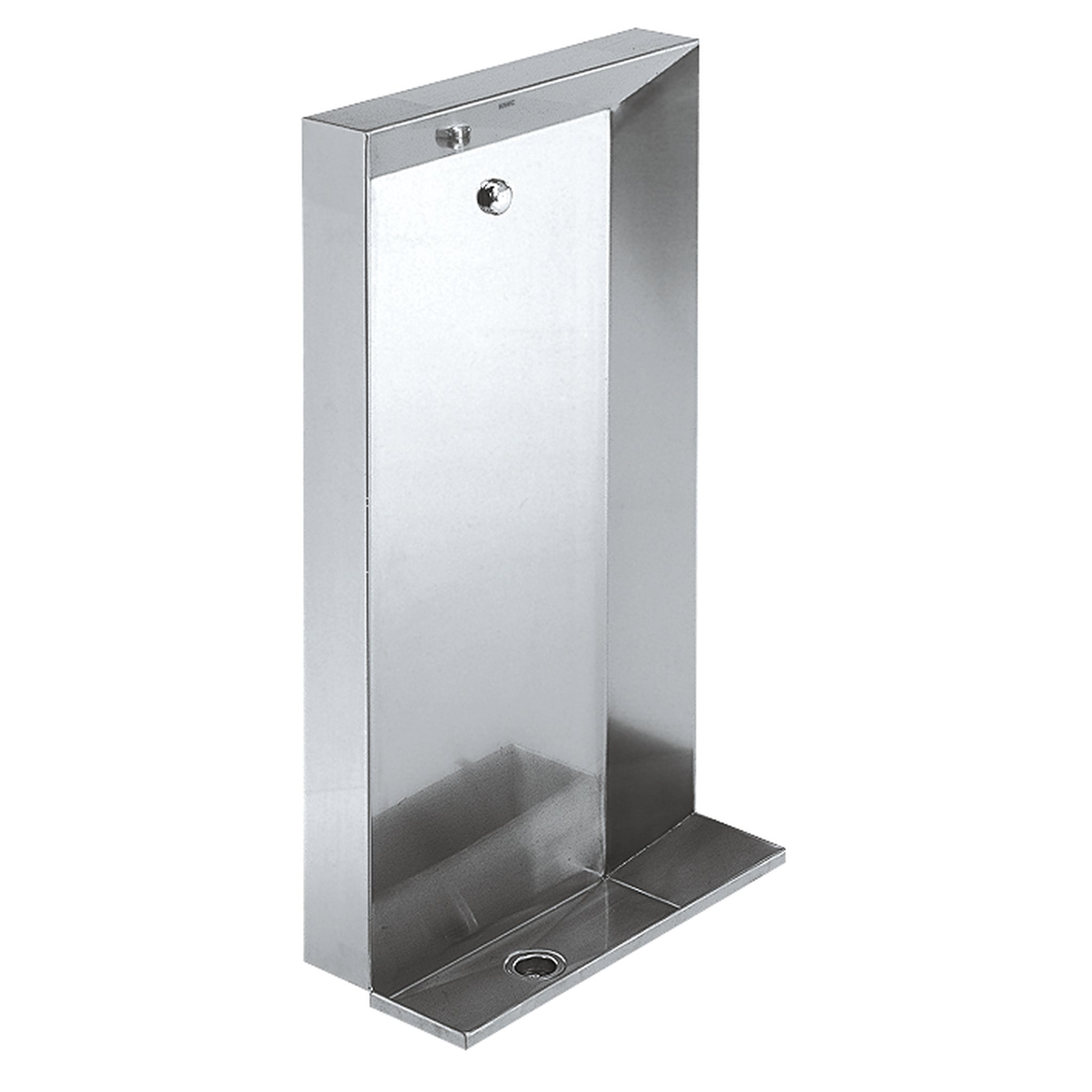

The Campus urinal trough is a floor standing stainless steel urinal made in three widths. The whole surface is satin finished. Water enters through concealed spreaders behind the back panel and drains through a concealed outlet at the base.
Each trough is supplied with a flat perforated waste and back inlet button spreaders. The trap is not supplied and is ordered separately.
| Brand | KWC DVS |
|---|---|
| Material | Stainless steel |
| Material grade | 1.4301 chrome nickel steel V2A |
| Material thickness | 1.5mm |
| Finish | Satin finished stainless steel |
| Width | 600mm, 1200mm or 1800mm |
| Height | 1076mm |
| Depth | 260mm |
| Mounting | Wall and floor |
| Inlet size | G 1/2 B |
| Inlet connections | Back inlet button spreaders 1/2" at 600mm spacings |
| Water inlet | Concealed |
| Outlet size | G 1 1/2 |
| Water outlet | Concealed |
| Waste type | 1 1/2" flat perforated |
| Flushing | Water flushed |
| Minimum flush volume | 2 litres at 600mm, 4 litres at 1200mm, 6 litres at 1800mm |
| Supplied with | 1 1/2" flat perforated waste and 1/2" back inlet button spreaders |
No. The trough is supplied with the flat perforated waste but the trap is ordered separately.
The water inlet is G 1/2 B and the waste outlet is G 1 1/2. The waste itself is a 1 1/2 inch flat perforated type.
The 600mm trough needs 2 litres per flush, the 1200mm trough 4 litres and the 1800mm trough 6 litres.
Yes. All three are 1076mm high and 260mm deep. Only the width changes between the three codes.
| SKU | Urinal Width Options |
|---|---|

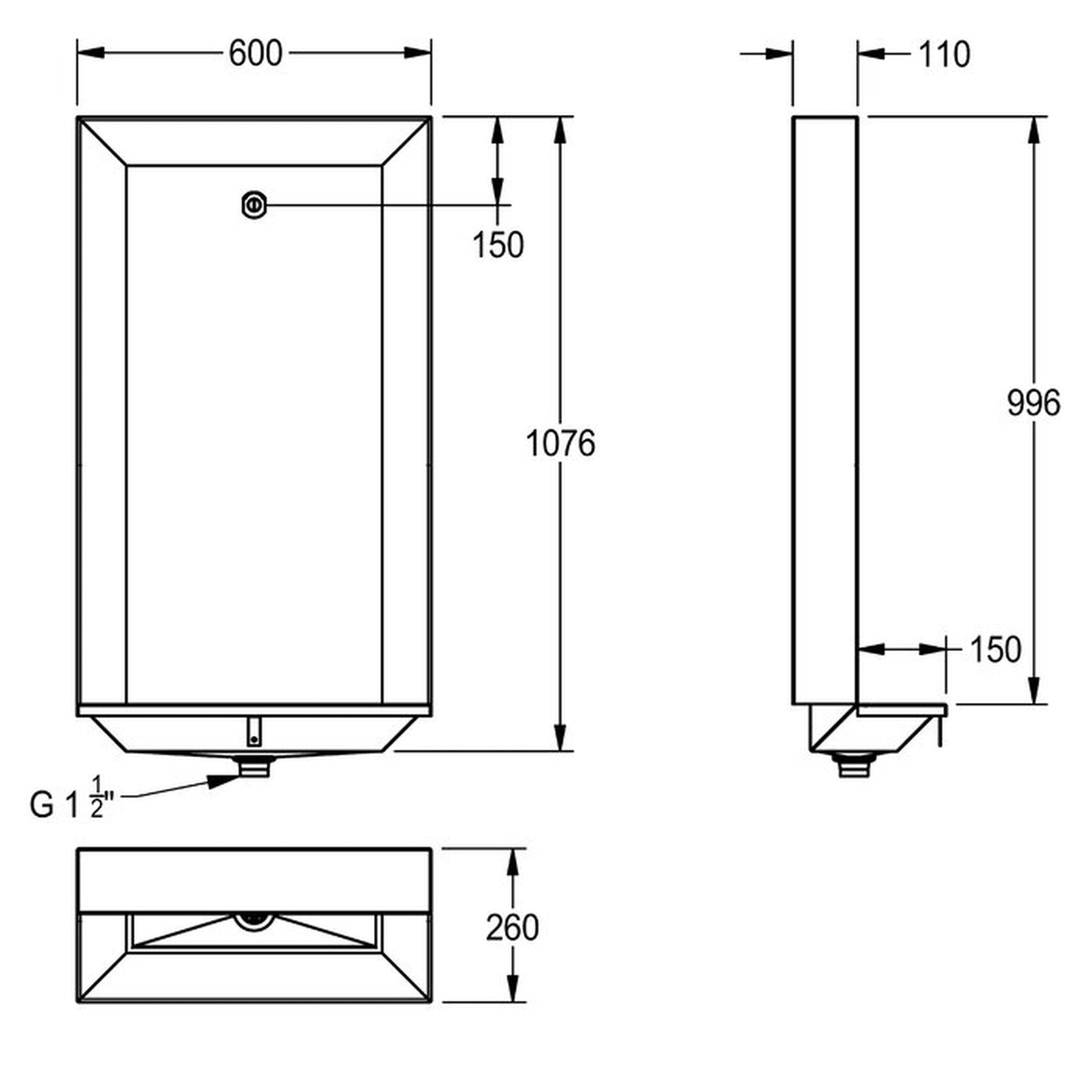

| BS550 | 600mm Urinal Stand |

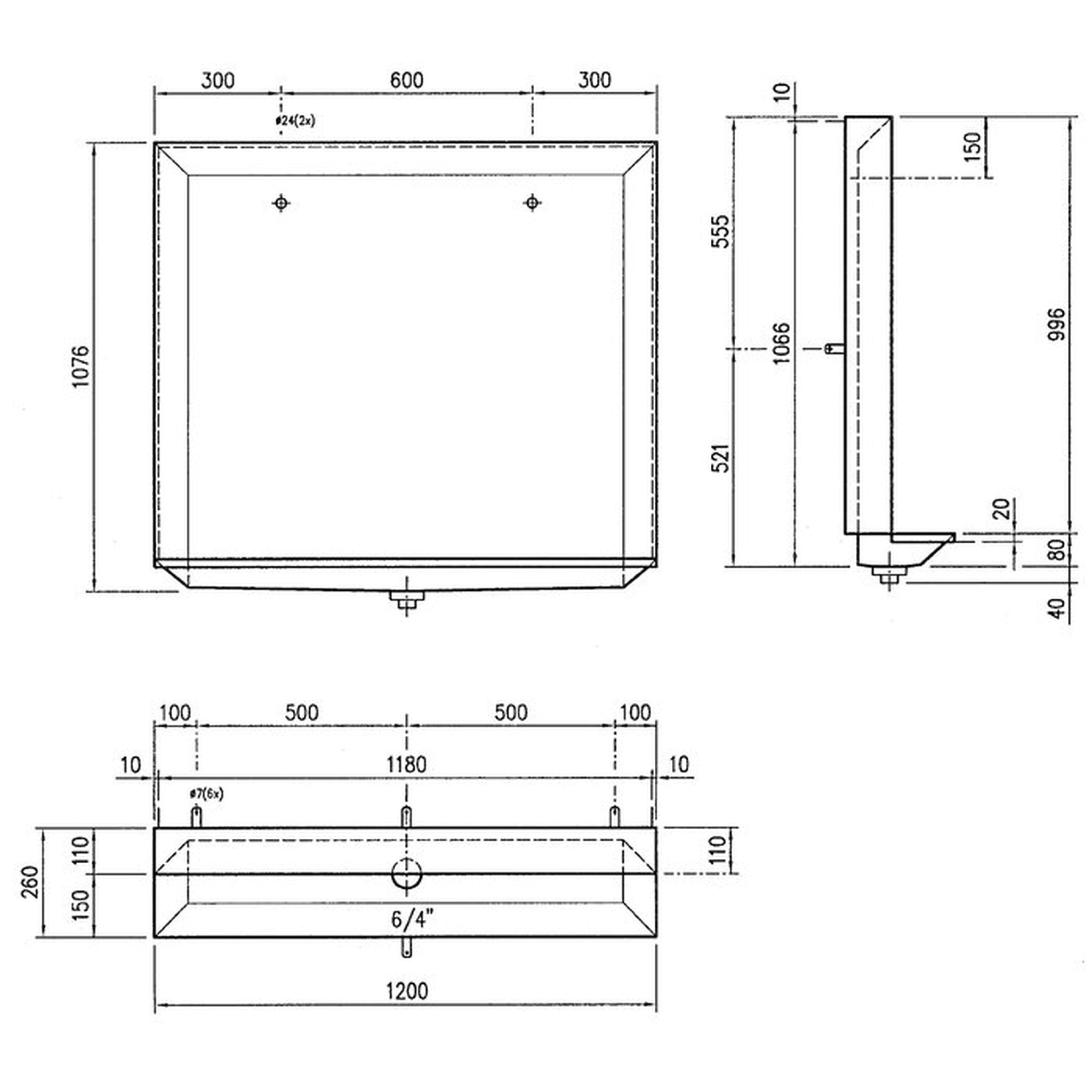

| BS551 | 1200mm Urinal Stand |

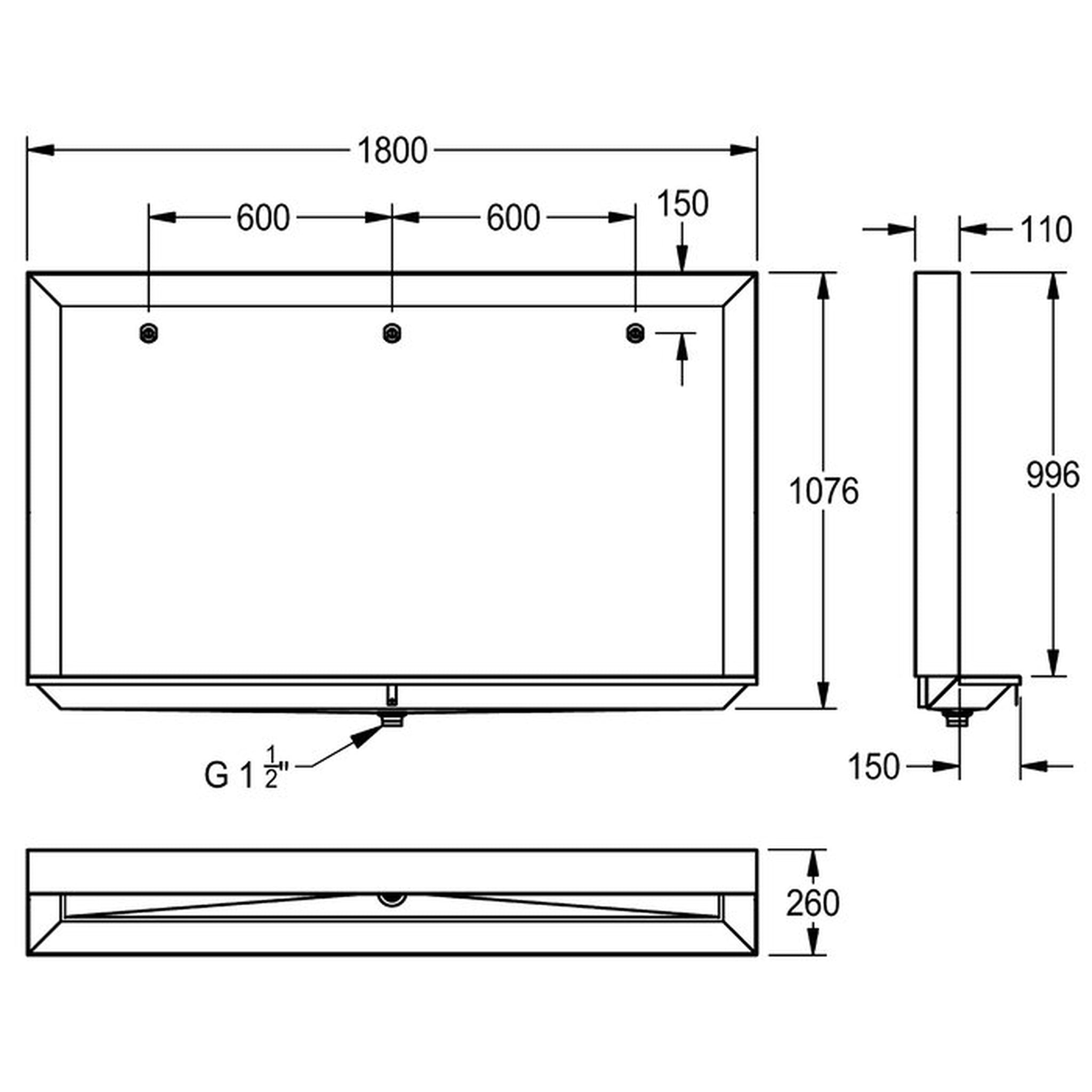

| BS552 | 1800mm Urinal Stand |
