KWC DVS Wall Mounted Urinal Bowl with Concealed Inlet

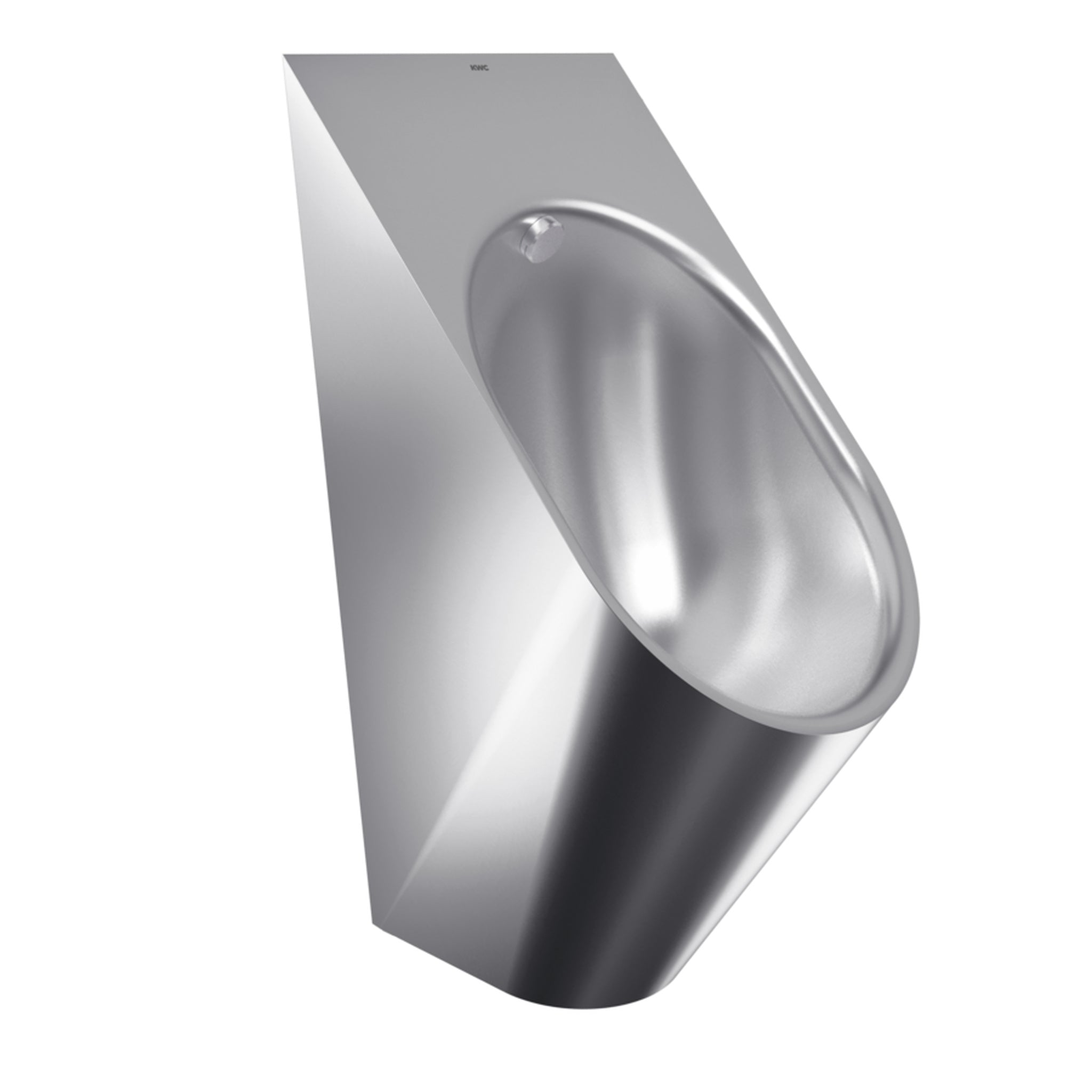

The Franke Campus CMPX539 is a wall mounted urinal bowl made from stainless steel. The bowl carries an oval shape and a satin finished surface, and the water inlet and outlet are concealed.
The urinal comes complete with a DN 40 siphon, a mounting strip, mounting material, a stainless steel spreader with G 1/2 connecting hose, and a punched strainer waste. Flush controls and pipework beyond the concealed connections are ordered separately.
Key Features
- Stainless Steel Construction: The bowl is formed from 304 chromium nickel steel, a grade long used in busy washrooms.
- Concealed Connections: Inlet and outlet run out of sight.
- Oval Bowl: The oval form suits standard commercial washroom layouts.
- Complete Fitting Kit: Siphon, mounting strip, mounting material, spreader with connecting hose and strainer waste: all in the box for the installer.

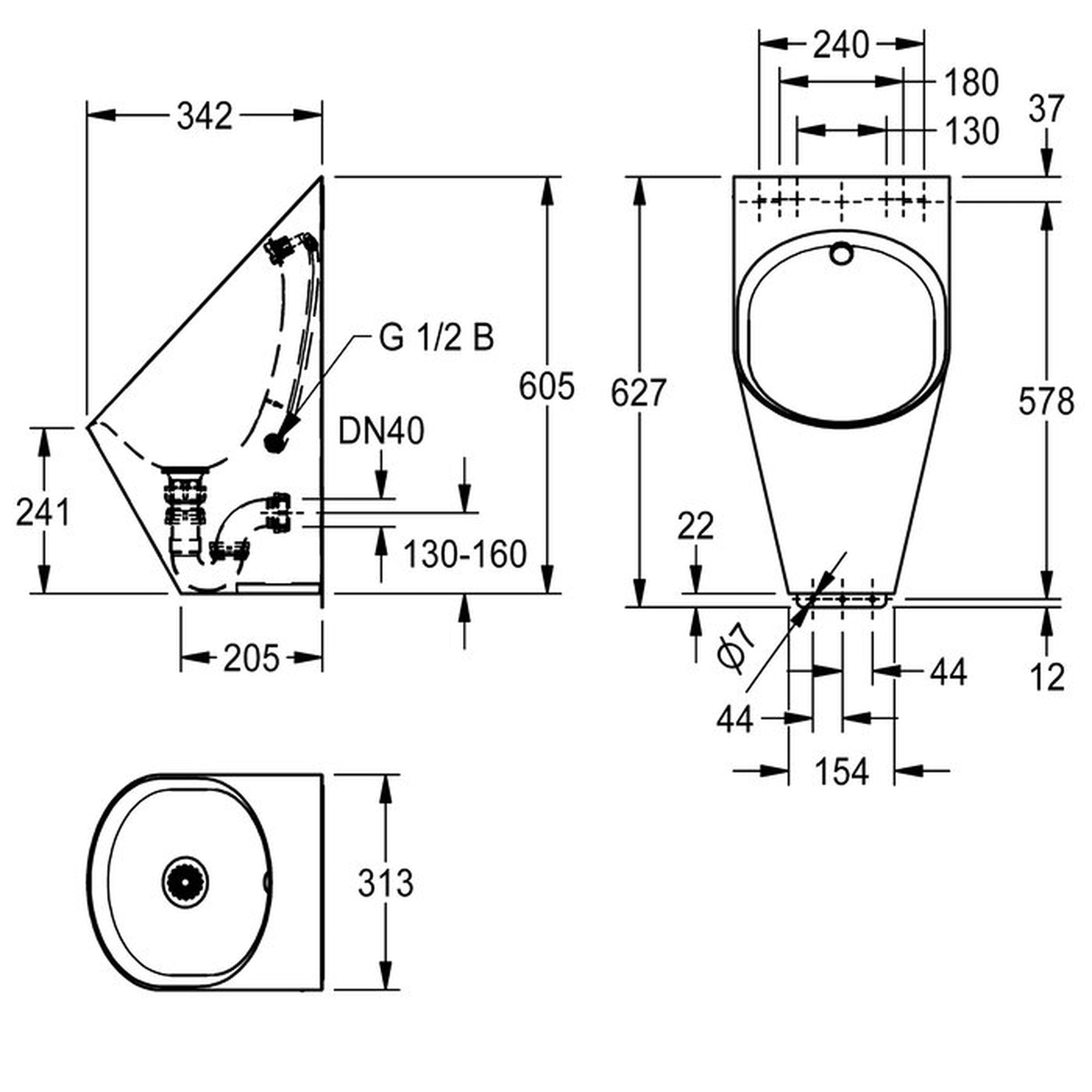

Franke Campus CMPX539 Stainless Steel Urinal Specifications
| Brand | KWC DVS |
|---|---|
| Material | 1.4301 chrome nickel steel V2A (304 chromium nickel stainless steel) |
| Bowl material thickness | 1.2mm |
| Shroud material thickness | 0.9mm |
| Bowl shape | Oval |
| Finish | Satin finished |
| Width | 313mm |
| Height | 627mm |
| Depth | 342mm |
| Type of mounting | Wall mounted |
| Water inlet | Concealed |
| Water outlet | Concealed |
| Inlet size | G 1/2 |
| Outlet size | DN 40 |
| Supplied with | DN 40 siphon, mounting strip, mounting material, stainless steel spreader with G 1/2 connecting hose, punched strainer waste |
Franke Campus CMPX539 Stainless Steel Urinal Manuals & Downloads
Specification Sheets
Installation Guides
Frequently Asked Questions
Does this urinal work with a standard flush valve?
The bowl is water flushed and takes a concealed G 1/2 inlet connection, so it pairs with a concealed flush valve or automatic flush control fed to that size.
What outlet does it connect to?
The bowl outlet is DN 40 and runs to the supplied DN 40 siphon.
Can this replace an existing wall mounted urinal?
It suits a retrofit where a concealed inlet and DN 40 outlet already run to the wall. Where the existing supply is exposed, the pipework will need altering first to bring it behind the wall face.
Is the spreader and strainer waste included, or ordered separately?
Both arrive with the unit. The stainless steel spreader comes with its G 1/2 connecting hose, and the punched strainer waste is supplied for the outlet.
How is the bowl fixed to the wall?
A mounting strip and mounting material are supplied with the urinal for wall mounting. Fixings should suit the wall construction on site.
