L Stall Urinal Trough
The Delabie L floor recessed stall urinal trough is a single stall commercial urinal measuring 600 x 1020 x 300mm, constructed from 304 bacteriostatic polished satin stainless steel with 1.2mm wall thickness. Designed for floor recessed installation with back/recessed water supply connection, suitable for high traffic commercial washroom environments. The 304 stainless steel construction provides bacteriostatic properties for hygienic maintenance across commercial and public facilities.
Available in three widths to accommodate different stall configurations: 600mm single stall, 1200mm two place trough, and 1800mm three place trough. Certified to PZH standards and backed by Delabie's 30 Year manufacturer warranty.
Key Features
- Bacteriostatic 304 stainless steel: Inhibits bacterial growth on contact surfaces, supporting hygiene standards in commercial washrooms
- Floor recessed installation: Trough recesses into the floor for a flush, low profile fit suitable for new build and refurbishment projects
- Back/recessed water supply: Concealed pipework connection reduces exposure of services and simplifies maintenance access
- Polished satin finish: 304 stainless steel satin polish provides corrosion resistance for longevity in wet environments
- Three width options: Single (600mm), double (1200mm), and triple (1800mm) configurations accommodate different capacity requirements without changing the core specification
- PZH certified: Independently certified to PZH standards for use in commercial and public washroom applications
- 30 Year warranty: Manufacturer warranty of 30 years across all three variants
Delabie L Stall Urinal Troughs Specifications
| Material | 304 polished satin stainless steel |
|---|---|
| Width | 600mm / 1200mm / 1800mm |
| Height | 1020mm |
| Depth | 300mm |
Delabie L Stall Urinal Troughs Manuals & Downloads
Frequently Asked Questions
Is this urinal surface mounted or recessed into the floor?
All three variants are floor recessed, meaning the trough unit is set into the floor during installation. Water supply is via a back/recessed connection.
Are other sizes available?
The Delabie L Stall Urinal comes in 600mm, 1200mm, 1800mm Lengths
Available Variants
| SKU | Configuration | Width |
|---|---|---|

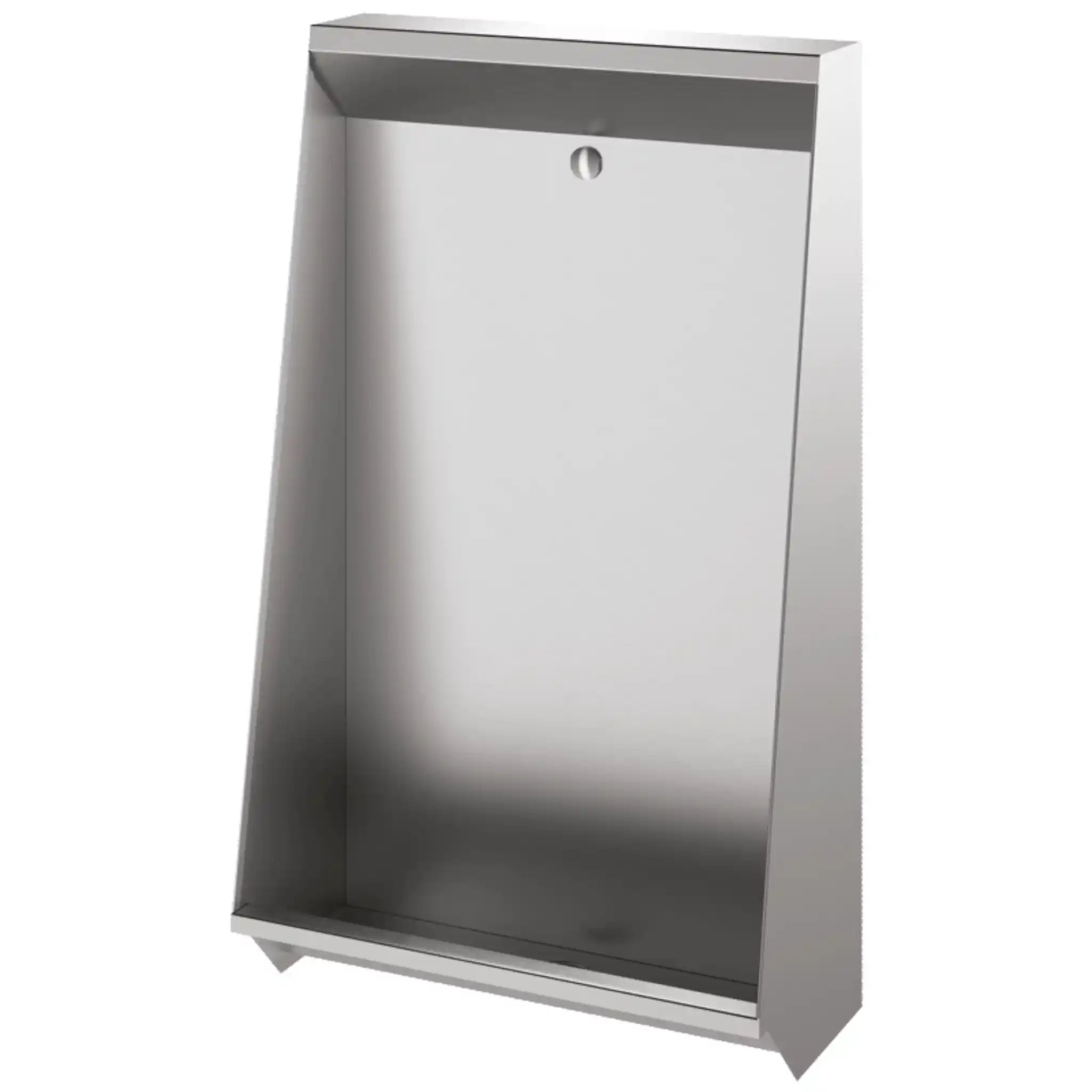

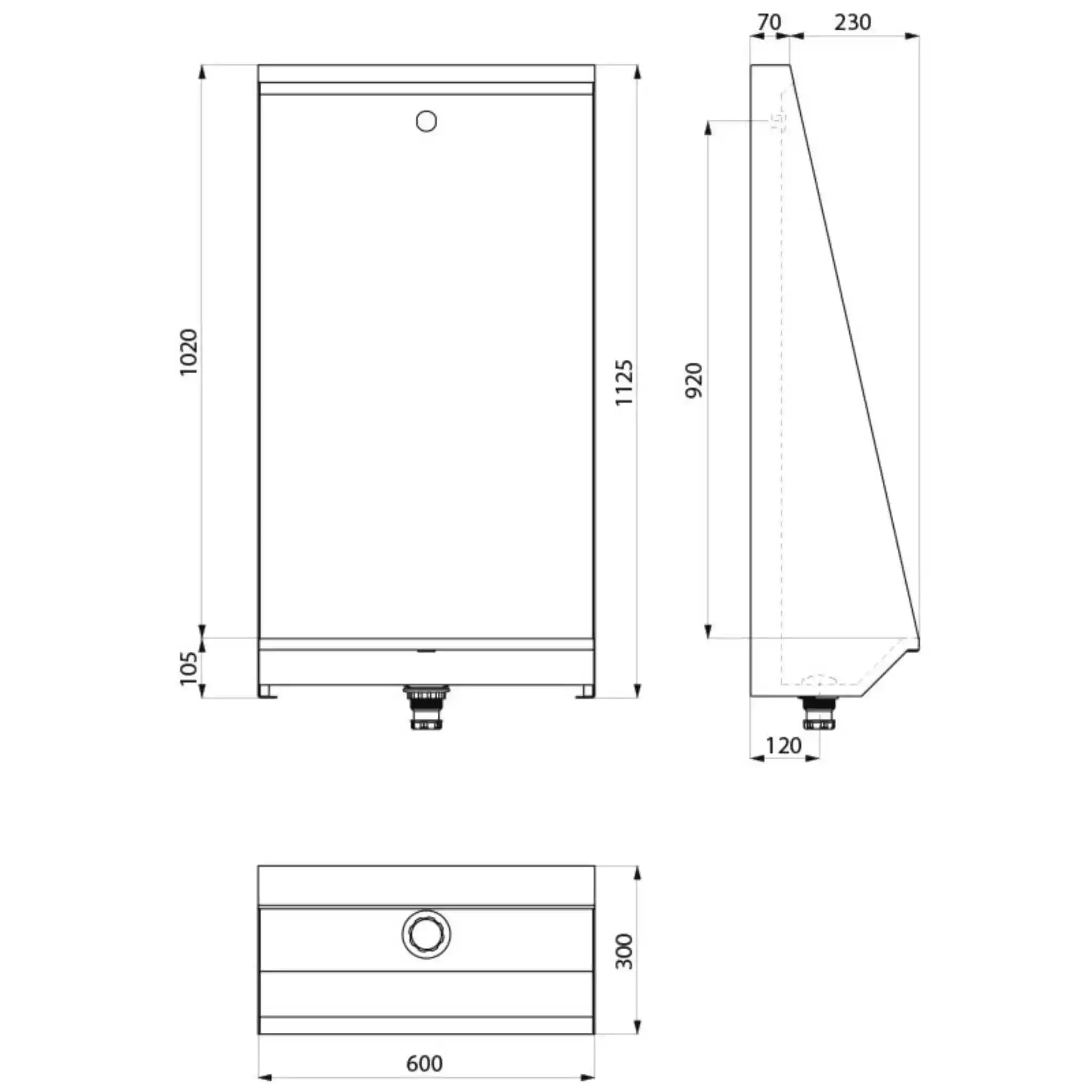

| 130200 | Single stall | 600mm |

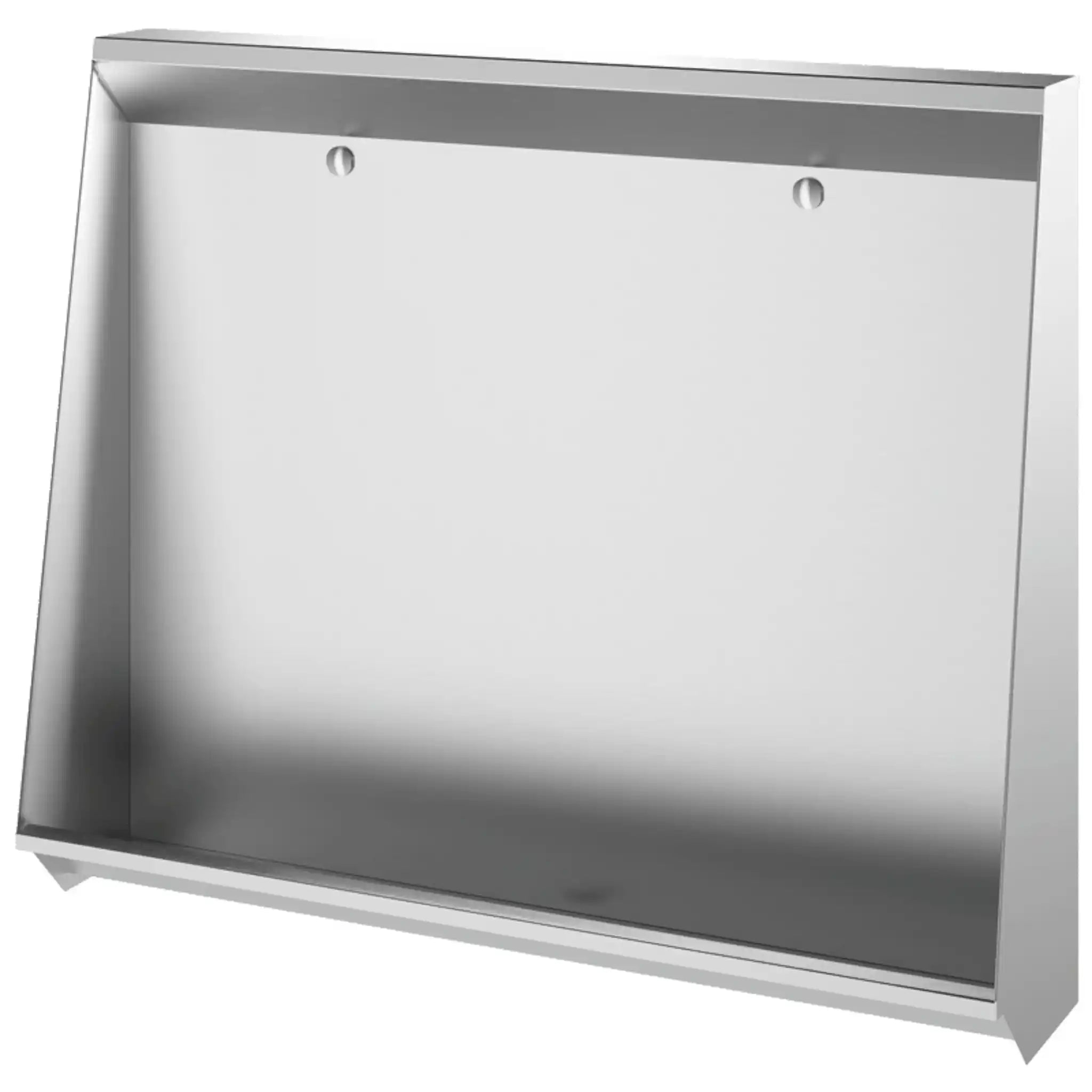

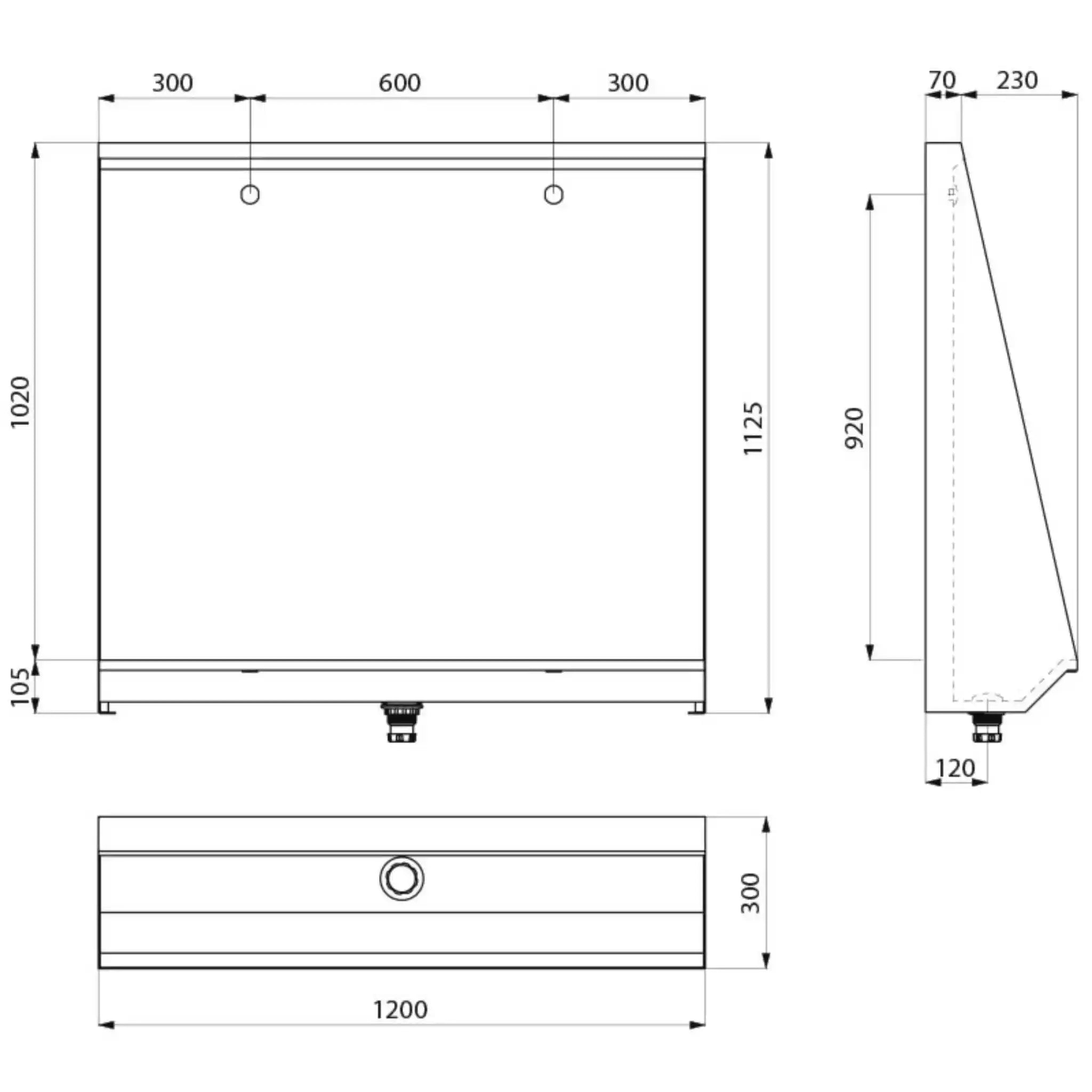

| 130210 | 2 places | 1200mm |

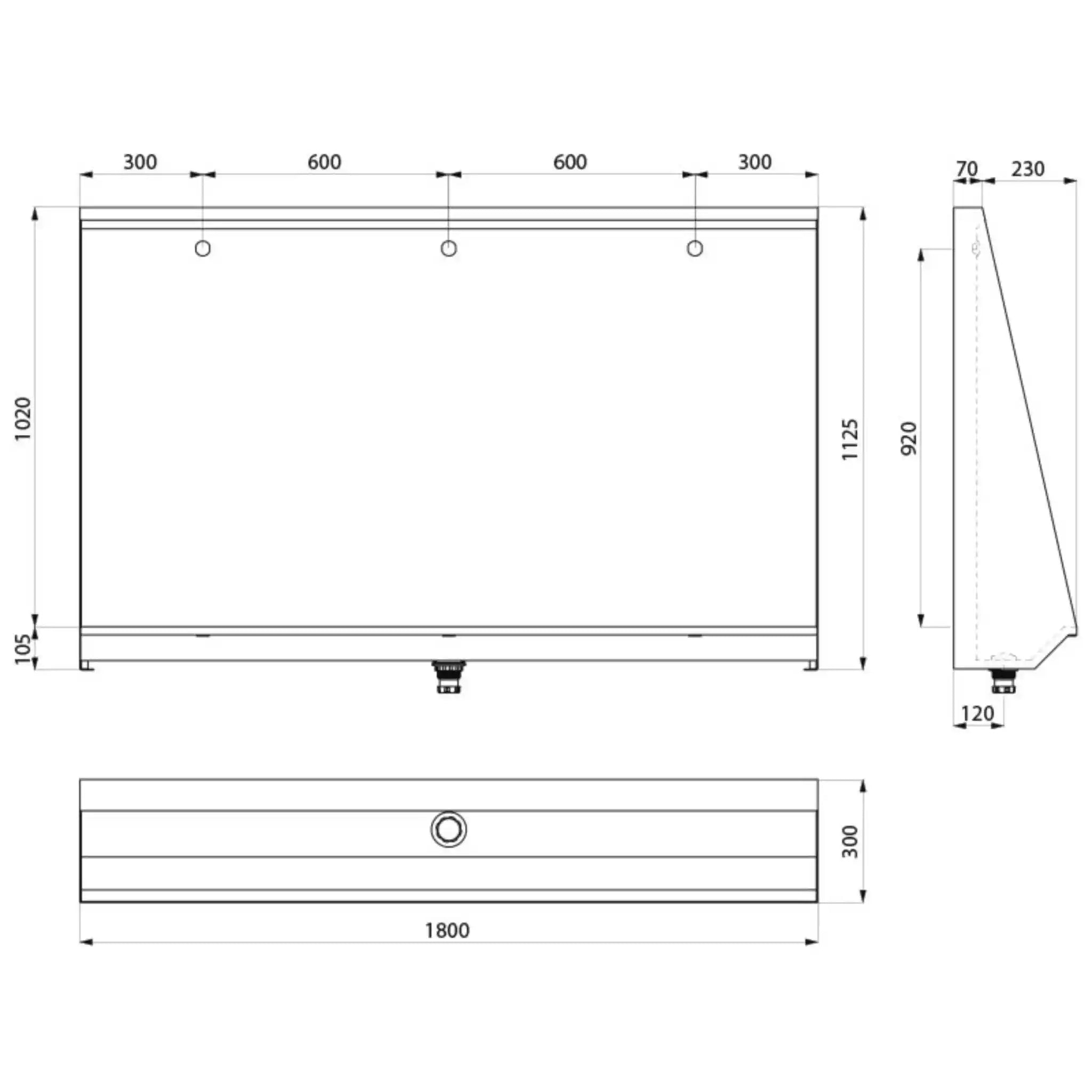

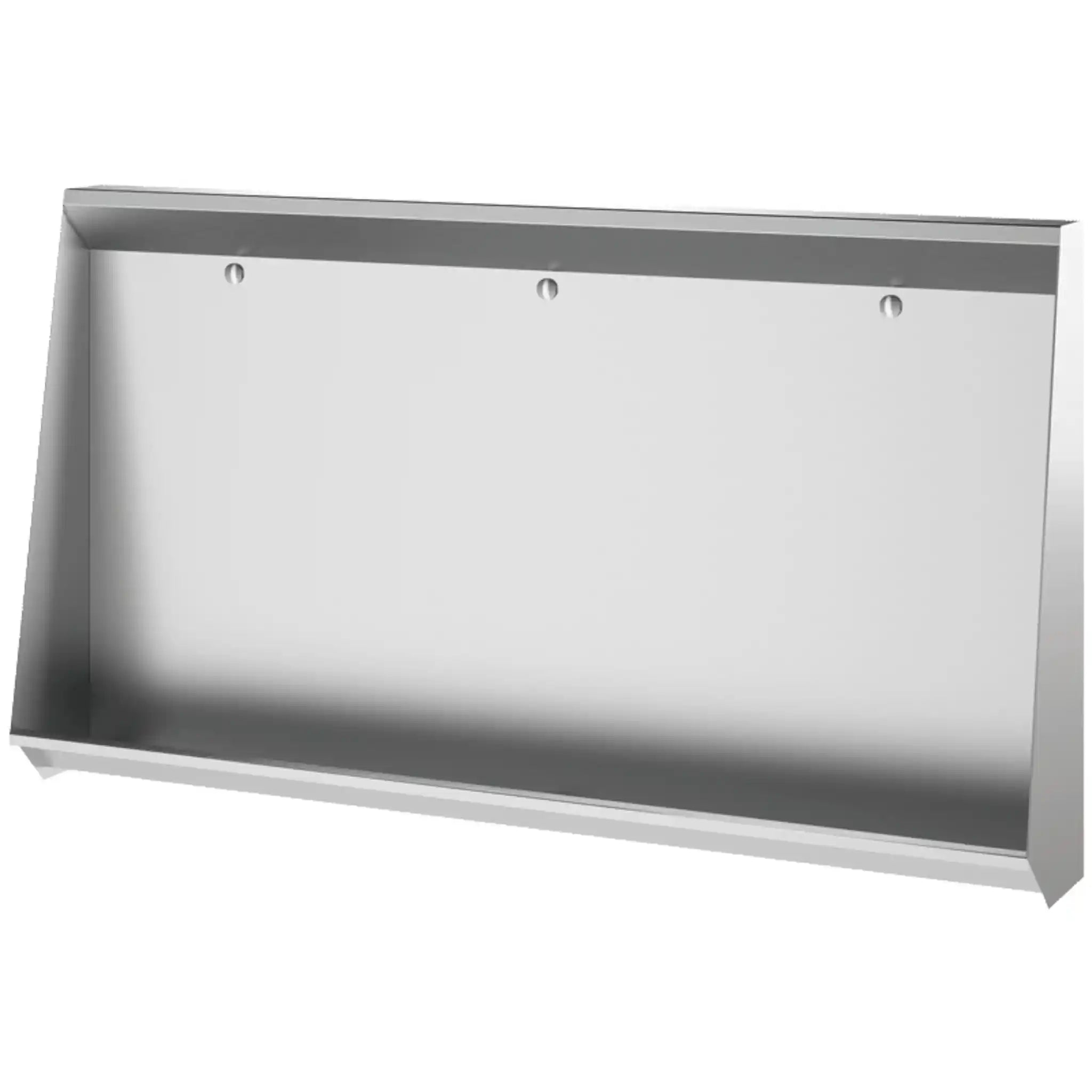

| 130220 | 3 places | 1800mm |
