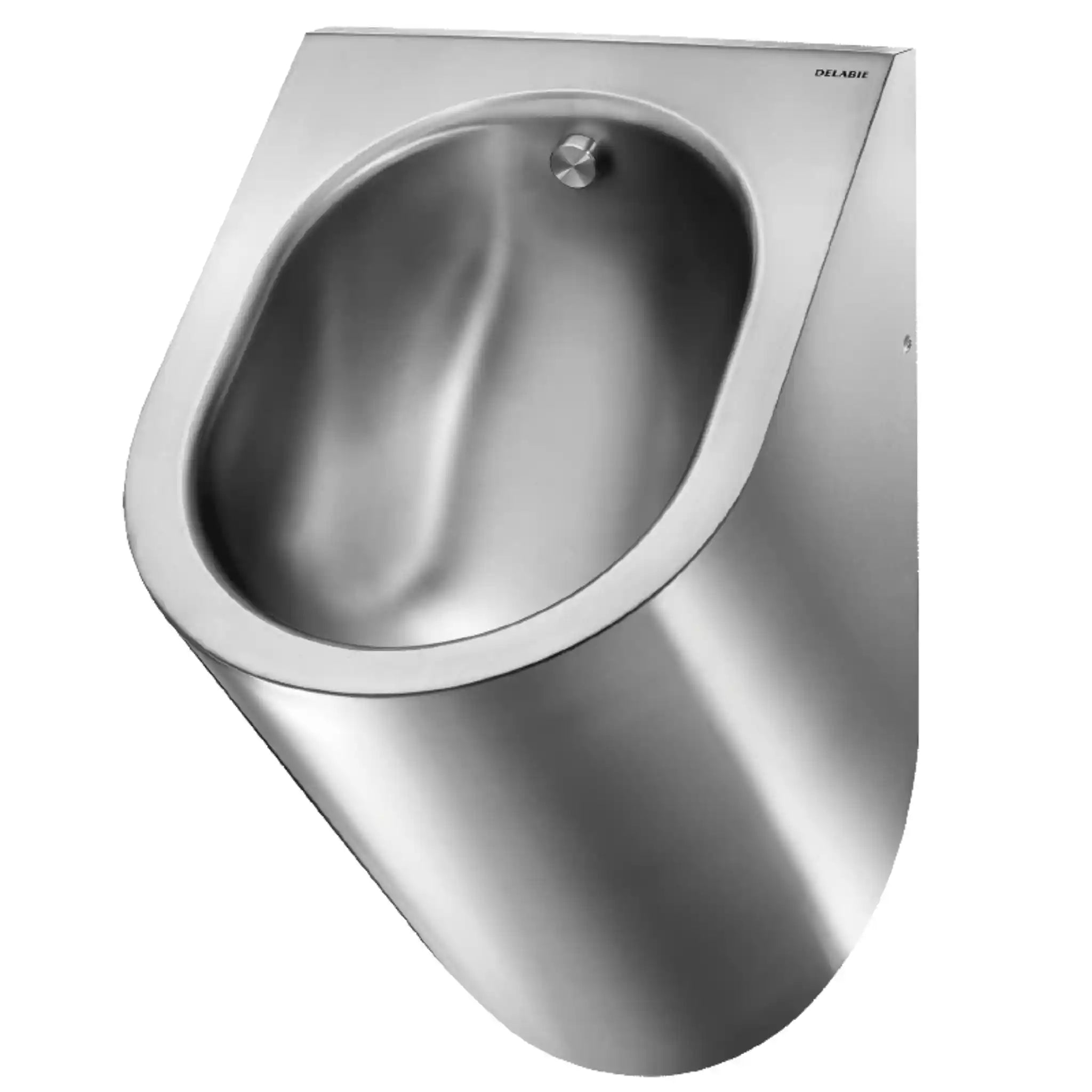

An image of Delabie Delta Urinal Polished Satin Finish Rear Water Inlet Recessed

Delabie Delta Urinal

by Delabie

£545.00 ex VAT

£654.00 inc VAT

SKU: 134770

Configuration
Finish
Need help with this product? Give us a call and we will get you sorted.
020 4571 5856

Delta Wall Hung Urinal

The Delabie DELTA wall hung individual rimless urinal measures 585mm height x 385mm length x 350mm width with 1.2mm wall thickness. Constructed from bacteriostatic 304 polished satin stainless steel for use in commercial washroom environments. Designed for wall hung installation with a rear recessed water inlet. Available in four variants across different inlet configurations and finishes to suit new build and refurbishment projects.

CE certified and backed by Delabie's 30 year manufacturer warranty.

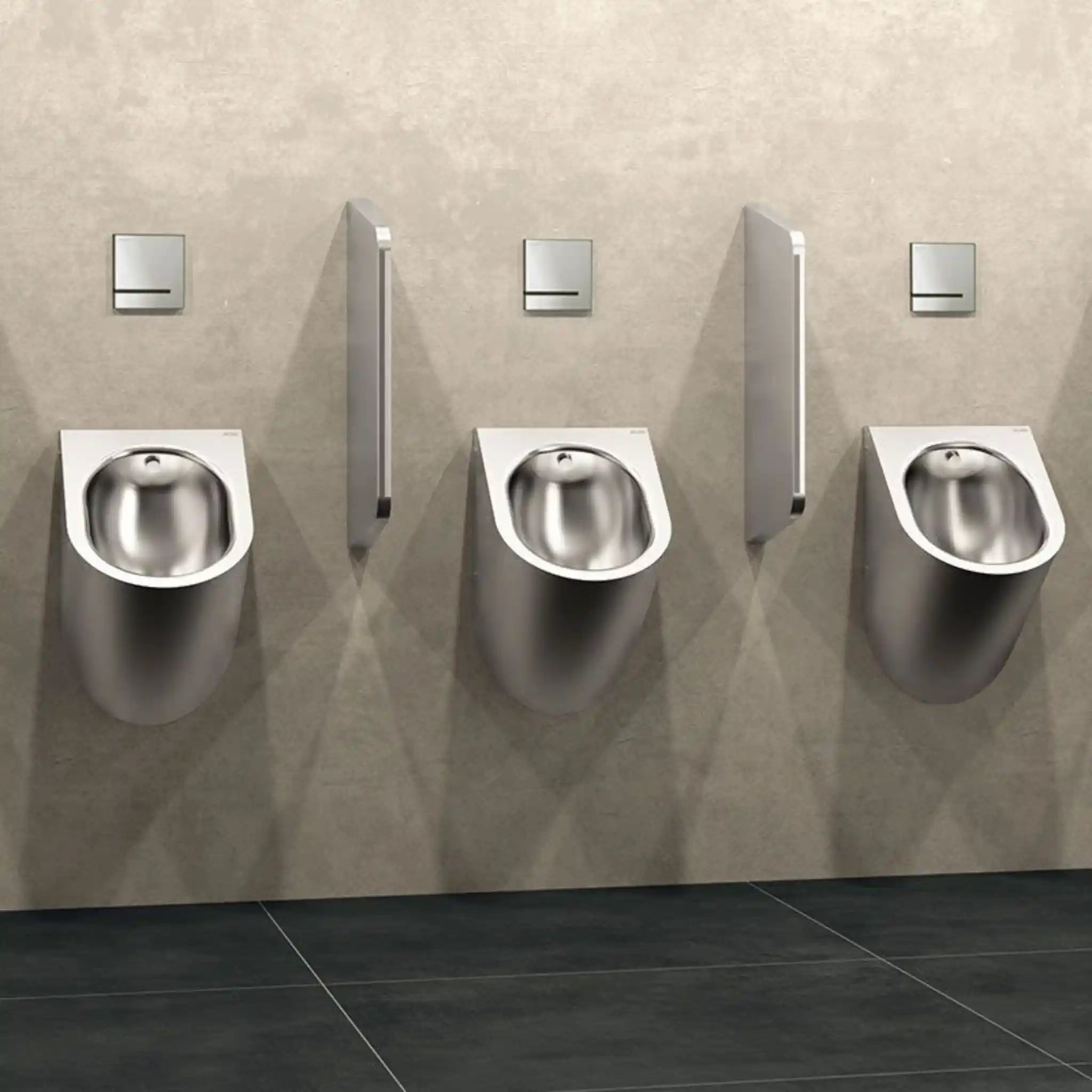

An overview image of Delabie Delta Urinal

Key Features

  • Bacteriostatic 304 Stainless Steel: Inhibits bacterial growth on contact surfaces, suitable for high traffic commercial washrooms
  • Rimless Design: No rim channels to collect waste, supporting easier cleaning and maintenance routines
  • 1.2mm Wall Thickness: Structural steel gauge providing durability for commercial and public facility use
  • Rear Recessed Water Inlet: Pipework concealed within the wall for a clean installation finish
  • Multiple Inlet and Outlet Configurations: Four variants available to suit recessed or exposed pipework installations
  • CE Certified: Meets CE marking requirements for commercial sanitary ware
  • 30 Year Warranty: Manufacturer warranty on all DELTA urinal variants

Delabie Delta Urinal Specifications

Material Bacteriostatic 304 stainless steel
Height 585mm (Variant 134170 is 500mm)
Length 385mm
Width 350mm

Delabie Delta Urinal Manuals & Downloads

Frequently Asked Questions

What inlet configurations are available for the DELTA wall hung urinal?

Four variants are available. Two feature a rear recessed inlet, one features a top exposed inlet with recessed waste, and one features a visible exposed inlet and outlet.

Is a dual finish option available?

Yes. One variant is supplied in a dual finish 304 stainless steel. All other variants are polished satin finish.

Available Variants

SKU Finish Inlet Type Waste Height

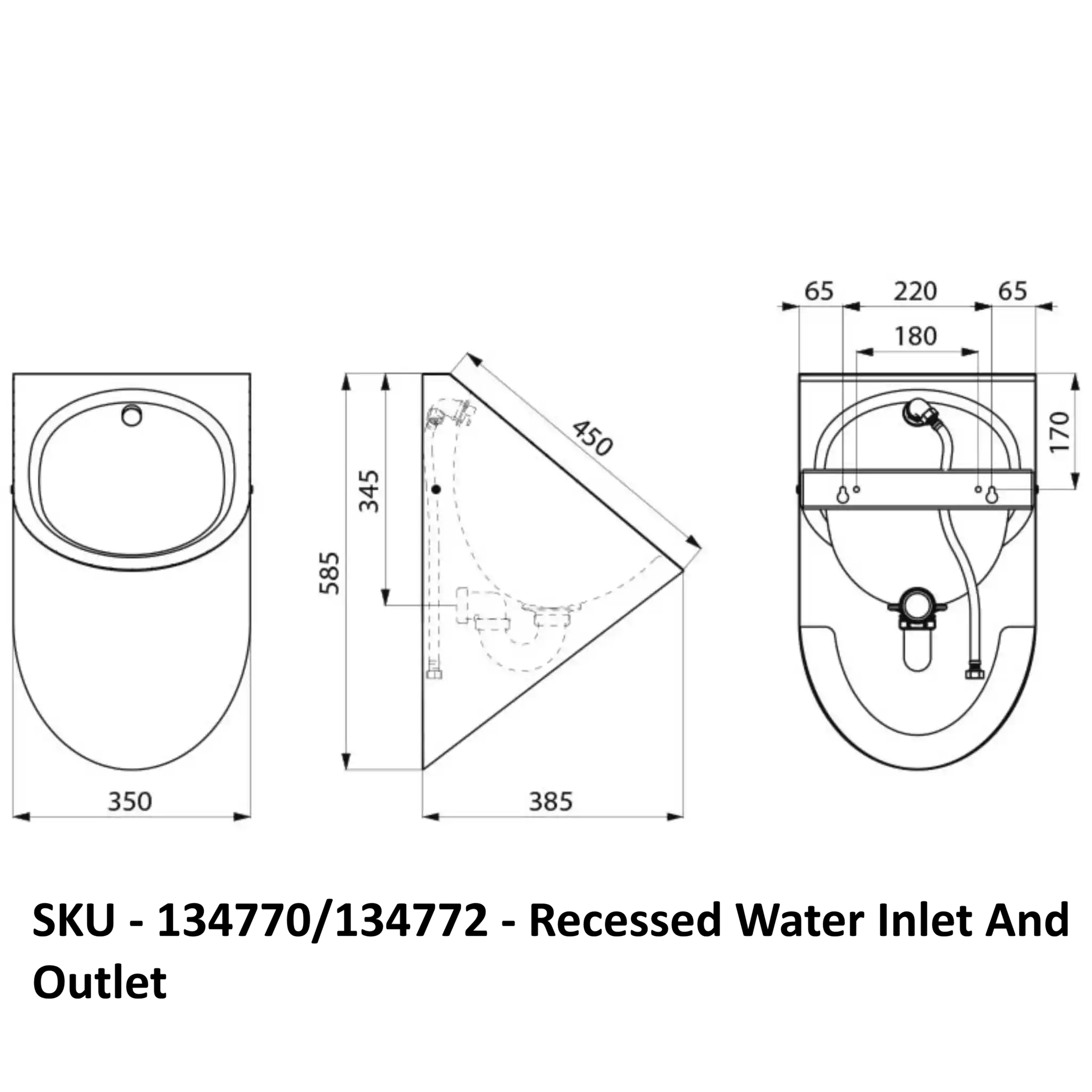

134770 304 polished satin stainless steel Rear recessed Recessed 585mm

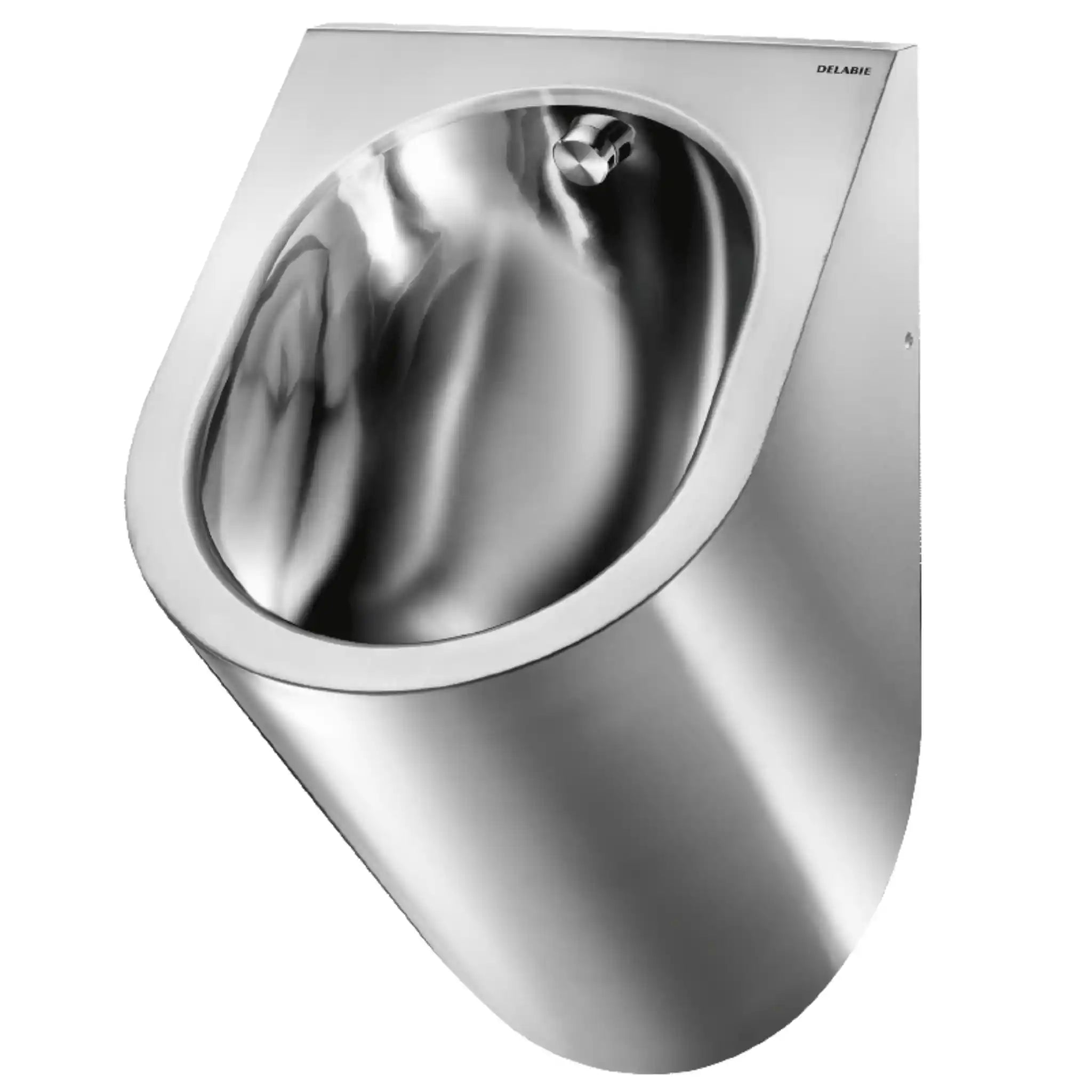

134772 Dual finish 304 stainless steel Rear recessed Recessed 585mm

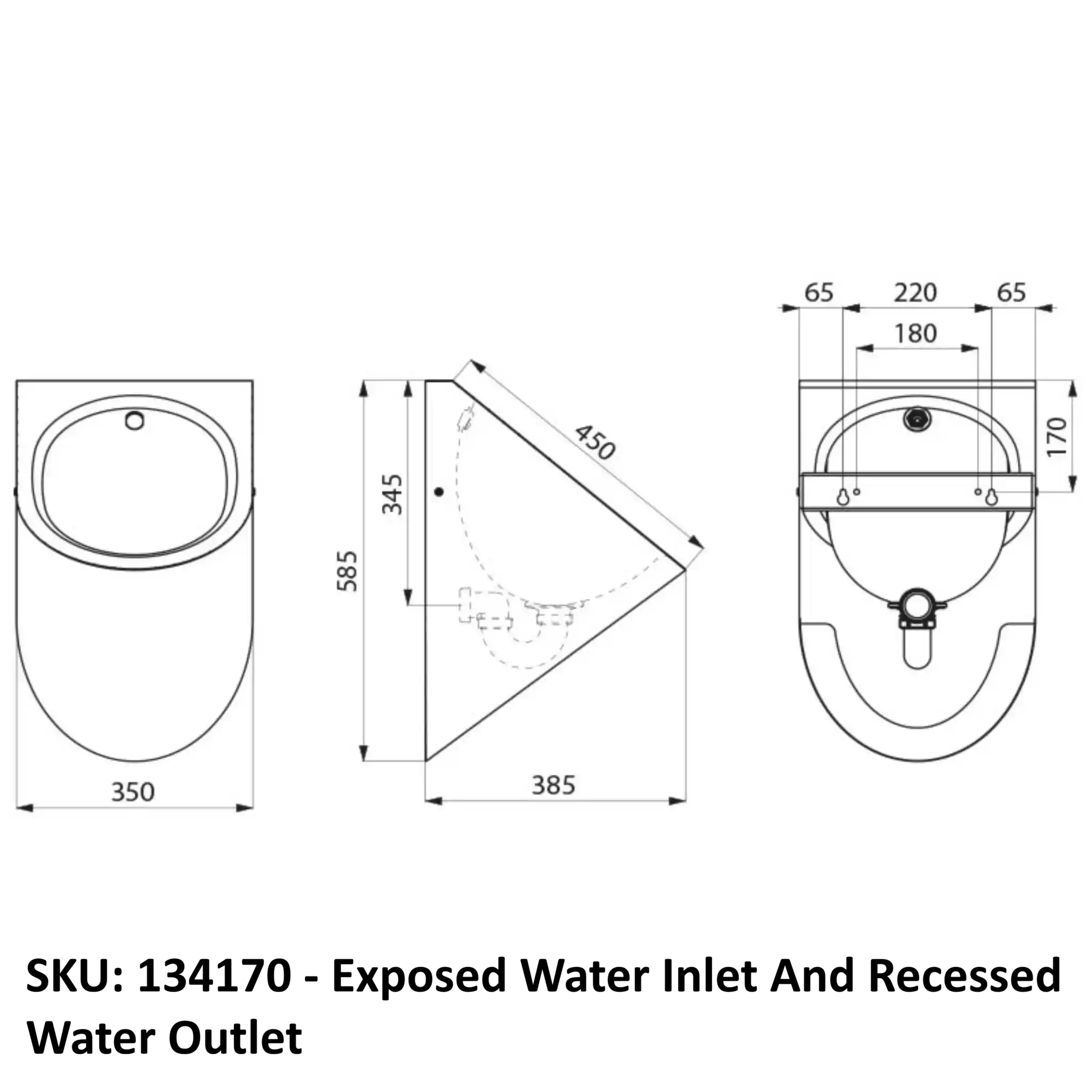

134170 304 polished satin stainless steel Top exposed Recessed 585mm

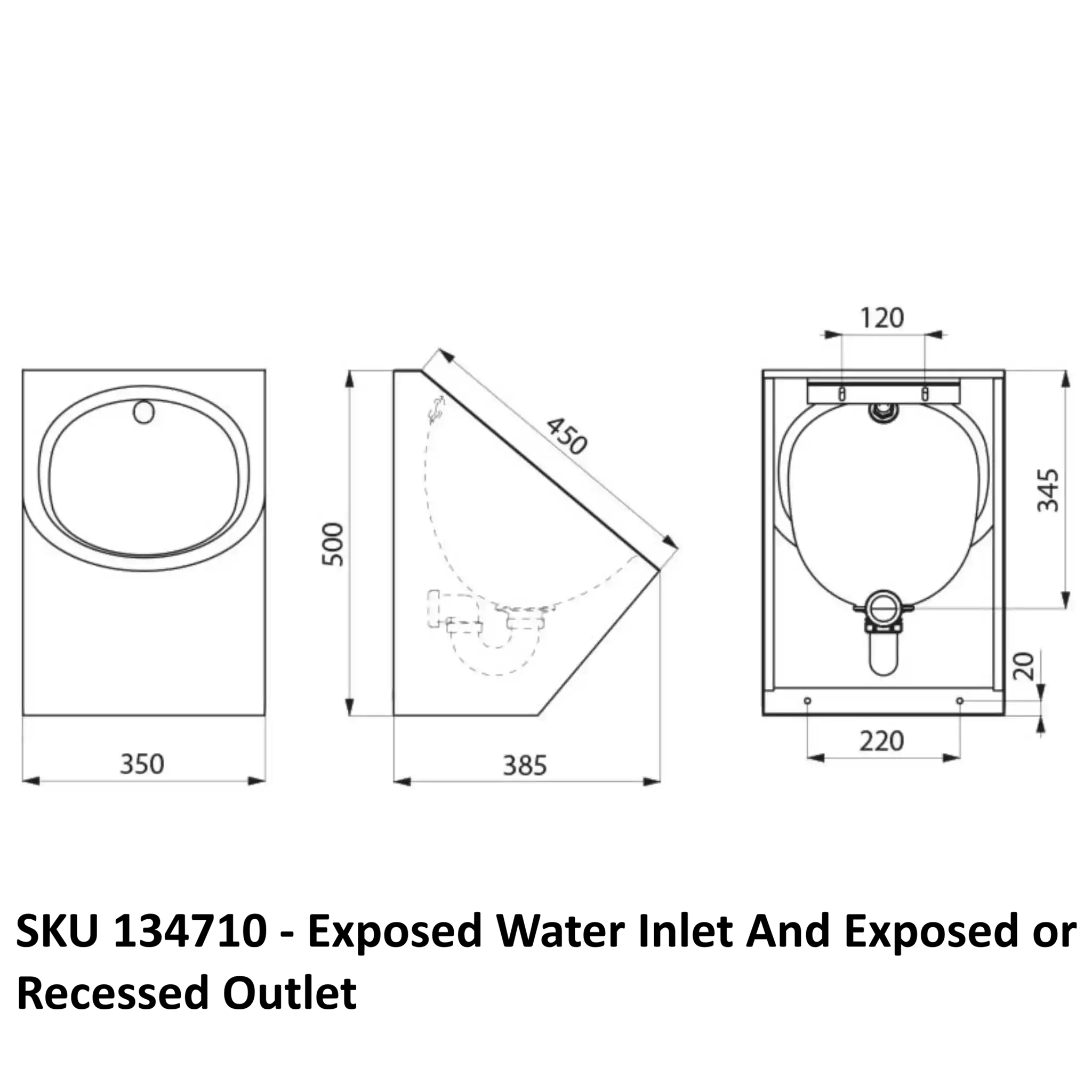

134710 Polished satin 304 stainless steel Exposed Recessed or exposed 500mm
