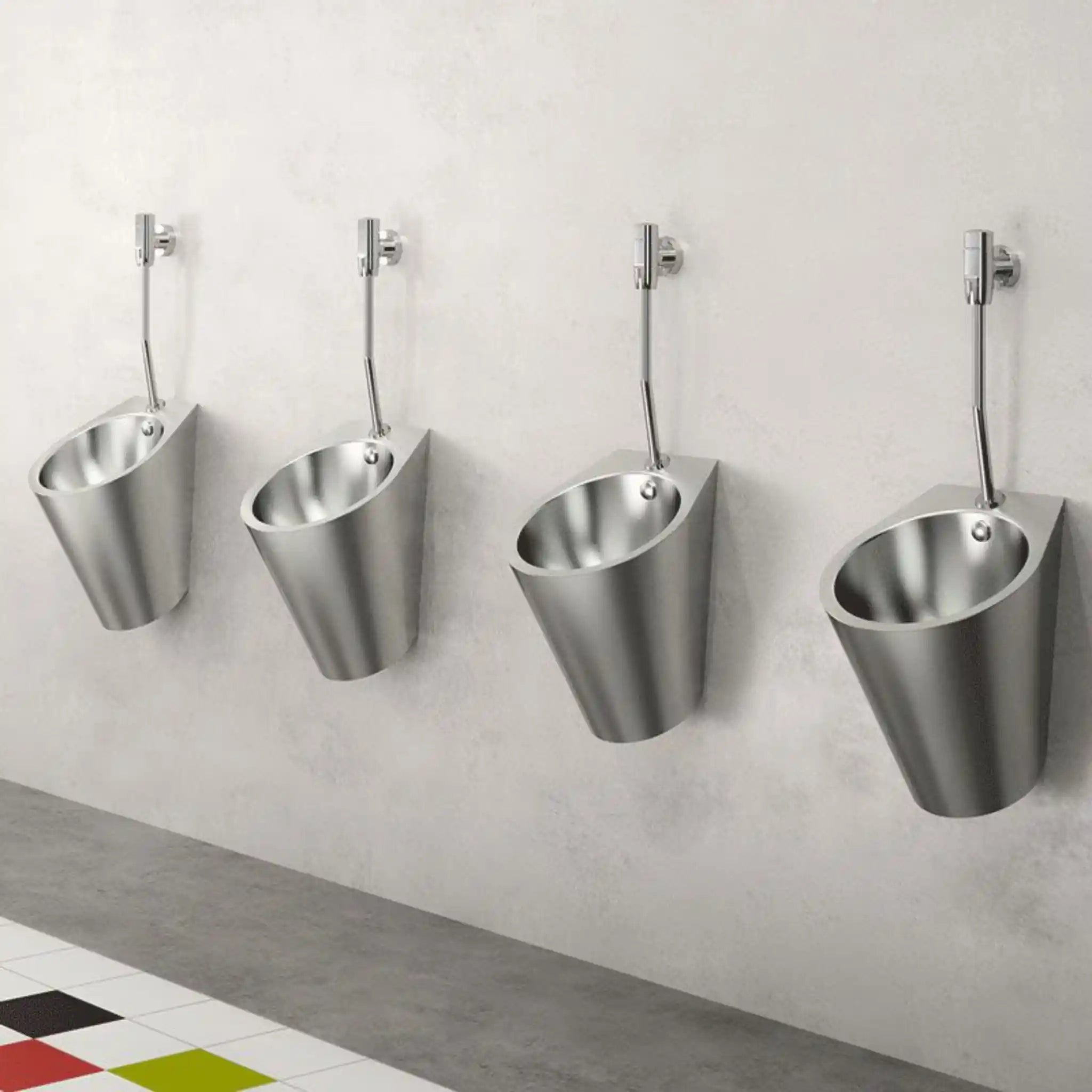

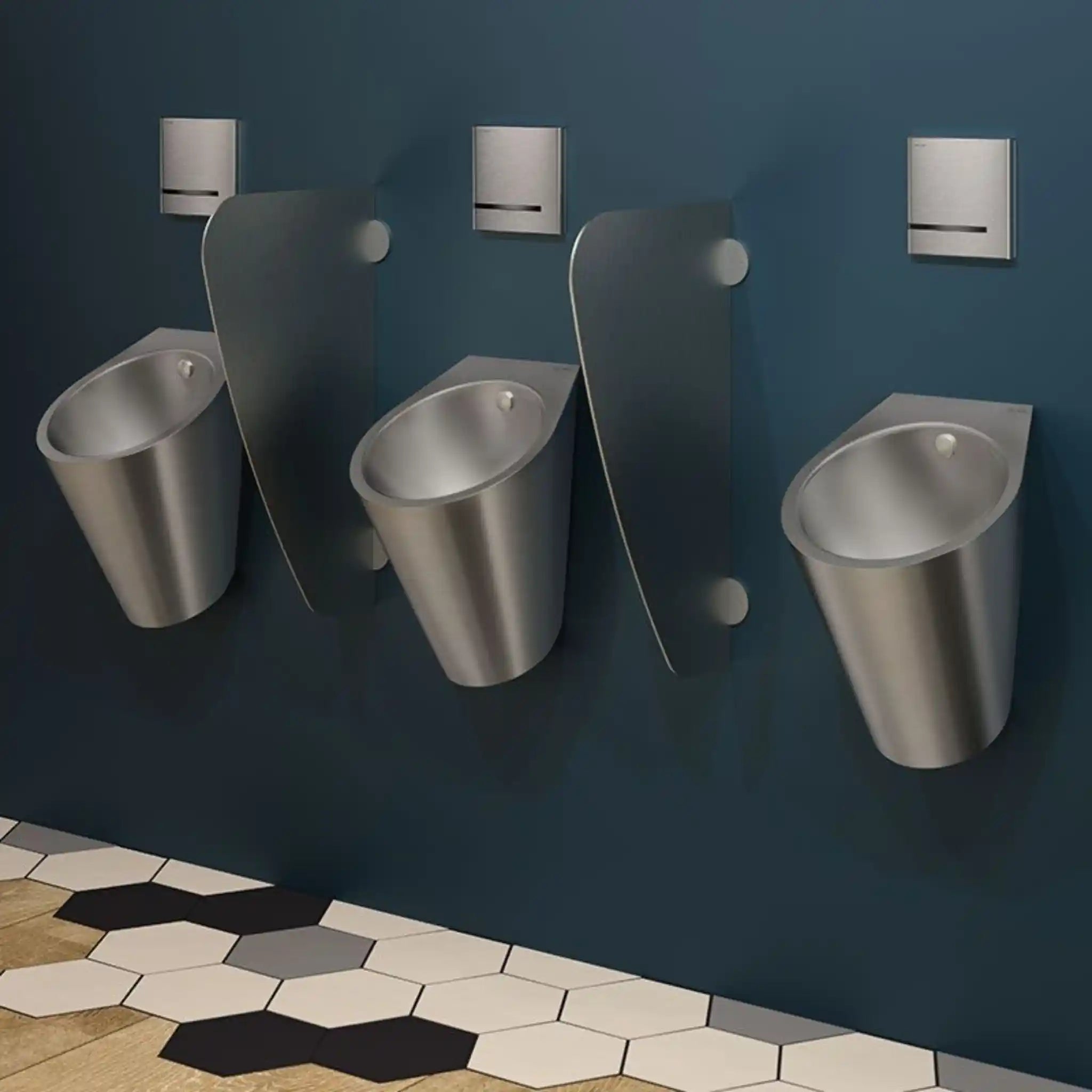

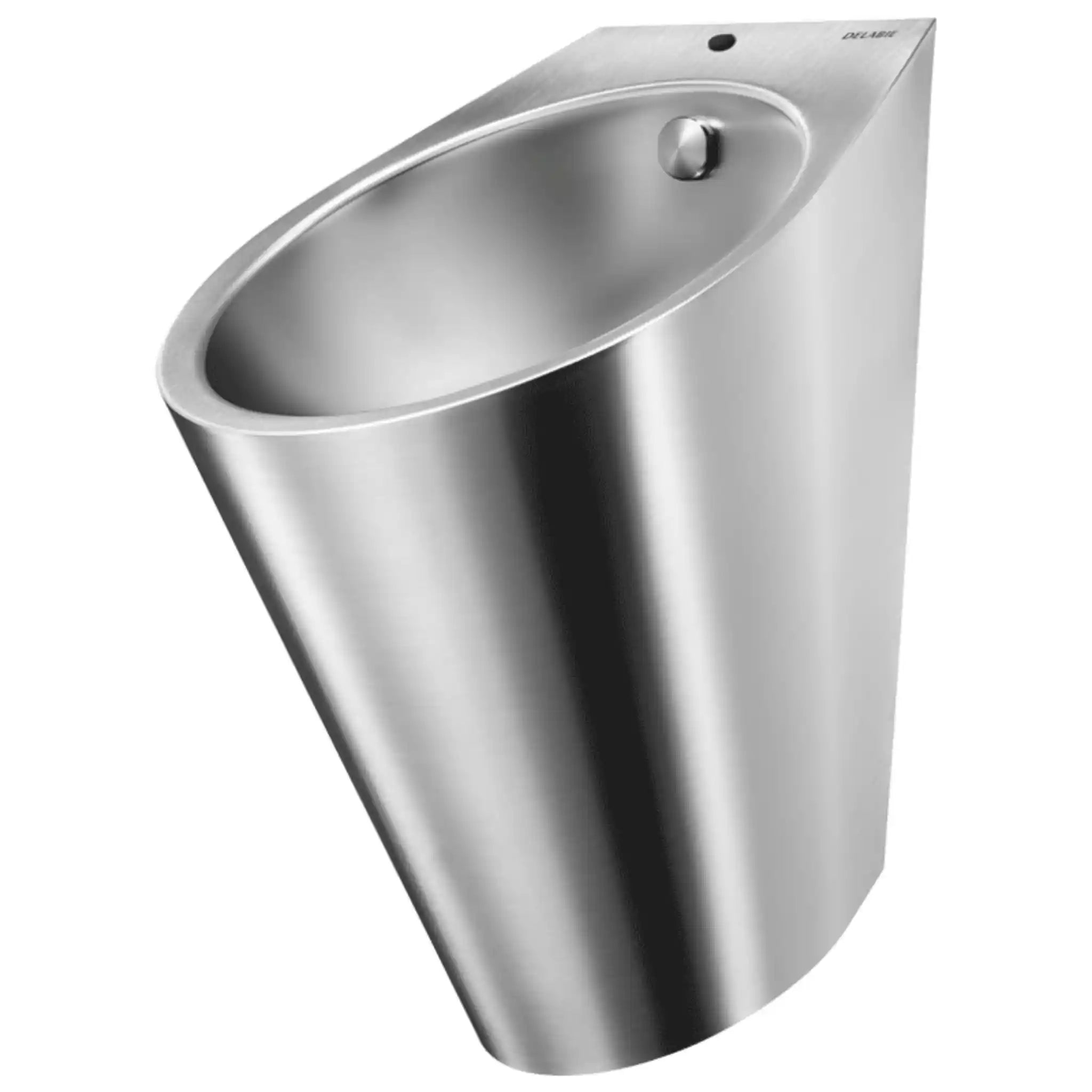

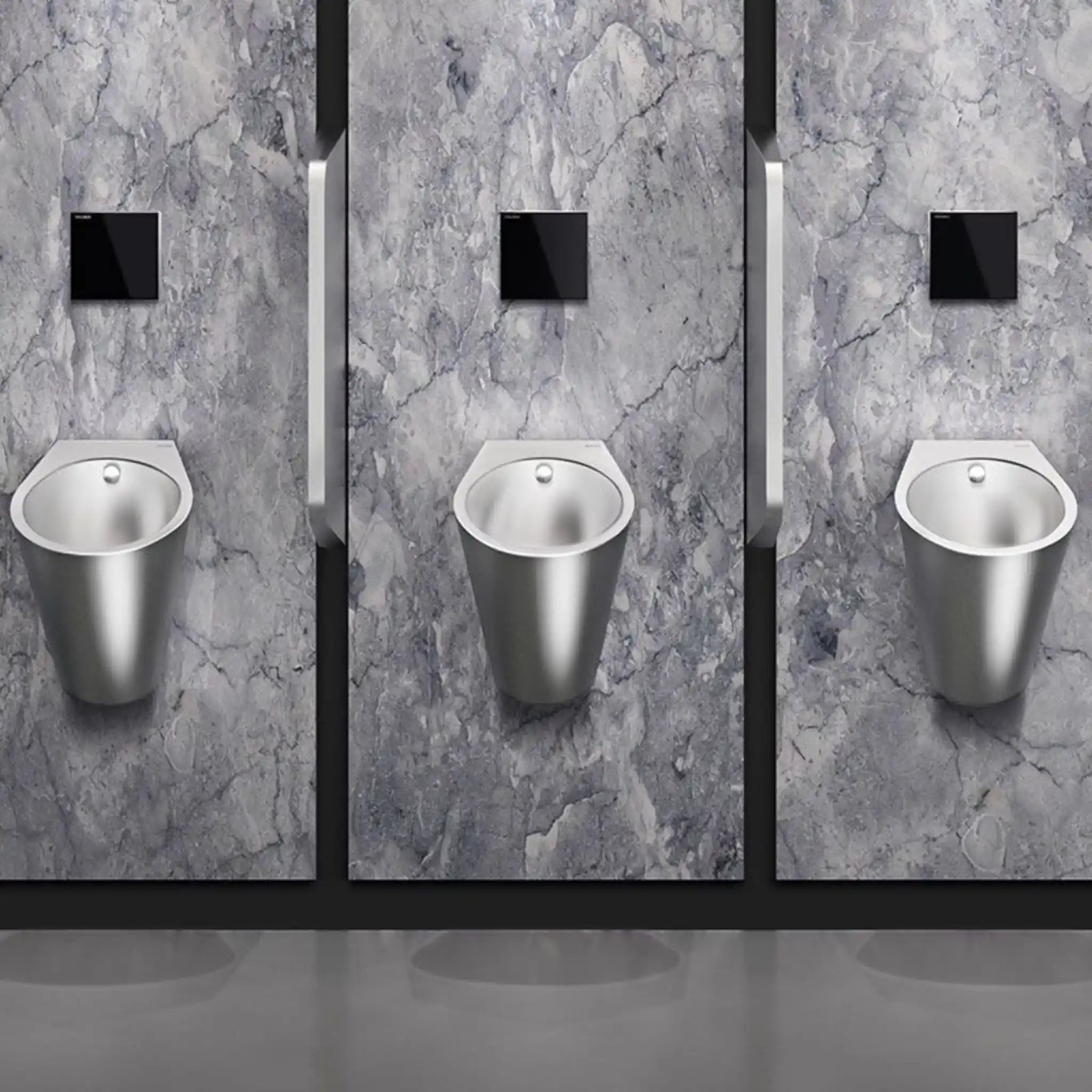

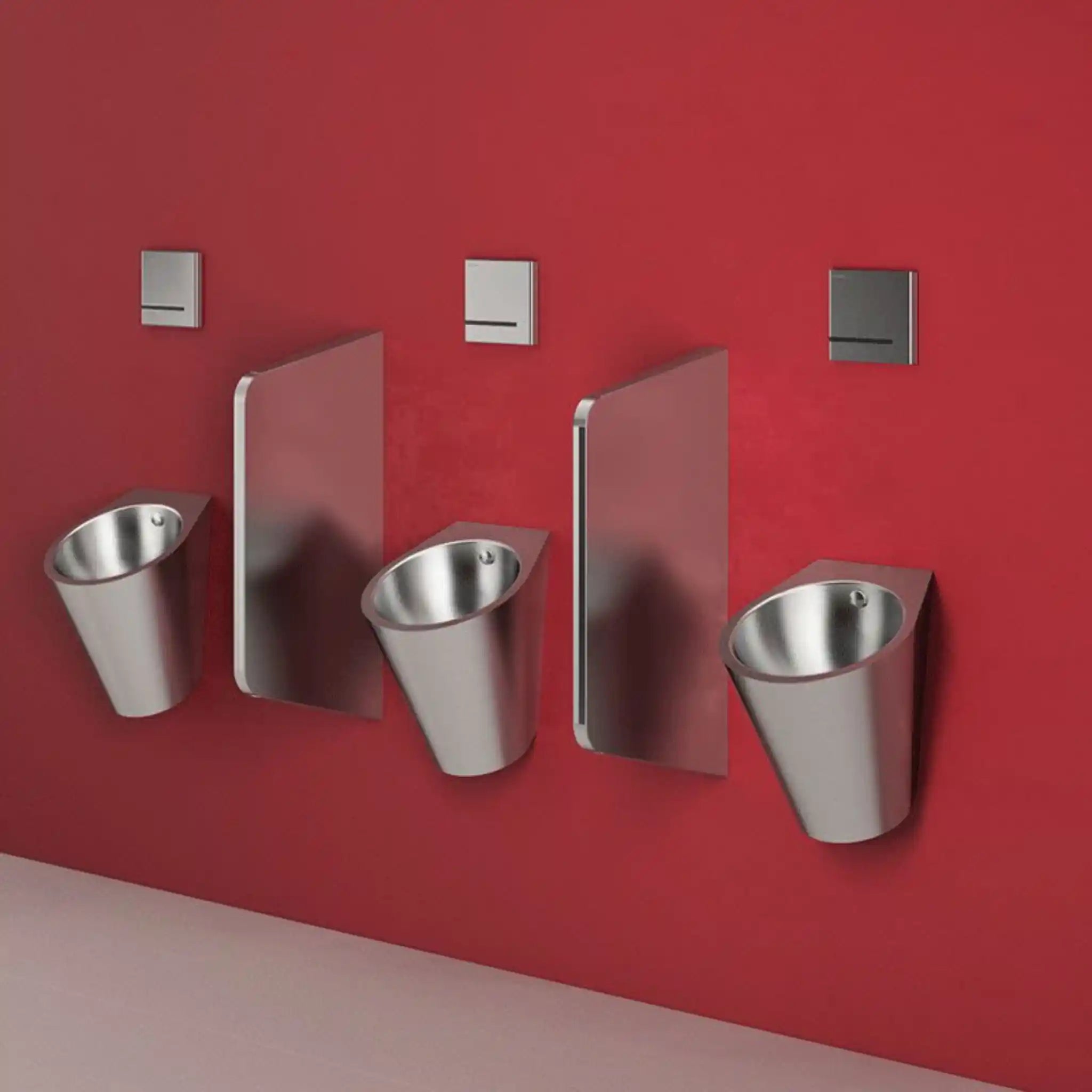

Fino Wall Hung Urinal
The Delabie FINO is a wall hung individual rimless urinal for commercial washrooms, measuring 420mm high x 280mm long x 290mm wide. Constructed from bacteriostatic 304 stainless steel with 1.2mm wall thickness and polished satin finish.
Designed for wall hung installation with a rear/recessed water supply inlet for concealed pipework. The rimless bowl design eliminates the rim channel, reducing areas where soiling can accumulate. CE certified and backed by Delabie's 30 year manufacturer warranty. Also available with top/exposed inlet or in matte black Teflon® finish.
Product Video
Key Features
- Bacteriostatic 304 stainless steel: Inhibits bacterial growth on the surface, supporting hygiene standards in high traffic commercial washrooms
- Rimless bowl design: No rim channel eliminates concealed soiling areas, reducing cleaning time and maintenance
- 1.2mm wall thickness: Provides structural durability for demanding commercial and public washroom environments
- Rear/recessed inlet: Allows water supply pipework to be fully concealed within the wall
- Top/exposed inlet option: Enables surface run pipework connection where wall concealment is not possible
- Matte black Teflon® coating option: Teflon® coating withstands intensive use and is resistant to cleaning chemicals
- 30 year manufacturer warranty: Covers the full product with Delabie's stated 50 year spare parts availability

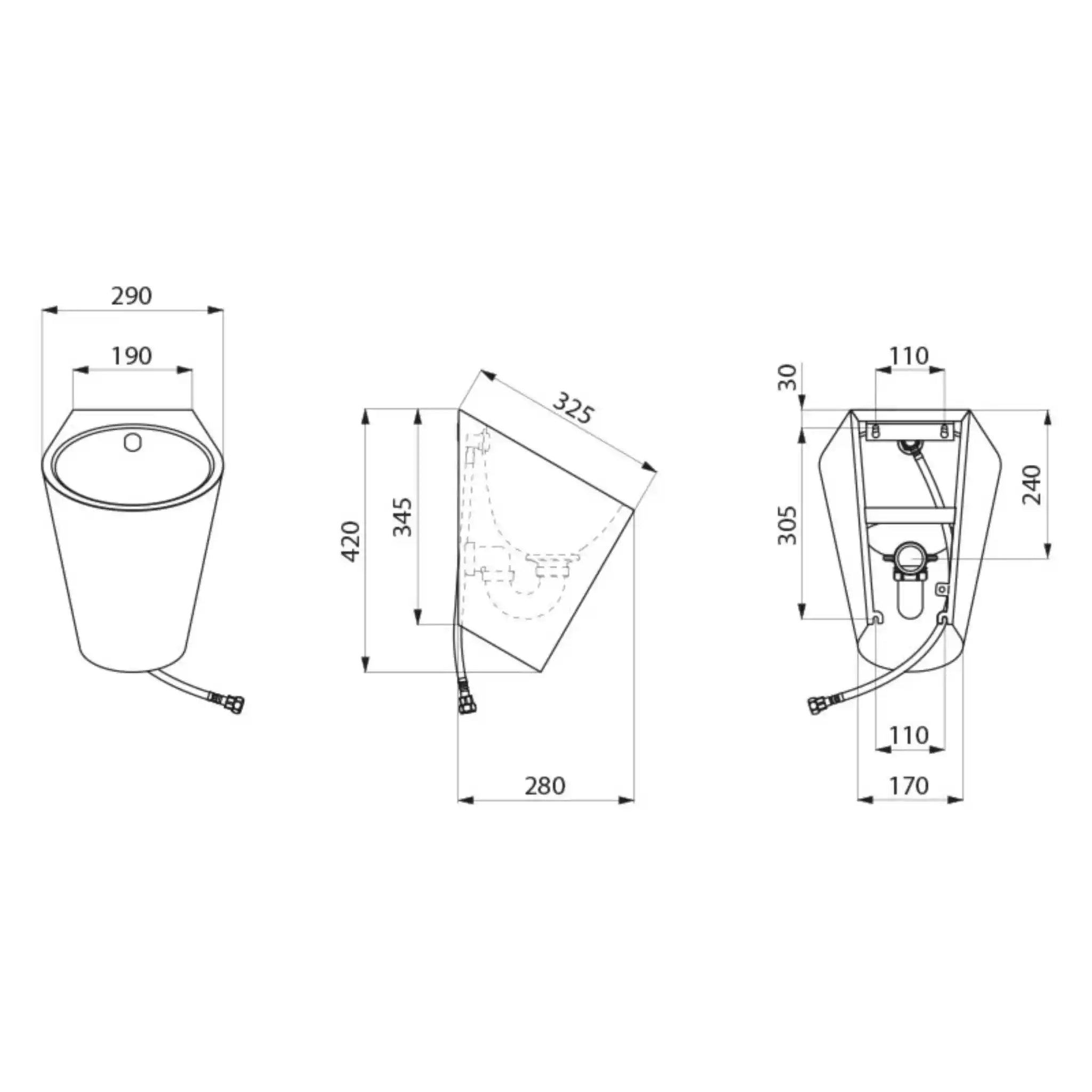

Delabie Fino Urinal Specifications
| SKU | 135710/135110/135710BK |
|---|---|
| Material | 304 stainless steel |
| Height | 420mm |
| Length | 280mm |
| Width | 290mm |
Delabie Fino Urinal Manuals & Downloads
Frequently Asked Questions
What is the difference between the rear inlet and top inlet versions?
Both are the FINO wall hung urinal with identical dimensions (420 x 280 x 290mm) and polished satin 304 stainless steel finish. The rear/recessed inlet version suits concealed pipework installations; the top/exposed inlet version suits surface run pipework.

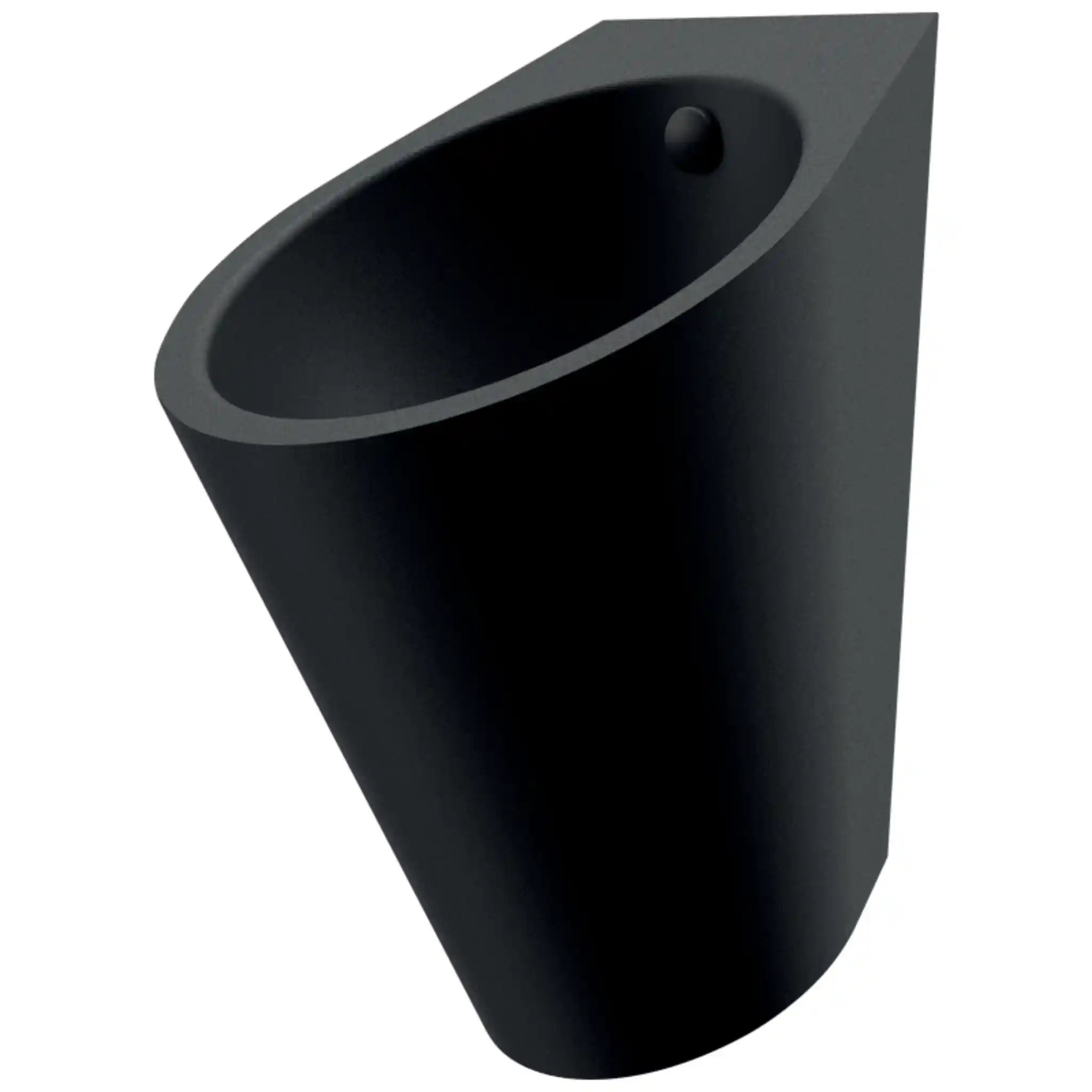

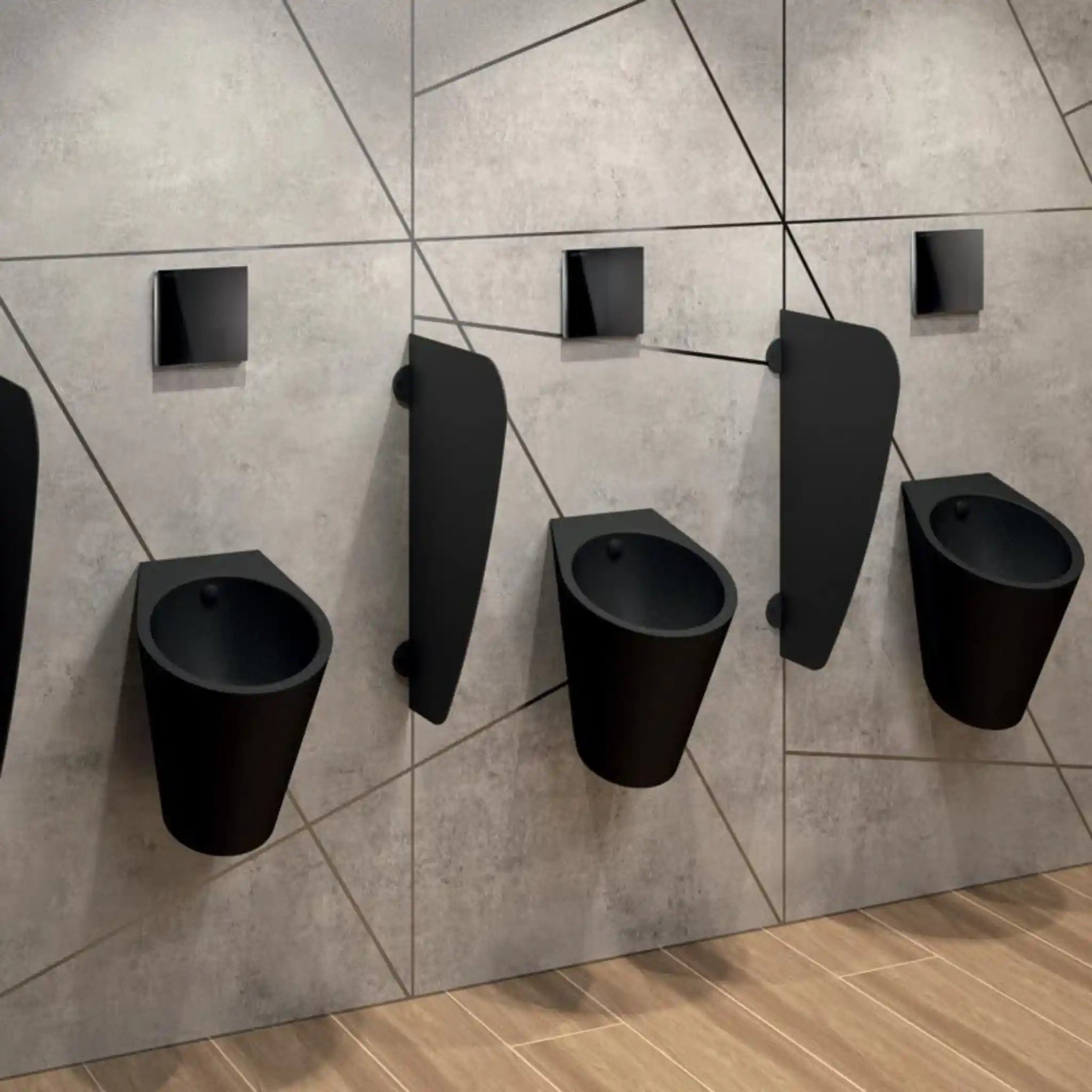

What is the matte black version and how does it differ?
The FINO design led urinal in matte black is a 304 stainless steel urinal with a Teflon® coating applied to the exterior. It shares the same dimensions and rear/recessed inlet as the satin version but differs in finish only.
Is a urinal divider available for the FINO urinal?
Yes. The LISO urinal divider for wall mounting in polished satin 304 stainless steel is listed as an associated product for the satin variants. The AZA urinal divider in matte black 304 stainless steel is the associated divider for the matte black version. Please get in contact for more information on suitable dividers.
Are other or variants available?
The FINO urinal is available in three variants: satin finish with rear inlet, satin finish with top inlet, and matte black Teflon® with rear inlet.
Available Variants
| SKU | Product Name | Finish | Inlet / Supply | Additional Certificates |
|---|---|---|---|---|
| 135710 | FINO wall hung urinal | Polished satin 304 stainless steel | Rear / Recessed | CE |
| 135110 | FINO wall hung urinal | Polished satin 304 stainless steel | Top / Exposed | CE, PZH |
| 135710BK | FINO design led urinal | Matte black 304 stainless steel (Teflon®) | Rear / Recessed | CE |
