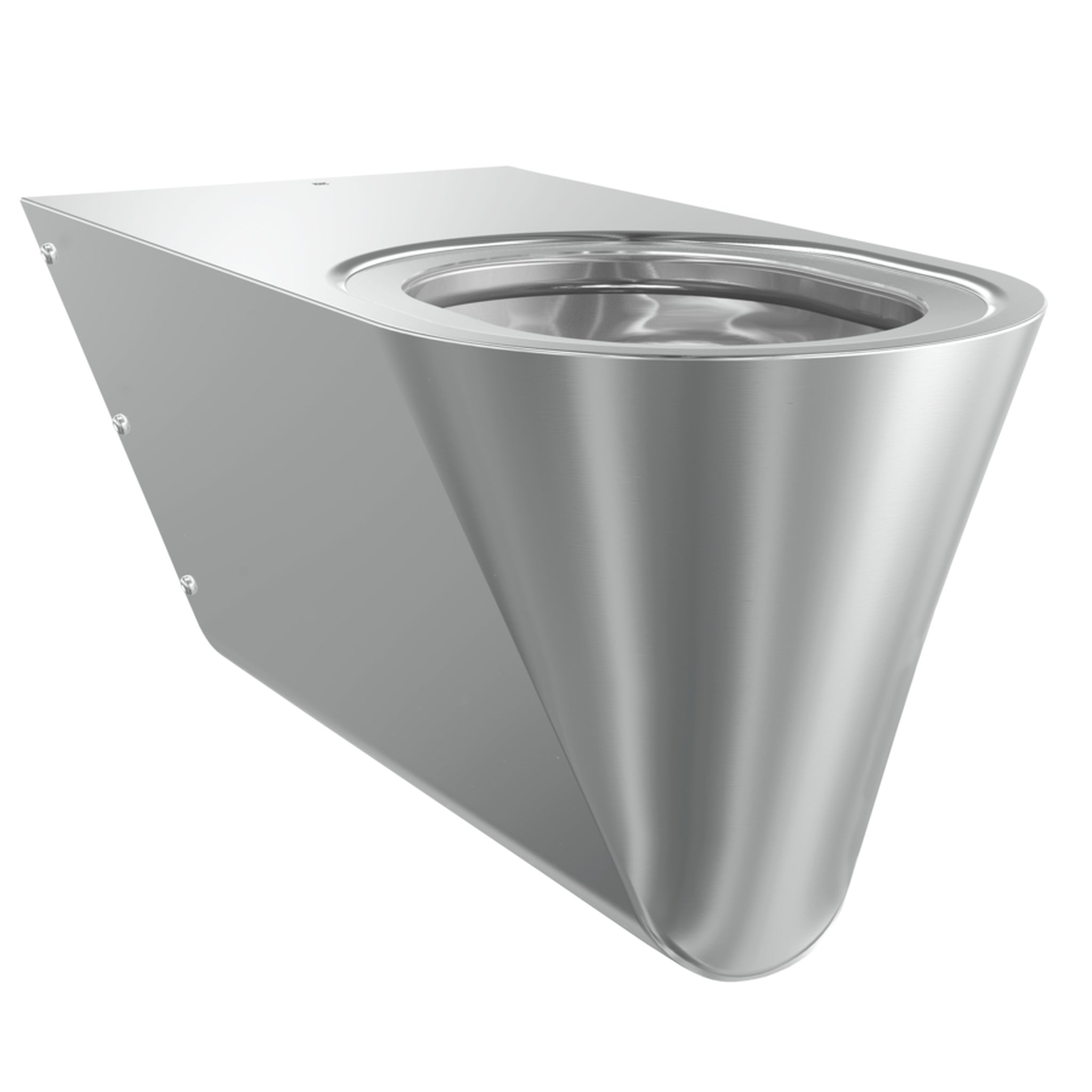

Franke Campus CMPX594 Disabled toilet, no seat

Franke Campus CMPX594 Stainless Steel Disabled Toilet

by KWC DVS

£699.00 ex VAT

£838.80 inc VAT

SKU: CMPX594

✓ Free Delivery
✓ Manufacturer Warranty
Toilet Seat Options
Need help with this product? Give us a call and we will get you sorted.
020 4571 5856

KWC DVS Campus Wall Hung Accessible WC Pan

The Franke Campus CMPX594 is a wall hung toilet built with stainless steel in a satin finish. It is a barrier free design intended for accessible washrooms, with a concealed flushing rim and a shrouded horizontal outlet.

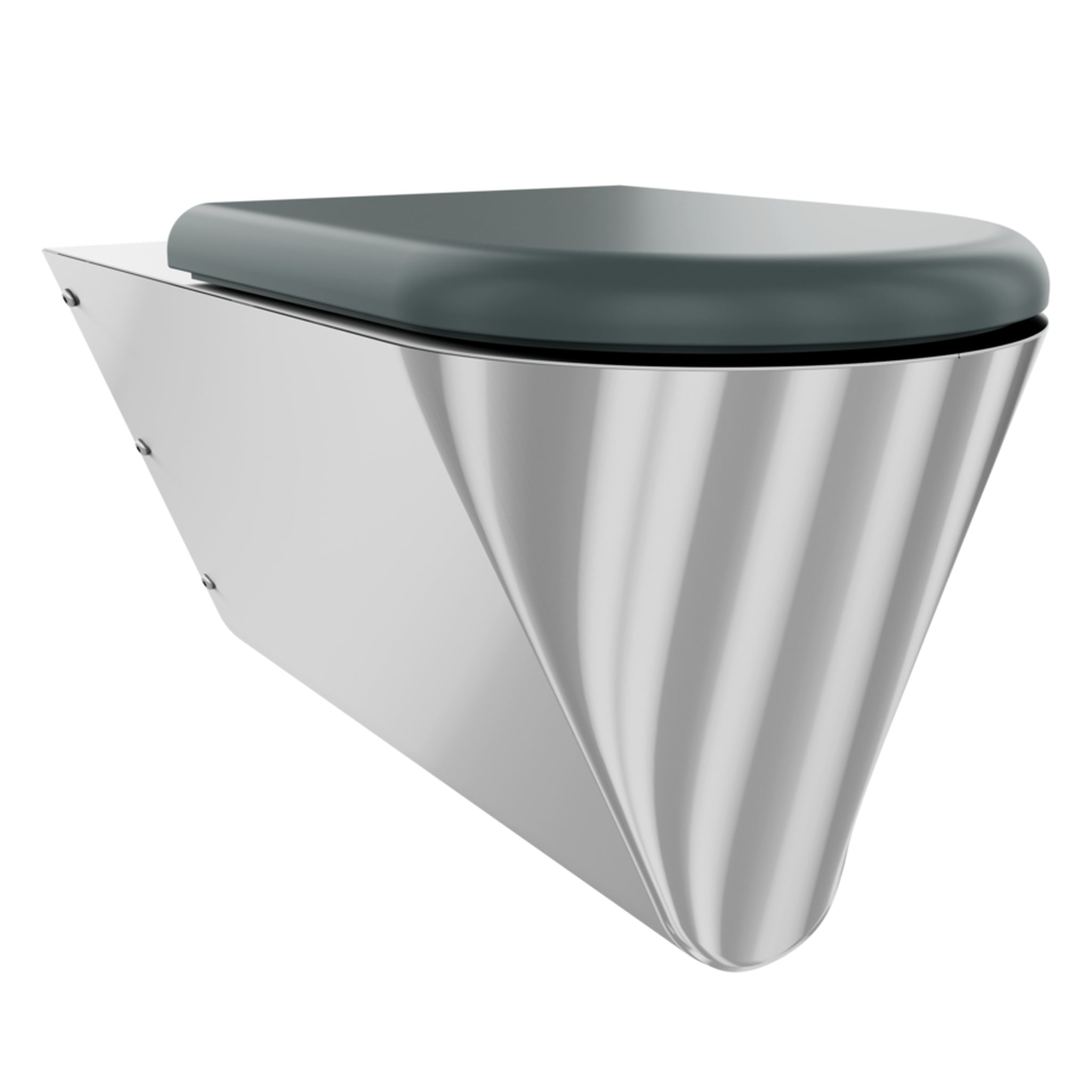

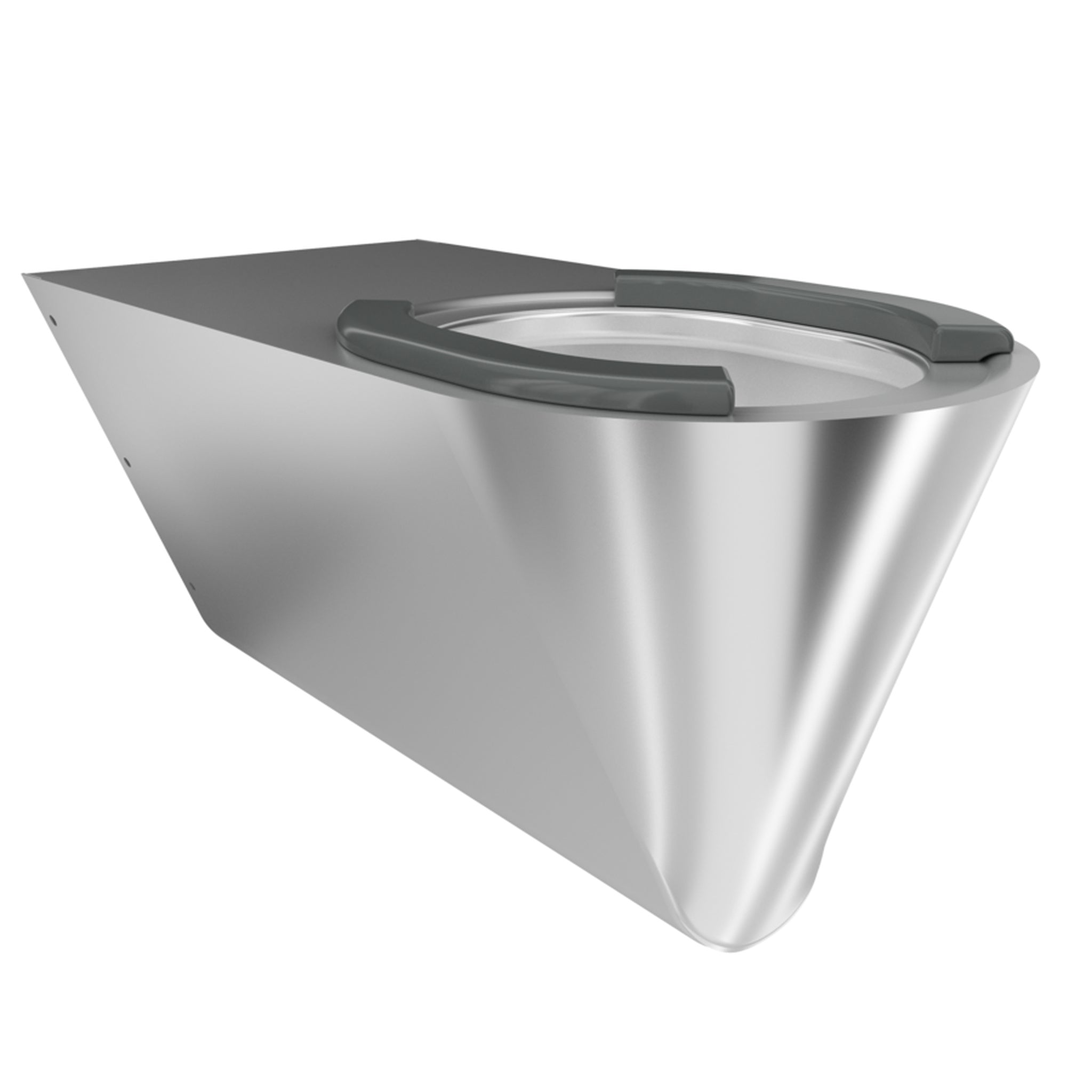

The range covers five seat options on the same WC pan. CMPX594 is supplied without a seat, CMPX594S comes with a synthetic seat pad, and CMPX594BN, CMPX594GN and CMPX594WN each come with a hinged seat and lid in black, grey or white. Width and depth are identical across every version. Height varies slightly according to the seat or pad fitted.

Each toilet is supplied with a mounting plate and safety screws.

Key Features

  • Stainless Steel Build: 1.4301 chrome nickel steel at 1.5mm thickness, satin finished.
  • Wall Hung: The toilet once mounted does not touch the ground, making it easier to clean below the toilet.
  • Concealed Flushing Rim: Minimum 4 litres flushing capacity certified to EN 997, with the rim built into the pan for a smoother bowl.
  • Shrouded Outlet: 100mm diameter horizontal P trap outlet. The shroud hides the pipework and leaves an easy to clean surface.
  • Curved Pressed Seat Area: Tapered towards the centre with all edges curved.
  • Fixings Included: Mounting plate conforming to EN 33 and safety screws supplied for installation.

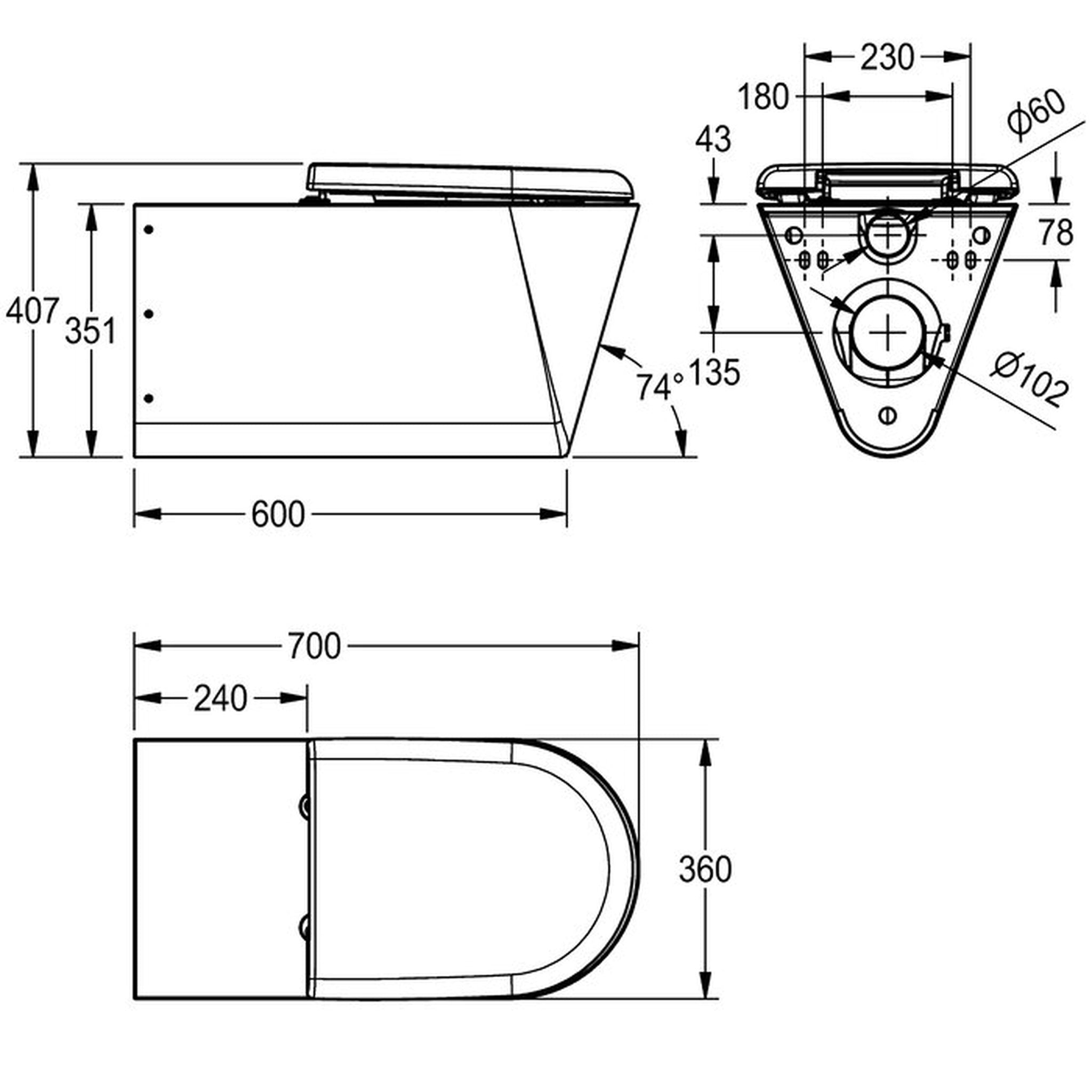

Franke Campus CMPX594 Stainless Steel Disabled Toilet Specifications

Brand KWC DVS
Material Stainless steel, 1.4301 chrome nickel steel V2A
Material thickness 1.5mm
Surface finish Satin finished
Width 360mm
Depth 700mm
Height 351mm to 407mm
Mounting Wall hung
Accessible design Barrier free
Inlet size DN 55
Outlet size DN 100, shrouded 100mm diameter horizontal P trap outlet
Flush volume Minimum 4 litres flushing capacity, concealed flushing rim
Supplied with Mounting plate and safety screws, with a seat pad or hinged seat and lid varying by version
Product standard EN 997, EN 33

Franke Campus CMPX594 Stainless Steel Disabled Toilet Manuals & Downloads

Specification Sheets

Installation Guides

Frequently Asked Questions

Does the pan fit a standard soil pipe?

The outlet is a shrouded 100mm diameter horizontal P trap, DN 100. It connects to standard soil pipework of that size.

What is the inlet size for the flush connection?

The inlet is DN 55, feeding the concealed flushing rim.

Can this replace an existing wall hung WC without moving pipework?

Where the existing outlet is a 100mm horizontal P trap and the inlet matches DN 55, the pan can generally go in without altering the pipe runs. Check the existing centres against the specification table before ordering.

Why does the height figure differ between the seat variants?

The WC pan itself is the same height on every version. The overall figure changes with the seat pad, or the hinged seat and lid, fitted on top. Width and depth are the same across the range.

Is the pan suitable for accessible washrooms?

Yes. It is a barrier free design intended for use in accessible washrooms.

Available Variants

SKUToilet Seat Options

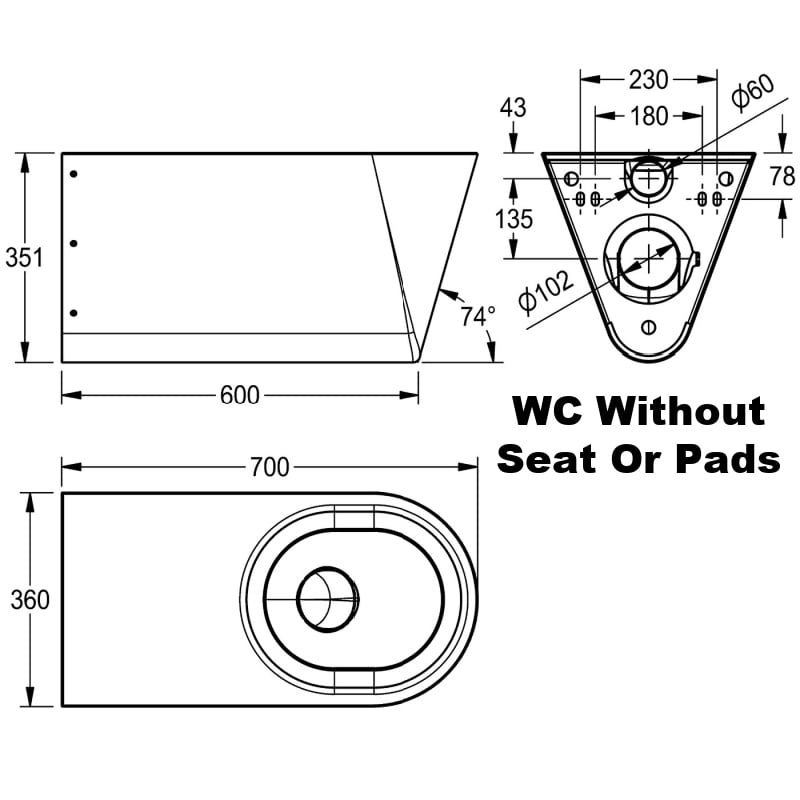

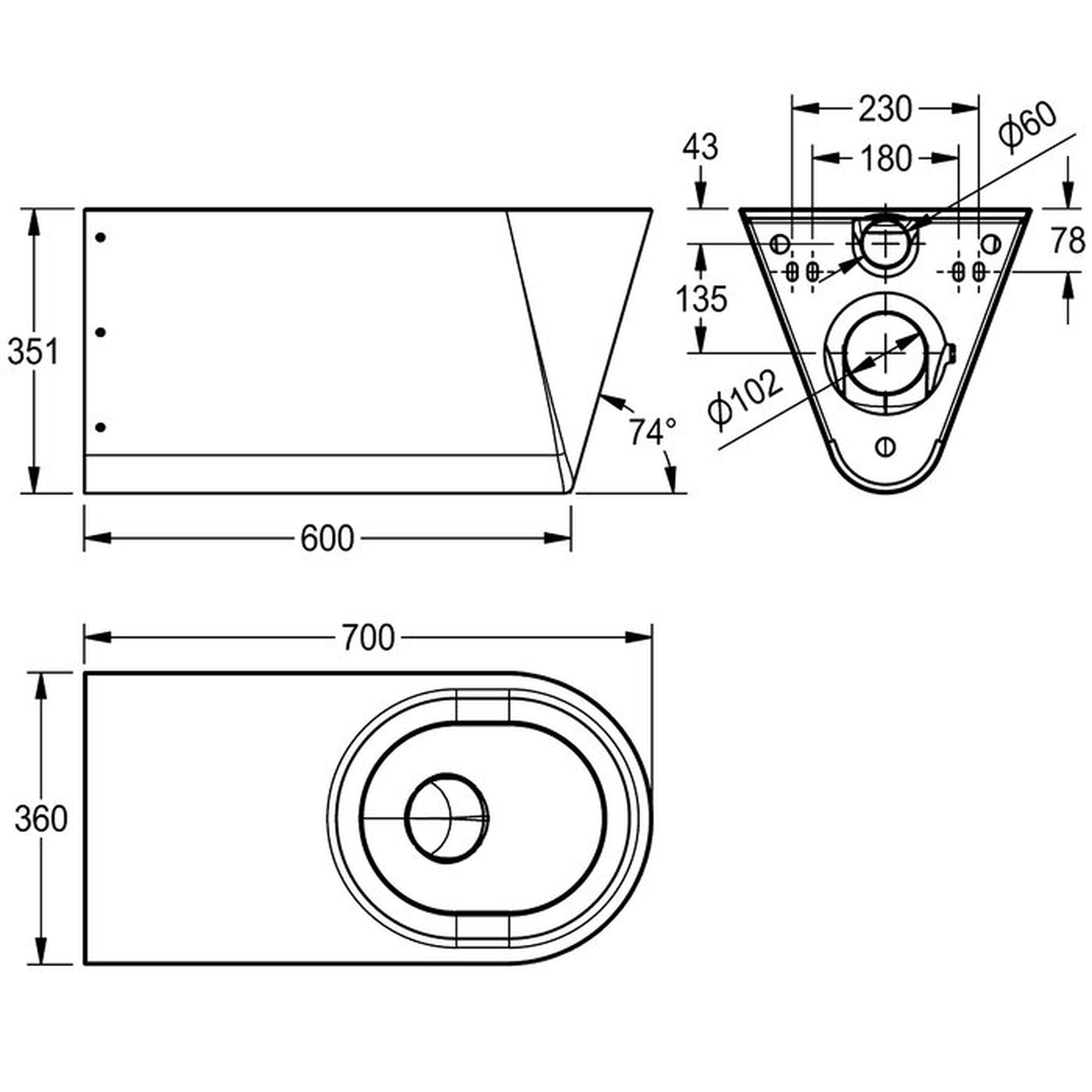

CMPX594Without Seat

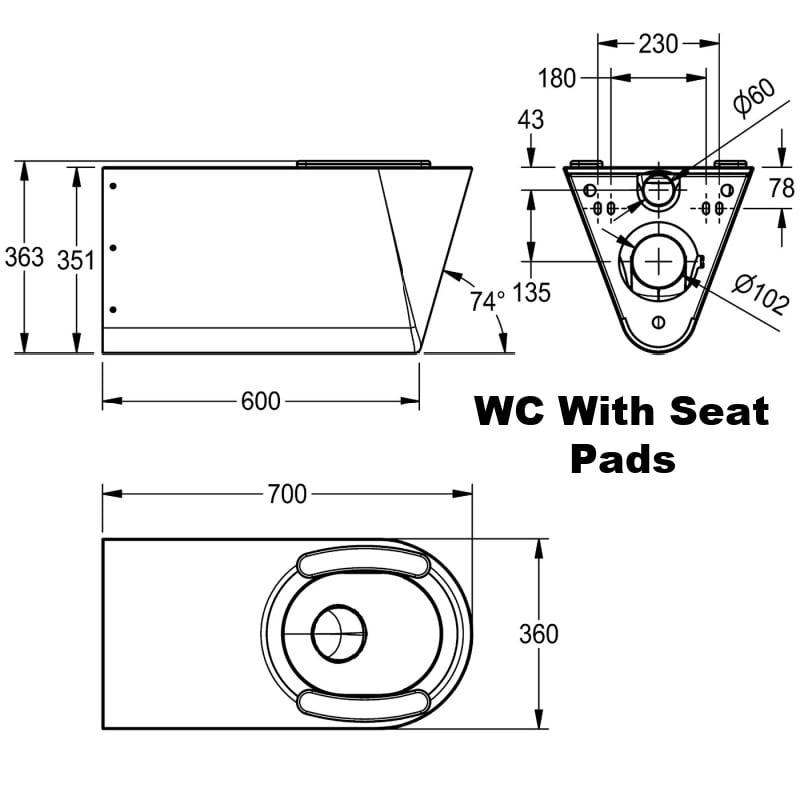

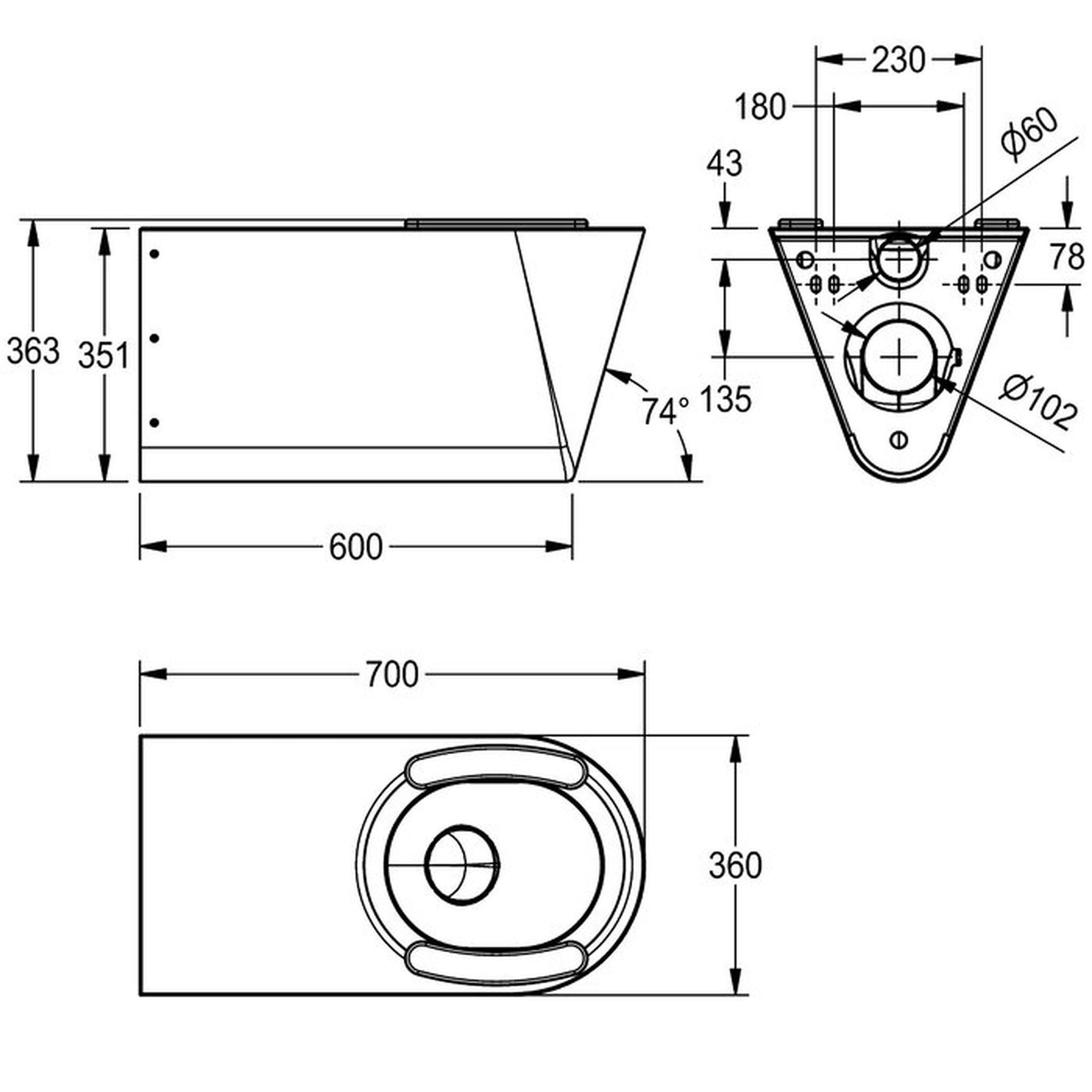

CMPX594SWith Seat Pad

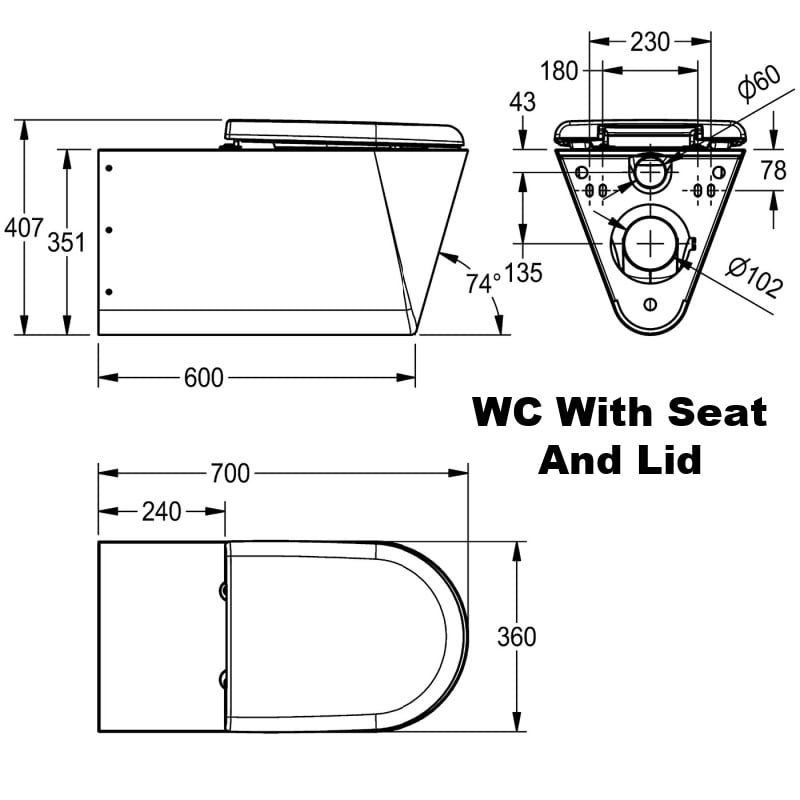

CMPX594GNWith Grey Seat & Lid

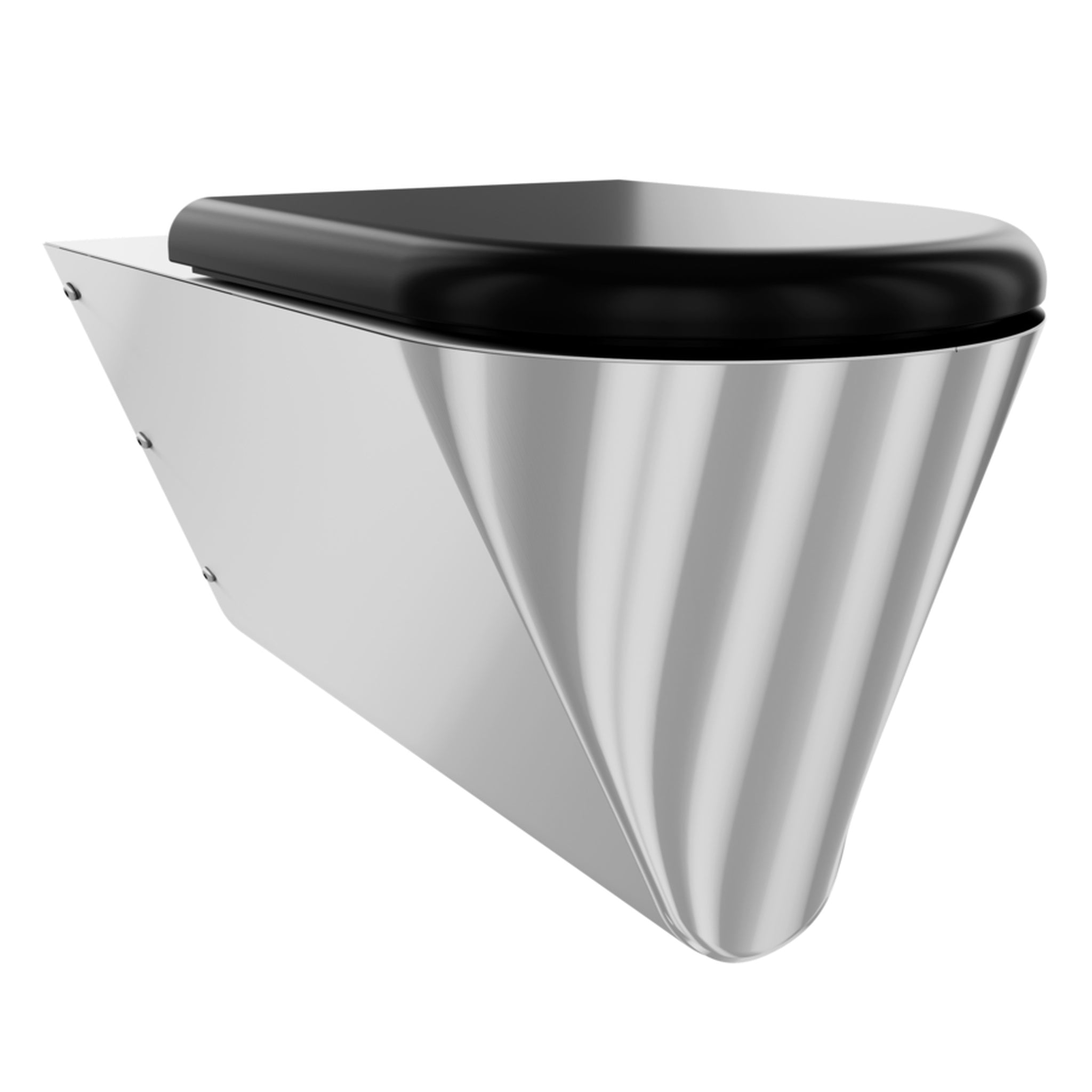

CMPX594BNWith Black Seat & Lid

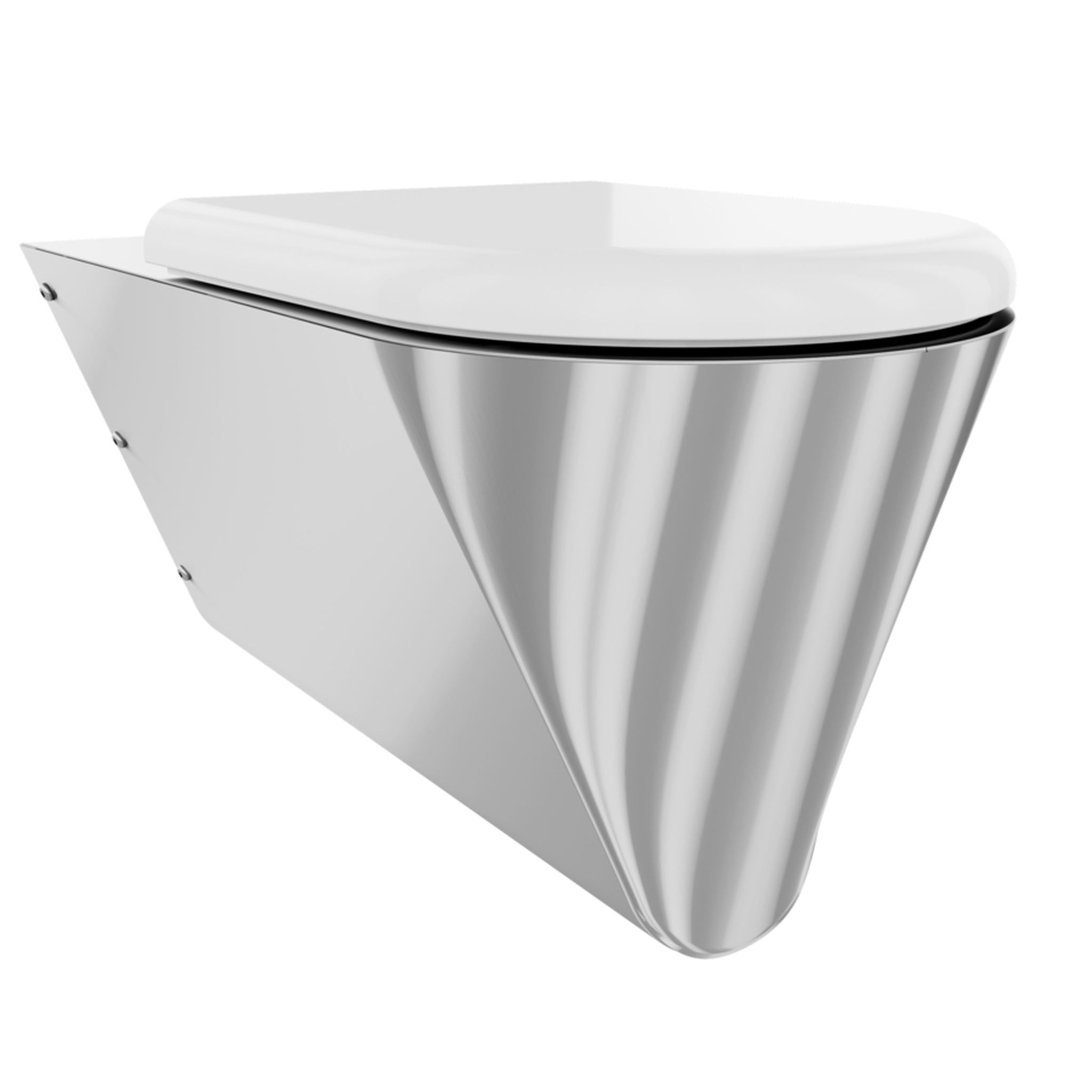

CMPX594WNWith White Seat & Lid
