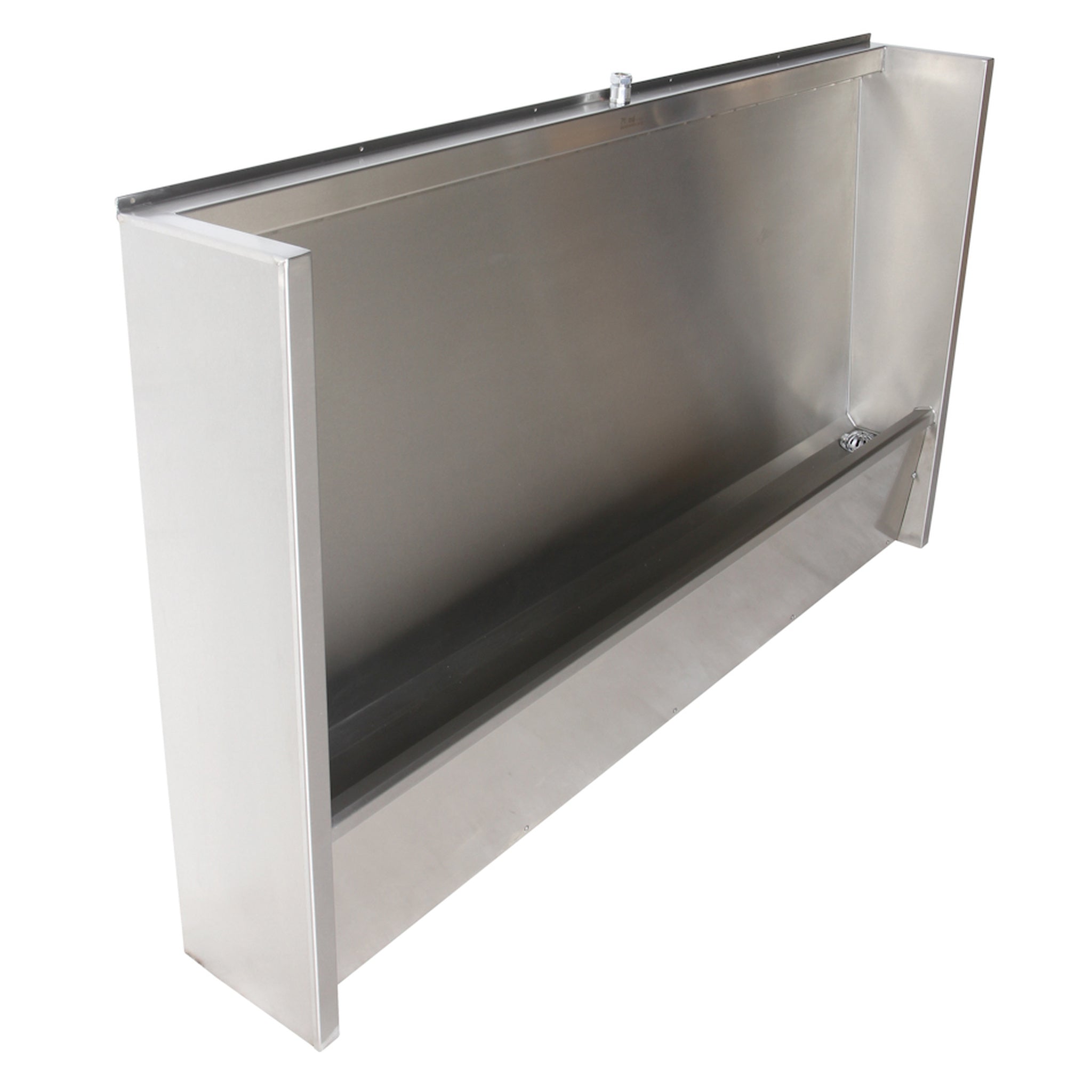

Pland Vienna Floor Standing Stainless Steel Urinal Trough, three quarter view

Pland Vienna Floor Standing Stainless Steel Urinal Trough

by Pland

£1,407.51 ex VAT

£1,689.01 inc VAT

SKU: SAN013-1200-LBI

✓ Free Delivery
✓ Manufacturer Warranty
Length
Waste Position
Cistern
Need help with this product? Give us a call and we will get you sorted.
020 4571 5856

Slab Urinal With Above Floor Waste And Cistern Kit

The Pland Vienna is a floor standing stainless steel urinal trough, made as a single piece slab that stands on the floor and fixes back to the wall. A raised waste channel is formed into the base, and the waste plumbing runs above the floor behind a removable access panel. It comes with an auto flush cistern, flush pipes and a 50mm chrome plated hinged dome waste, with the cistern either concealed behind the wall or exposed above the urinal. The whole unit has a satin polished finish.

Key Features

  • Grade and Gauge: Made from 304 stainless steel at 1.2mm gauge with a satin polished finish.
  • Anti Vandal Build: A single piece slab with no separate bowls or joints across the face.
  • Runs of Two or More: Two or more units fit side by side on one wall for a longer run, or around a corner onto the next wall. Get in contact for more information on the joining strips and corner caps.
  • Bespoke Lengths: Other lengths, including 3000mm, are available. Contact us with the length you need and we will quote it.

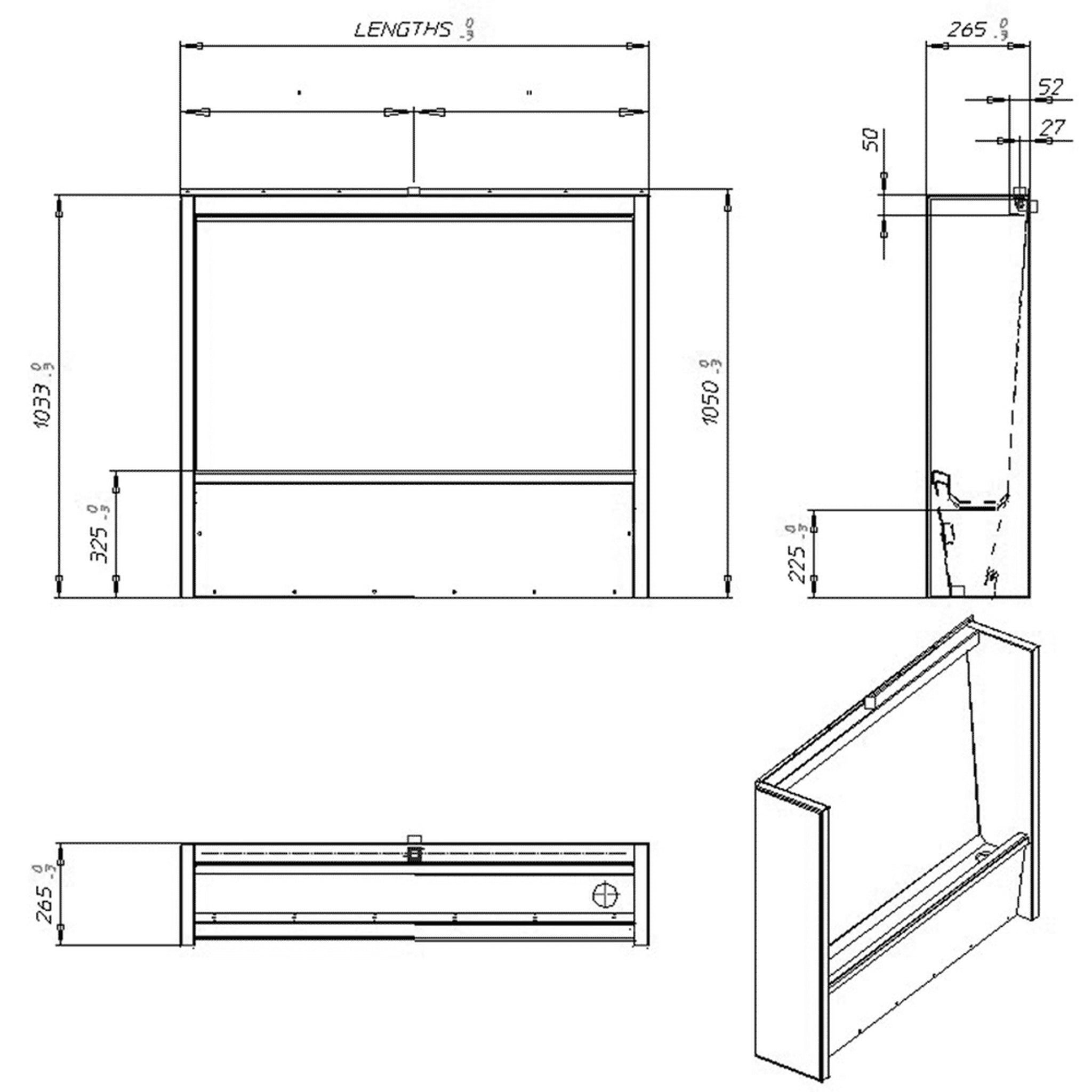

Pland Vienna Floor Standing Stainless Steel Urinal Trough Specifications

Brand Pland
Material 304 stainless steel (1.4301)
Gauge 1.2mm
Finish Satin polished
Length 1200mm, 1500mm, 1800mm or 2400mm
Height 1050mm
Depth 265mm (front to back)
Installation Floor standing, wall fixed
Waste outlet 50mm chrome plated hinged dome
Waste connection 2" BSP
Cistern Concealed (back inlet) or exposed (top inlet)
Supplied with Auto flush cistern, flush pipes, waste outlet

Pland Vienna Floor Standing Stainless Steel Urinal Trough Manuals & Downloads

Specification Sheets

Frequently Asked Questions

Does the cistern come with the urinal?

Yes. An auto flush cistern and the flush pipes are part of the kit.

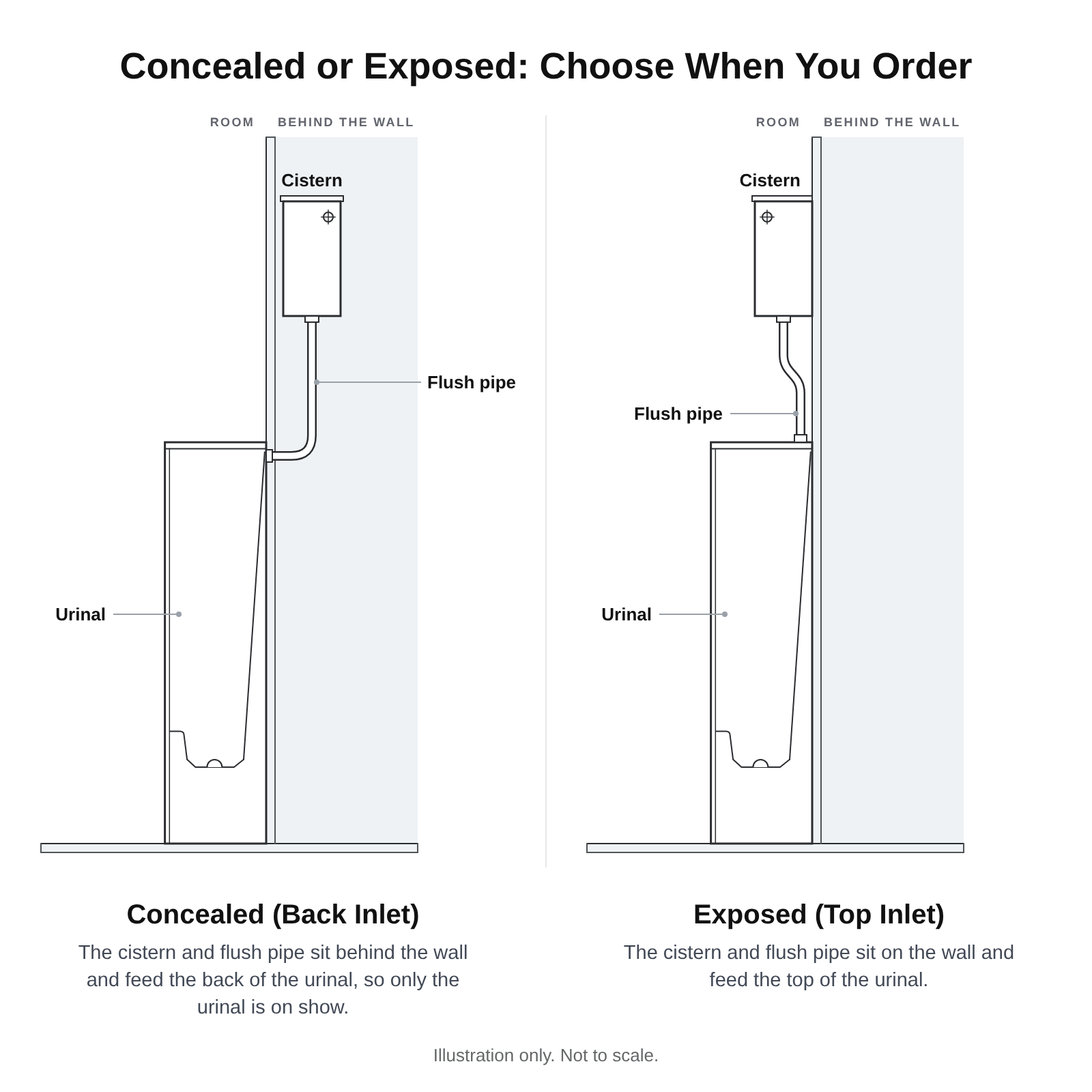

Can the cistern and flush pipe be hidden?

Yes. Choose Concealed (Back Inlet) and they sit behind the wall. Choose Exposed (Top Inlet) and they sit on the wall above the urinal.

What size is the waste connection?

The outlet is a 50mm chrome plated hinged dome waste with a 2" BSP connection.

Is a trap supplied?

No. A trap is not included and can be purchased separately.

Is anything longer than 2400mm available?

Yes. 3000mm and other lengths are available. Contact us with the length you need and we will quote it.

Available Variants

SKULengthWaste PositionCistern
SAN013-1200-LBI1200mmLeft HandConcealed (Back Inlet)
SAN013-1200-LTI1200mmLeft HandExposed (Top Inlet)
SAN013-1200-RBI1200mmRight HandConcealed (Back Inlet)
SAN013-1200-RTI1200mmRight HandExposed (Top Inlet)
SAN013-1500-LBI1500mmLeft HandConcealed (Back Inlet)
SAN013-1500-LTI1500mmLeft HandExposed (Top Inlet)
SAN013-1500-RBI1500mmRight HandConcealed (Back Inlet)
SAN013-1500-RTI1500mmRight HandExposed (Top Inlet)
SAN013-1800-LBI1800mmLeft HandConcealed (Back Inlet)
SAN013-1800-LTI1800mmLeft HandExposed (Top Inlet)
SAN013-1800-RBI1800mmRight HandConcealed (Back Inlet)
SAN013-1800-RTI1800mmRight HandExposed (Top Inlet)
SAN013-2400-LBI2400mmLeft HandConcealed (Back Inlet)
SAN013-2400-LTI2400mmLeft HandExposed (Top Inlet)
SAN013-2400-RBI2400mmRight HandConcealed (Back Inlet)
SAN013-2400-RTI2400mmRight HandExposed (Top Inlet)
