£7,124.79 ex VAT
£8,549.75 inc VAT
SKU: WP6120H

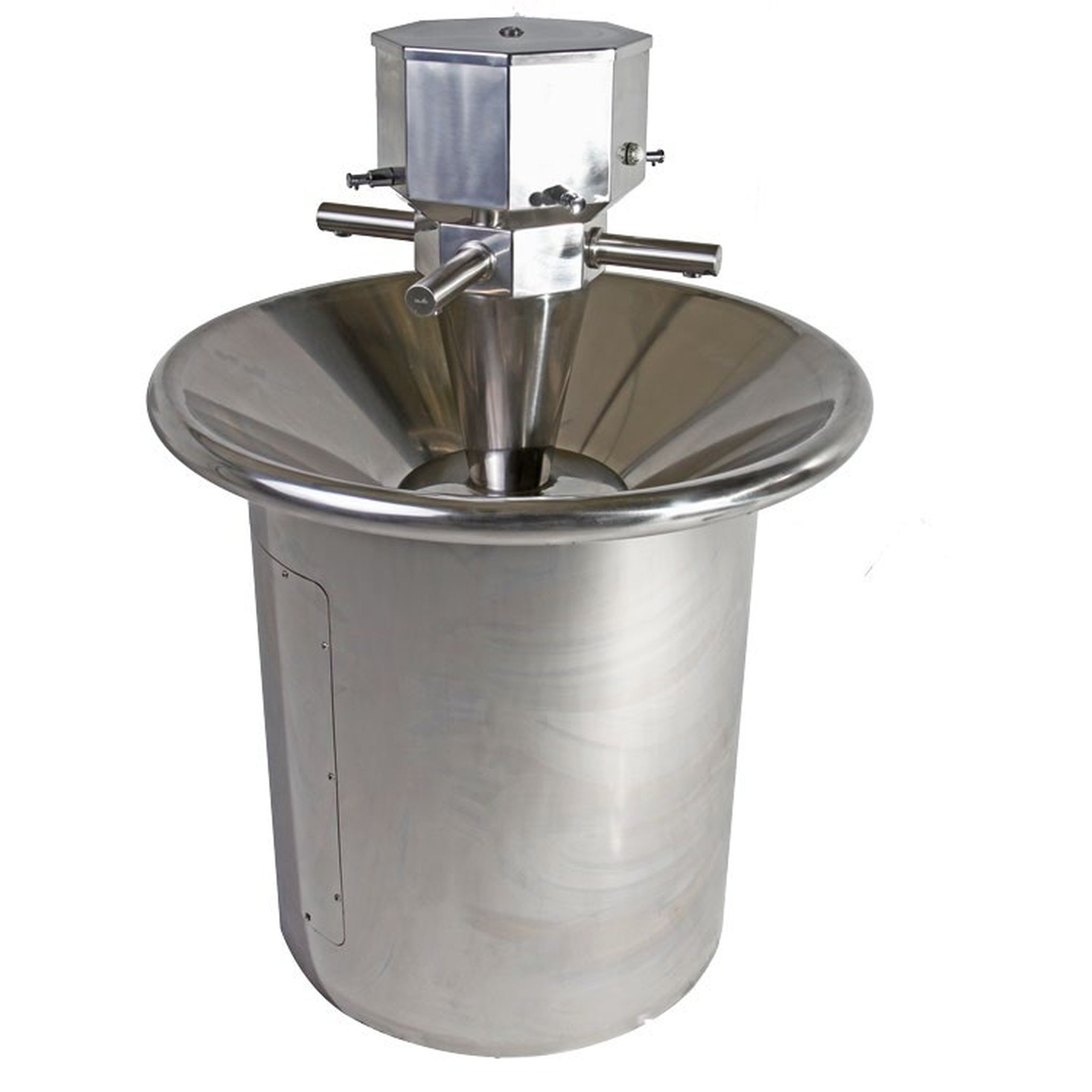

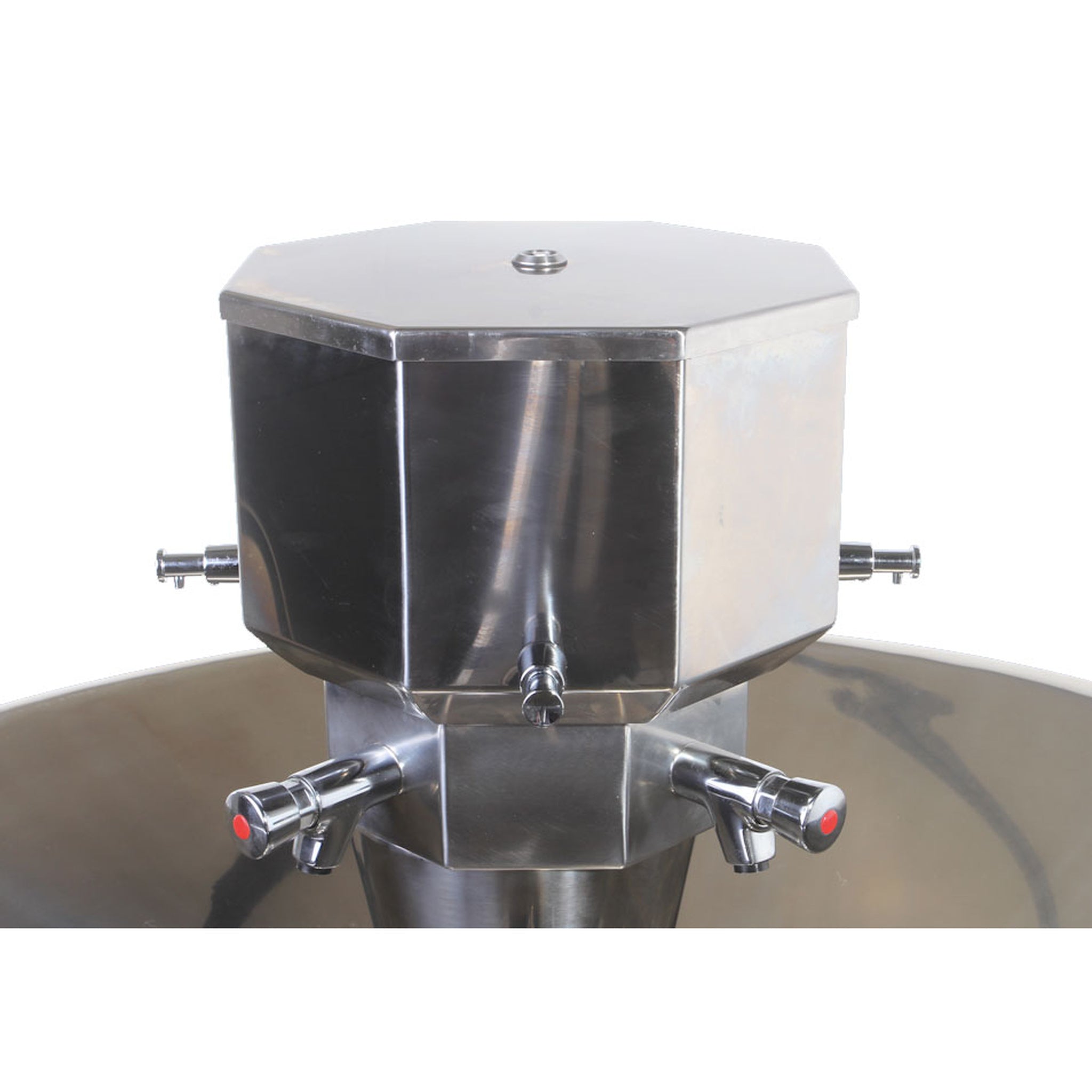

The Pland Venice is a floor standing circular hand wash station made from 304 stainless steel. The 911mm unit has 4 taps for 4 to 6 people and the 1215mm unit has 8 taps for 6 to 8 people. The taps sit around the centre column, with soap dispensers fed from a 12 litre lockable tank above them. It suits schools, colleges, service stations and communal washrooms.
Every unit arrives fully plumbed, with the thermostatic mixing valve and pressure reducing valve fitted inside the pedestal. On site, fix it to the floor and connect the hot and cold mains supplies and the 1½" BSP waste. Sensor versions also need a power supply. A removable panel in the pedestal gives access for servicing.
We can have the Venice built to any specification you need. Contact us for a custom quote.
| Brand | Pland |
|---|---|

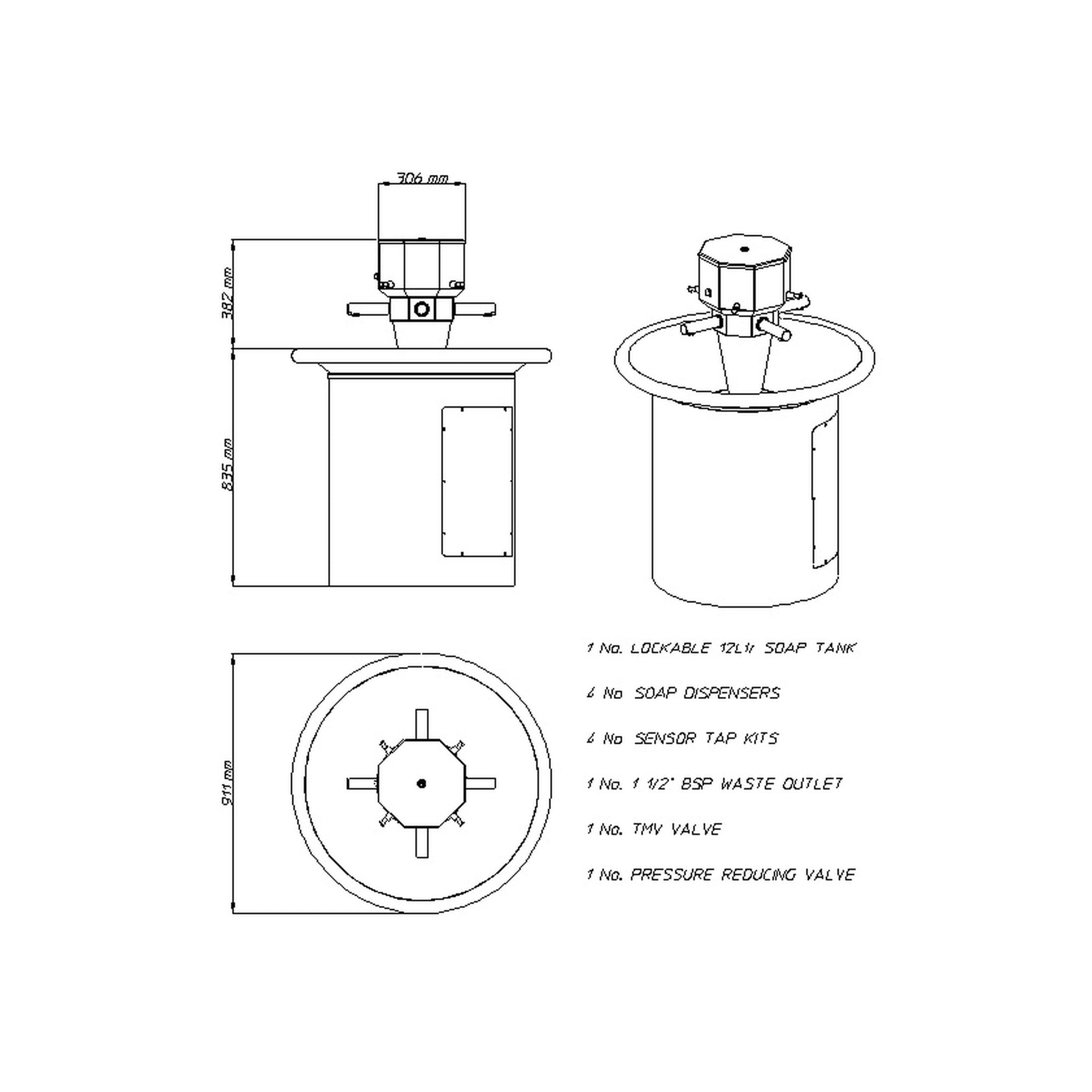

| 4 to 6 person size | 911mm diameter, 835mm rim height, 1217mm overall height, 4 taps |

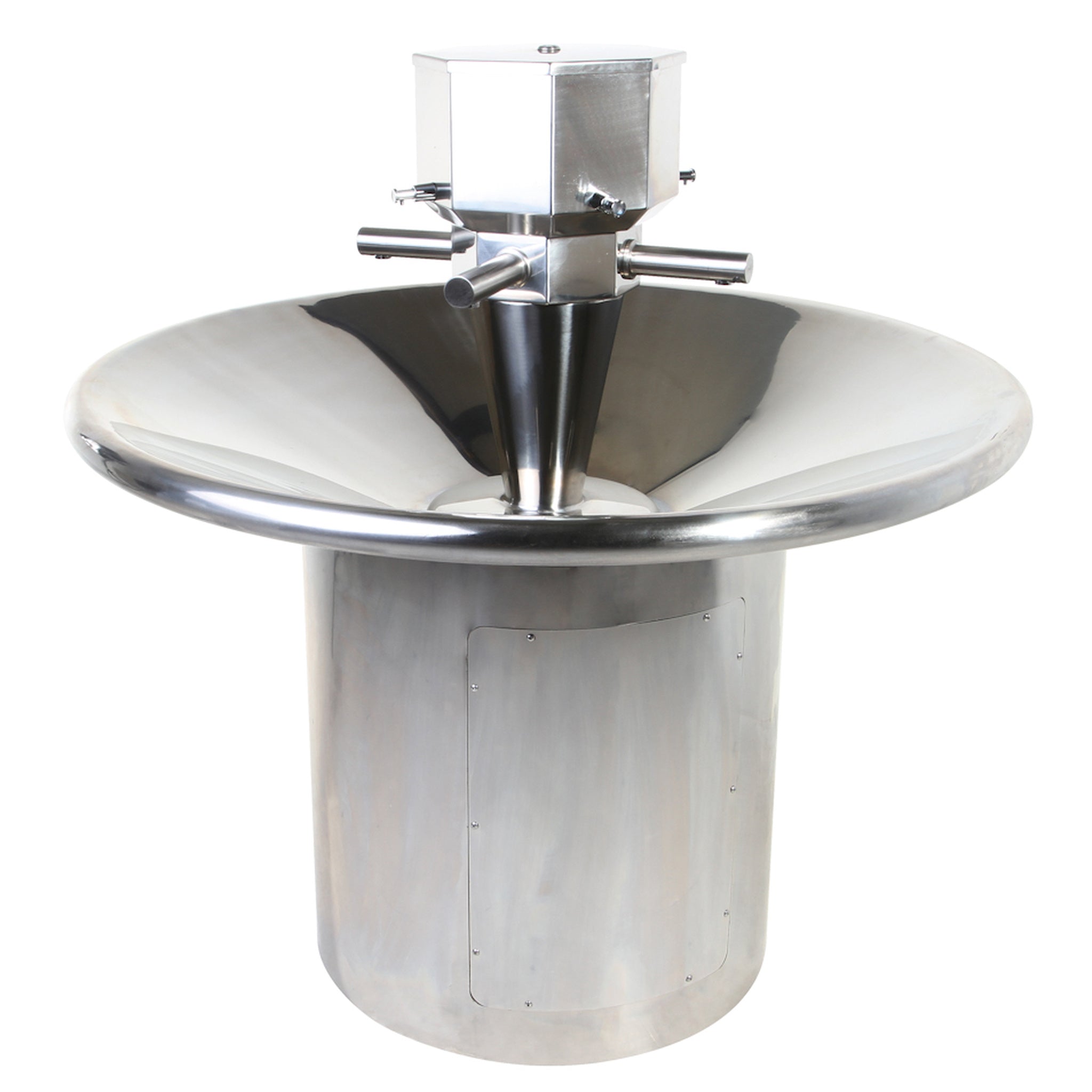

| 6 to 8 person size | 1215mm diameter, 835mm rim height, 1217mm overall height, 8 taps |
| Material | 304 stainless steel (1.4301) |
| Material thickness | 1.5mm and 2.0mm |
| Finish | Bright polished |

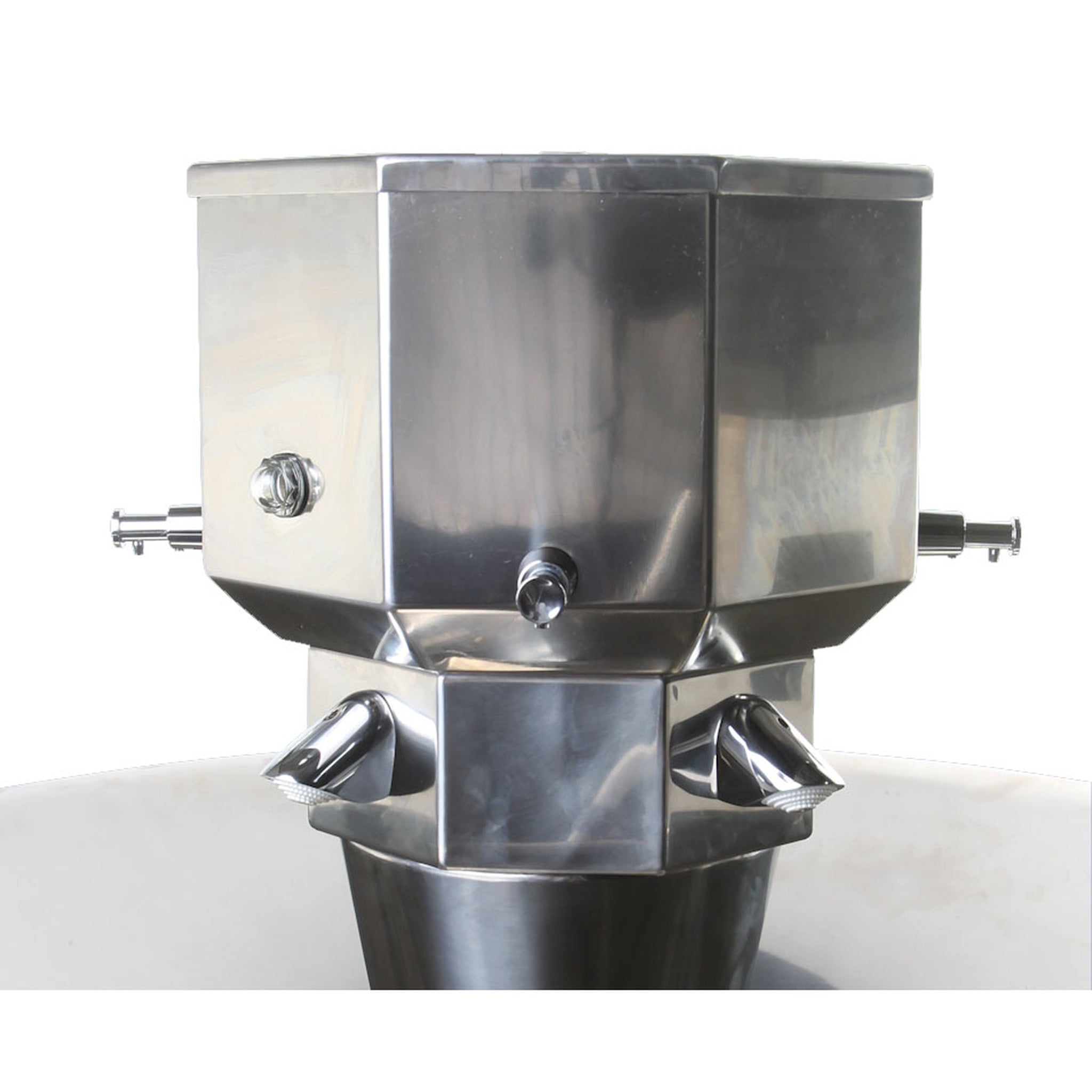

| Tap operation | Hand operated non concussive, foot operated or sensor operated |
| Soap tank | 12 litre, lockable, takes any standard liquid soap |
| Water supply | Hot and cold, into the fitted thermostatic mixing valve |
| Waste outlet size | 1½" BSP |
| Base | Straight pedestal with removable access panel, floor fixed |
| Supplied with | Taps, soap dispensers, thermostatic mixing valve, pressure reducing valve, waste |
The 911mm unit has 4 taps and the 1215mm unit has 8. Either size comes with non concussive, foot operated or sensor taps.
It arrives fully plumbed with the thermostatic mixing valve and pressure reducing valve fitted. Connect the hot and cold supplies and the 1½" BSP waste. Sensor versions also need a power supply.
Stand it on a flat, level floor, take off the pedestal access panel and fix it down through the holes in the base.
Any standard liquid soap. It goes into the 12 litre lockable tank in the centre column, which feeds the soap dispensers.
Yes. We can have it built to any specification you need. Contact us with your requirements for a custom quote.
| SKU | Size | Tap Operation |
|---|---|---|
| WP6120H | 4 To 6 Person, 911mm Diameter | Hand Operated |
| WP6120S | 4 To 6 Person, 911mm Diameter | Sensor Operated |
| WP6120F | 4 To 6 Person, 911mm Diameter | Foot Operated |

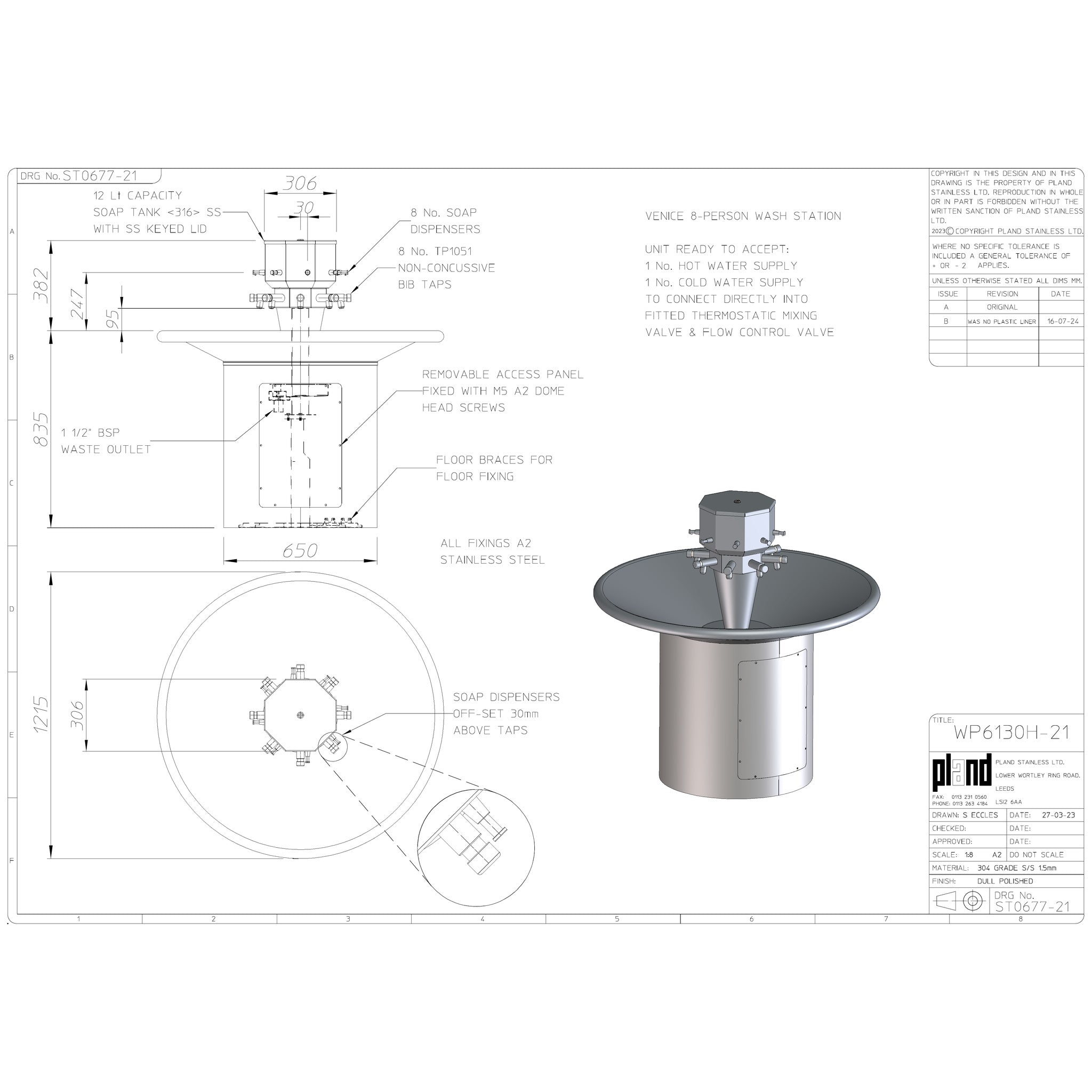

| WP6130H | 6 To 8 Person, 1215mm Diameter | Hand Operated |
| WP6130S | 6 To 8 Person, 1215mm Diameter | Sensor Operated |
| WP6130F | 6 To 8 Person, 1215mm Diameter | Foot Operated |
