Pland Monaco Stainless Steel Back To Wall Disabled Toilet Pan

by Pland

£1,336.00 ex VAT

£1,603.20 inc VAT

SKU: URV1510RP

✓ Free Delivery

✓ 30 Day Easy Returns

✓ Manufacturer Warranty

Water Inlet And Trap

Rear Inlet, P Trap

Top Inlet, P Trap

Top Inlet, S Trap

Seat

Without Seat

With Black Seat And Lid

With Black Seat Pads

Quantity

Need help with this product? Give us a call and we will get you sorted.

020 4571 5856

Anti Vandal Accessible Toilet With 460mm Pan Height

The Pland Monaco is a stainless steel toilet pan with an anti vandal shroud, made for disabled and accessible washrooms in hospitals, schools, public toilets, transport hubs and secure sites. It fits back to the wall, stands 460mm high and projects 750mm from the wall. With the heavy duty seat fitted, the seat top is 480mm from the floor.

Key Features

Doc M Height And Projection: With the heavy duty seat fitted, the seat top is 480mm from the floor and the pan projects 750mm from the wall. These are the figures Approved Document M gives for a wheelchair accessible toilet.
Anti Vandal Shroud: Built into the pan, the shroud encloses the trap and pipework and keeps them out of reach.
Front Fix: Fixes to the wall from the front of the pan.
Easy Clean: Routine cleaning needs only washing up liquid or an all purpose cleaner. Never use wire wool or metal scrapers on the steel.

Pland Monaco Stainless Steel Back To Wall Disabled Toilet Pan Specifications

Brand	Pland
Material	304 stainless steel
Optional material	316 marine grade stainless steel, on request
Material thickness	1.5mm, 2.0mm and 3.0mm
Finish	Satin
Width	360mm
Height	460mm
Seat height	480mm from the floor to the top of the seat, with the heavy duty seat fitted
Projection	750mm
Installation	Back to wall, front fix
Inlet	Rear, 55mm internal, on the rear inlet version. Top on the top inlet versions
Rear inlet centre height	415mm from the floor
Outlet	101.6mm (4 inch). P trap on the rear inlet version, P trap or S trap on the top inlet version
P trap outlet centre height	280mm from the floor, rear inlet version
Supplied with	Pan with the seat option chosen. Cistern not included
Packed size	770 x 400 x 500mm
Packed weight	21kg

Show more specifications Show fewer specifications

Pland Monaco Stainless Steel Back To Wall Disabled Toilet Pan Manuals & Downloads

Specification Sheets

Specification Sheet

Frequently Asked Questions

Does it come with a seat?

No. Choose it with a black heavy duty seat and lid, or with a pair of black polyethylene seat pads fixed to the pan before dispatch in place of a seat, which adds 2 to 3 working days. The seat in the photo is an open fronted seat and is not one of the options.

Which inlet should I choose?

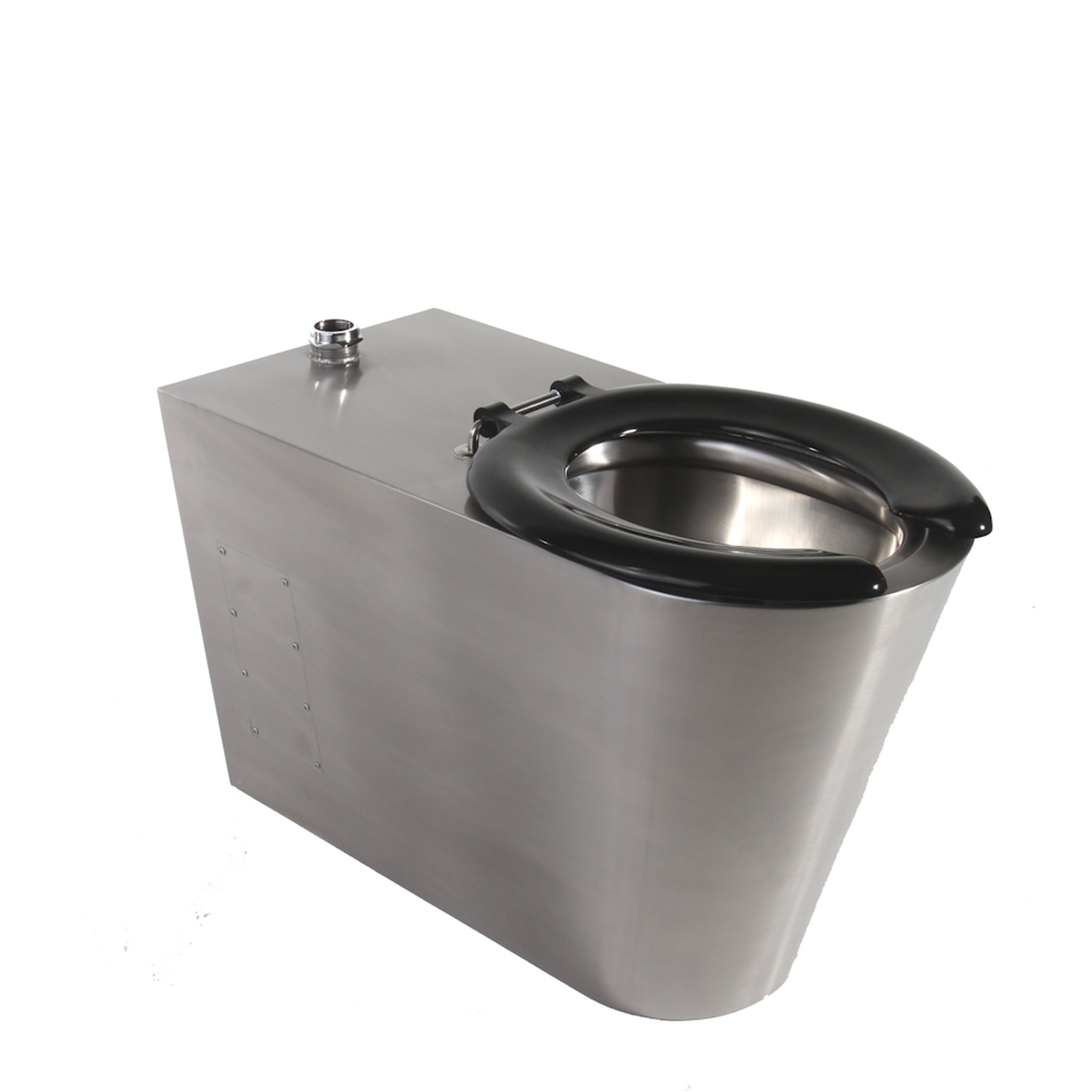

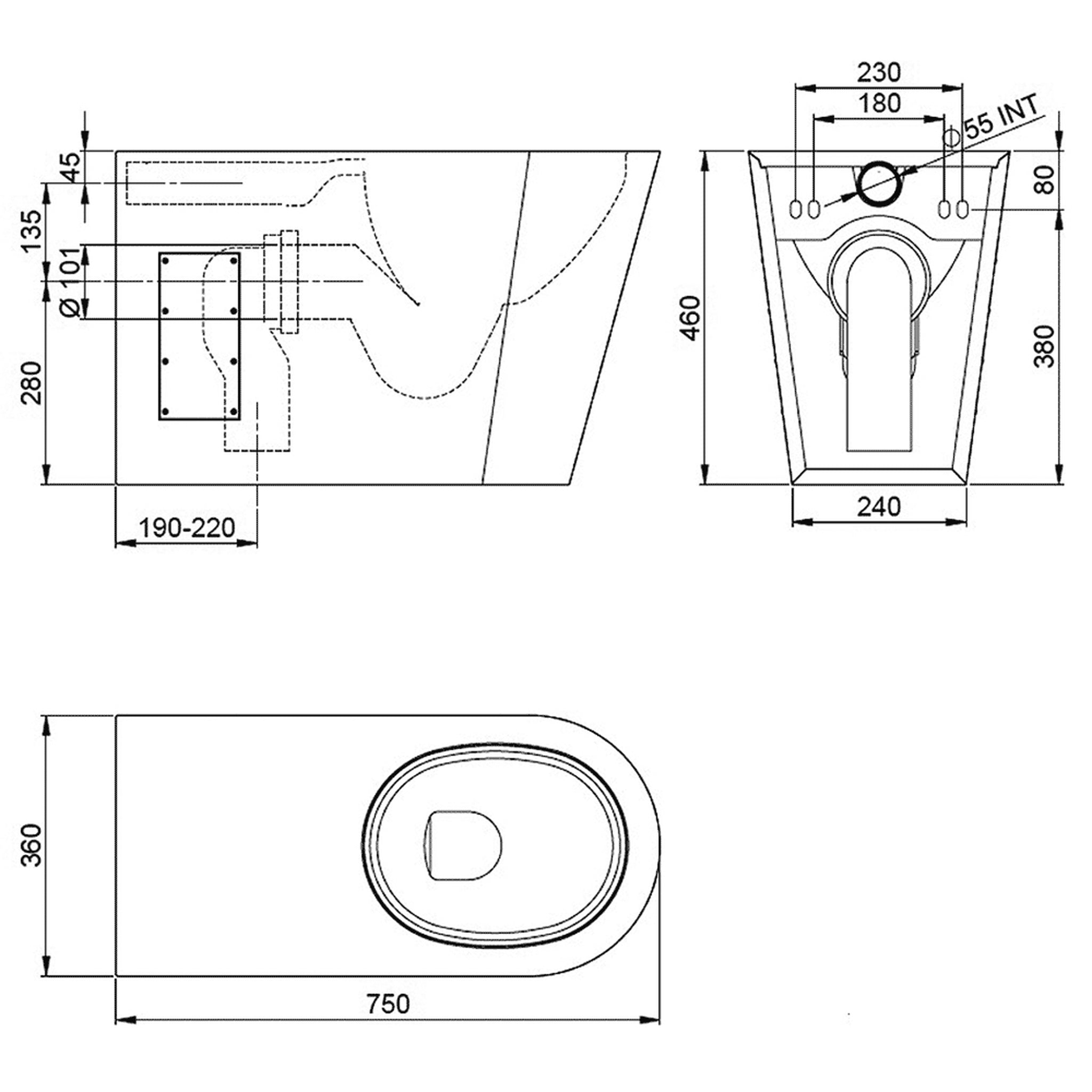

The rear inlet takes the flush pipe through the wall into the back of the pan, which suits a concealed cistern. It is 55mm internal and its centre is 415mm from the floor. The top inlet takes the flush pipe from above, which suits a cistern mounted on the wall above the pan. The photo shows the top inlet version and the drawing shows the rear inlet version.

P trap or S trap?

Choose the P trap when the soil pipe goes out through the wall behind the pan. Choose the S trap when it goes down through the floor.

Is a cistern included?

No. A cistern is not included and must be purchased separately. Ask us for one to suit the inlet you choose.

Can it be made in 316 stainless steel?

Yes. Ask us for a price and lead time in 316 marine grade stainless steel.

Available Variants

SKU	Water Inlet And Trap	Seat
URV1510RP	Rear Inlet, P Trap	Without Seat
URV1510RP+URVSEAT-B	Rear Inlet, P Trap	With Black Seat And Lid
URV1510RP+URVSEATPAD/B	Rear Inlet, P Trap	With Black Seat Pads
URV1510TP	Top Inlet, P Trap	Without Seat
URV1510TP+URVSEAT-B	Top Inlet, P Trap	With Black Seat And Lid
URV1510TP+URVSEATPAD/B	Top Inlet, P Trap	With Black Seat Pads
URV1510TS	Top Inlet, S Trap	Without Seat
URV1510TS+URVSEAT-B	Top Inlet, S Trap	With Black Seat And Lid
URV1510TS+URVSEATPAD/B	Top Inlet, S Trap	With Black Seat Pads
