£569.25 ex VAT
£683.10 inc VAT
SKU: FIFE1200-CW

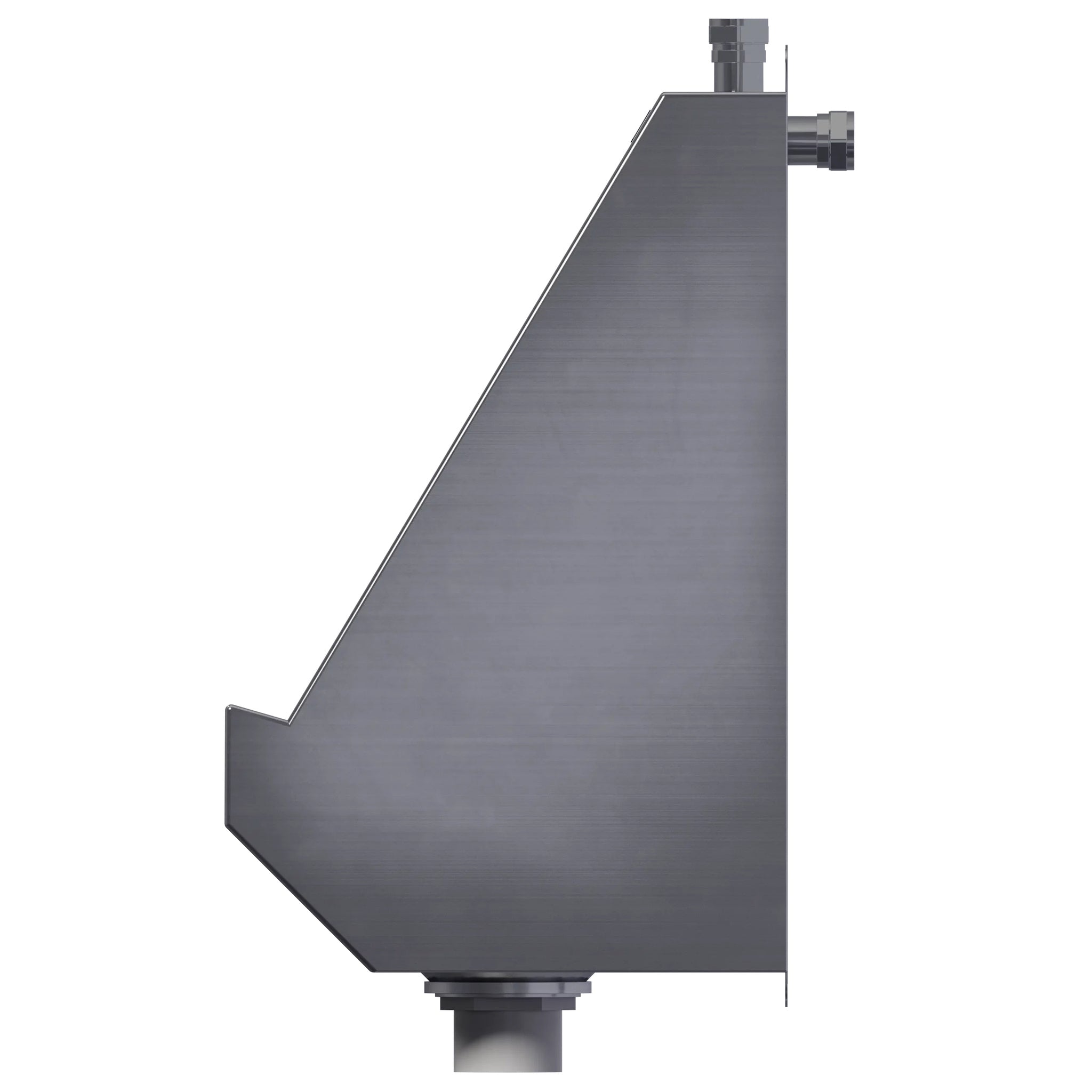

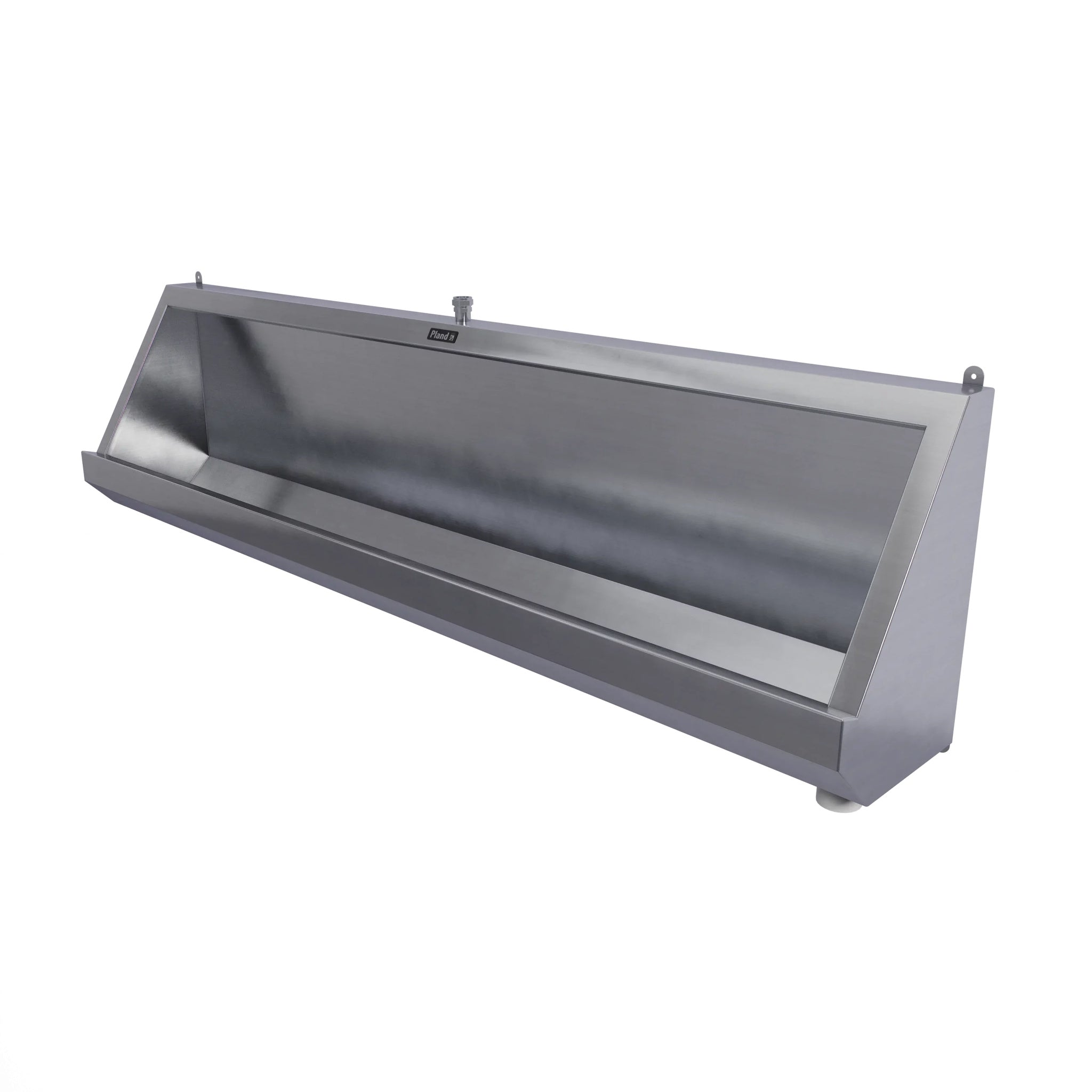

The Pland Fife Stainless Steel Trough Urinal Pack is a wall hung urinal trough supplied with its flushing system in one box. An automatic plastic cistern flushes the trough at set intervals through a concealed stainless steel sparge pipe. The water inlet is universal, so top or rear entry is chosen on site. Left hand and right hand wastes are offered on every length, and a centre waste on the 1200mm and 1500mm troughs. Bespoke sizes and configurations are available on request.
This pack contains:
• 1 x Stainless steel trough
• 1 x Automatic plastic cistern
• 1 x Cistern down pipe
• 1 x Stainless steel sparge pipe
• 1 x 2" BSP plastic domed waste
• 1 x 300mm x 22mm stainless steel extension tube
• 1 x Fixing kit

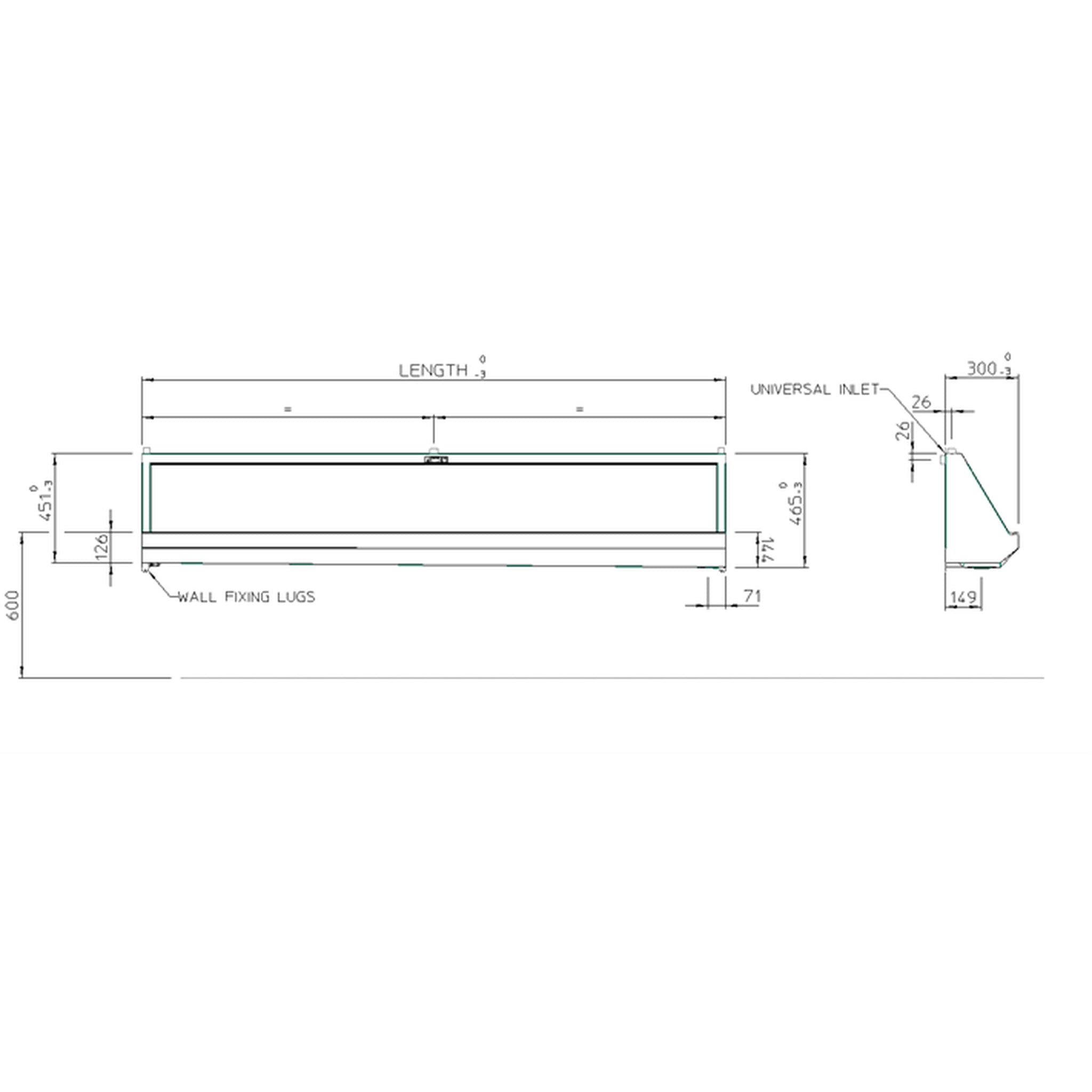

| Brand | Pland |
|---|---|
| Material | 1.4301 (304) stainless steel |
| Gauge | 1.2mm |
| Length | 1200mm, 1500mm, 1800mm or 2400mm |
| Height | 465mm |
| Depth | 300mm |
| Weight | 22kg (1200mm), 25kg (1500mm), 28kg (1800mm), 34kg (2400mm) |
| Fixing | Wall mounted |
| Water inlet | 22mm compression, top or rear entry |
| Waste outlet size | 2" BSP, domed |
| Sparge pipe | Supplied loose, cut to length and fitted on site |
| Supplied with | Trough, cistern, down pipe, sparge pipe, 2" waste, fixing kit, instructions |
Yes. A 2" BSP domed waste is in the pack.
The 1200mm and 1500mm troughs. The 1800mm and 2400mm troughs are made with a left hand or right hand waste only. Get in contact if you need a custom trough manufactured.
No. The sparge pipe is supplied loose. It is cut to length and fitted on site with the compression tee, inlet coupler and sparge brackets.

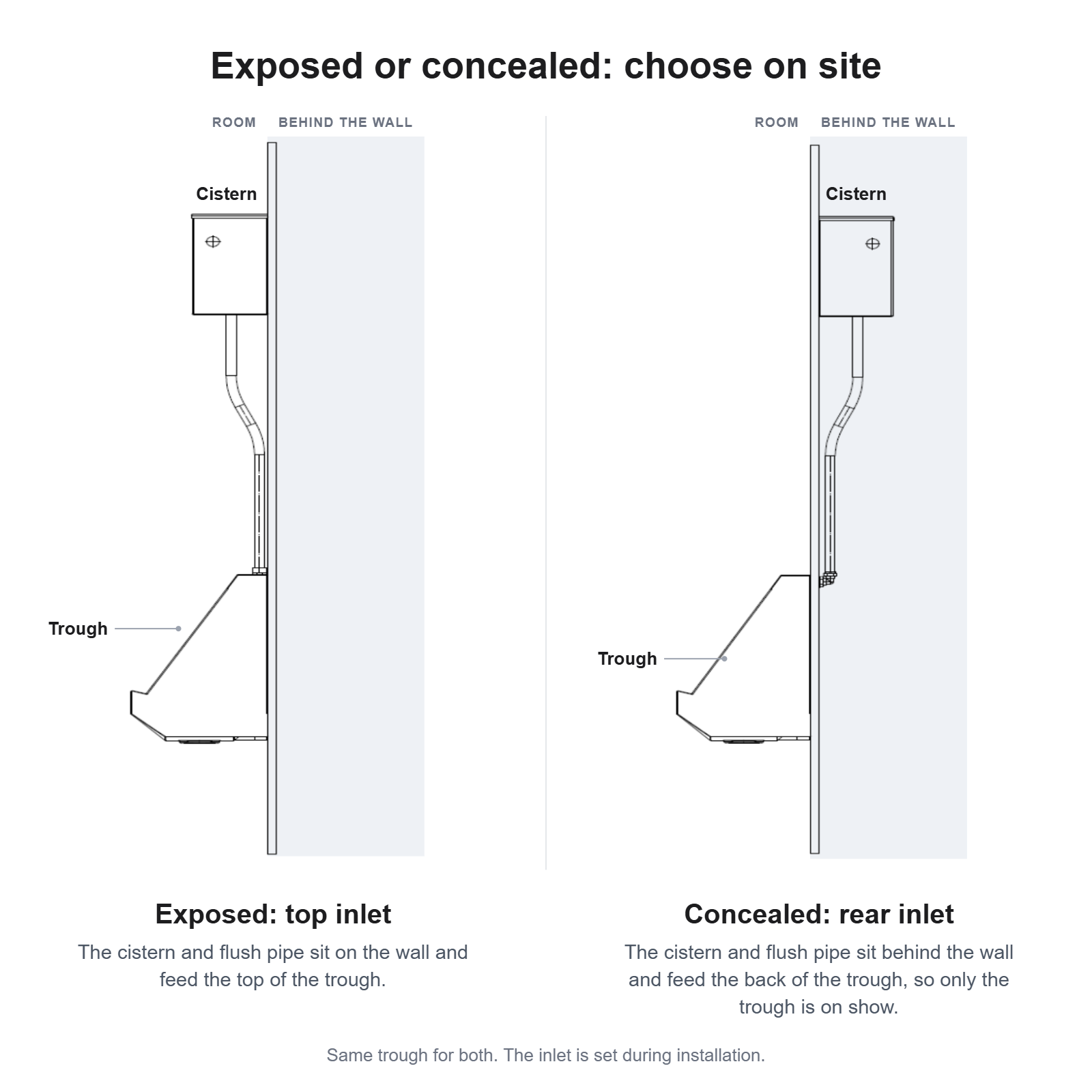

Yes. The inlet is universal. The required inlet tab is knocked out and the inlet bracket is sealed to the top or rear hole during installation.
No. The trap shroud is a separate item and is ordered alongside the pack.
| SKU | Length | Waste Position |
|---|---|---|
| FIFE1200-CW | 1200mm | Centre |
| FIFE1200-LH | 1200mm | Left Hand |
| FIFE1200-RH | 1200mm | Right Hand |
| FIFE1500-CW | 1500mm | Centre |
| FIFE1500-LH | 1500mm | Left Hand |
| FIFE1500-RH | 1500mm | Right Hand |
| FIFE1800-LH | 1800mm | Left Hand |
| FIFE1800-RH | 1800mm | Right Hand |
| FIFE2400-LH | 2400mm | Left Hand |
| FIFE2400-RH | 2400mm | Right Hand |
