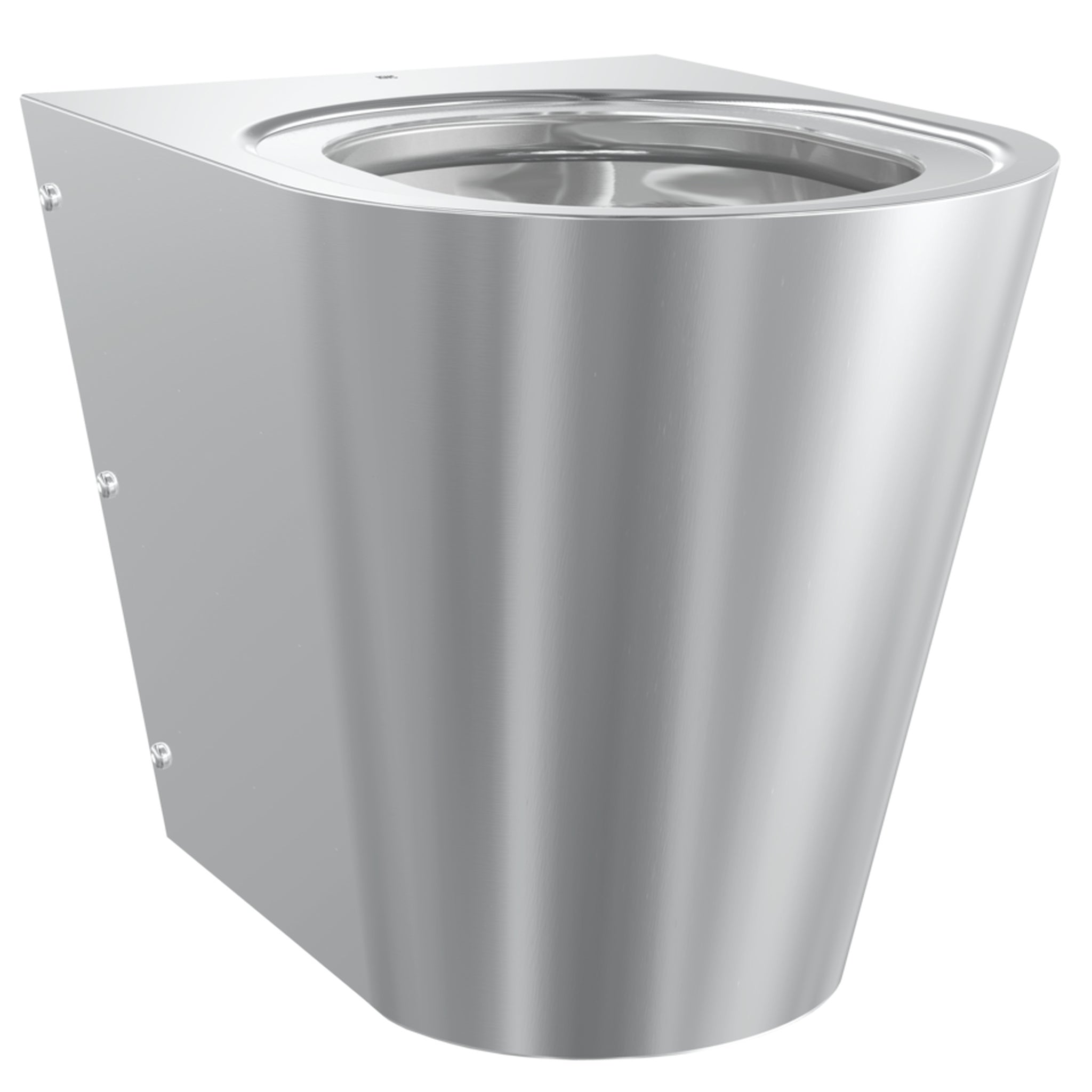

Franke Campus CMPX597 wall hung toilet, Shroud To The Floor, no seat

Franke Campus CMPX597 Wall Hung Stainless Steel Toilet, Shroud To The Floor

by KWC DVS

£795.00 ex VAT

£954.00 inc VAT

SKU: CMPX597

✓ Free Delivery
✓ Manufacturer Warranty
Toilet Seat Options
Need help with this product? Give us a call and we will get you sorted.
020 4571 5856

KWC DVS Campus Anti Vandal Stainless Steel WC Pan

The Franke Campus CMPX597 is a wall hung anti vandal toilet pressed from stainless steel with a satin finish. The pan carries a shroud that runs down to the floor, so the horizontal P trap outlet and the wall connection sit behind steel rather than in the open.

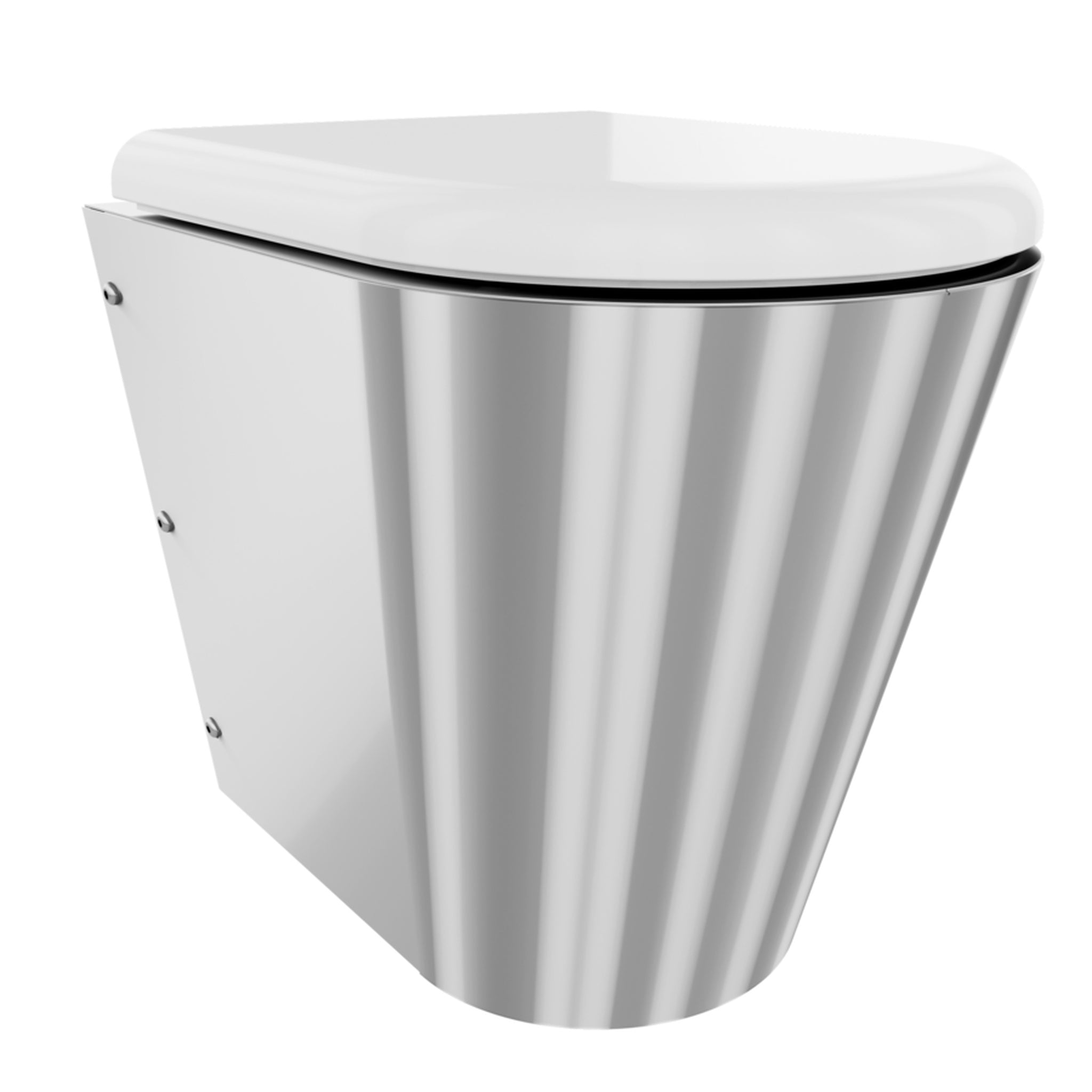

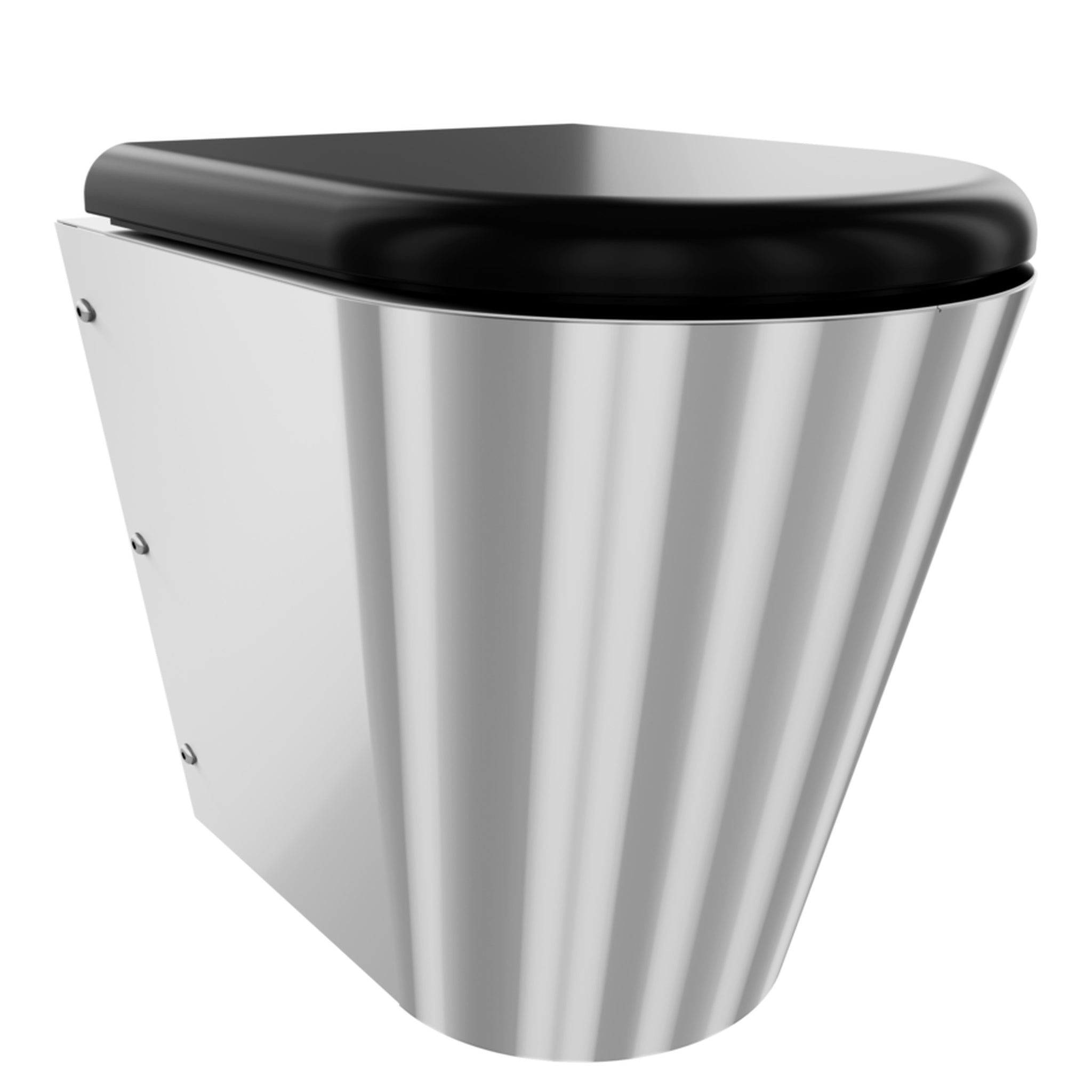

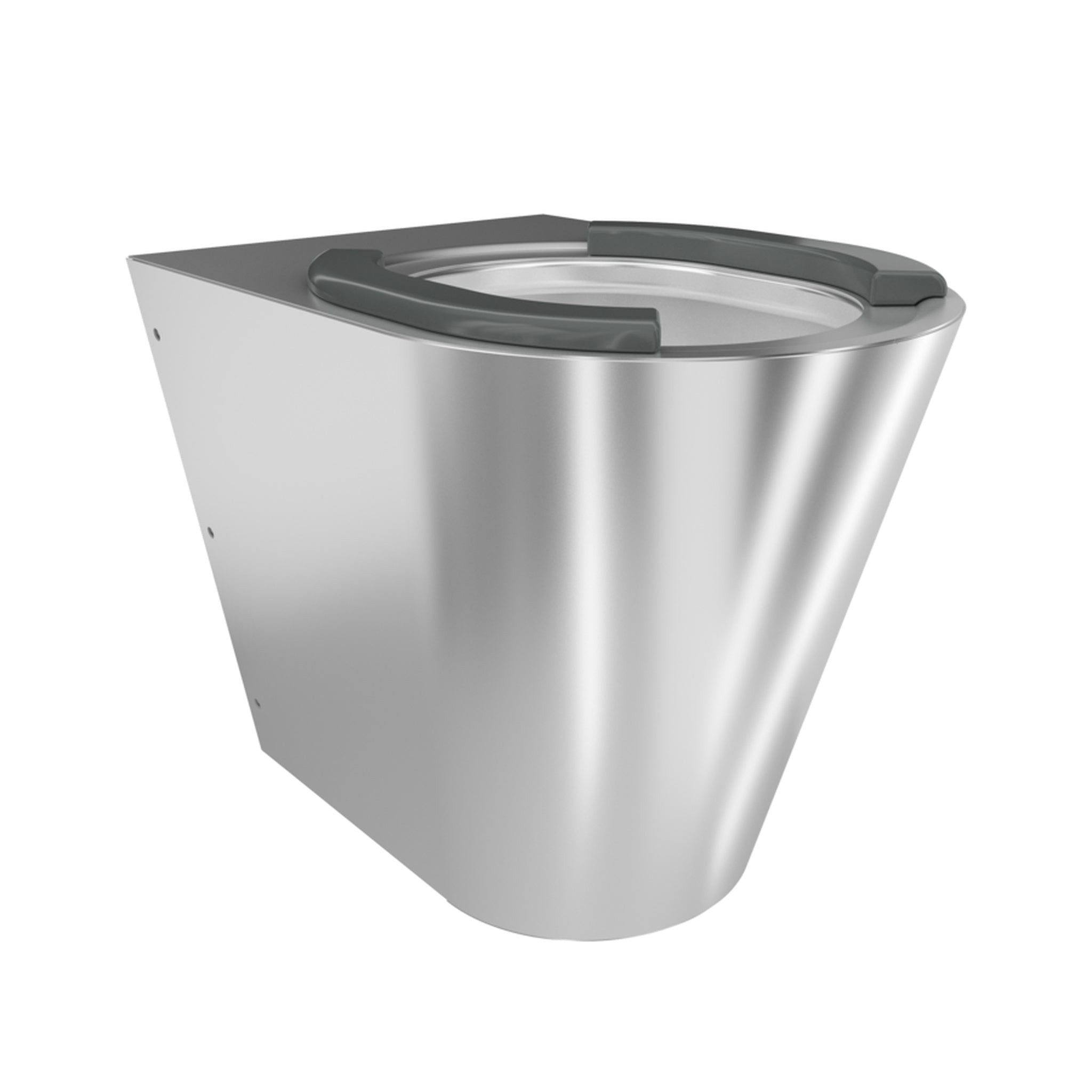

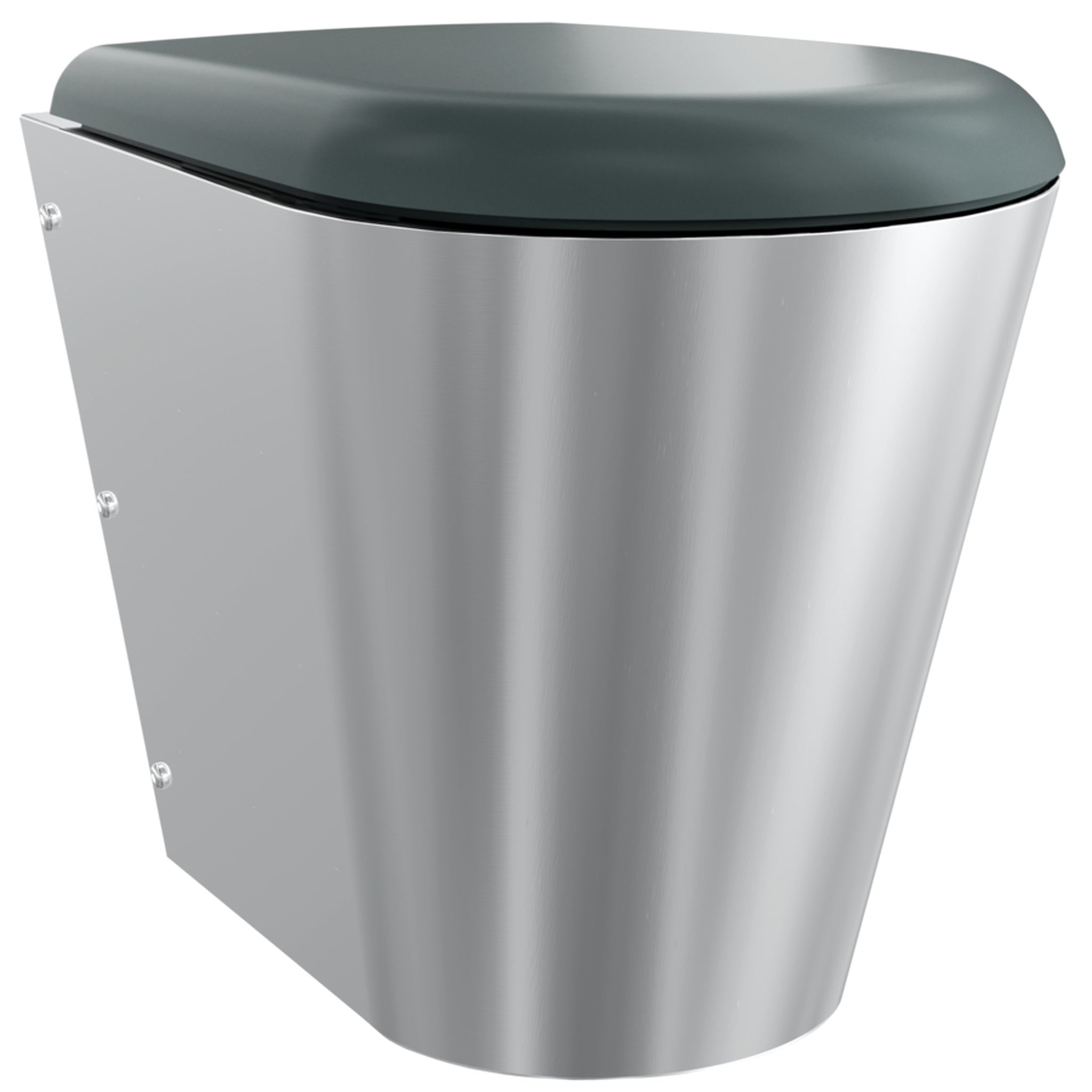

Each pan comes with a mounting plate and safety screw fixings. The CMPX597 is supplied without a seat. The CMPX597S adds two grey synthetic seat pads. The CMPX597BN, CMPX597GN and CMPX597WN add a synthetic hinged seat with lid in black, grey or white.

Key Features

  • Concealed Flushing Rim: The flushing rim is hidden inside the bowl and works from a minimum 4 litre flush, certificated to EN 997.
  • Pressed Seat Area: The seat area is pressed into the pan, tapered towards the centre, with every edge curved.
  • Fitted from the Front: The pan goes onto its mounting plate from the front and is locked on with the anti theft screws. The plate conforms to EN 33.
  • 1.5mm Satin Stainless Steel: Chrome nickel stainless steel at 1.5mm thickness with a satin finished surface throughout.

Franke Campus CMPX597 Wall Hung Stainless Steel Toilet, Shroud To The Floor Specifications

Brand KWC DVS
Material Stainless steel, 1.4301 chrome nickel steel V2A
Material thickness 1.5mm
Finish Satin finished stainless steel

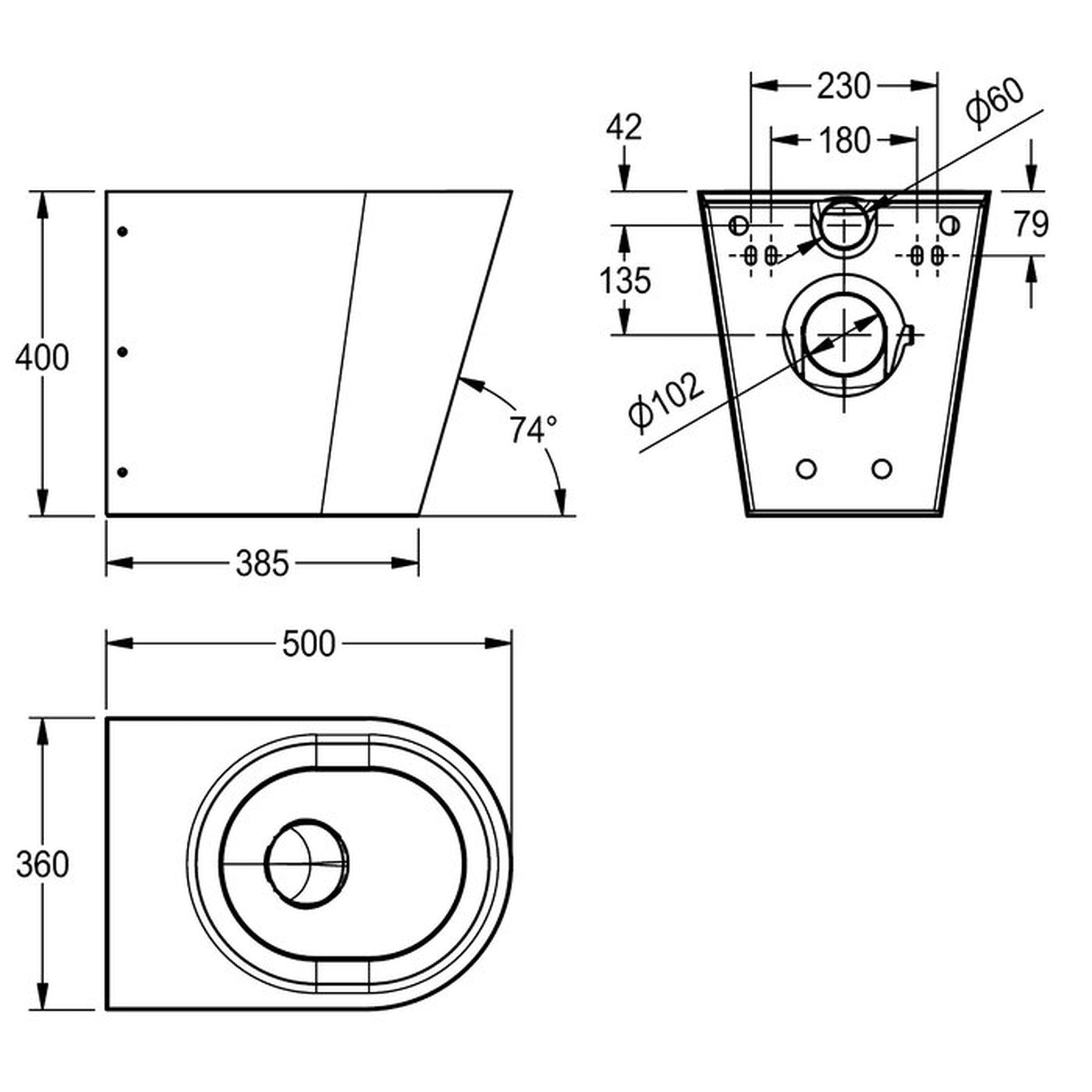

Width 360mm

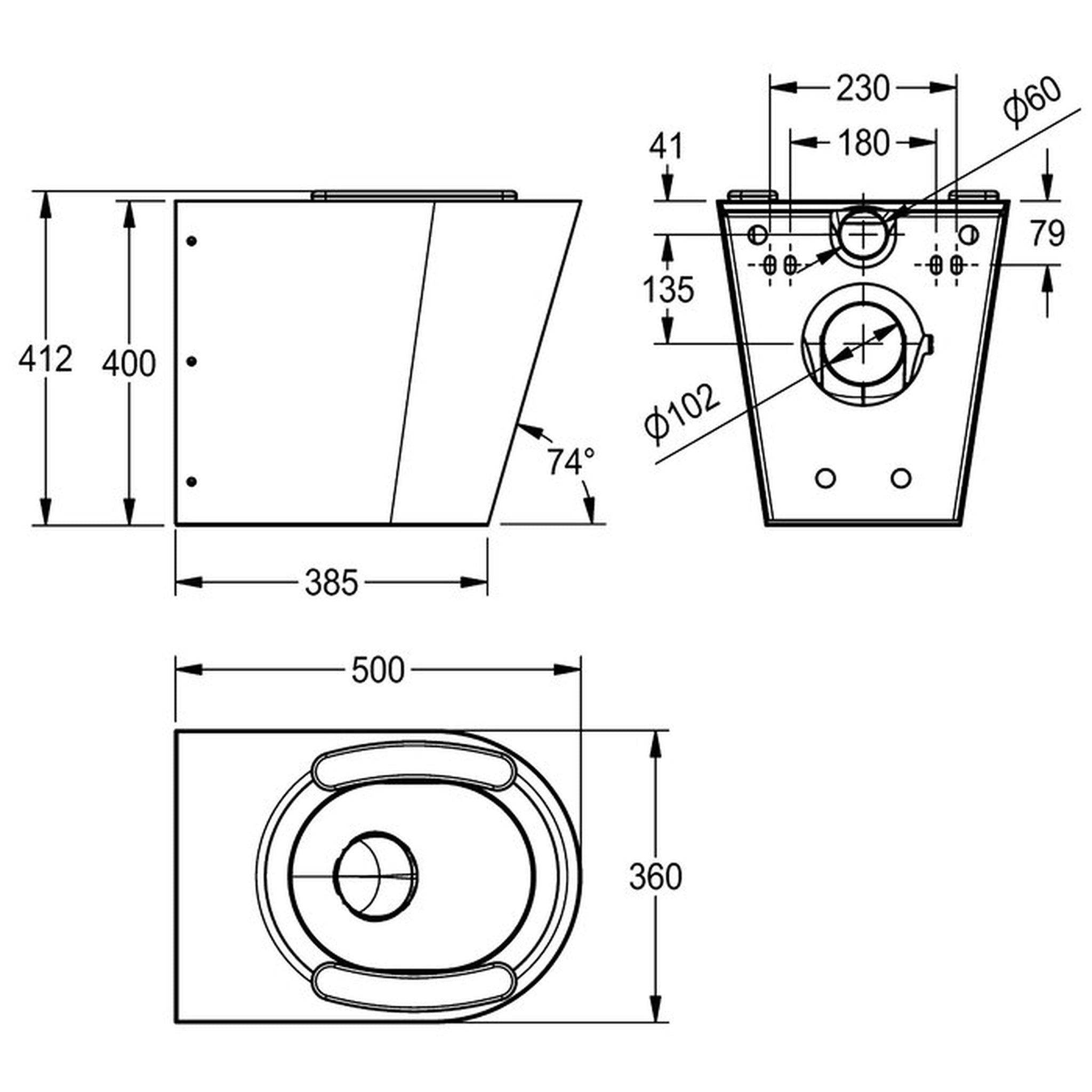

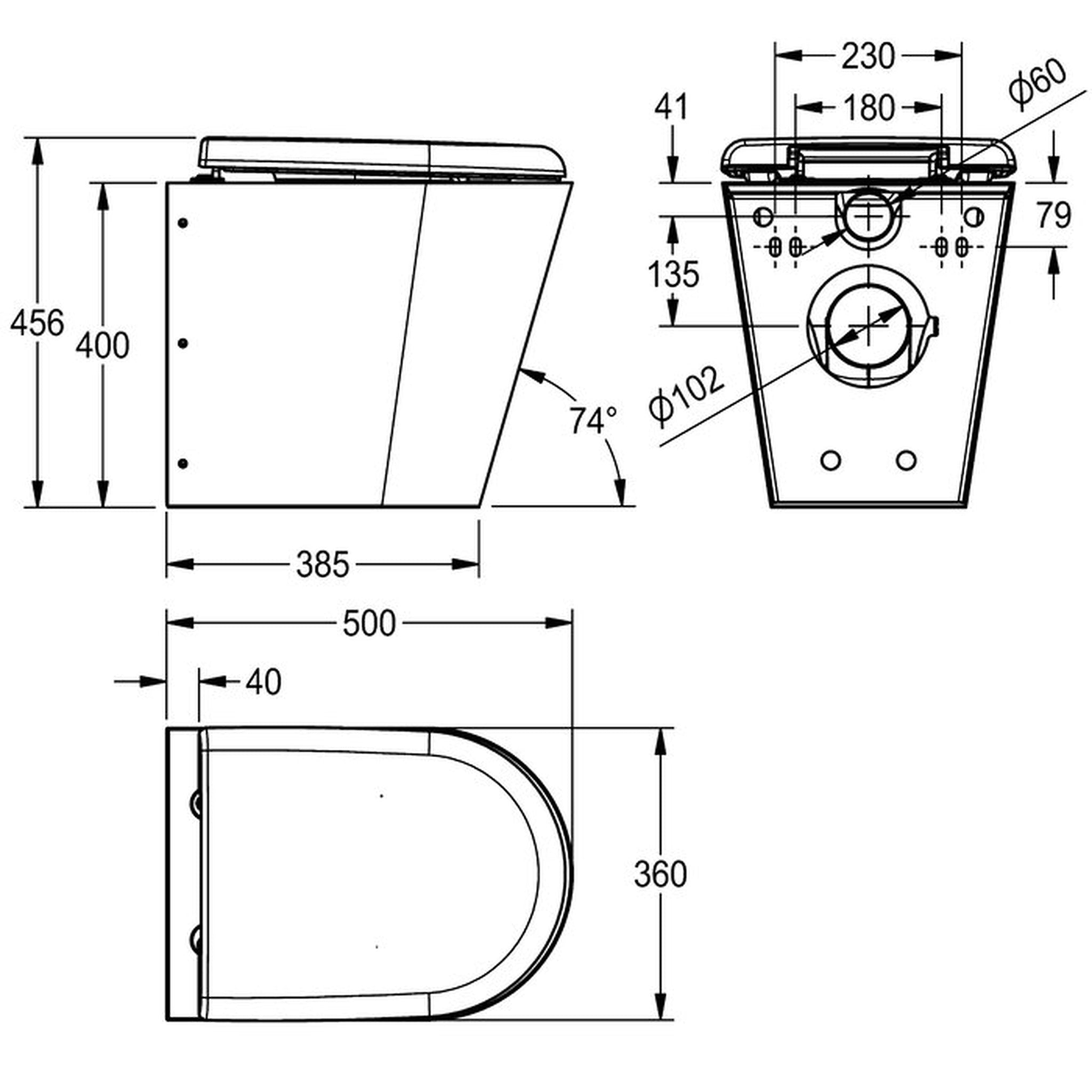

Height 400mm without seat, 412mm with seat pads, 456mm with hinged seat and lid
Depth 500mm
Mounting Wall mounted, wall hung with shroud to the floor
Outlet type Shrouded horizontal 'P' trap
Outlet size DN100 (100mm diameter)
Inlet size DN55
Flush volume 4 litres minimum
Supplied with Mounting plate and safety (anti theft) screw fixings
Product standard EN 997, EN 33

Franke Campus CMPX597 Wall Hung Stainless Steel Toilet, Shroud To The Floor Manuals & Downloads

Specification Sheets

Installation Guides

Frequently Asked Questions

What outlet does the pan have?

A horizontal P trap outlet at DN100. The shroud is carried down over the trap to the floor.

What is the inlet size?

DN55.

What flush volume does it need?

A minimum of 4 litres. The flush is certificated to EN 997 at 4 litres.

Are fixings included?

Yes. A mounting plate and safety screw fixings are in the box, and the pan is fixed from the front.

Are replacement seats available?

Replacement hinged seats in black, grey and white are available. Seat pads are also available as a replacement.

Does the seat option change the overall height?

Yes. The pan is 400mm high without a seat, 412mm with seat pads and 456mm with a hinged seat and lid. Width and depth stay at 360mm by 500mm.

Available Variants

SKUToilet Seat Options
CMPX597No Seat
CMPX597SSynthetic Seat Pad
CMPX597BNBlack Seat With Lid
CMPX597GNGrey Seat With Lid
CMPX597WNWhite Seat With Lid
