£679.35 ex VAT
£815.22 inc VAT
SKU: CMPX592
The Franke Campus CMPX592 is a wall hung toilet built from stainless steel.
The pan is finished in satin stainless steel, with a concealed flushing rim and a shrouded outlet trap that hides the waste connection. It is supplied as a bare pan, or with a seat fitted depending on the version ordered.
Mounting plate and security screws are supplied with every version. Choose between no toilet seat, seat pads or toilet seat and lid options when ordering
| Brand | KWC DVS |
|---|---|
| Material | Stainless steel, 1.4301 chrome nickel steel V2A |
| Material thickness | 1.5mm |
| Finish | Satin finished |

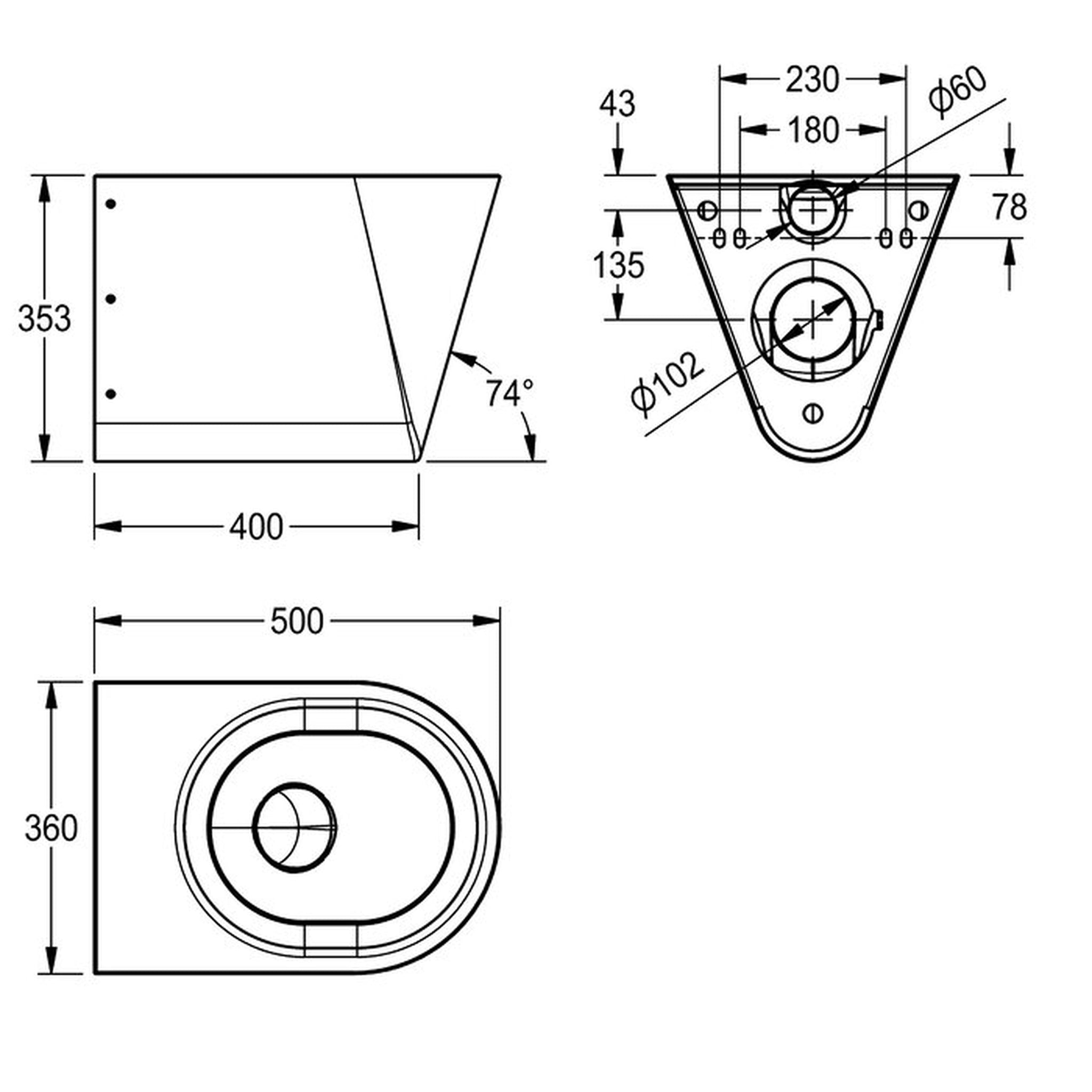

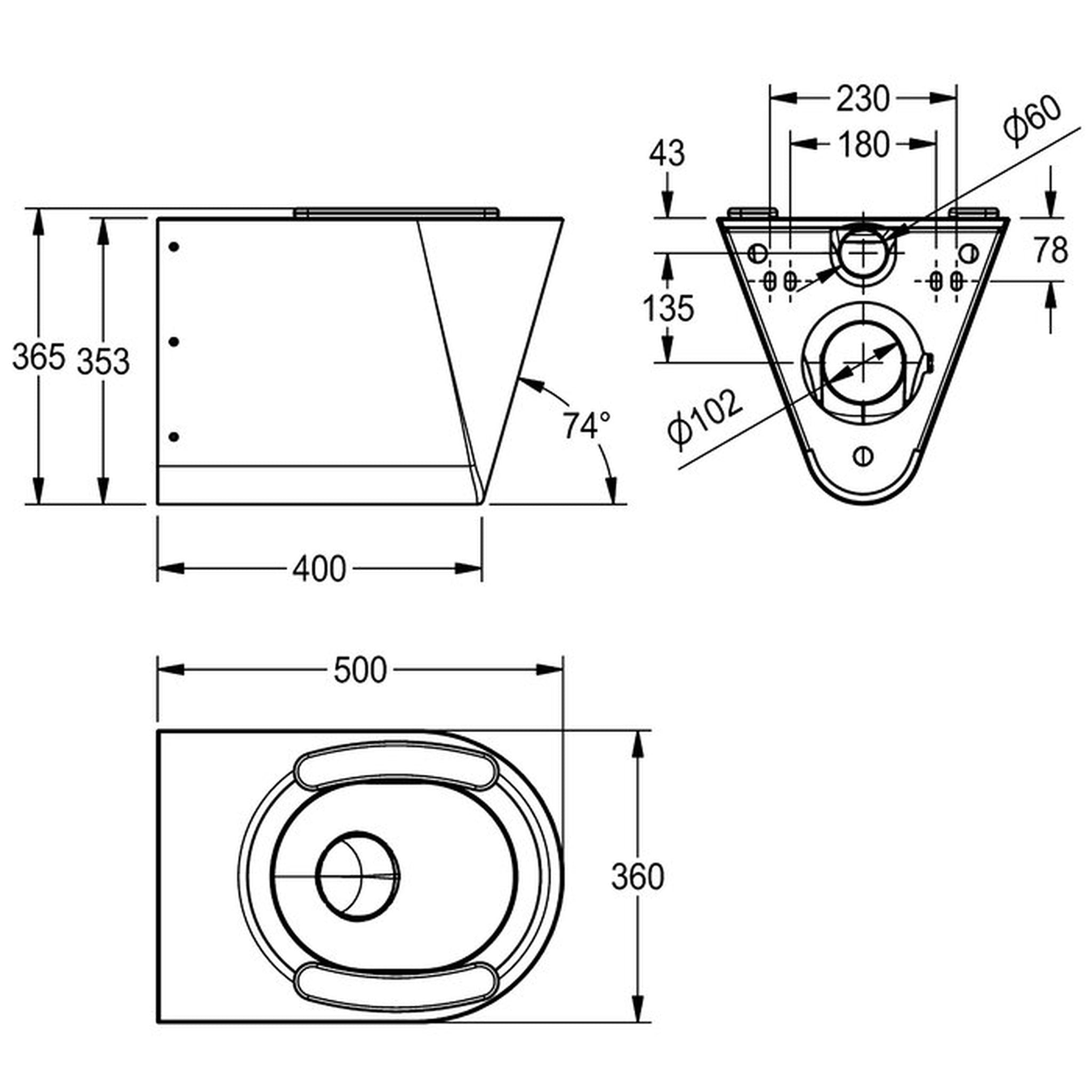

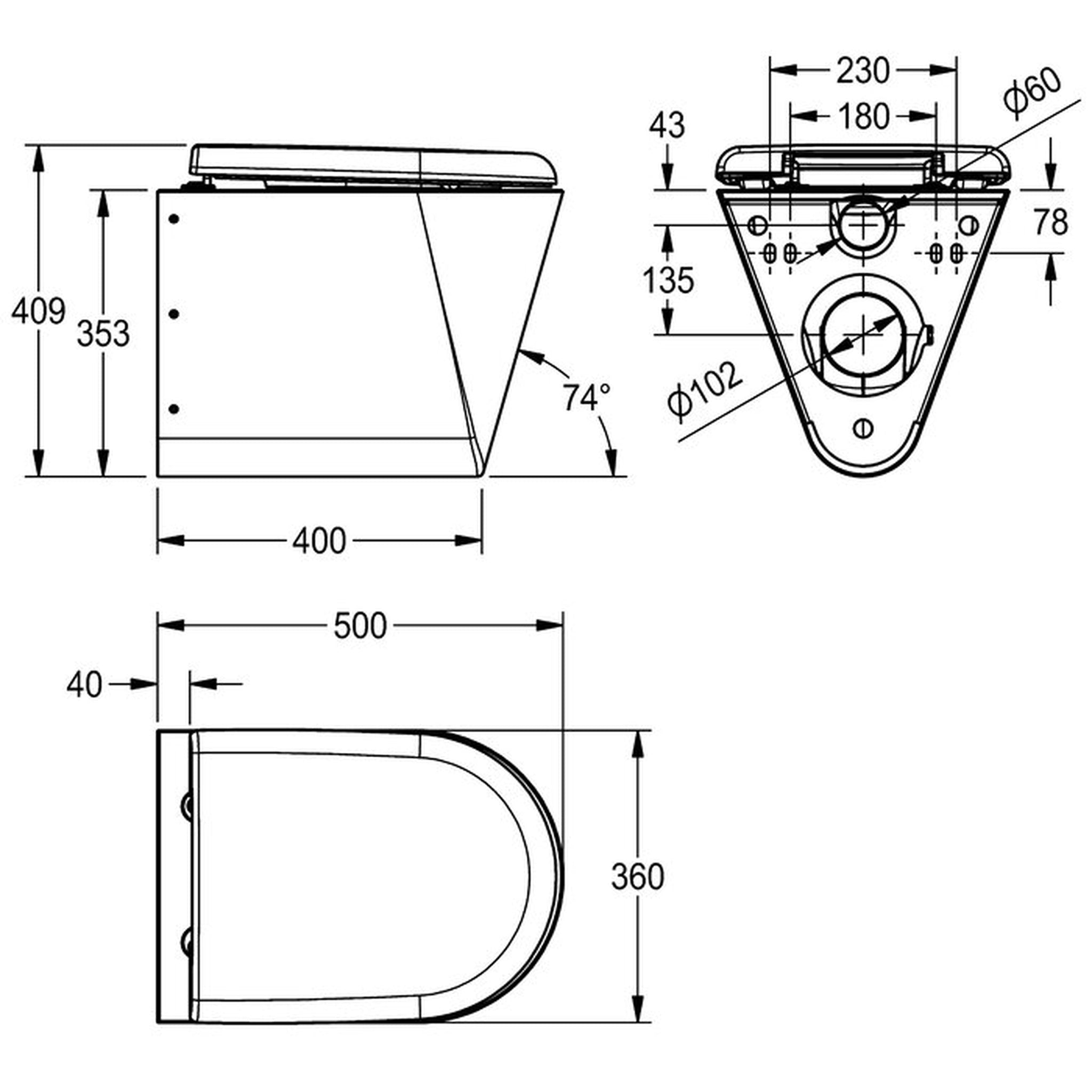

| Width | 360mm |
| Height | 353mm to 409mm |
| Depth | 500mm |
| Type of mounting | Wall mounted |
| Inlet size | DN 55 |
| Outlet size | DN 100, shrouded 100mm diameter horizontal 'P' trap outlet |
| Flush volume | 4 litre minimum flushing capacity |
| Supplied with | Mounting plate and security screws, seat and lid varying by version |
| Standards | EN 997, EN 33 |
CMPX592 is supplied without a seat. CMPX592S comes with a synthetic seat pad, and CMPX592BN, CMPX592GN and CMPX592WN each come with a synthetic hinged seat and lid in black, grey or white.
It has a DN 100 outlet fitted as a shrouded 100mm diameter horizontal P trap, so it connects to a horizontal waste run rather than a vertical one.
The inlet is DN 55.
CMPX592 is supplied without a seat. The seat pad and the hinged seat and lid are supplied on the other versions in the range, so a seated version is the route to a matched seat.
It is wall mounted using the supplied mounting plate and security screws.
It needs a minimum flushing capacity of 4 litres.
| SKU | Toilet Seat Options |
|---|---|

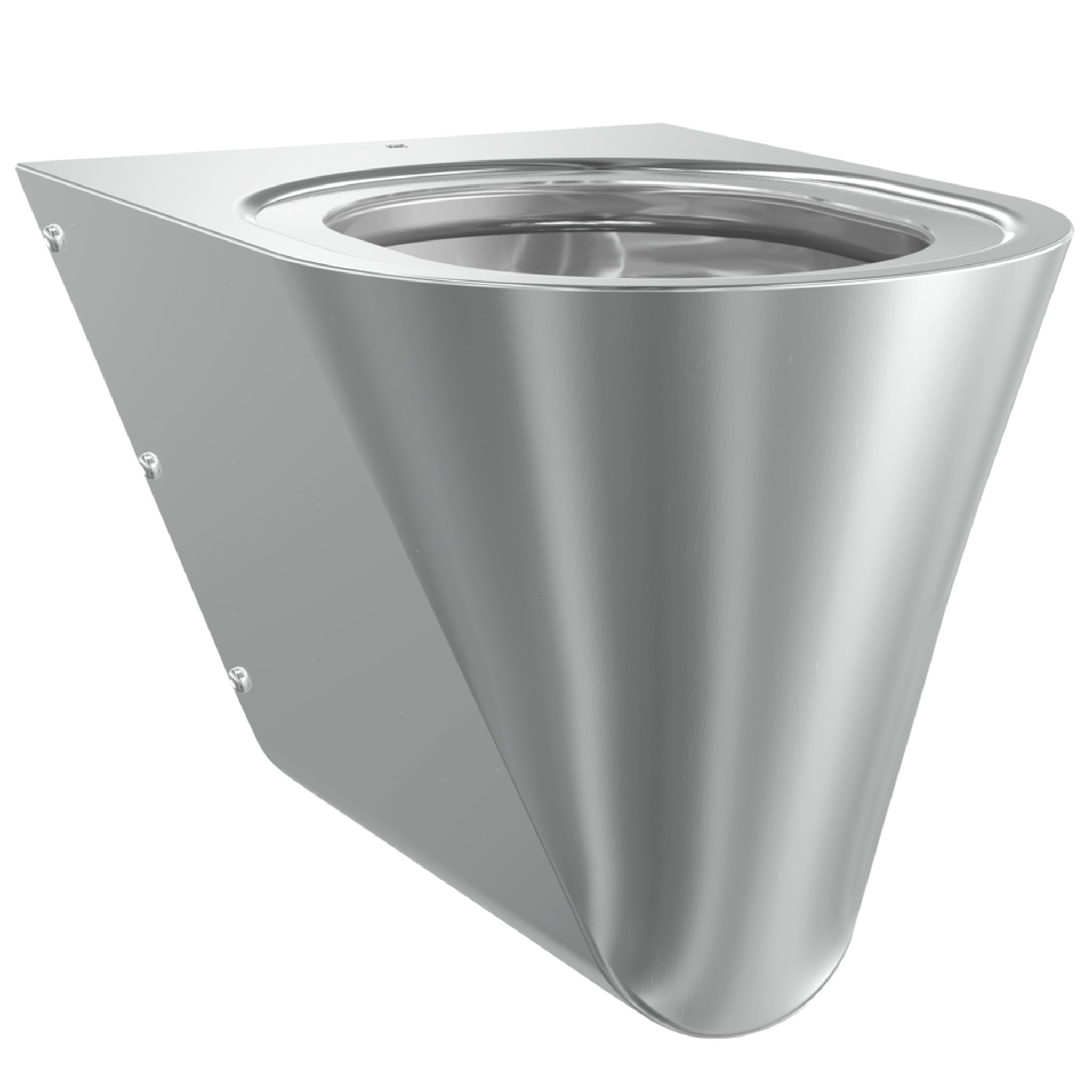

| CMPX592 | No Seat |

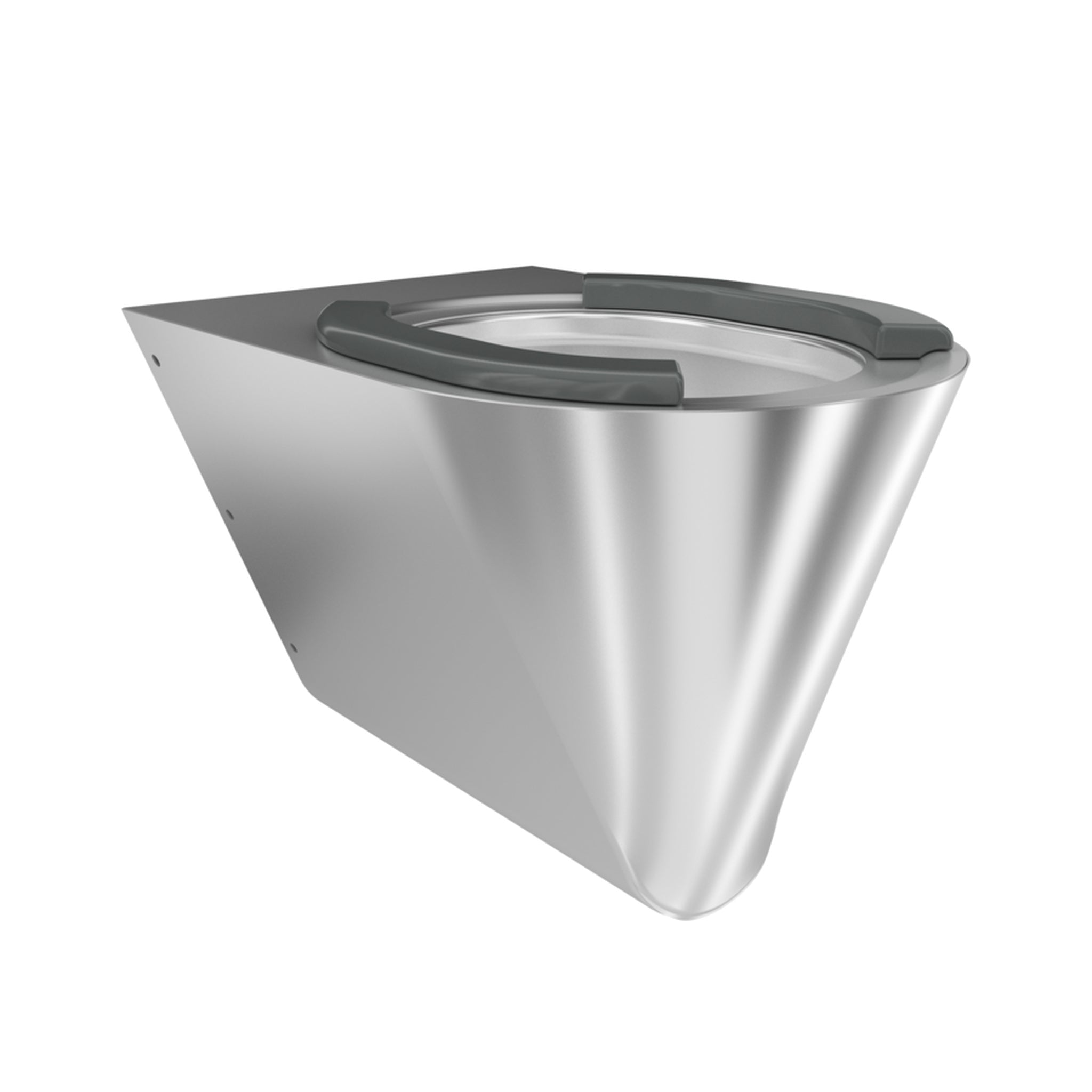

| CMPX592S | Synthetic Seat Pad |

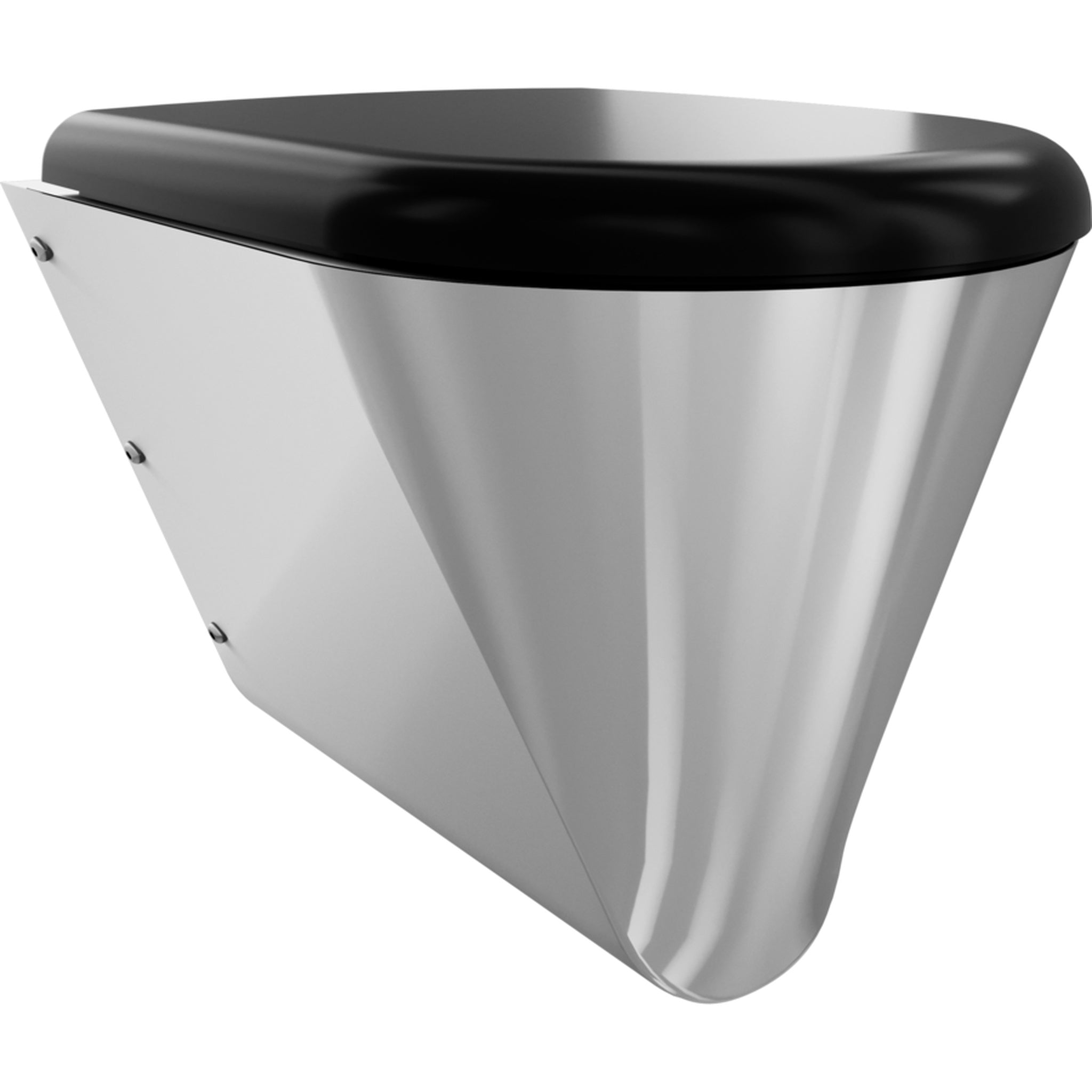

| CMPX592BN | Black Synthetic Hinged Seat With Lid |

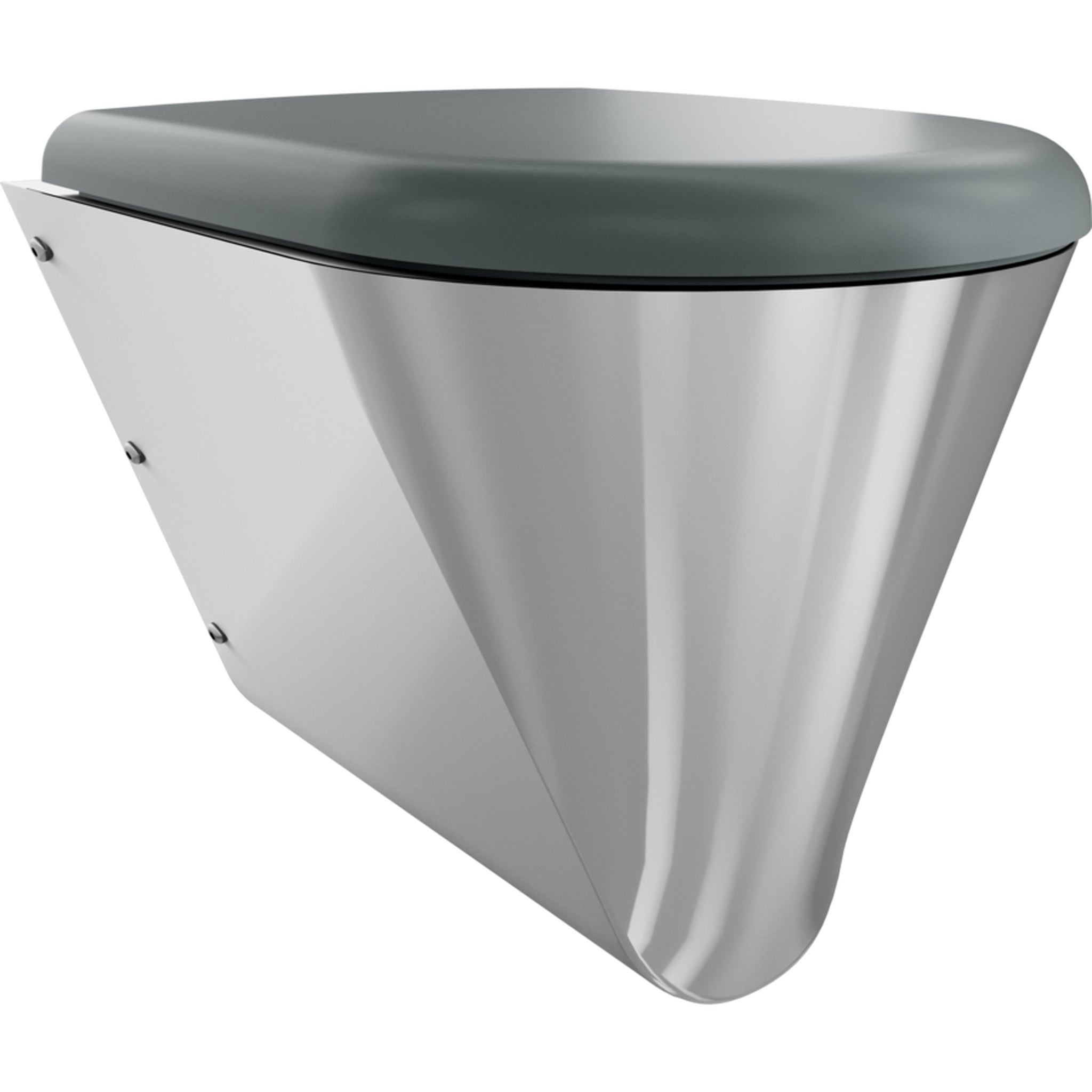

| CMPX592GN | Grey Synthetic Hinged Seat With Lid |

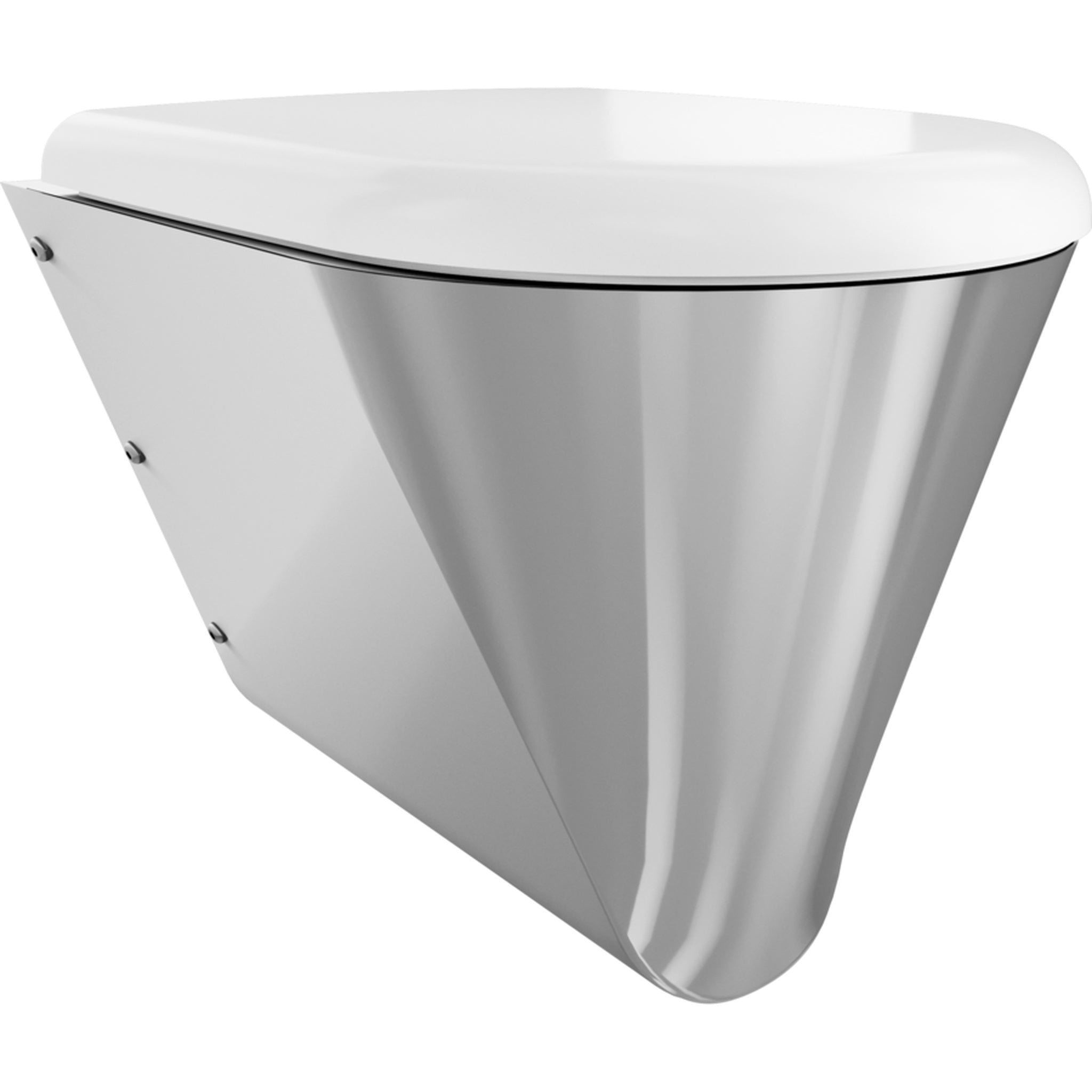

| CMPX592WN | White Synthetic Hinged Seat With Lid |
