£443.76 ex VAT
£532.51 inc VAT
SKU: DM215K/WH
The Fitzroy Of London Low Level Doc M Toilet Pack is a complete accessible toilet set supplied in one box. It pairs a low level box rim pan and cistern with a compact basin, a sequential mixer tap, a set of grab rails, a hinged support rail and a padded back rest. The rails come in various finishes and fixings, these are decided when ordering.
Included in the pack:
• Low level box rim Doc M pan, comfort height
• Low level cistern with inlet valve, syphon, flush pipe and Doc M spatula lever, (lockable lid when chosen)
• Ring only toilet seat, stainless steel pillar hinge, bottom fix
• Compact finger rinse Doc M basin with wall fixings
• Polished chrome sequential mixer tap, tap hole stopper and basin waste
• Grab rails, 5 x 600mm
• 800mm hinged support rail
• 270mm back rest rail with pad
• Inline TMV3 thermostatic mixing valve on the TMV3 versions
| Brand | Fitzroy Of London |
|---|---|
| Grab rail material | Coated steel or stainless steel |
| Finish | Choose between - powder coated RAL - polished stainless steel - satin stainless steel |
| Grab rail tube diameter | 35mm |
| Grab rails supplied | 5 x 600mm |
| Hinged support rail length | 800mm |
| Back rest projection | 270mm |
| Pan | Low level box rim Doc M pan |
| Cistern | Low level, with fittings, flush pipe and Doc M spatula lever |
| Cistern inlet | Bottom inlet |
| Flush volume | 6 litres |
| Toilet seat | Ring only, bottom fix, stainless steel pillar hinge |
| Toilet Height | 480mm |
| Basin | Compact finger rinse Doc M basin |
| Basin tap holes | Two, for left or right handed configuration |
| Basin overflow | None |
| Basin tap | Sequential mixer, polished chrome |
| Thermostatic mixing valve size | 15mm inline |
| Suitable for wet areas | Stainless steel rail versions only |
| Accessibility | Building Regulations Part M (Doc M) |
| Water Regulations | WRAS, KIWA and NSF |
| TMV approval | TMV2 and TMV3 on thermostatic valve versions |
| Product standard | BS EN 1111 and BS EN 1287:2017 on thermostatic valve versions |
| Standards | UKCA, CE, Water Regulations 4, (Building Regulations Part G, HTM 04-01 D08 when TMV3 versions are chosen) |
The versions listed with a TMV3 valve ship with a 15mm inline thermostatic mixing valve. It holds TMV2 and TMV3 approval. Standard versions have no mixing valve in the box.
A lockable lid is available on the concealed fixing versions. On coated steel rails it comes in all four colours. On stainless steel rails it comes with polished or satin stainless finishes only. Exposed fixing versions have a standard lid.
Bottom fix as supplied. The stainless steel pillar hinge can be changed to top fix with a separate hinge pack, which is not included.
No. Only the stainless steel rail versions are rated for wet areas.
| SKU | Rails | Finish | Cistern Lid And TMV3 Valve |
|---|---|---|---|
| DM215K/WH | Exposed Fixings, Steel | White (RAL 9016) | Standard Lid |
| DM215K/GY | Exposed Fixings, Steel | Grey (RAL 7005) | Standard Lid |

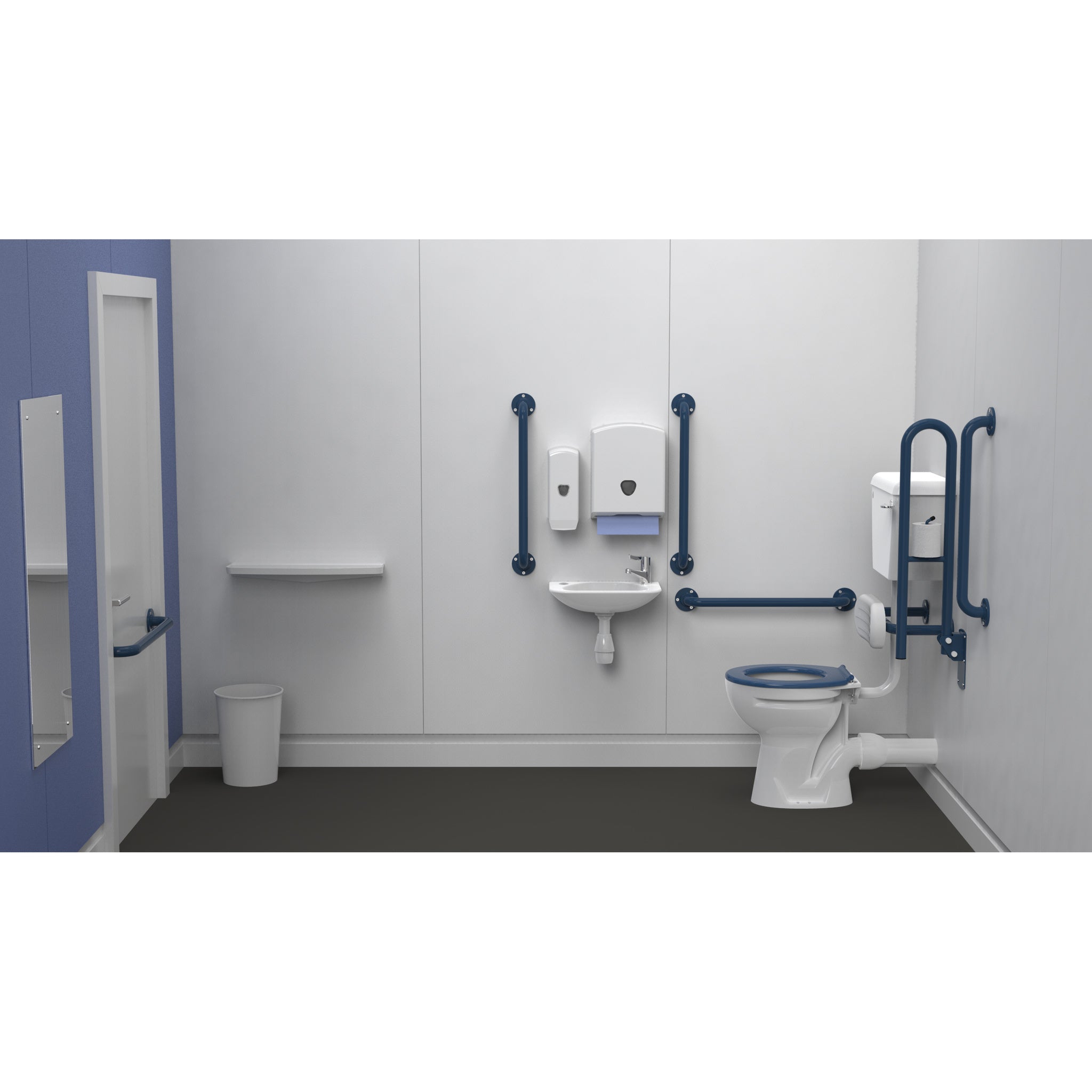

| DM215K/DB | Exposed Fixings, Steel | Dark Blue (RAL 5011) | Standard Lid |

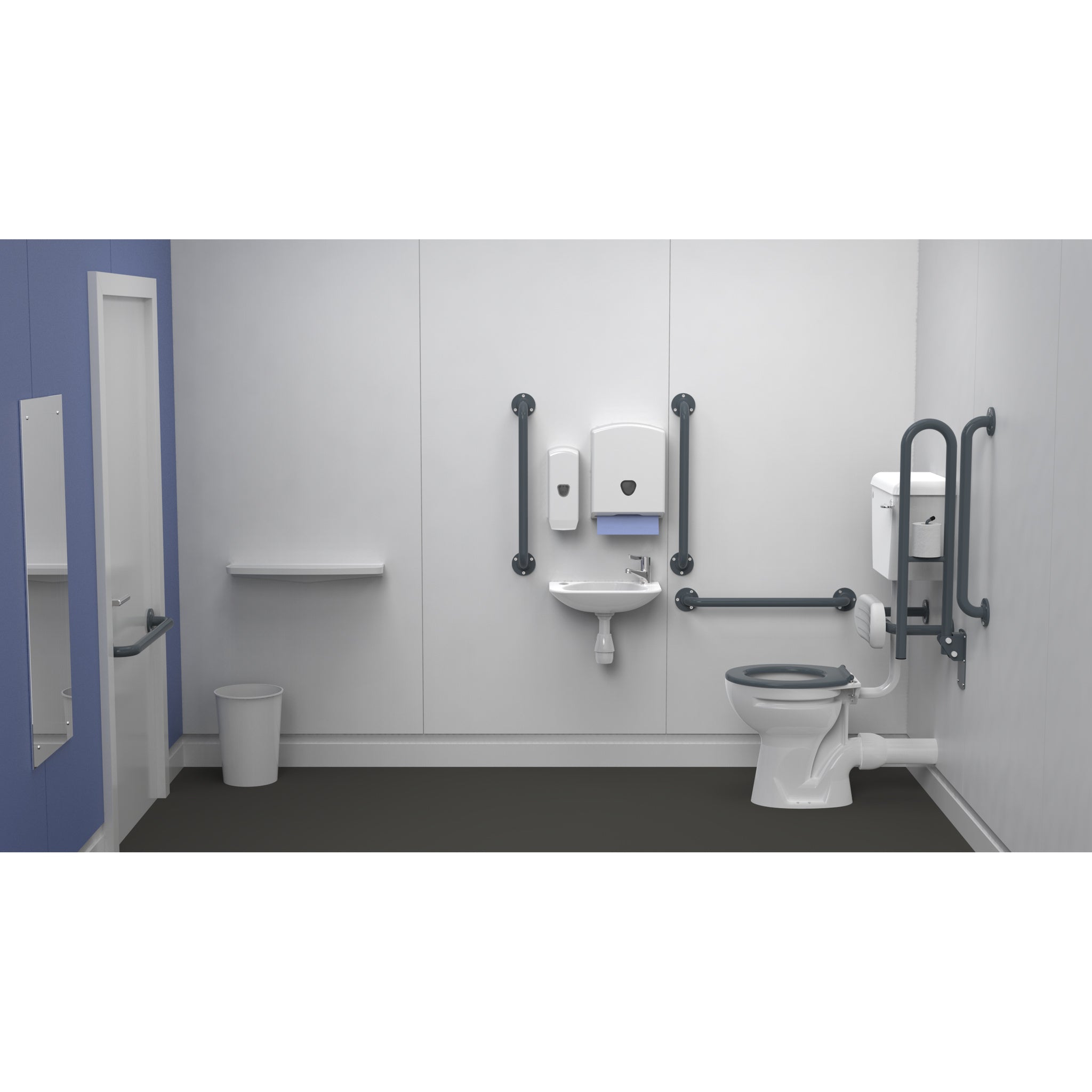

| DM215K/DG | Exposed Fixings, Steel | Dark Grey (RAL 7016) | Standard Lid |
| DMLL/WH | Exposed Fixings, Steel | White (RAL 9016) | Standard Lid With TMV3 Valve |
| DMLL/GY | Exposed Fixings, Steel | Grey (RAL 7005) | Standard Lid With TMV3 Valve |
| DMLL/DB | Exposed Fixings, Steel | Dark Blue (RAL 5011) | Standard Lid With TMV3 Valve |
| DMLL/DG | Exposed Fixings, Steel | Dark Grey (RAL 7016) | Standard Lid With TMV3 Valve |
| DM215KC/WH | Concealed Fixings, Steel | White (RAL 9016) | Standard Lid |
| DM215KC/GY | Concealed Fixings, Steel | Grey (RAL 7005) | Standard Lid |
| DM215KC/DB | Concealed Fixings, Steel | Dark Blue (RAL 5011) | Standard Lid |
| DM215KC/DG | Concealed Fixings, Steel | Dark Grey (RAL 7016) | Standard Lid |

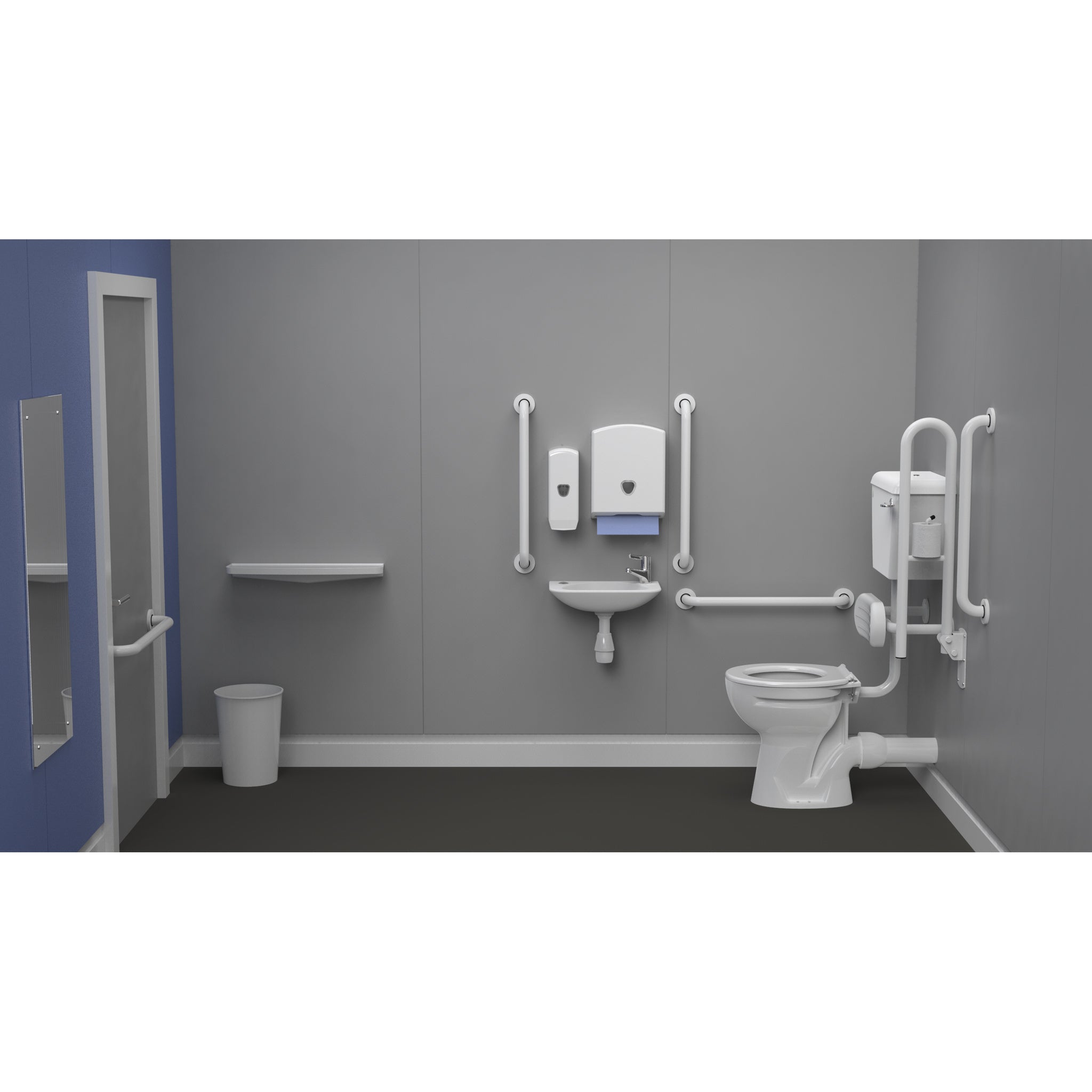

| DM215KC/LC/WH | Concealed Fixings, Steel | White (RAL 9016) | Lockable Lid |

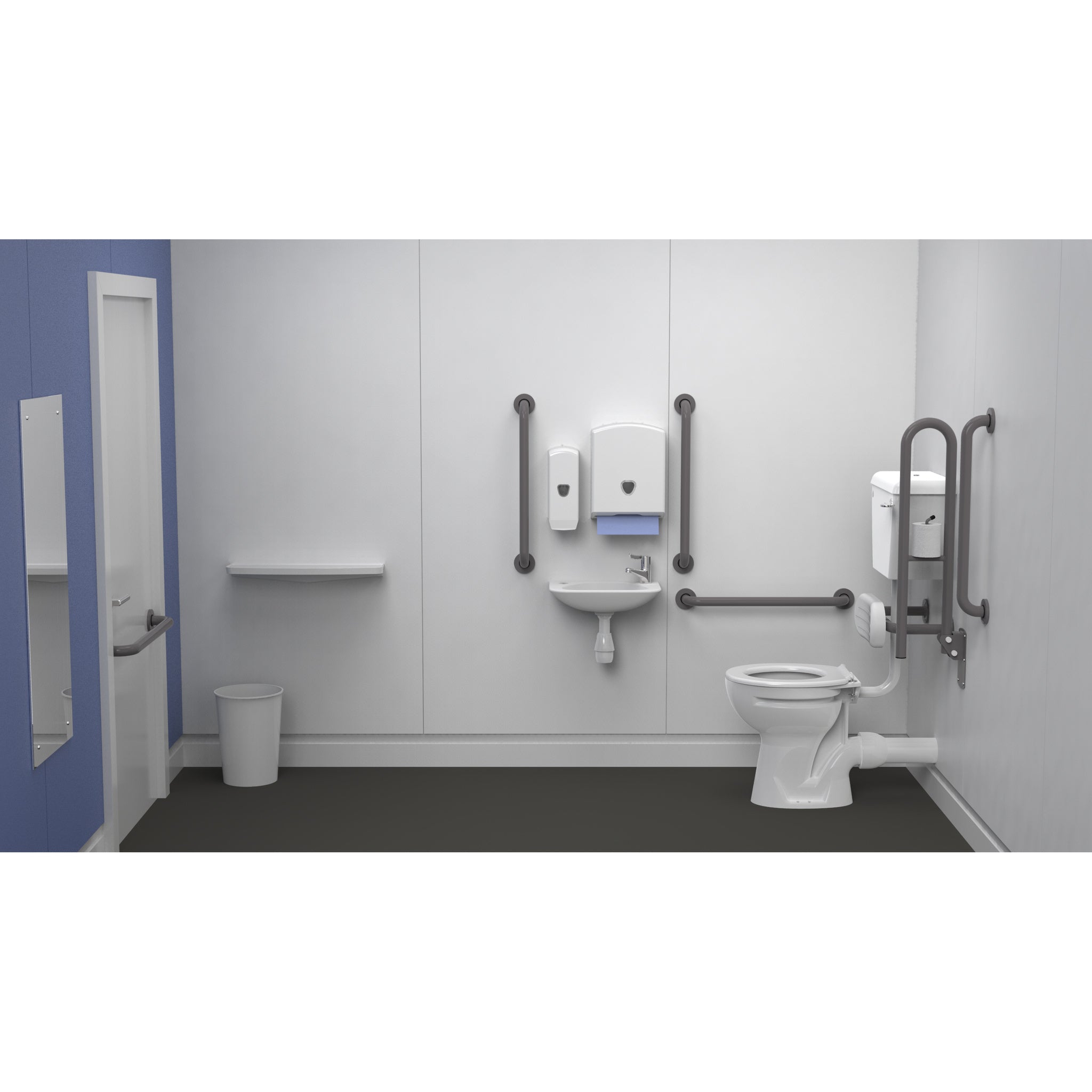

| DM215KC/LC/GY | Concealed Fixings, Steel | Grey (RAL 7005) | Lockable Lid |

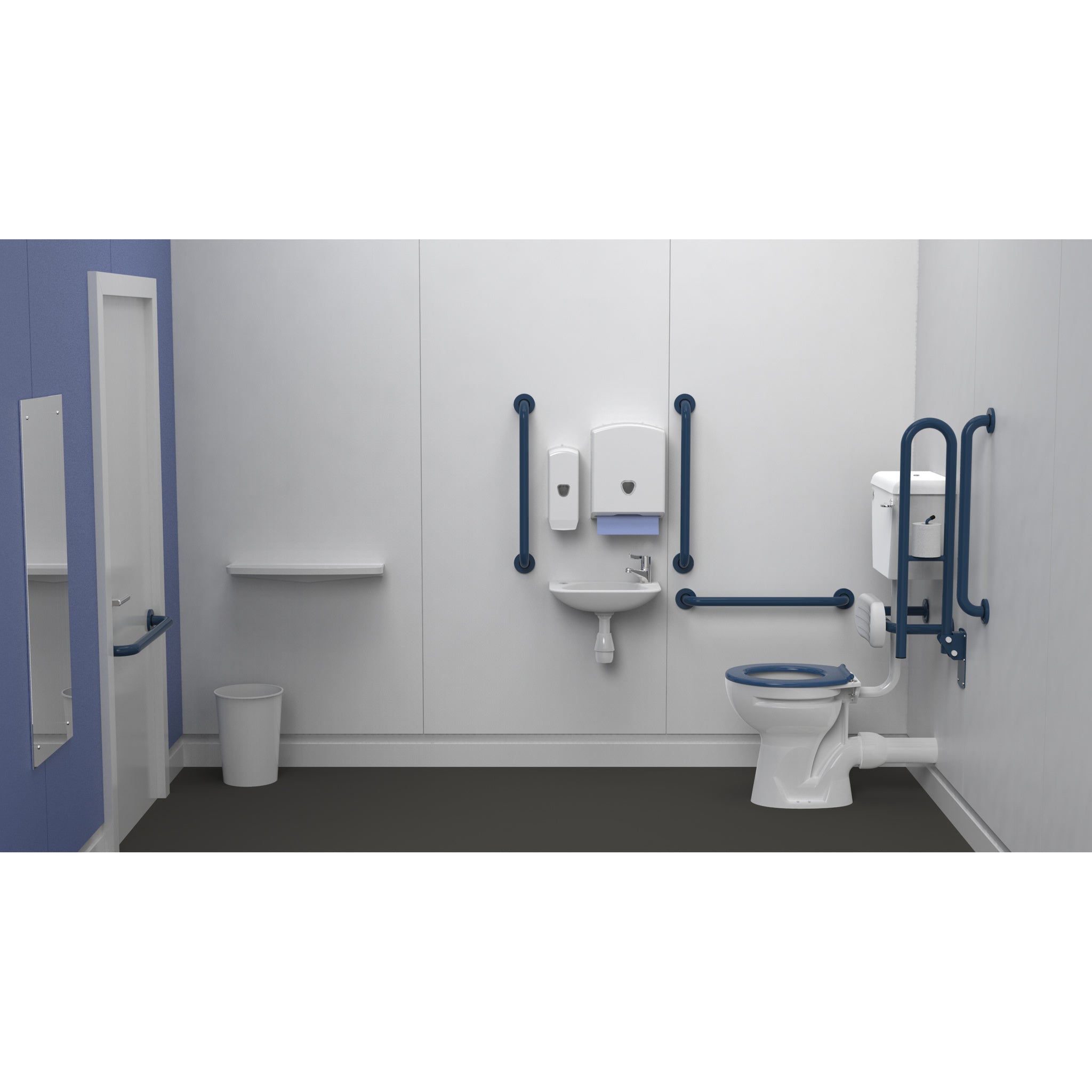

| DM215KC/LC/DB | Concealed Fixings, Steel | Dark Blue (RAL 5011) | Lockable Lid |

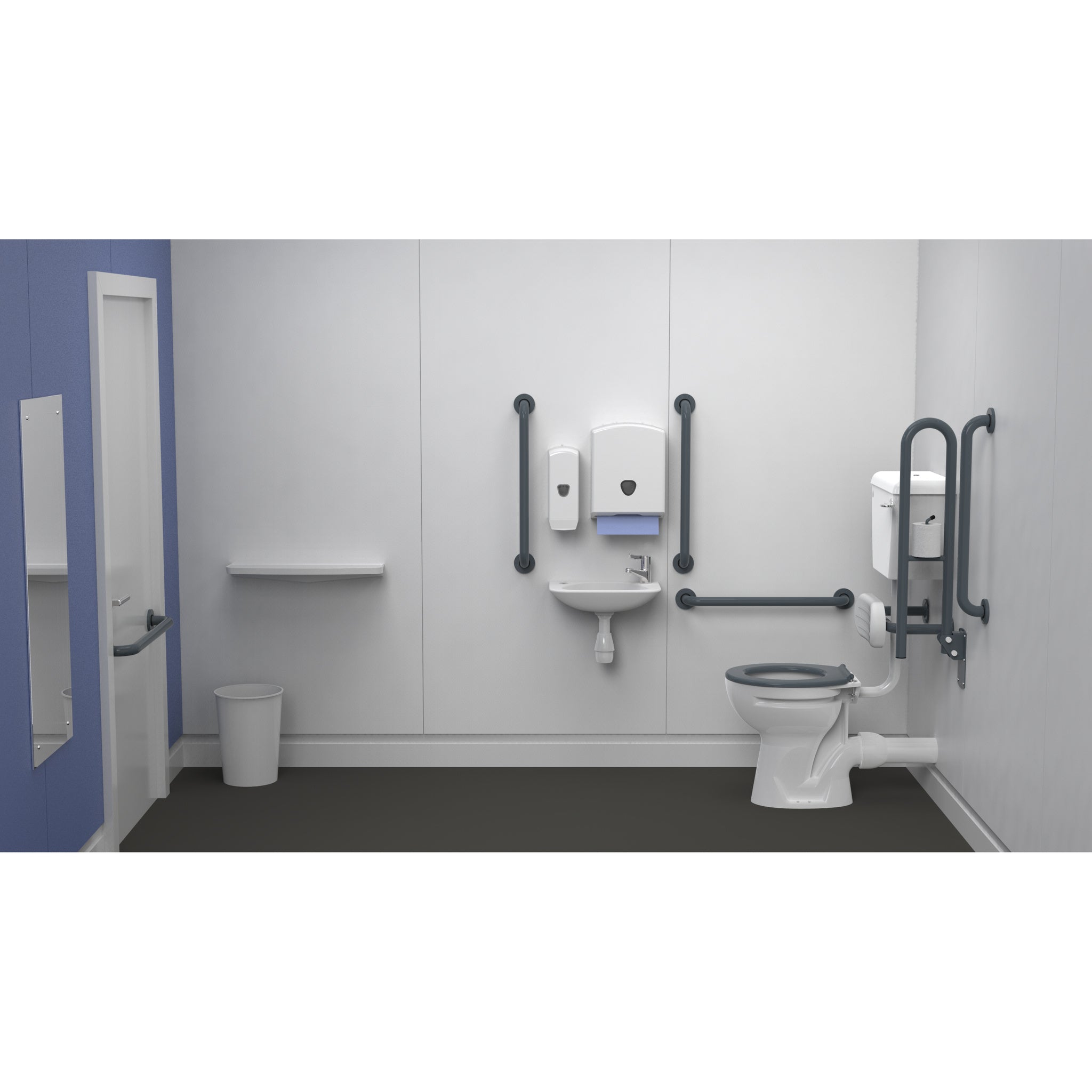

| DM215KC/LC/DG | Concealed Fixings, Steel | Dark Grey (RAL 7016) | Lockable Lid |
| DM315K/WH | Concealed Fixings, Steel | White (RAL 9016) | Standard Lid With TMV3 Valve |
| DM315K/GY | Concealed Fixings, Steel | Grey (RAL 7005) | Standard Lid With TMV3 Valve |
| DM315K/DB | Concealed Fixings, Steel | Dark Blue (RAL 5011) | Standard Lid With TMV3 Valve |
| DM315K/DG | Concealed Fixings, Steel | Dark Grey (RAL 7016) | Standard Lid With TMV3 Valve |
| DM315K/LC/WH | Concealed Fixings, Steel | White (RAL 9016) | Lockable Lid With TMV3 Valve |
| DM315K/LC/GY | Concealed Fixings, Steel | Grey (RAL 7005) | Lockable Lid With TMV3 Valve |
| DM315K/LC/DB | Concealed Fixings, Steel | Dark Blue (RAL 5011) | Lockable Lid With TMV3 Valve |
| DM315K/LC/DG | Concealed Fixings, Steel | Dark Grey (RAL 7016) | Lockable Lid With TMV3 Valve |

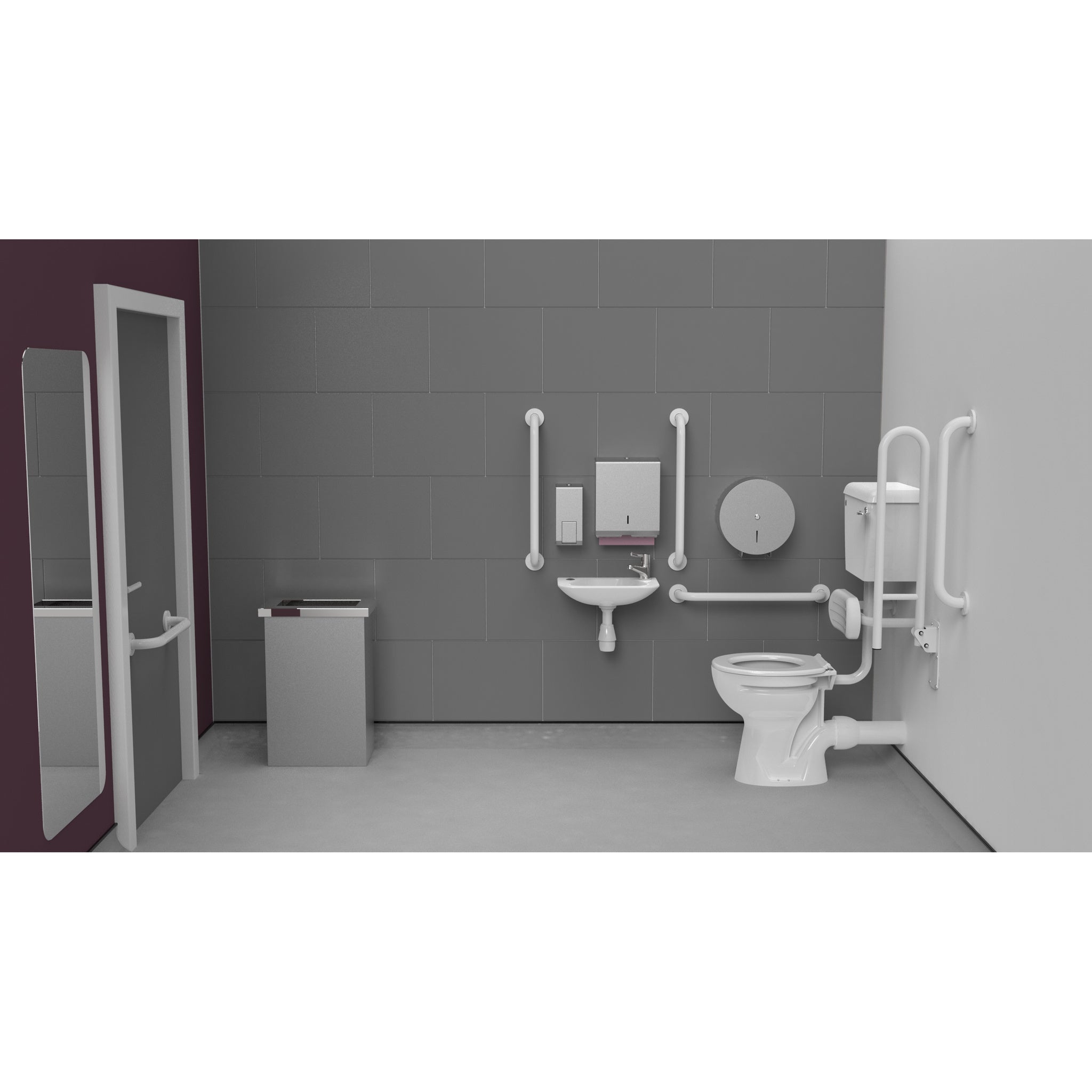

| DM215KCS/WH | Concealed Fixings, Stainless Steel | White (RAL 9016) | Standard Lid |
| DM215KCS/GY | Concealed Fixings, Stainless Steel | Grey (RAL 7005) | Standard Lid |
| DM215KCS/DB | Concealed Fixings, Stainless Steel | Dark Blue (RAL 5011) | Standard Lid |

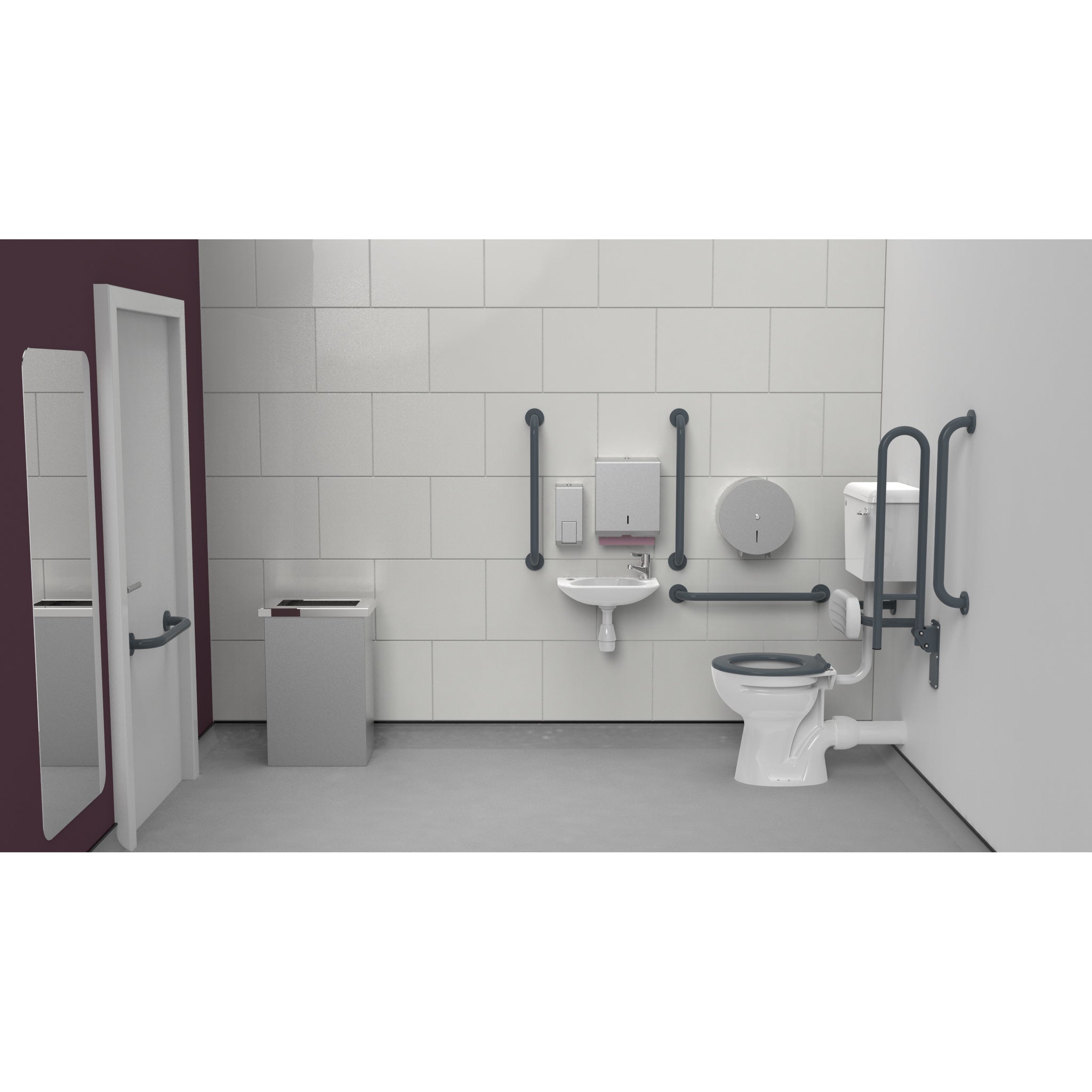

| DM215KCS/DG | Concealed Fixings, Stainless Steel | Dark Grey (RAL 7016) | Standard Lid |
| DM215KCS/SP | Concealed Fixings, Stainless Steel | Polished Stainless Steel | Standard Lid |
| DM215KCS/SS | Concealed Fixings, Stainless Steel | Satin Stainless Steel | Standard Lid |

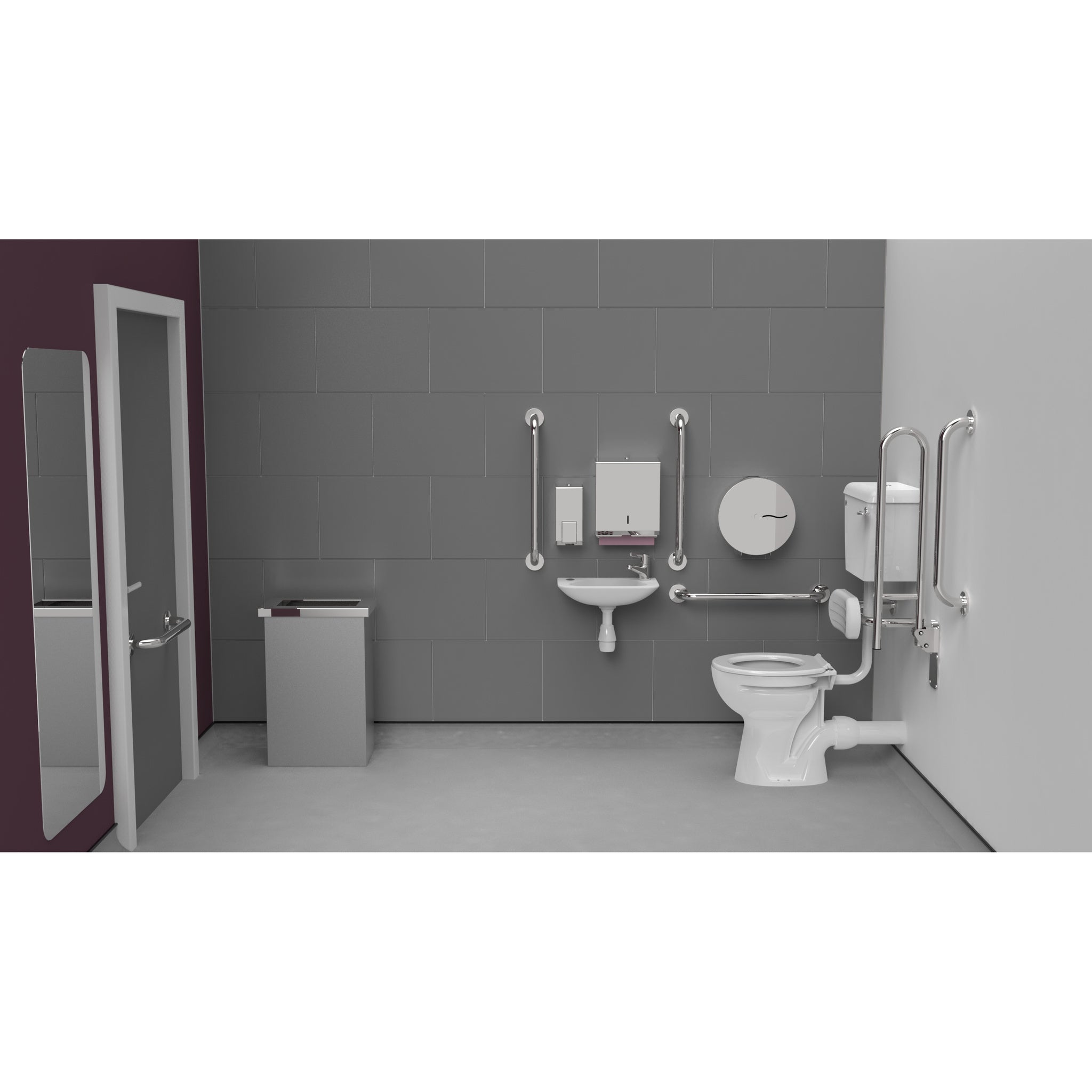

| DM215KCS/LC/SP | Concealed Fixings, Stainless Steel | Polished Stainless Steel | Lockable Lid |

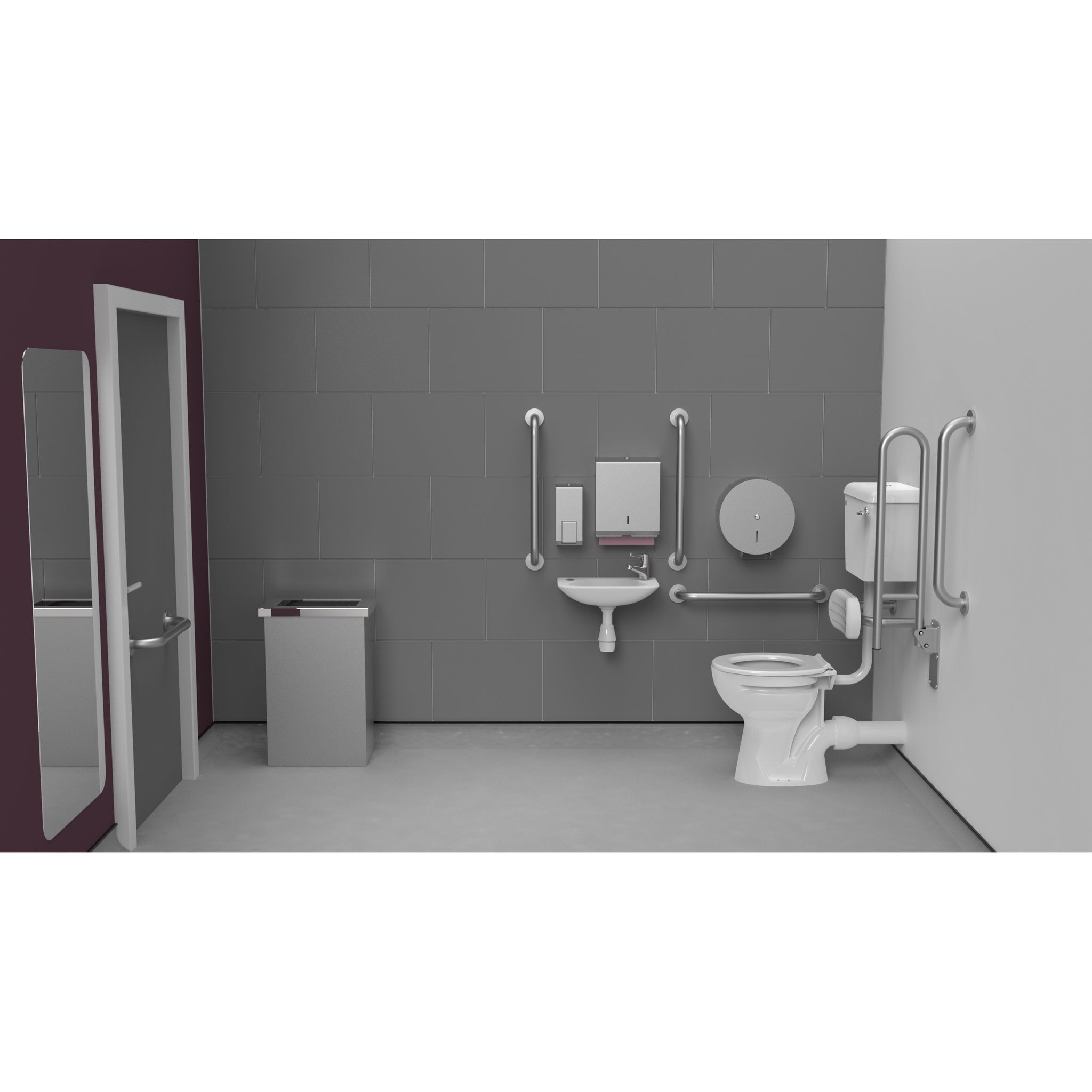

| DM215KCS/LC/SS | Concealed Fixings, Stainless Steel | Satin Stainless Steel | Lockable Lid |
| DM315KS/WH | Concealed Fixings, Stainless Steel | White (RAL 9016) | Standard Lid With TMV3 Valve |
| DM315KS/GY | Concealed Fixings, Stainless Steel | Grey (RAL 7005) | Standard Lid With TMV3 Valve |
| DM315KS/DB | Concealed Fixings, Stainless Steel | Dark Blue (RAL 5011) | Standard Lid With TMV3 Valve |
| DM315KS/DG | Concealed Fixings, Stainless Steel | Dark Grey (RAL 7016) | Standard Lid With TMV3 Valve |
| DM315KS/SP | Concealed Fixings, Stainless Steel | Polished Stainless Steel | Standard Lid With TMV3 Valve |
| DM315KS/SS | Concealed Fixings, Stainless Steel | Satin Stainless Steel | Standard Lid With TMV3 Valve |
| DM315KS/LC/SP | Concealed Fixings, Stainless Steel | Polished Stainless Steel | Lockable Lid With TMV3 Valve |
| DM315KS/LC/SS | Concealed Fixings, Stainless Steel | Satin Stainless Steel | Lockable Lid With TMV3 Valve |
