£443.76 ex VAT
£532.51 inc VAT
SKU: DM215K/1TH/WH
The Fitzroy Of London DM215K pack is a complete low level Doc M toilet and basin solution supplied as one box. It brings together a low level box rim pan, cistern, grab rails, back rest and a compact two tap hole basin with mixer tap, so there is no need to source parts separately or match finishes across suppliers.

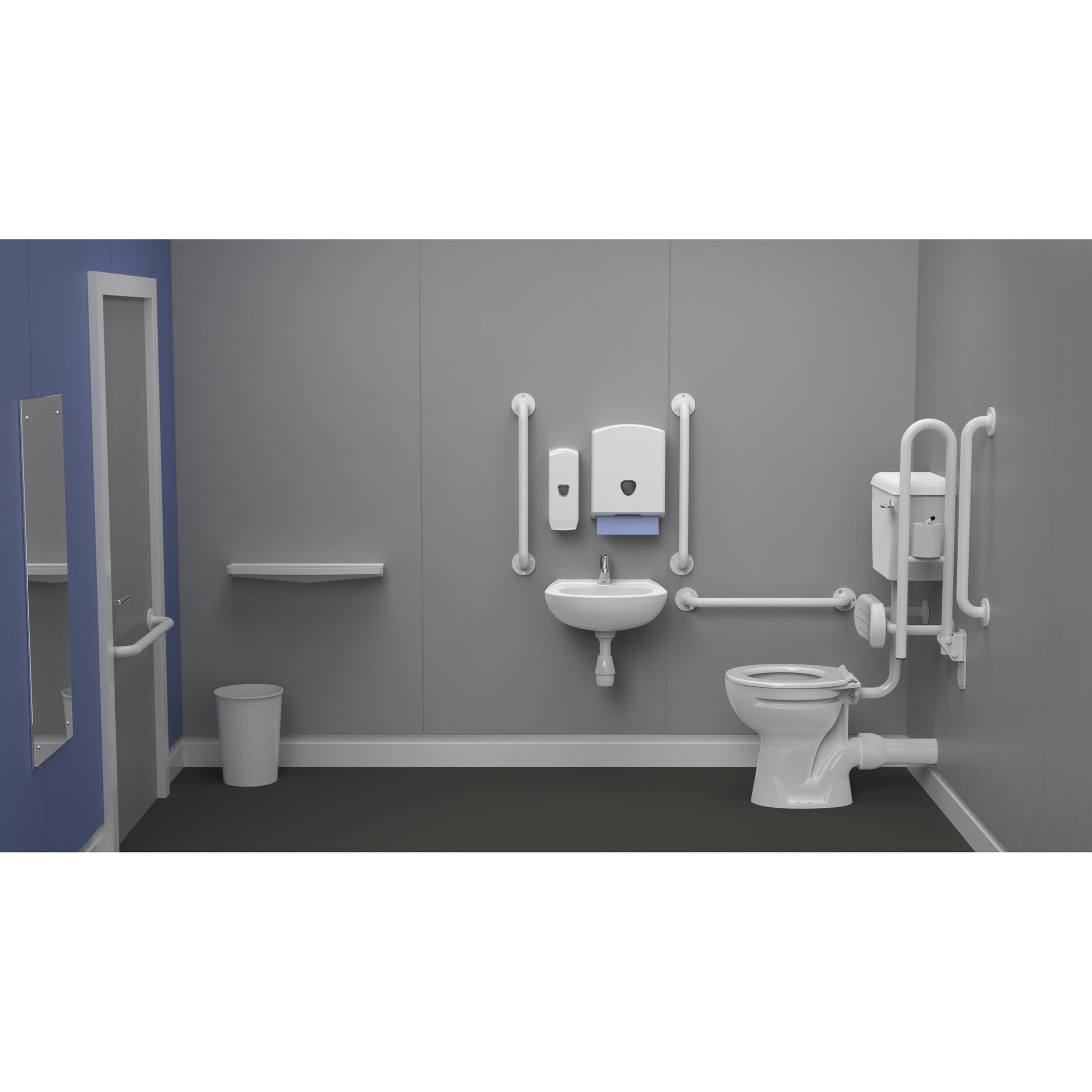

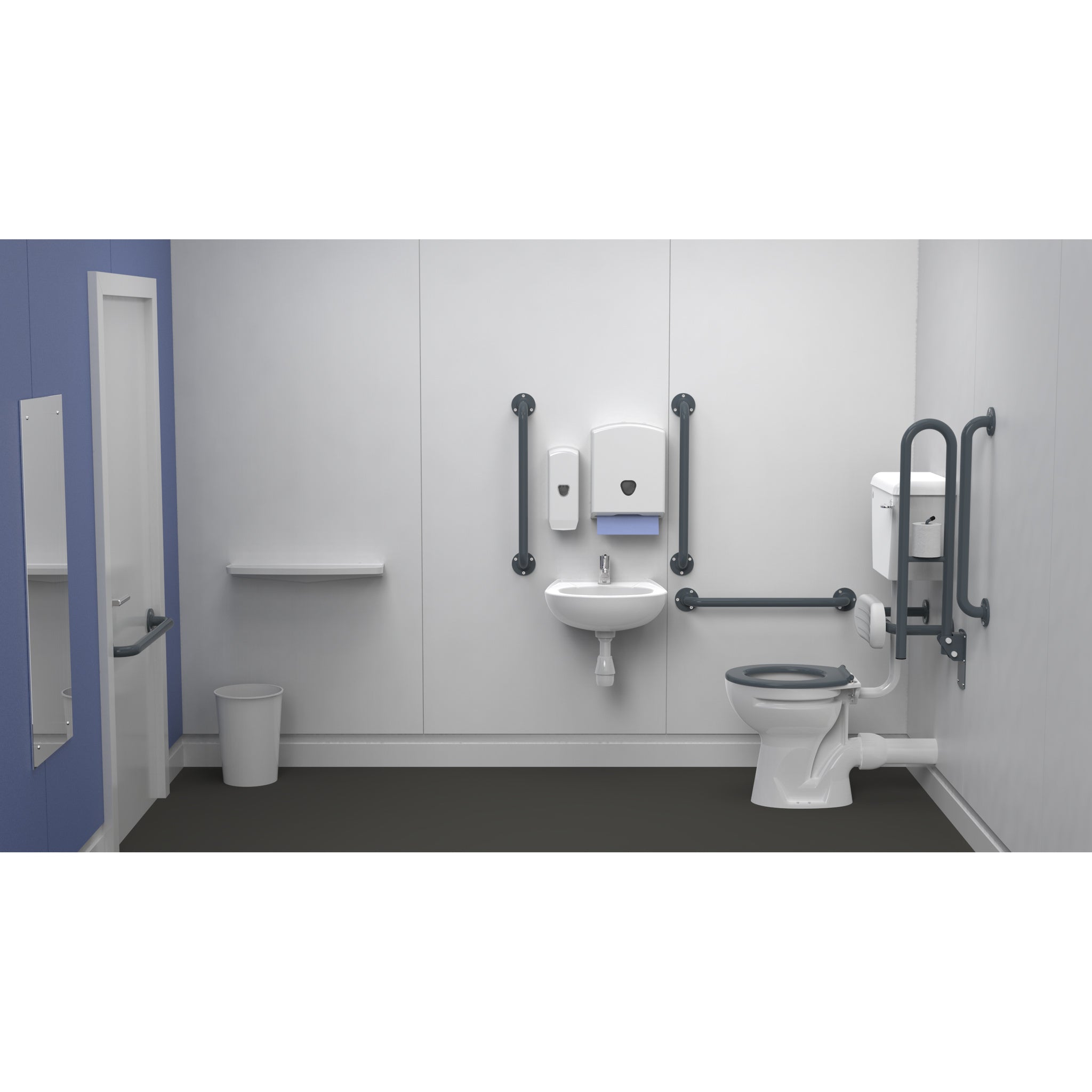

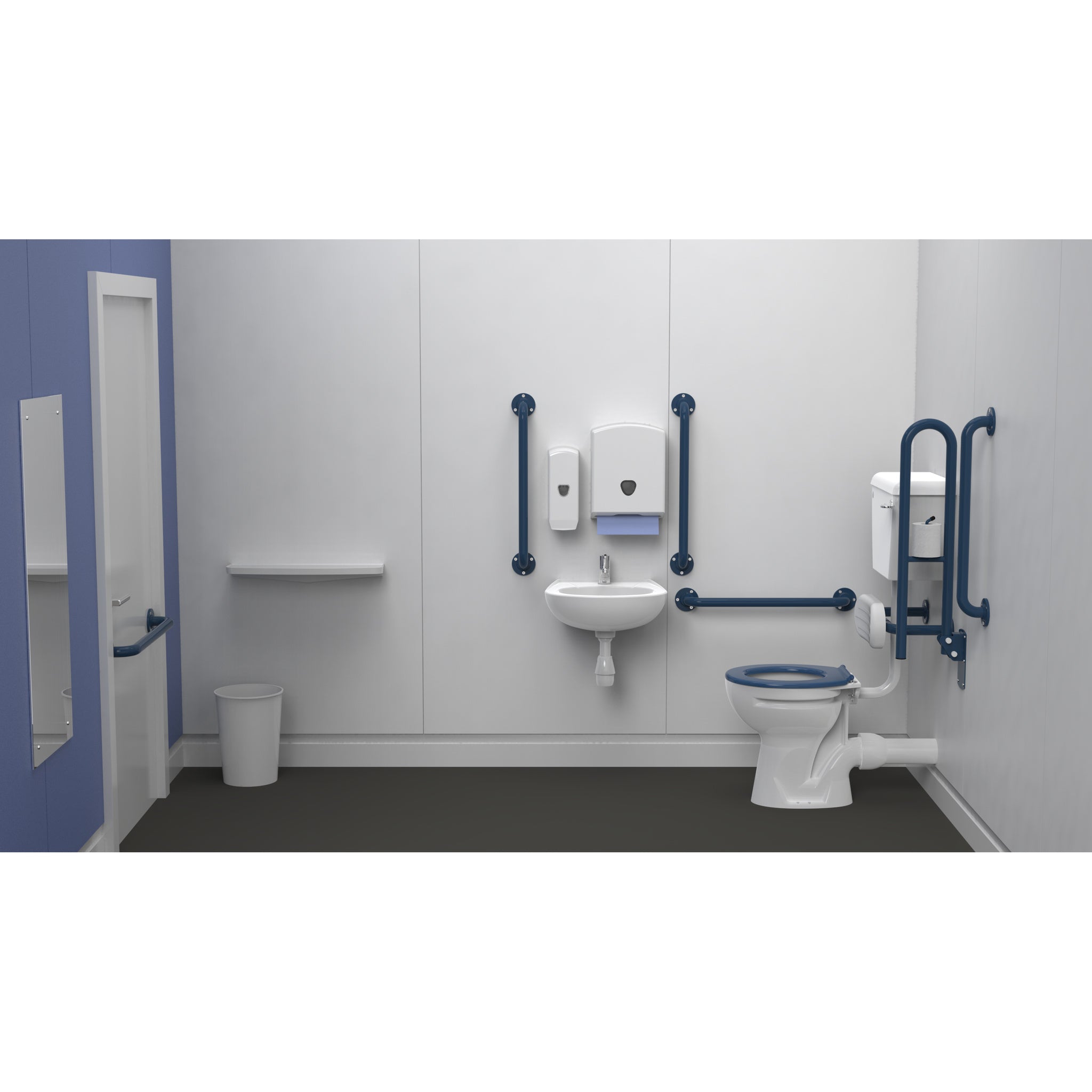

This version has a central tap hole basin and a sequential basin mixer tap in polished chrome. The rail finish is chosen from white, grey, dark blue or dark grey, letting the pack fit whatever colour scheme the washroom needs while keeping the assisted areas easy to identify.
The pack includes five grab rails, a hinged support rail with toilet roll holder, a back rest rail and pad, the pan, cistern with fittings and flush pipe, a ring only seat, the two tap hole basin, mixer tap, tap hole stopper, basin waste and basin wall fixings. The rails and back rest use exposed fixings.
| Brand | Fitzroy Of London |
|---|---|
| Material | Coated steel (grab rails and back rest) |
| Pan type | Low level box rim Doc M pan |
| Basin tap holes | Central tap hole, no overflow |
| Toilet seat type | Ring only, stainless steel pillar hinge, Duroplast |
| Flush volume | 6 litre |
| Flush operation | Doc M spatula lever, front lever, full and half flush |
| Cistern inlet | Bottom inlet |
| Tap type | Sequential basin mixer tap, polished chrome, cold start |
| Tap connection | M10 thread to tap body, ½ inch BSP onward connection |
| Back rest projection | 270mm |
| Grab rail lengths | 5 x 600mm grab rails, 1 x 800mm hinged support rail |
| Maximum load | 400kg (pan), 150kg (seat) |
| Handed transfer | Universal, suitable for left or right handed transfer |
| Doc M compliance | Complies with Part M of the Building Regulations |
| Water Regulations | Regulation 4 compliant (WRAS, NSF or Kiwa) |
| Standards | UKCA, CE |
| Suitable for wet areas | Pan, cistern, seat, basin and tap suitable for wet areas; rails and back rest not |
| Finish | White (RAL 9016), Grey (RAL 7005), Dark Blue (RAL 5011) or Dark Grey (RAL 7016) |
| Supplied with | Grab rails, support rail, back rest, pan, cistern, seat, basin, tap, waste and fixings |
| Warranty | Lifetime (pan and cistern), 2 years (seat, tap, cistern fitting pack and back rest) |
Yes, the pack is universal and works for both left and right handed transfer, so the same pack code covers either layout on site.
Five 600mm grab rails, an 800mm hinged support rail with toilet roll holder, a 270mm back rest rail and pad, the low level box rim Doc M pan, the cistern with fittings, flush pipe and spatula lever, a ring only seat, the two tap hole basin, the sequential basin mixer tap, a tap hole stopper, a basin waste and basin wall fixings.
Yes, basin wall fixings ship with the pack.
The seat is a ring only design on a stainless steel pillar hinge, bottom fix as standard.
Yes, the pan, cistern, basin, tap and seat are all suitable for wet area installation. The grab rails and back rest are not rated for wet areas.
The mixer tap has an M10 thread to the tap body with a 1/2 inch BSP onward connection. The cistern is bottom inlet. The basin has no overflow.
| SKU | Finish |
|---|---|
| DM215K/1TH/WH | White (RAL 9016) |
| DM215K/1TH/GY | Grey (RAL 7005) |
| DM215K/1TH/DB | Dark Blue (RAL 5011) |
| DM215K/1TH/DG | Dark Grey (RAL 7016) |
