£443.76 ex VAT
£532.51 inc VAT
SKU: DM215K/1TH/WH

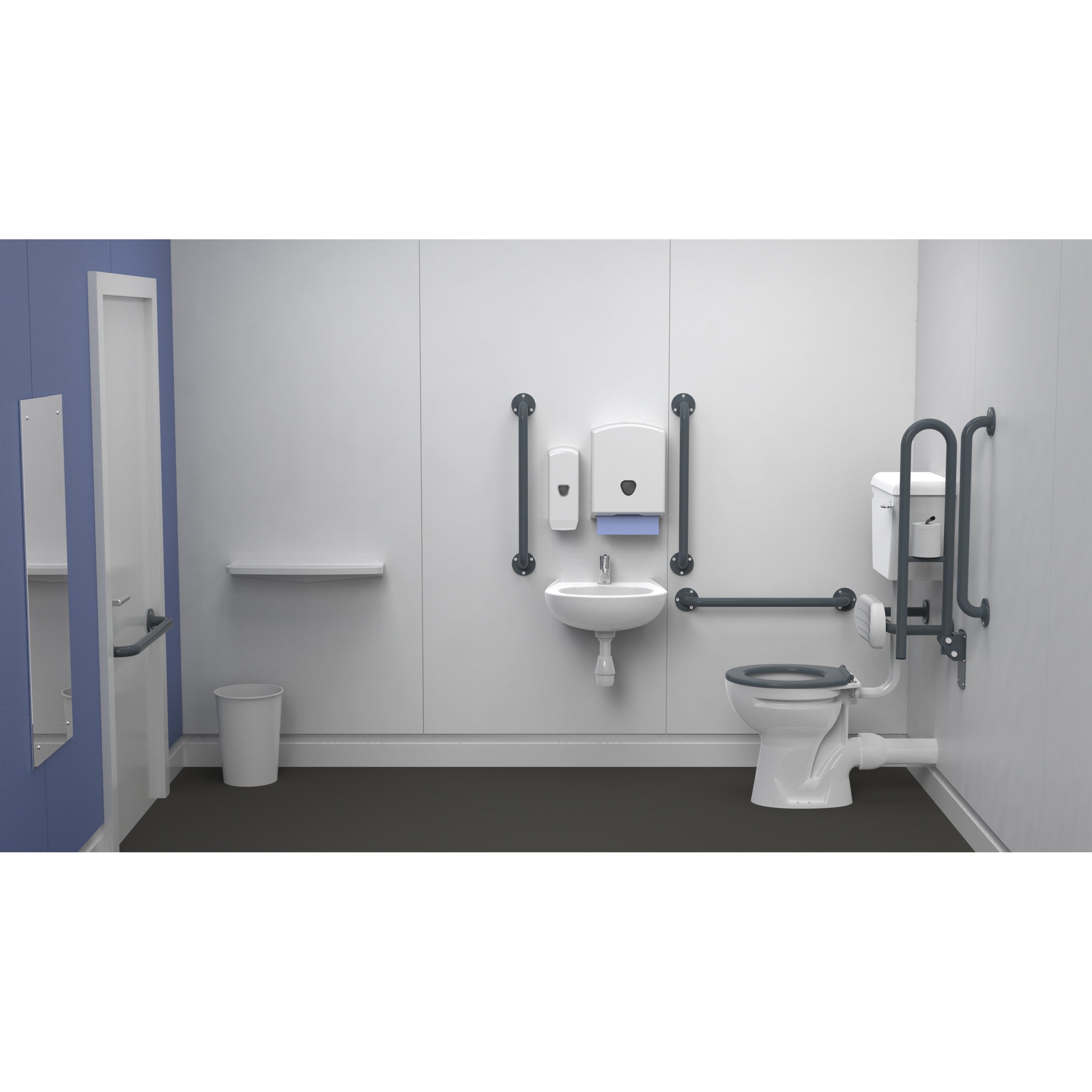

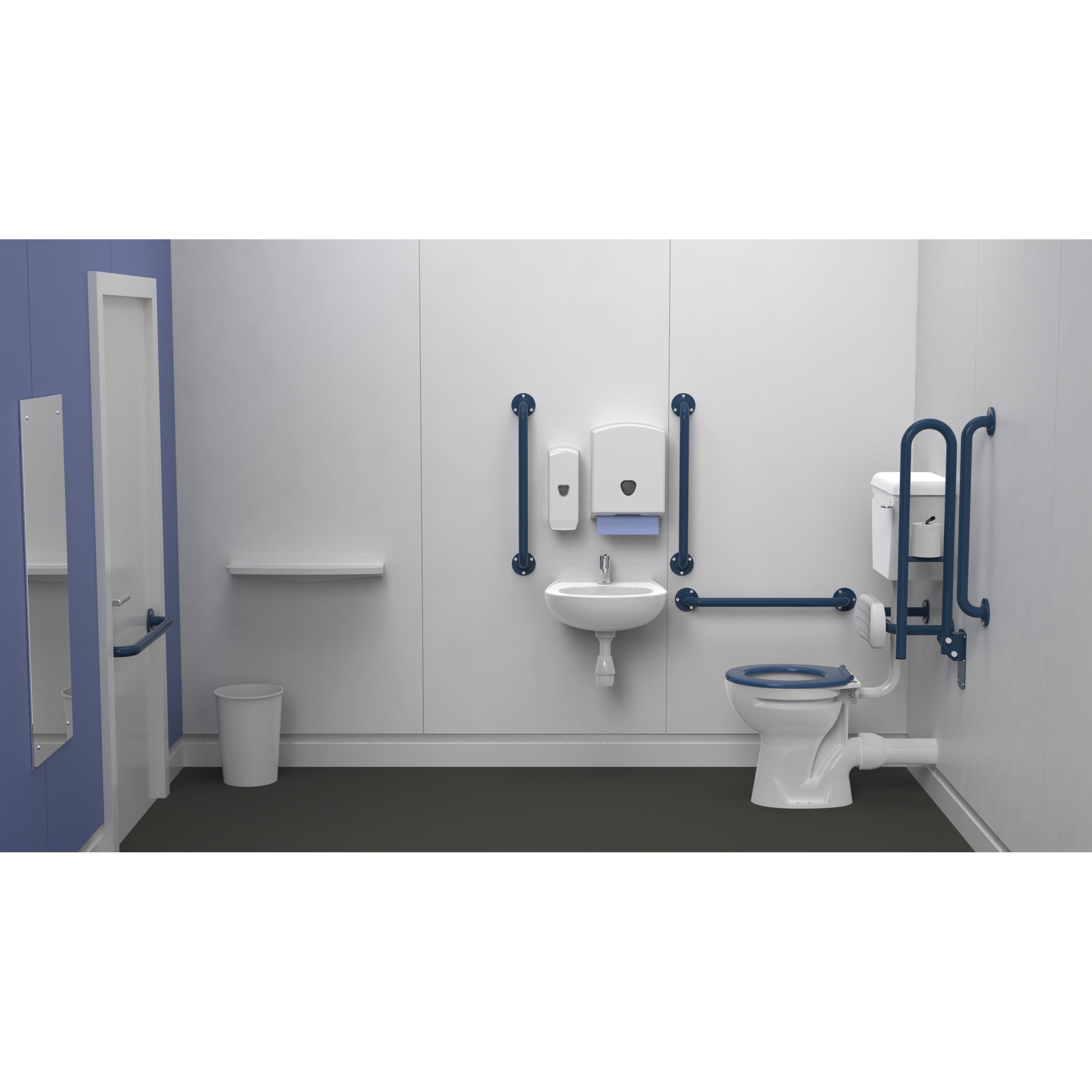

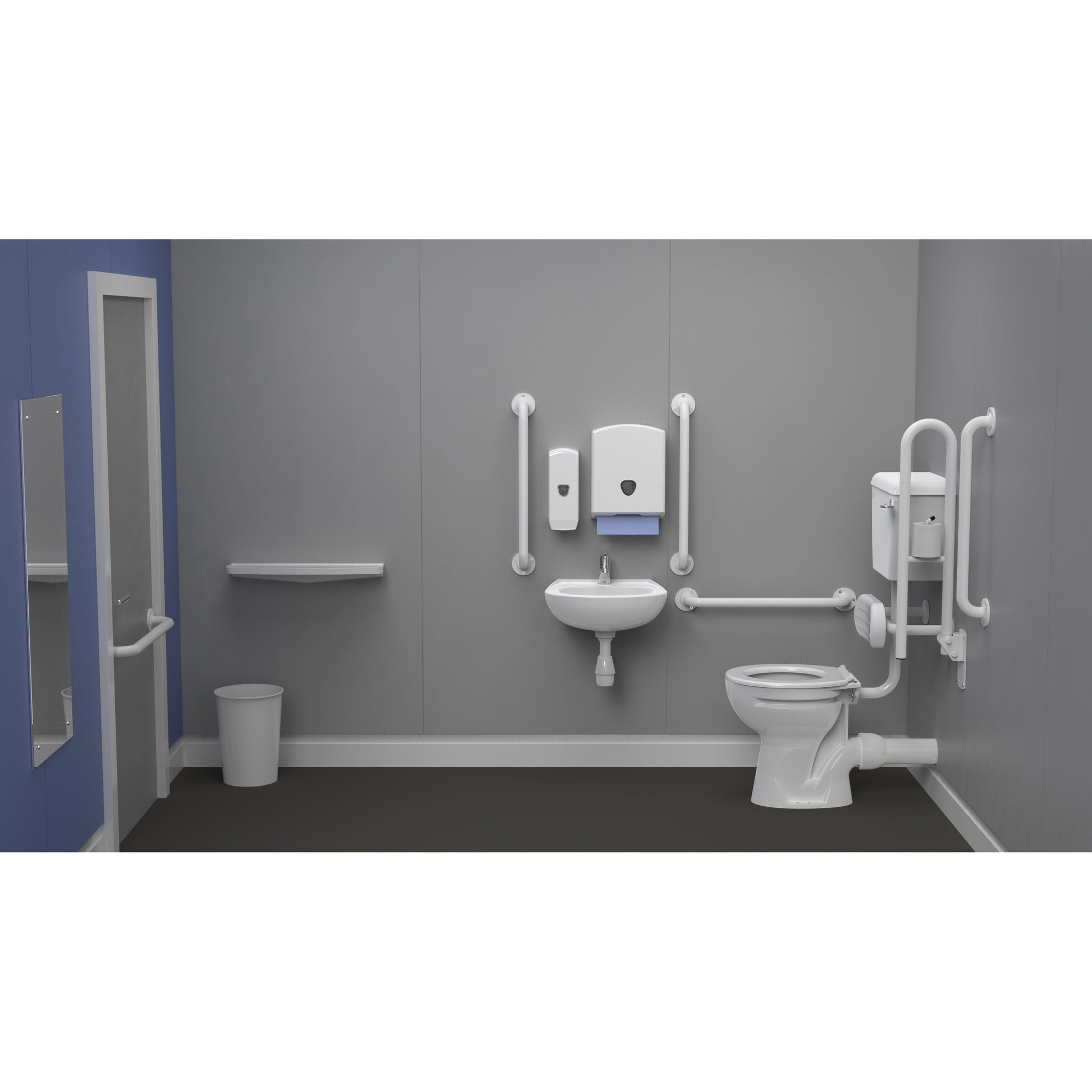

The Fitzroy Of London low level accessible toilet pack is a complete pack supplied in one box. It brings together a low level box rim pan and cistern, a compact basin with a single central tap hole, a polished chrome sequential mixer tap and a full set of powder coated steel grab rails with exposed fixings. The layout is universal and suits left or right handed transfer. The rails come in white, grey, dark blue or dark grey.
This pack contains:
• 5 x 600mm coated steel grab rails with exposed fixings
• 1 x 800mm coated steel hinged support rail with toilet roll holder
• 1 x 270mm coated steel back rest rail and pad with exposed fixings
• 1 x Low level box rim Doc M pan
• 1 x Low level cistern with fittings, flush pipe, and Doc M spatula lever
• 1 x Ring only toilet seat
• 1 x Central Tap Hole Basin
• 1 x Sequential basin mixer tap
• 1 x Basin waste
| Brand | Fitzroy Of London |
|---|---|
| Material | Powder coated steel grab rails and support rails |
| Finish | White RAL 9016, grey RAL 7005, dark blue RAL 5011 or dark grey RAL 7016 |
| Fixings | Exposed |
| Pan type | Low level box rim Doc M pan, white |
| Grab rail length | 600mm, five rails |
| Hinged support rail length | 800mm |
| Back rest projection | 270mm |
| Back rest pad | White wipe clean closed cell polyurethane, saddle clip fixed to the rail |
| Toilet seat type | Ring only, with stainless steel pillar hinge |
| Toilet seat material | Antibacterial Duroplast |
| Seat hinge fixing | Bottom fix as standard |
| Basin tap hole | Single, central |
| Basin overflow | None |
| Tap type | Sequential basin mixer with cold start, polished chrome |
| Tap tail thread | M10 at tap body |
| Tap tail onward connection | 1/2 inch BSP |
| Flush volume | 6 litres |
| Cistern inlet | Bottom |
| Handing | Universal, left or right handed transfer |
| Suitable for wet areas | No |
| Water Regulations | WRAS Regulation 4 inlet valve and syphon, NSF, Kiwa |
Yes. The layout is universal and suits left or right handed transfer.
The flexible tails are M10 at the tap body and 1/2 inch BSP at the onward connection.
The five grab rails, the hinged support rail and the back rest rail are powder coated in the chosen colour. The pan, cistern, basin and back rest pad are white, and the tap is polished chrome.
| SKU | Finish |
|---|---|
| DM215K/1TH/WH | White (RAL 9016) |
| DM215K/1TH/GY | Grey (RAL 7005) |
| DM215K/1TH/DB | Dark Blue (RAL 5011) |
| DM215K/1TH/DG | Dark Grey (RAL 7016) |
