£753.88 ex VAT
£904.66 inc VAT
SKU: DM800K/WH

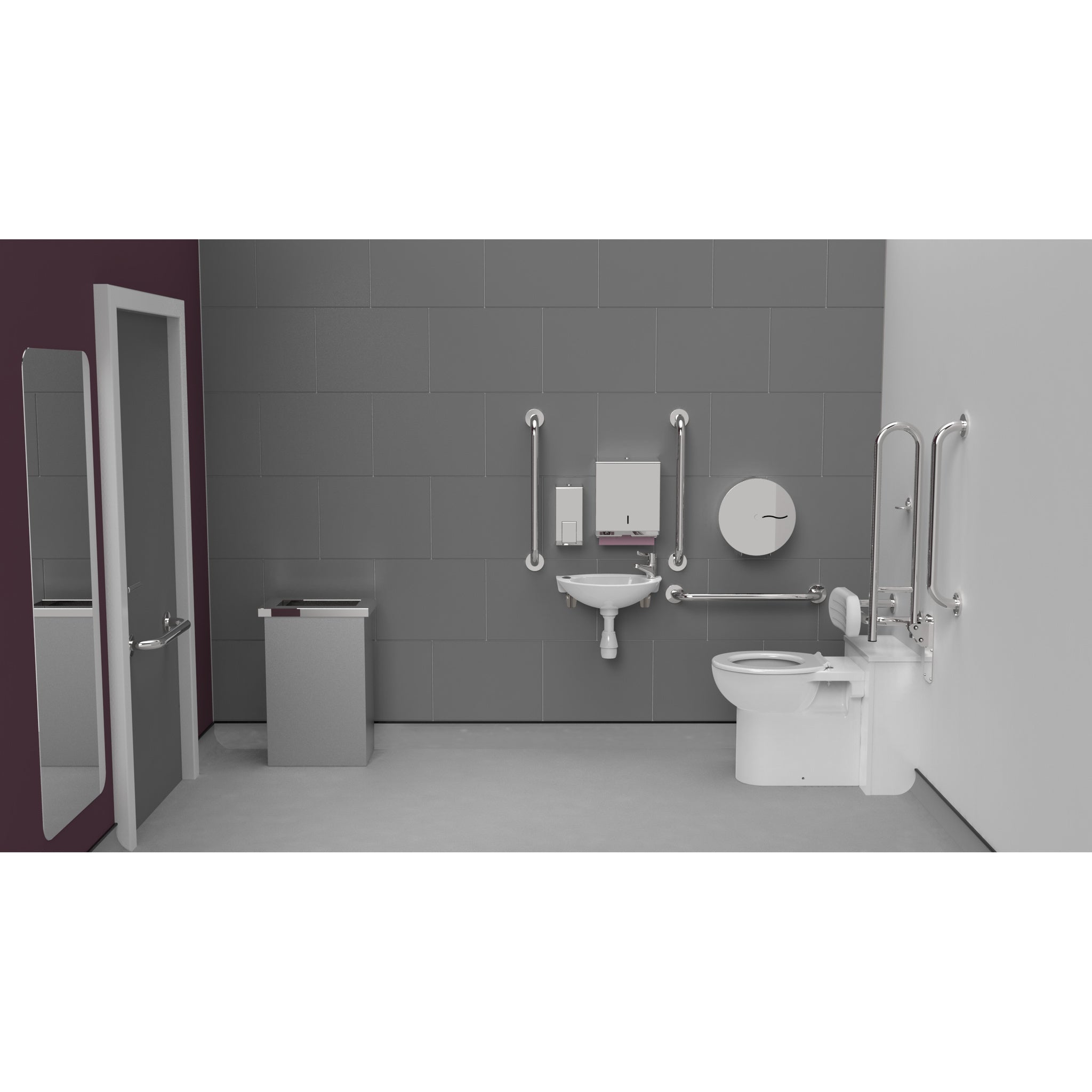

The Fitzroy Of London back to wall Doc M toilet pack is a complete toilet and basin set supplied as one box. It is built around a back to wall box rim pan at comfort height, with a concealed cistern housed in a white back box. The grab rails come in powder coated steel with exposed or concealed fixings, or in stainless steel with concealed fixings. Powder coated rails are offered in four colours. Stainless steel rails add polished and satin finishes.
This pack contains:
• 5 x 600mm grab rails
• 1 x 800mm hinged support rail
• 1 x 270mm back rest rail and pad
• 1 x Back to wall box rim Doc M pan
• 1 x Back box for back to wall Doc M pan
• 1 x Concealed cistern with fittings, flush pipe, and Doc M concealed cistern spatula lever
• 1 x Ring only toilet seat
• 1 x Compact finger rinse Doc M basin
• 1 x Sequential basin mixer tap
• 1 x Tap hole stopper
• 1 x Basin waste
• 1 x TMV3 Valve (When chosen at point of order)
| Brand | Fitzroy Of London |
|---|---|
| Grab rail material | Powder coated steel or stainless steel |
| Suitable for wet areas | Stainless steel rail versions only |
| Basin colour | White (RAL 9016) |
| Basin waste | Plastic body with stainless steel grid, unslotted |
| Grab rail tube diameter | 35mm |
| Tap tail connection to tap body | M10 thread |
| Tap tail onward connection | ½ inch BSP |
| Basin waste outlet size | 1¼ inch BSP thread |
| Pan type | Back to wall box rim Doc M pan, comfort height |
| Flush volume | 6 litres |
| Cistern access | Top access |
| Overflow warning | Internal and external |
| Flush lever | Doc M concealed cistern spatula lever, 215mm spindle, polished chrome |
| Toilet seat | Ring only, stainless steel pillar hinge, bottom fix as standard |
| Tap type | Sequential basin mixer, cold start, polished chrome |
| Basin tap holes | Two, for left or right handed configuration |
| Basin overflow | None |
| Tap hole stopper | Chrome plated, to suit 13mm (½ inch) hole, with locknut |
| Thermostatic mixing valve | 15mm inline with integral check valves and strainers, where specified |
| Supplied with | Pan, back box, cistern, flush pipe, lever, seat, basin, tap, waste, grab rails |
| Grab rails supplied | 5 x 600mm |
| Hinged support rail | 800mm lift and lock hinged support rail |
| Back rest rail | 270mm with pad |
| Accessibility | Building Regulations Part M (Doc M) |
| Water Regulations | WRAS, NSF and Kiwa approved |
| TMV approval | TMV2 and TMV3 where the mixing valve is fitted |
| Standards | Regulation 4, UKCA, CE, Building Regulations Part G (TMV3 BS EN 1111, BS EN 1287:2017, HTM 04-01 D08) |
Only in the versions listed with the inline TMV3 valve. It is a 15mm inline valve with integral check valves and strainers, TMV2 and TMV3 approved. The other versions come without a valve, and one is ordered separately where specified.
Yes. The basin has two tap holes, and a chrome plated stopper with locknut is supplied for the second hole. The rail set is the same for either hand.
Bottom fix as standard, on a stainless steel pillar hinge. A top fix hinge pack is available separately.
No. The waste is unslotted, with a plastic body and stainless steel grid, on a 1¼ inch BSP outlet.
The pack complies with Part M of the Building Regulations. The pan is UKCA and CE marked. The cistern inlet valve, syphon and tap are Regulation 4 certified with WRAS, NSF and Kiwa approvals.
| SKU | Rails | Finish | TMV3 Valve |
|---|---|---|---|

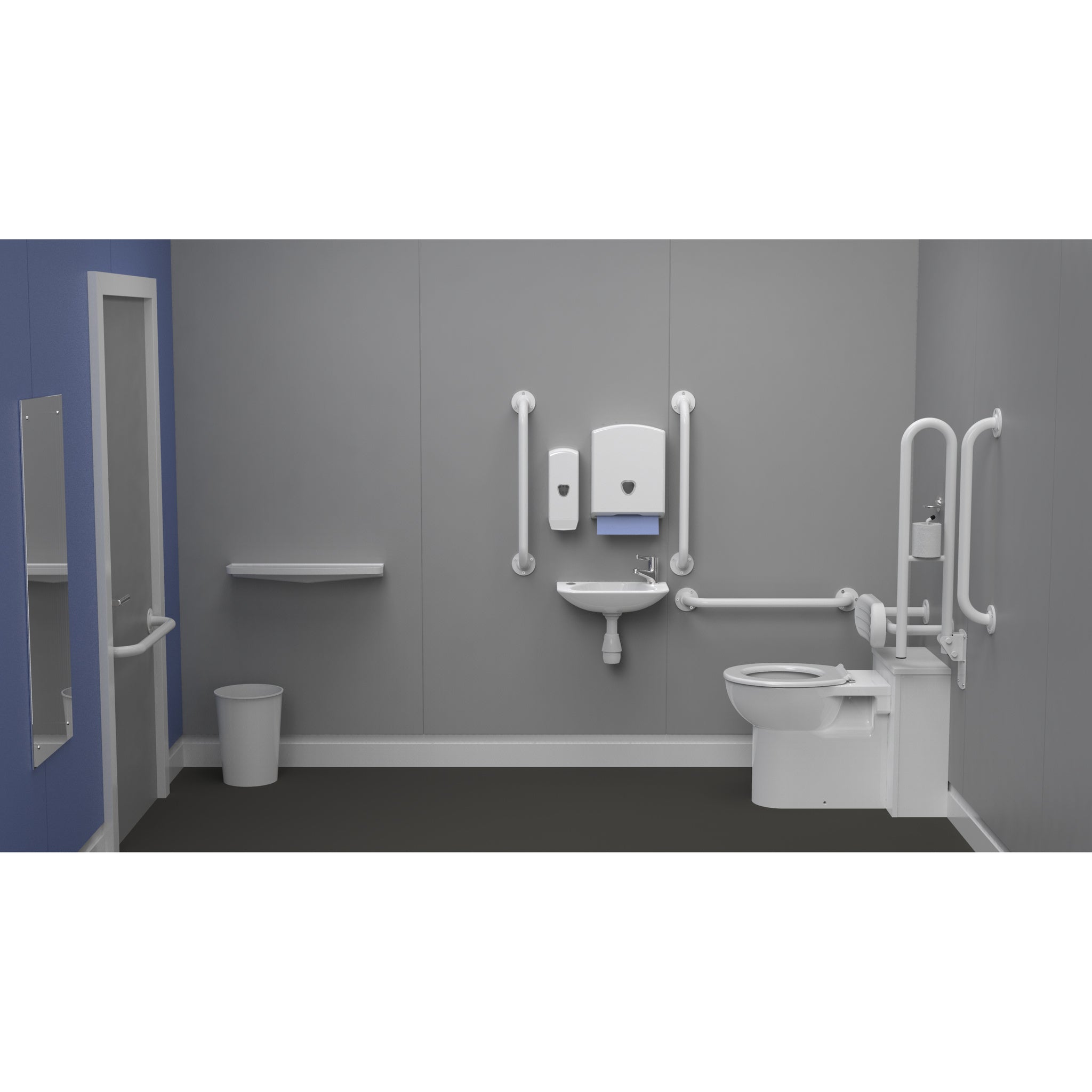

| DM800K/WH | Exposed Fixings, Steel | White (RAL 9016) | Without TMV3 Valve |
| DM800K/GY | Exposed Fixings, Steel | Grey (RAL 7005) | Without TMV3 Valve |

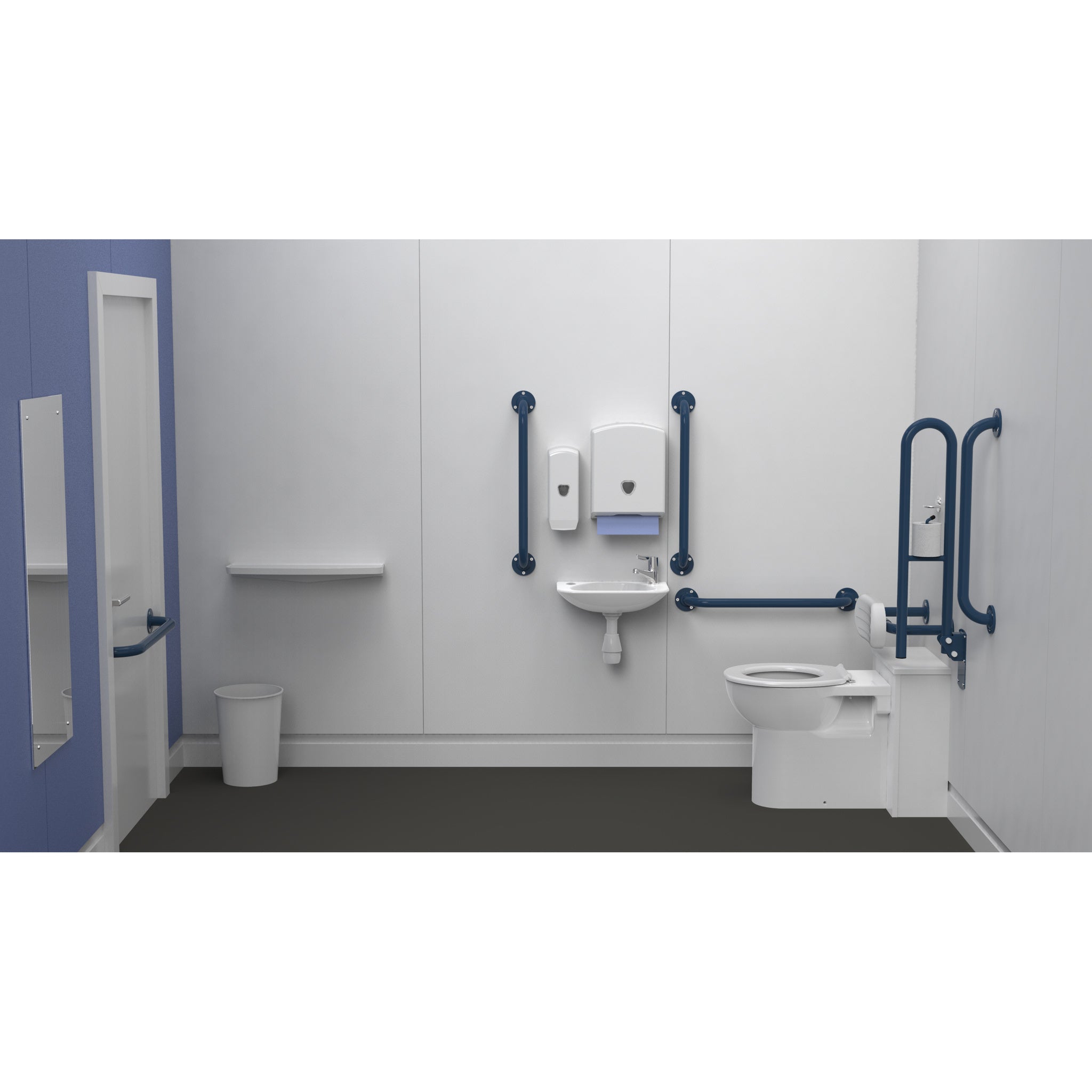

| DM800K/DB | Exposed Fixings, Steel | Dark Blue (RAL 5011) | Without TMV3 Valve |

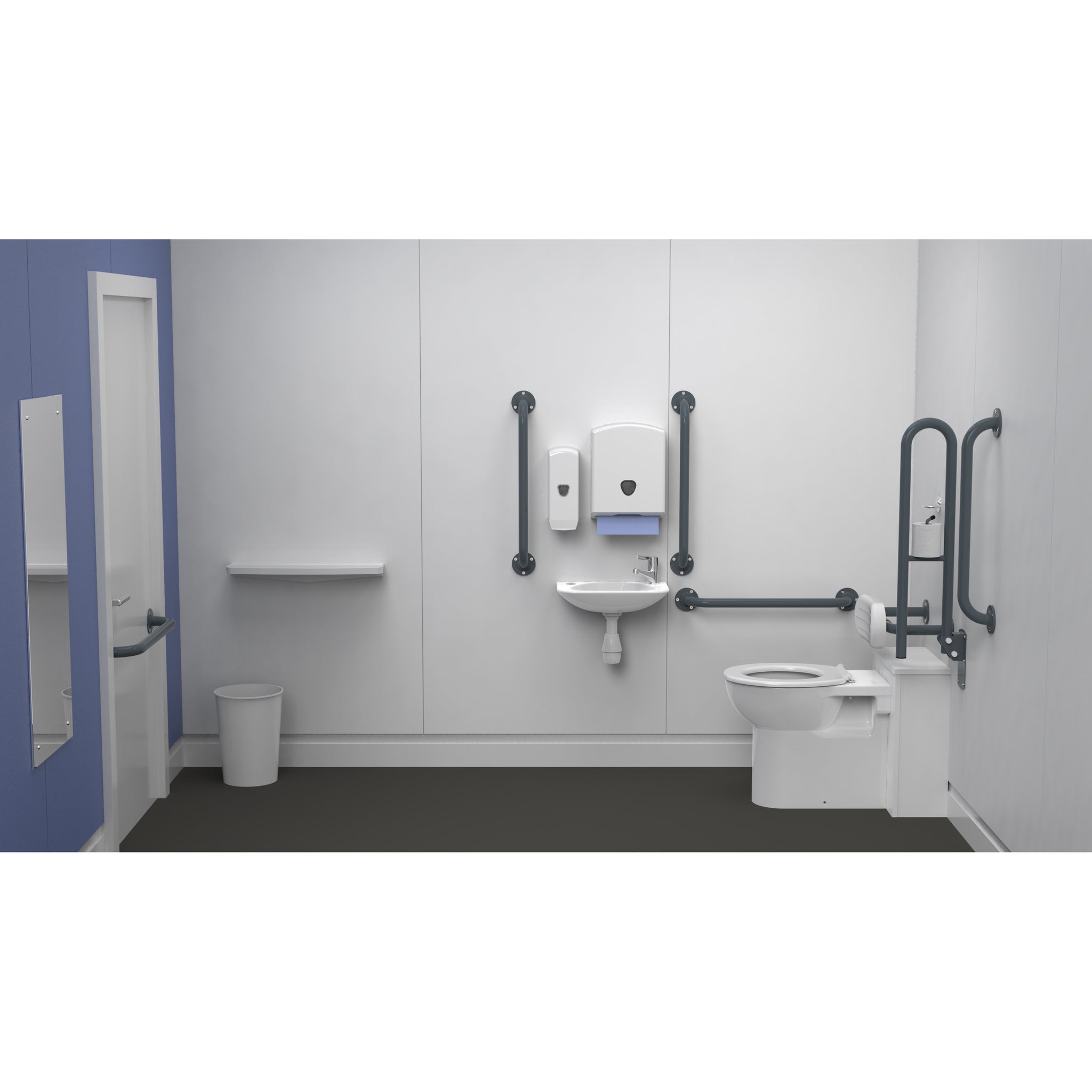

| DM800K/DG | Exposed Fixings, Steel | Dark Grey (RAL 7016) | Without TMV3 Valve |
| DM820K/WH | Exposed Fixings, Steel | White (RAL 9016) | With Inline TMV3 Valve |
| DM820K/GY | Exposed Fixings, Steel | Grey (RAL 7005) | With Inline TMV3 Valve |
| DM820K/DB | Exposed Fixings, Steel | Dark Blue (RAL 5011) | With Inline TMV3 Valve |
| DM820K/DG | Exposed Fixings, Steel | Dark Grey (RAL 7016) | With Inline TMV3 Valve |
| DM800KC/WH | Concealed Fixings, Steel | White (RAL 9016) | Without TMV3 Valve |
| DM800KC/GY | Concealed Fixings, Steel | Grey (RAL 7005) | Without TMV3 Valve |

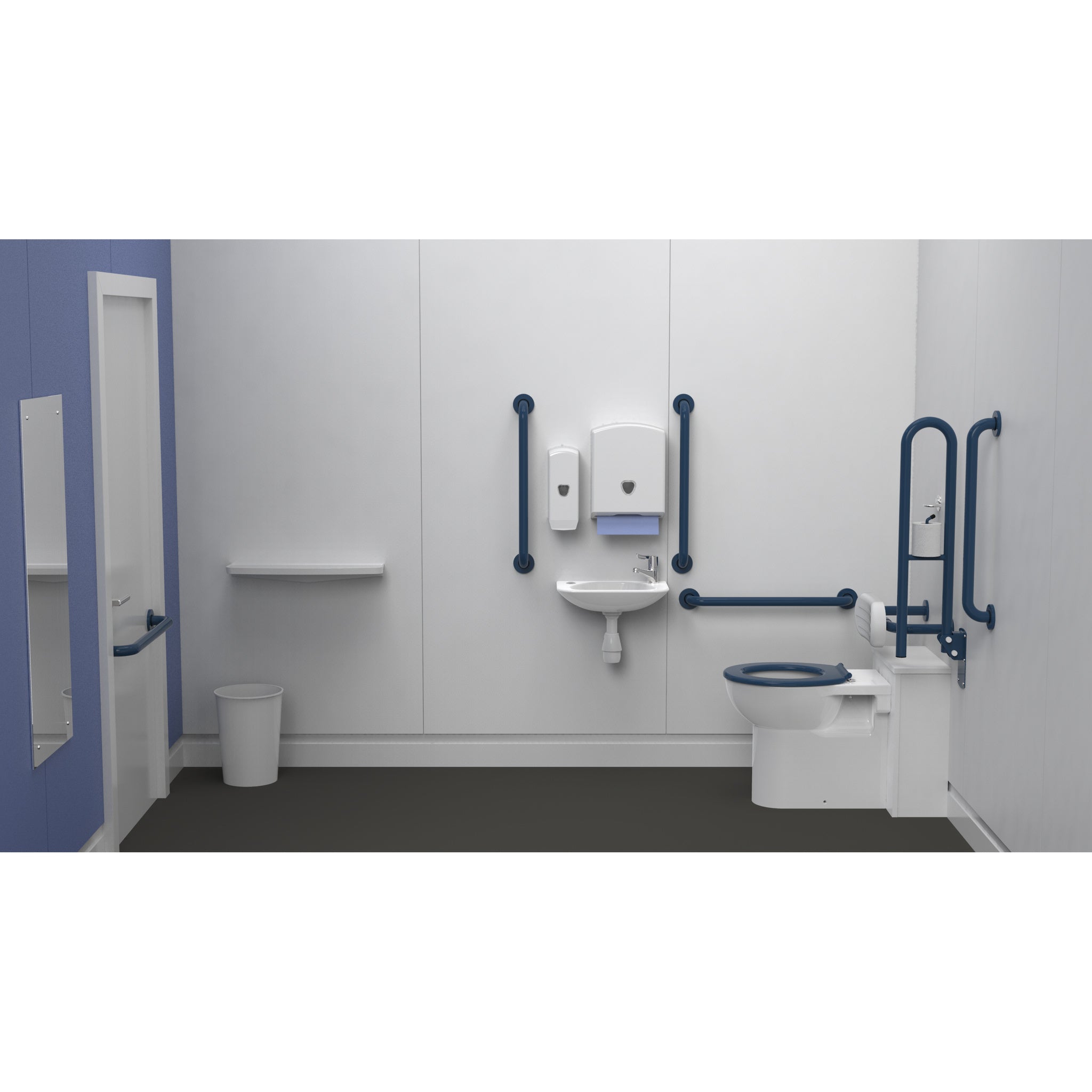

| DM800KC/DB | Concealed Fixings, Steel | Dark Blue (RAL 5011) | Without TMV3 Valve |
| DM800KC/DG | Concealed Fixings, Steel | Dark Grey (RAL 7016) | Without TMV3 Valve |
| DM820KC/WH | Concealed Fixings, Steel | White (RAL 9016) | With Inline TMV3 Valve |
| DM820KC/GY | Concealed Fixings, Steel | Grey (RAL 7005) | With Inline TMV3 Valve |
| DM820KC/DB | Concealed Fixings, Steel | Dark Blue (RAL 5011) | With Inline TMV3 Valve |
| DM820KC/DG | Concealed Fixings, Steel | Dark Grey (RAL 7016) | With Inline TMV3 Valve |

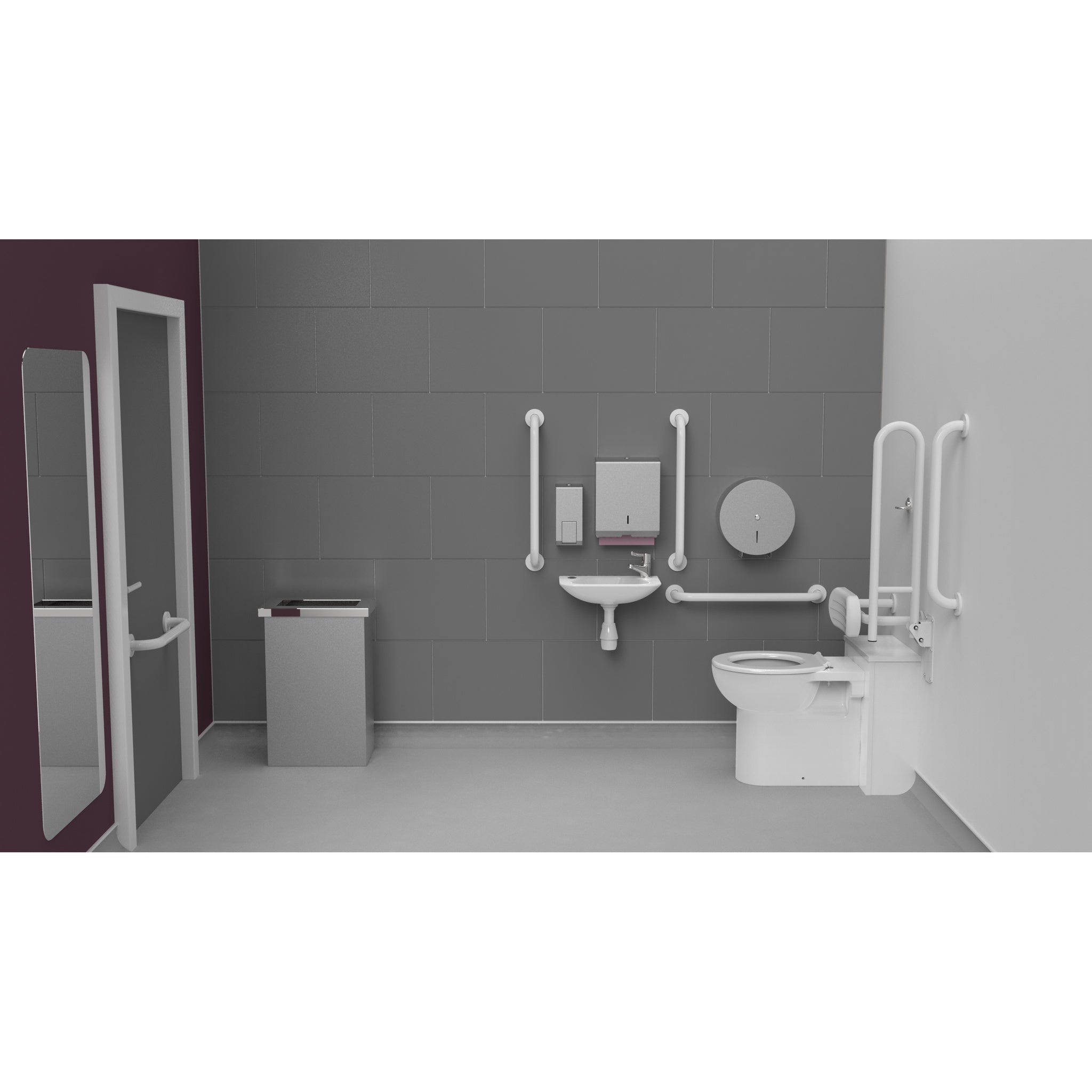

| DM800KCS/WH | Concealed Fixings, Stainless Steel | White (RAL 9016) | Without TMV3 Valve |

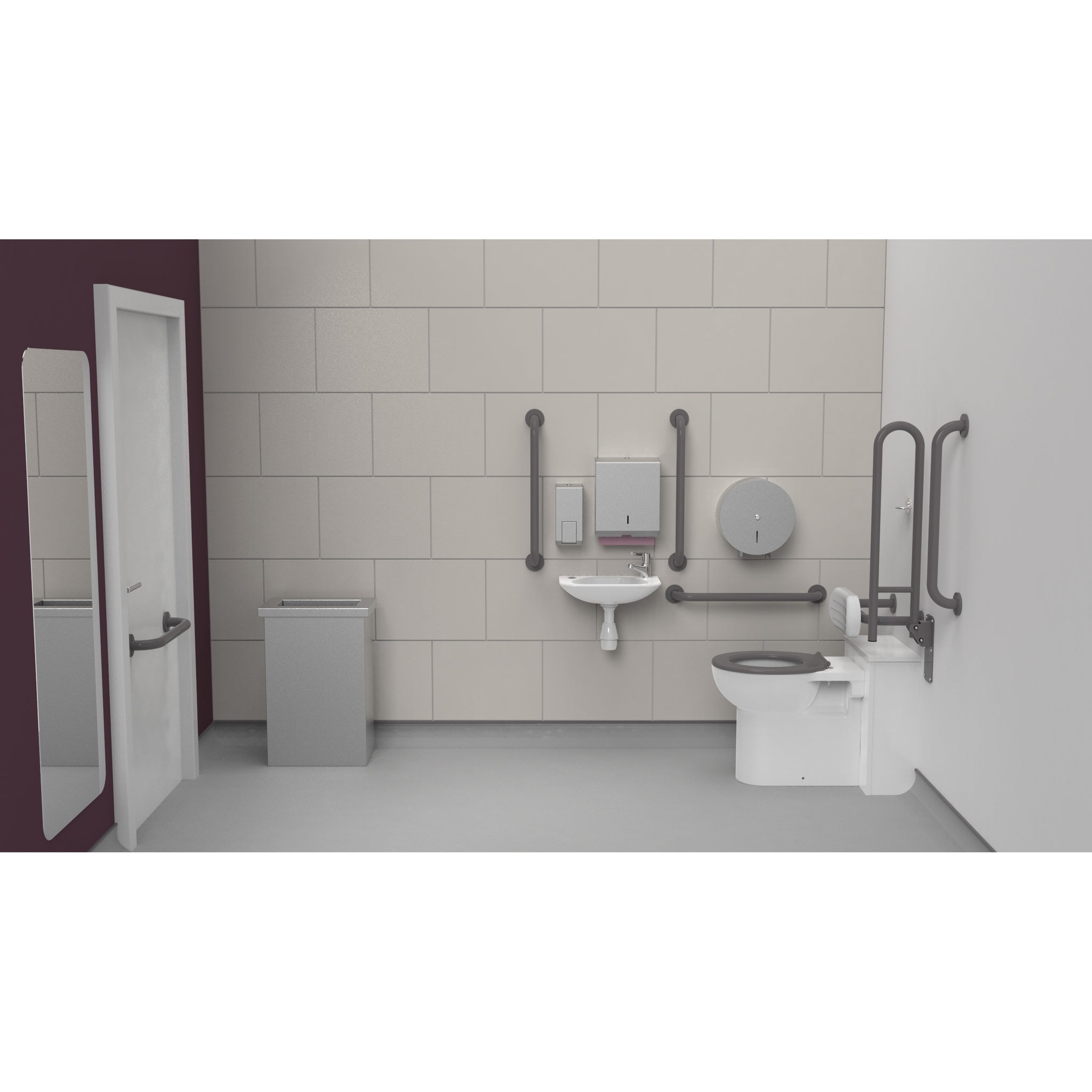

| DM800KCS/GY | Concealed Fixings, Stainless Steel | Grey (RAL 7005) | Without TMV3 Valve |

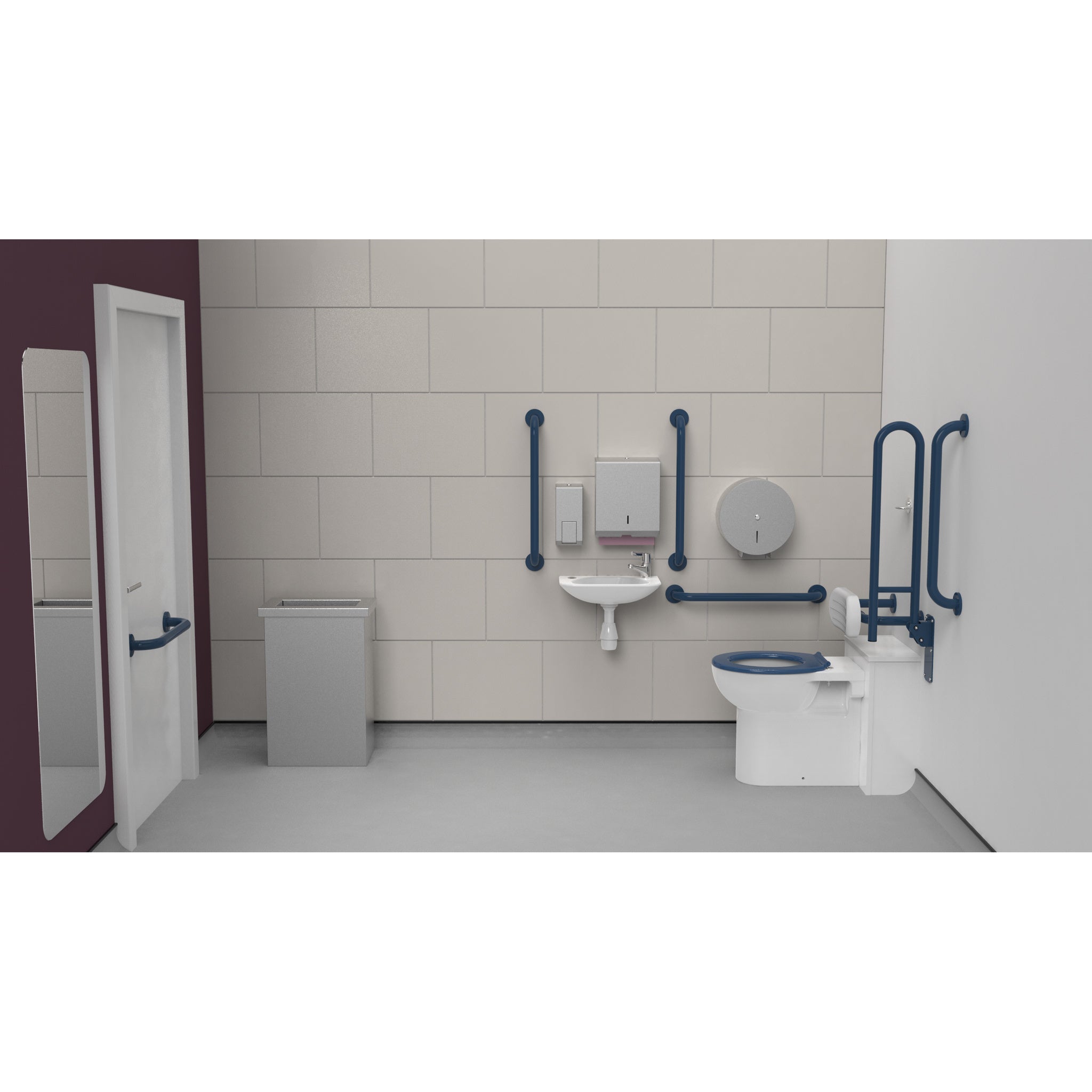

| DM800KCS/DB | Concealed Fixings, Stainless Steel | Dark Blue (RAL 5011) | Without TMV3 Valve |

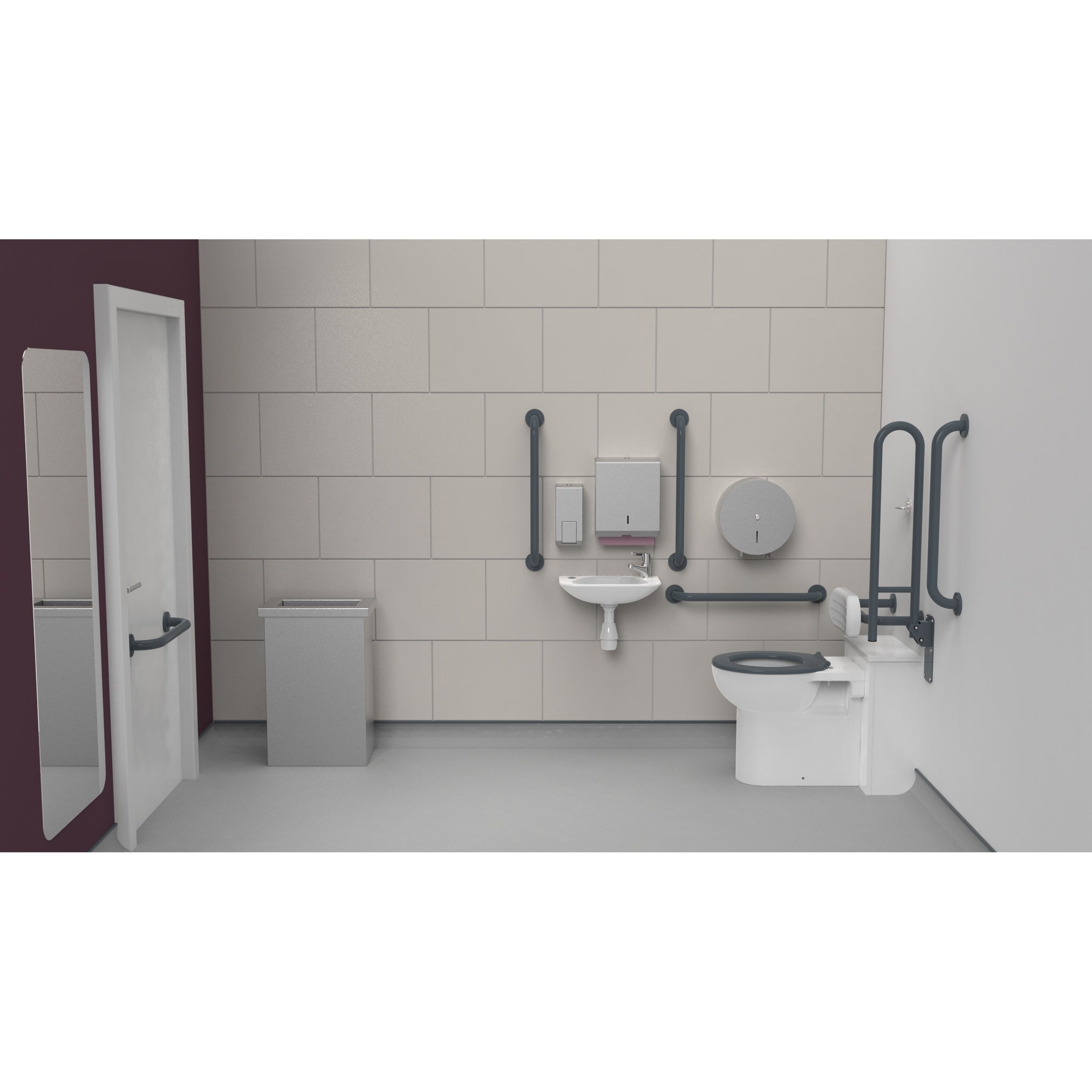

| DM800KCS/DG | Concealed Fixings, Stainless Steel | Dark Grey (RAL 7016) | Without TMV3 Valve |

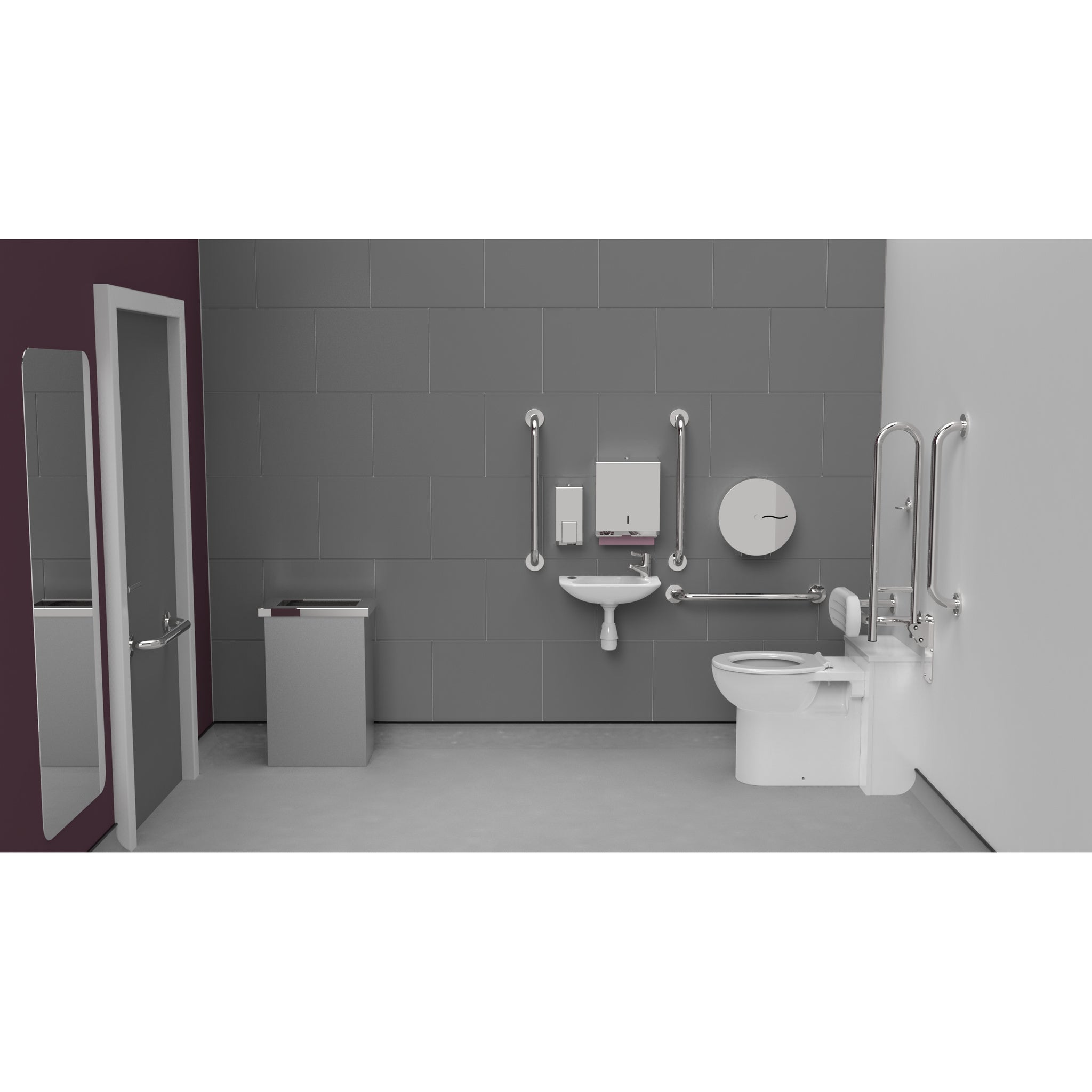

| DM800KCS/SP | Concealed Fixings, Stainless Steel | Polished Stainless Steel | Without TMV3 Valve |

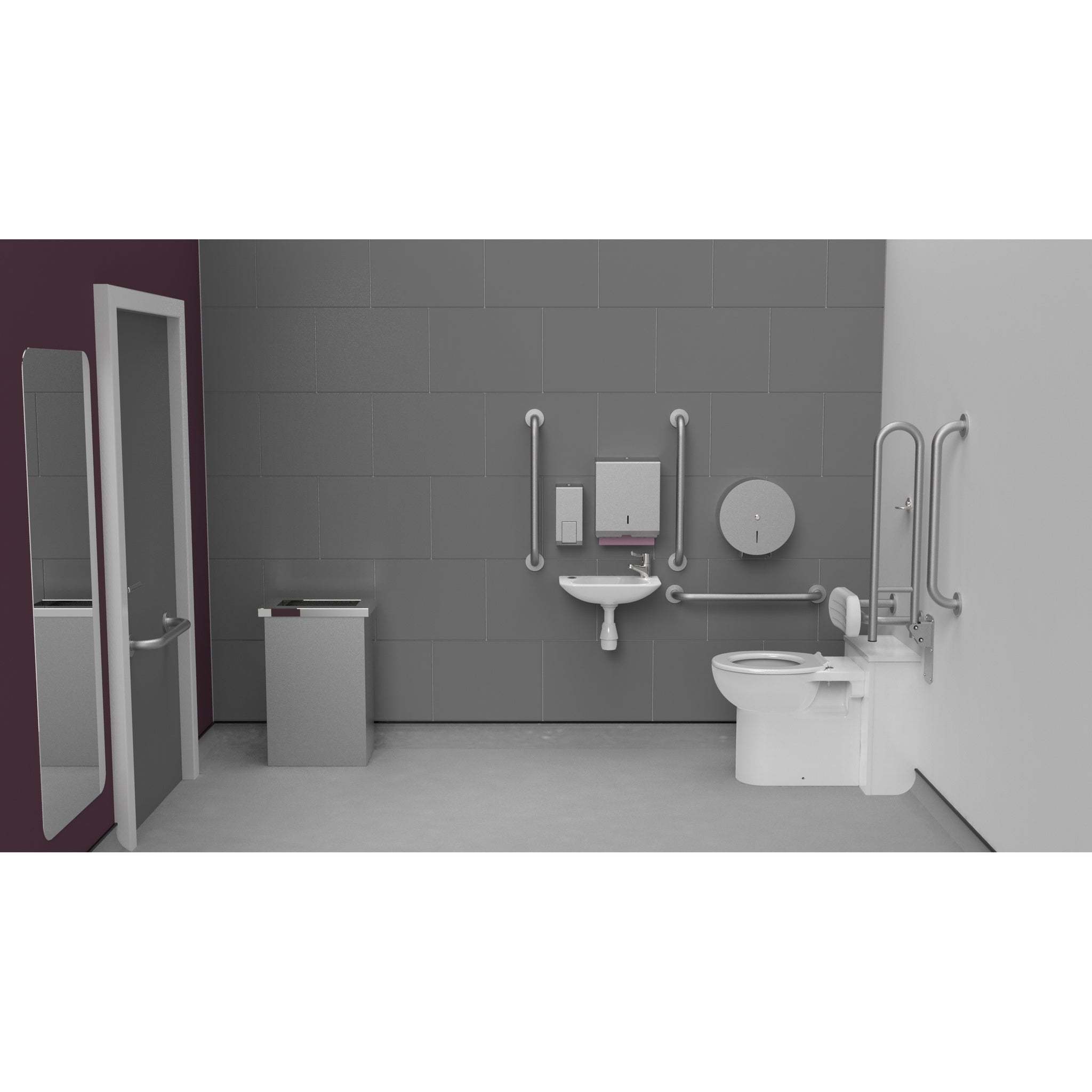

| DM800KCS/SS | Concealed Fixings, Stainless Steel | Satin Stainless Steel | Without TMV3 Valve |
| DM820KCS/WH | Concealed Fixings, Stainless Steel | White (RAL 9016) | With Inline TMV3 Valve |
| DM820KCS/GY | Concealed Fixings, Stainless Steel | Grey (RAL 7005) | With Inline TMV3 Valve |
| DM820KCS/DB | Concealed Fixings, Stainless Steel | Dark Blue (RAL 5011) | With Inline TMV3 Valve |
| DM820KCS/DG | Concealed Fixings, Stainless Steel | Dark Grey (RAL 7016) | With Inline TMV3 Valve |
| DM820KCS/SP | Concealed Fixings, Stainless Steel | Polished Stainless Steel | With Inline TMV3 Valve |
| DM820KCS/SS | Concealed Fixings, Stainless Steel | Satin Stainless Steel | With Inline TMV3 Valve |
