Vandal Proof Through Wall WC By Delabie - S21 TC

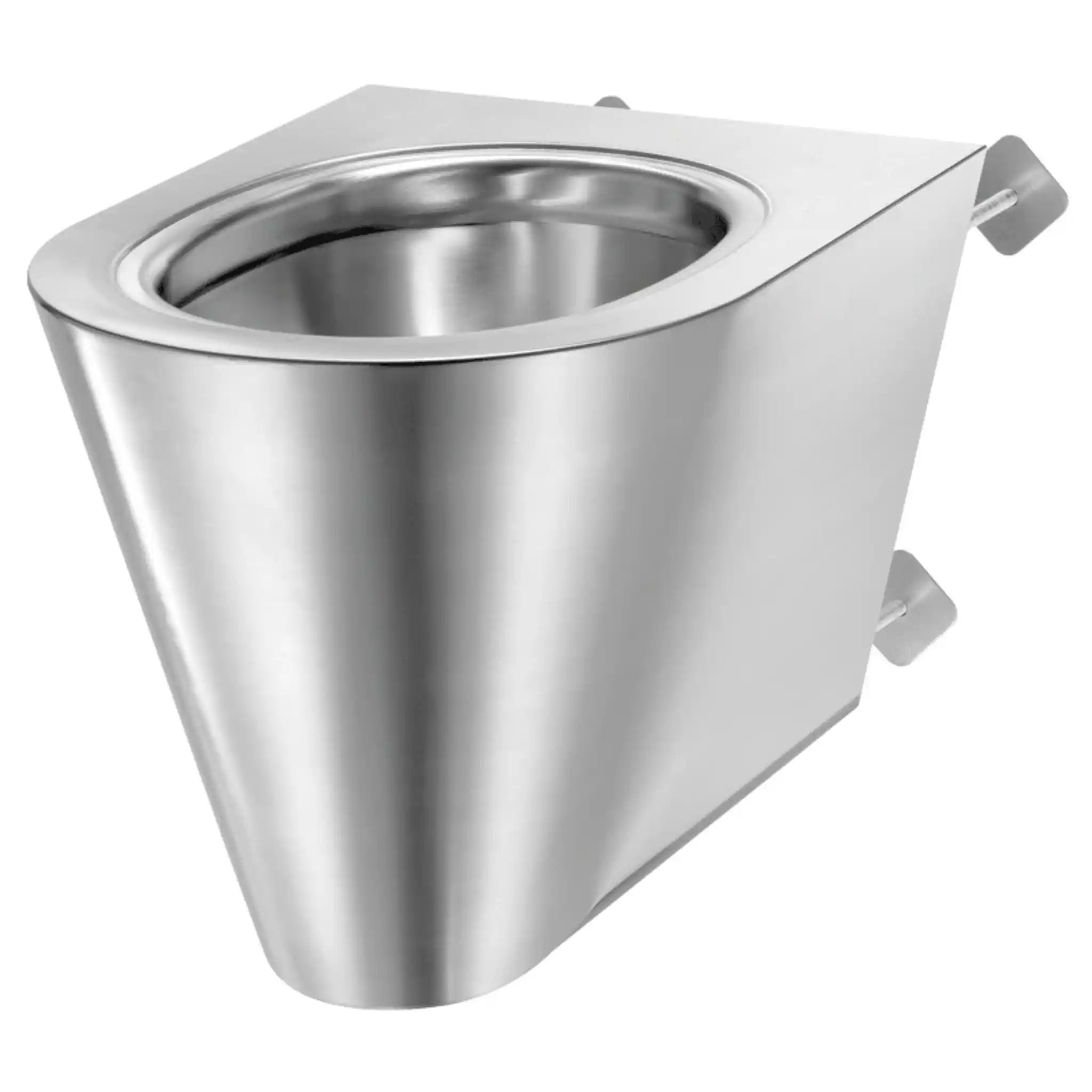

The S21 TC is a wall hung stainless steel WC pan that installs through the wall into a service duct. It is pressed in one piece from 1.5mm 304 stainless steel with a polished satin finish. The bowl is smooth with rounded edges and no seams or joints, so there is nothing for waste to collect in and nothing awkward to clean around.
Installation is through the wall via a 200mm threaded rod supplied with the pan, which can be cut to length on site. The flush runs all the way around the rim and is fully concealed, leaving no exposed ledges. Works with any flush delivering 4L or more. The shrouded pan design makes it suitable for secure environments including custody and secure mental health facilities. CE certified, meets EN 997 at 4L. Backed by a 30 year warranty.
Key Features
- No seams or joints: Pressed in one piece so there is nothing for waste or bacteria to collect in. Easier to clean, better hygiene.
- Rounded edges throughout: The bowl surface is polished with rounded edges, making it quick to wipe down.
- Concealed flush rim: The flush runs all the way around the full bowl rim and is fully concealed. No exposed ledges to clean around.
- Shrouded pan: Fully shrouded design, suitable for secure environments including custody, secure mental health, and other controlled access facilities.
- Through the wall installation: Fixes through the wall into a service duct using the supplied 200mm threaded rod, which can be cut to length on site.
- Water saving: Works with any flush system delivering 4L or more, meeting EN 997 at 4L.
- 30 year warranty: Backed by a 30 year manufacturer's warranty.
Delabie Wall Hung S 21 TC Specifications
| Material | 304 stainless steel |
|---|---|
| Finish | Polished satin |

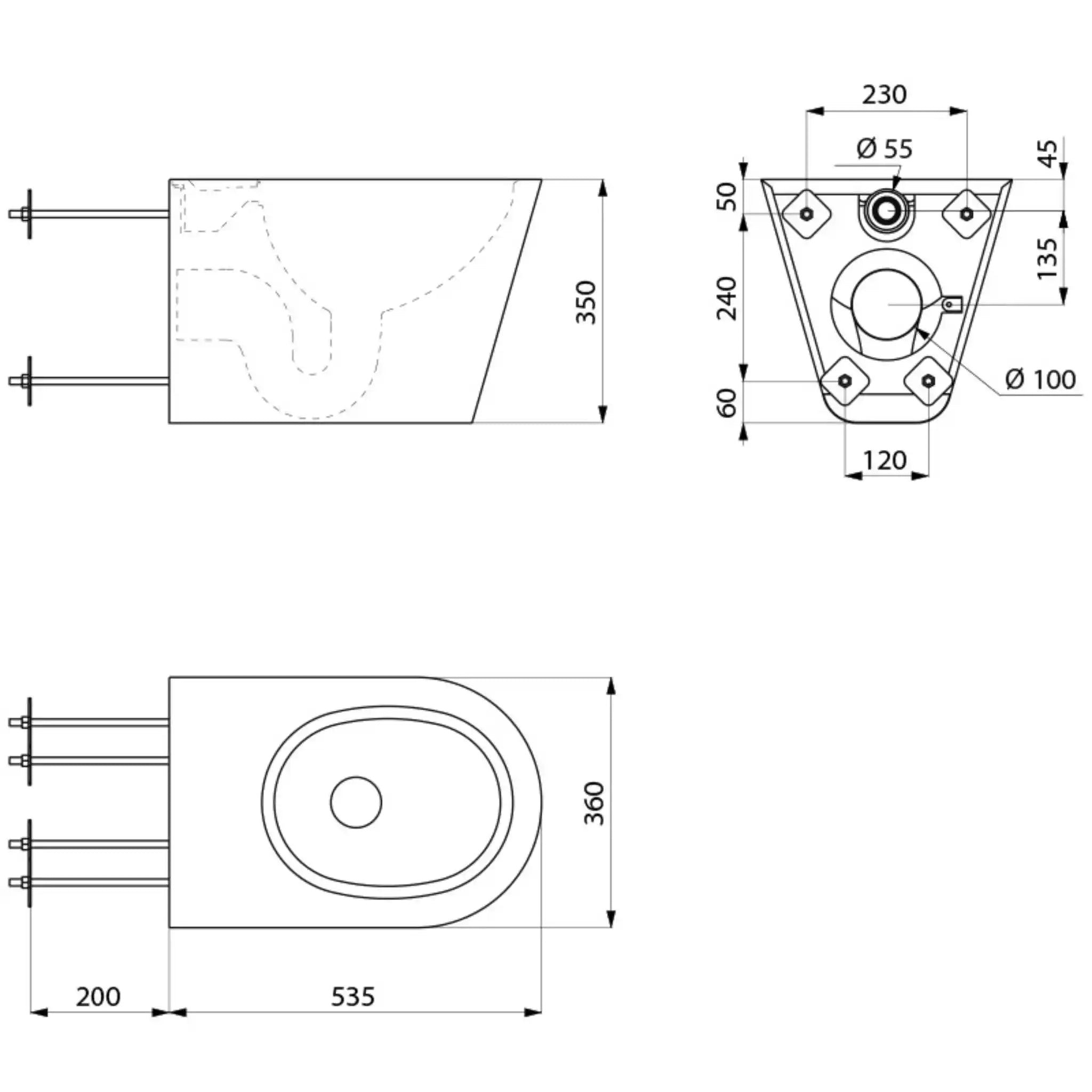

| Dimensions | 535mm (L) x 360mm (W) x 350mm (H) |
| Waste outlet | Ø 100mm horizontal |
| Water inlet | Ø 55mm horizontal |
Delabie Wall Hung S 21 TC Manuals & Downloads
Frequently Asked Questions
How does this WC pan install?
The S21 TC installs through the wall into a service duct. It is supplied with a 200mm threaded rod that can be cut to length on site. Alternative rod lengths are available on request where the standard length does not suit the installation depth.
Is this WC suitable for prisons, custody suites, or secure mental health facilities?

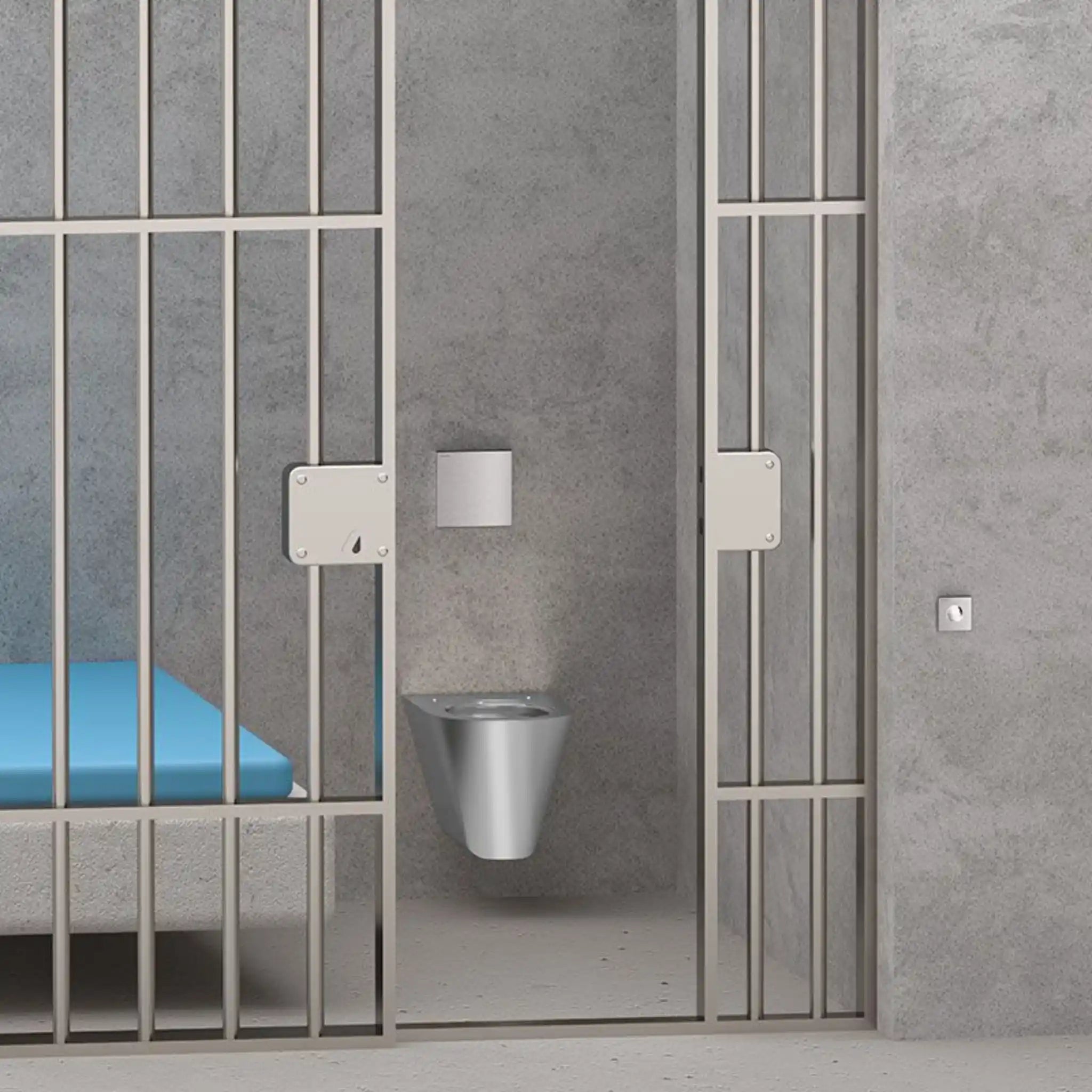

Yes. Delabie classifies the S21 TC as suitable for the secure sector. The shrouded stainless steel pan and through the wall installation are appropriate for custody, secure mental health, and other controlled access environments.
What flush volume does this WC pan require?
The S21 TC works with any flush system delivering 4L or more. It meets EN 997 at 4L, so it is compatible with low consumption flush valves.
Why is a one piece pressed bowl better for hygiene?
Because there are no seams or joints anywhere in the bowl, there is nowhere for waste or bacteria to collect. It also means there are no crevices that are difficult to reach when cleaning.
Available Variants
| SKU | Description |
|---|---|
| 160310 | S21 TC Wall Hung WC Pan, polished satin 304 stainless steel |
