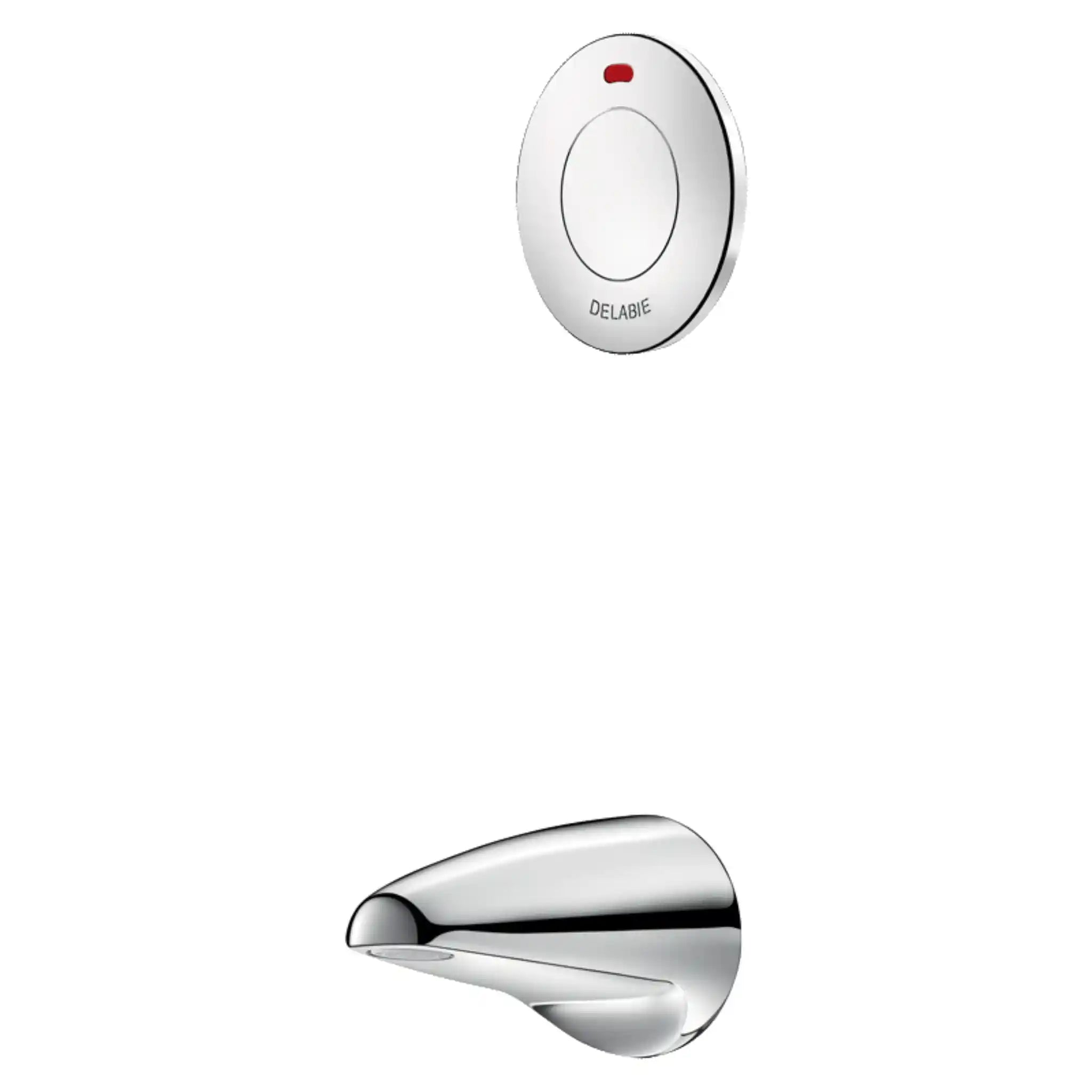

Delabie Tempostop cross wall tap in chrome-plated solid brass, compact wall-mounted body with one control and standard backing nut

Delabie Tempostop Cross Wall Tap

by Delabie

£188.00 ex VAT

£225.60 inc VAT Prices ex VAT. VAT is added at checkout.

SKU: 748110

✓ Free Delivery
✓ Manufacturer Warranty
Controls
Fixing
Need help with this product? Give us a call and we will get you sorted.
020 4571 5856

TEMPOSTOP time flow tap

The TEMPOSTOP is a time flow basin tap for cross wall installation, where push button controls are mounted through a partition wall and the mechanism sits on the service side for maintenance access without entering the washroom. The AB anti blocking system is built in as standard, ensuring the timed shut off cycle cannot be defeated by holding the push button down.

The tap connects via M½" and delivers water at 3 lpm over a 200mm body length. It is ACS certified and carries a 30 year warranty.

An overview image of Delabie Tempostop Cross Wall Tap

Product Video

Key Features

  • Cross wall installation: Push button controls mount through a partition wall with the mechanism on the service side, allowing maintenance access without entering the washroom area.
  • AB anti blocking system: Delabie's AB mechanism prevents the tap from being blocked open by holding the button down, ensuring the timed shut off cycle always activates.
  • Time flow operation: Each button press delivers water for a preset duration and shuts off automatically, eliminating the possibility of continuous flow.
  • Water savings: The time flow mechanism limits each use to a controlled 3 lpm over a preset duration, with Delabie rating this as delivering 85% water savings versus a standard tap.
  • ACS certified: The tap holds ACS certification for contact with drinking water.
  • 30 year warranty: Delabie backs this product with a 30 year warranty.

Specifications

Technology Time flow
Flow rate 3 lpm
Connector M½"
Installation Cross wall
Warranty 30 Year

Manuals & Downloads

Frequently Asked Questions

What is the anti blocking system on Delabie taps?

Delabie's AB anti blocking system is a vandal resistant mechanism found on their non concussive push button taps. Water flows only when the push button is released, not while it is held down. This prevents the tap from being deliberately blocked open to run continuously, ensuring the timed shut off cycle always activates.

What type of water supply does the TEMPOSTOP require?

The tap has a single M½" connector and accepts a cold or pre mixed supply. Temperature control is not built in to the tap; a separate thermostatic mixing valve is required upstream if temperature regulated mixed water is needed.

Are spare parts available for the TEMPOSTOP?

Spare parts including the cross wall tamperproof controls and the TEMPOSTOP AB mechanism are available to order.

Available Variants

SKU Controls Fixing

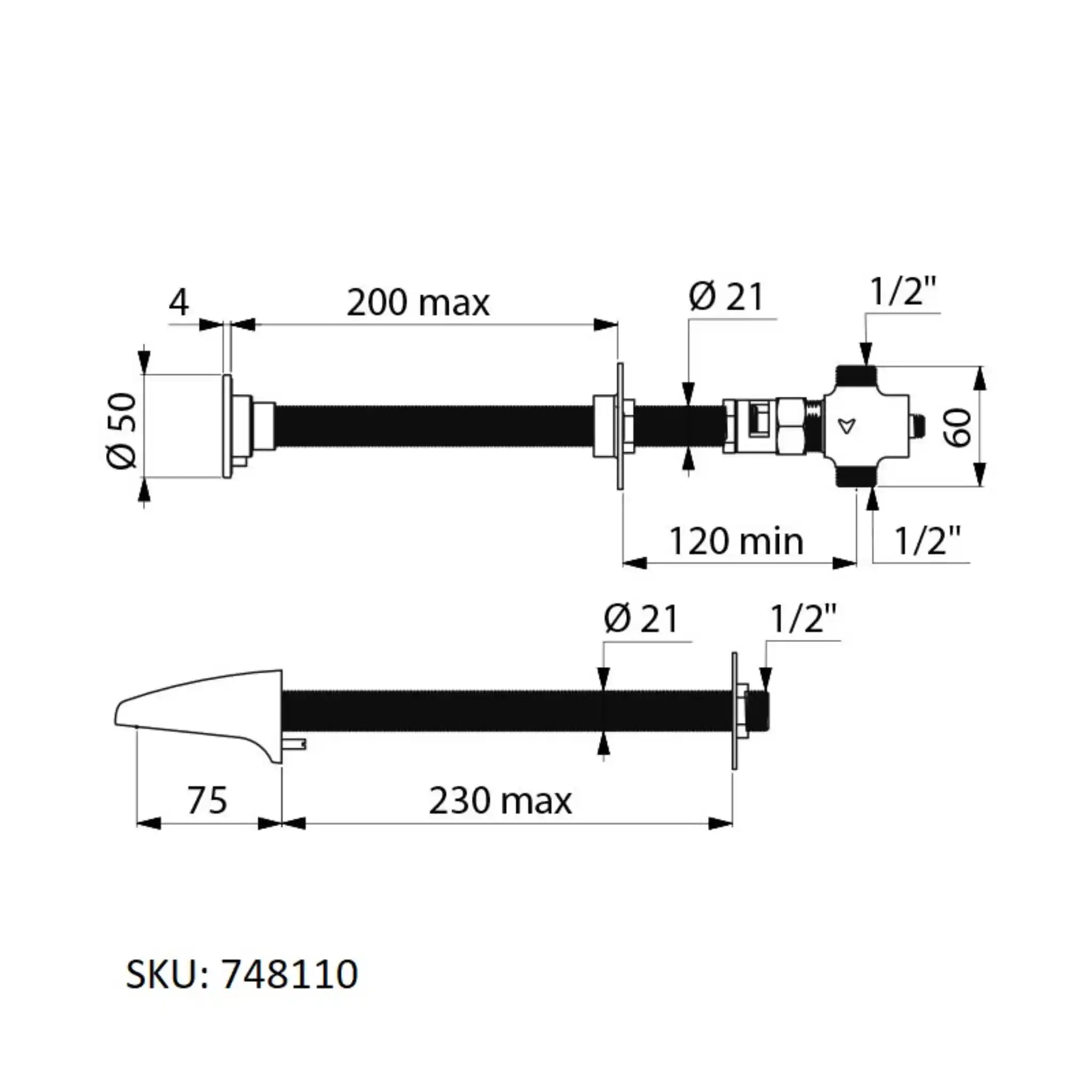

748110 1 control Standard backing nut

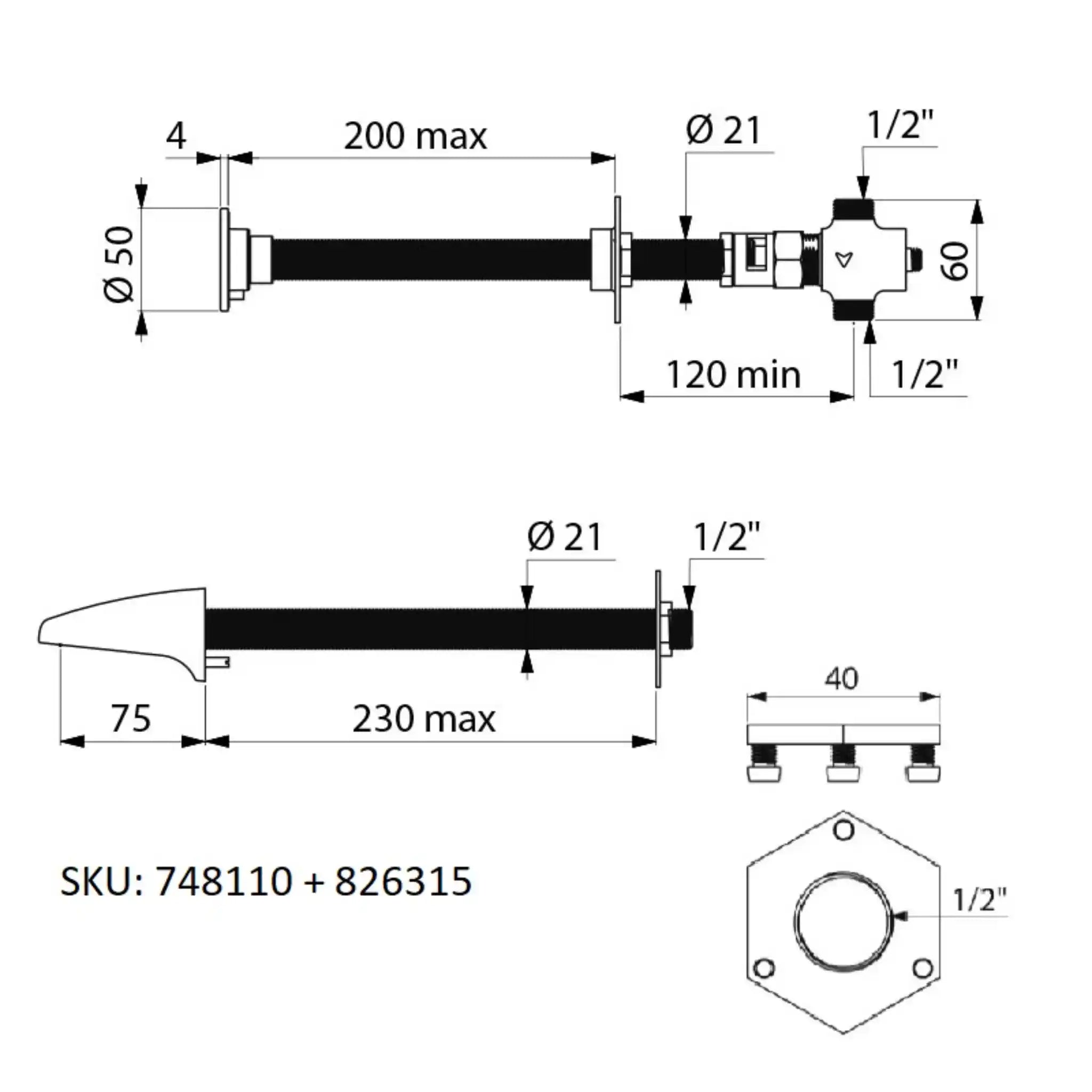

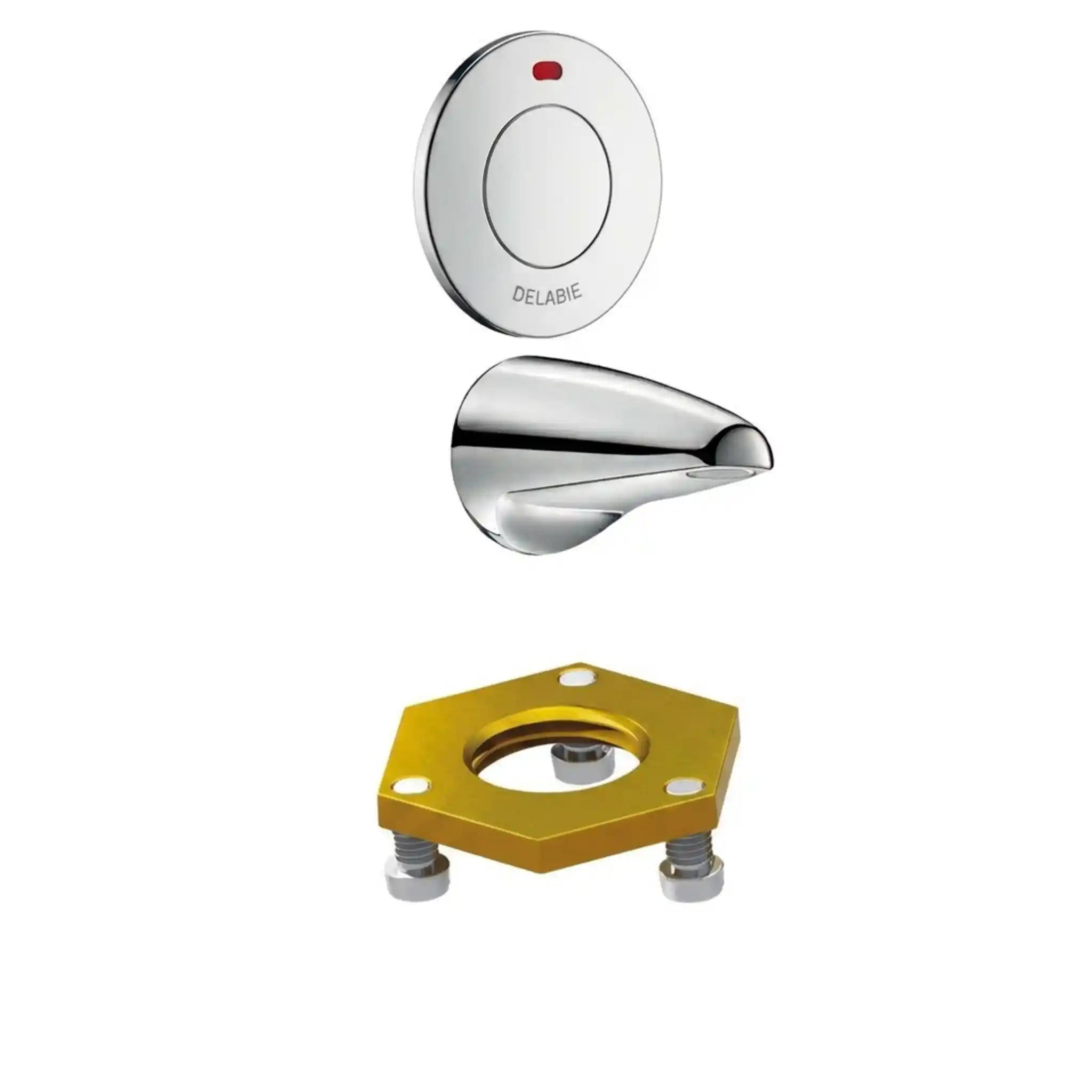

748110 + 826315 1 control Reinforced back nut with screws

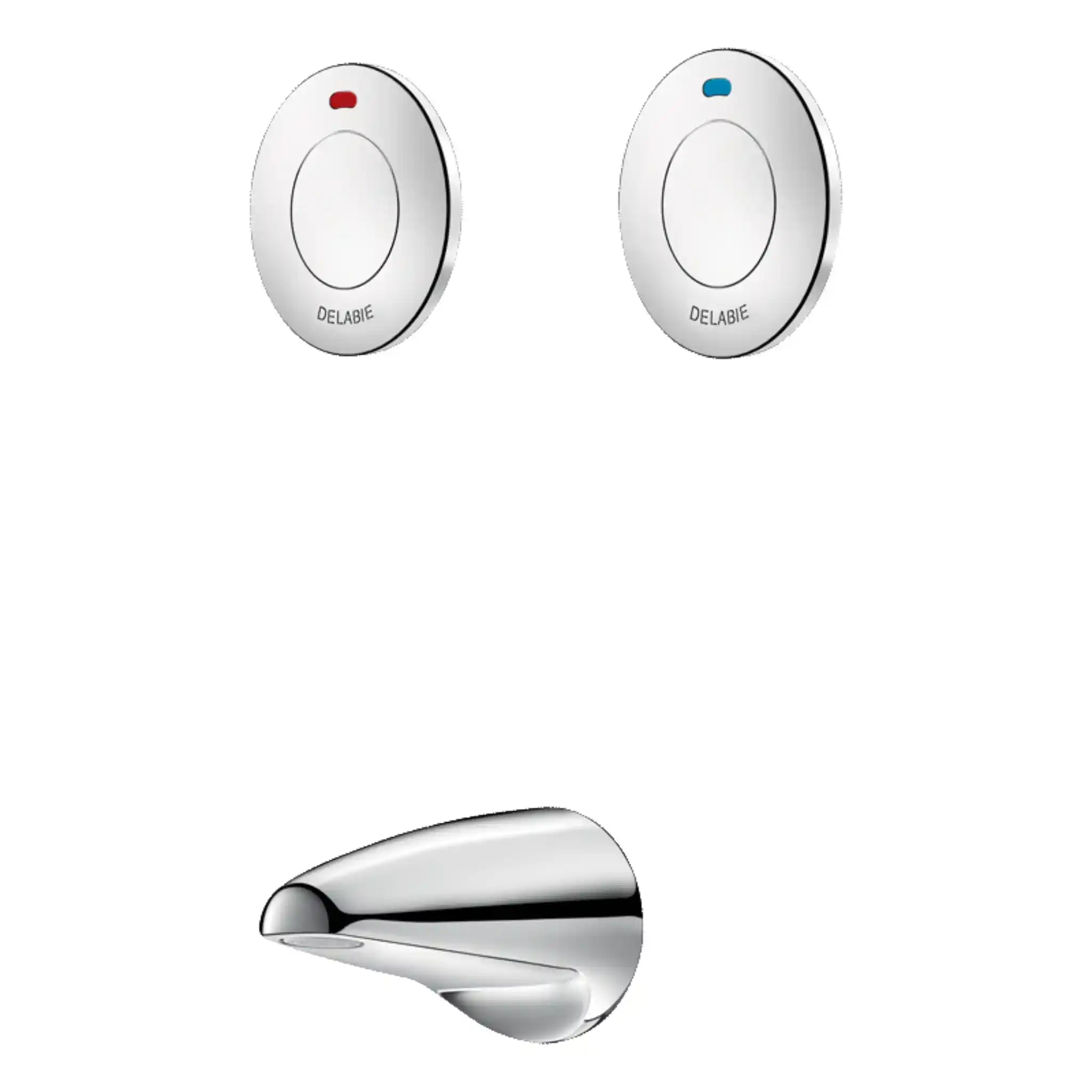

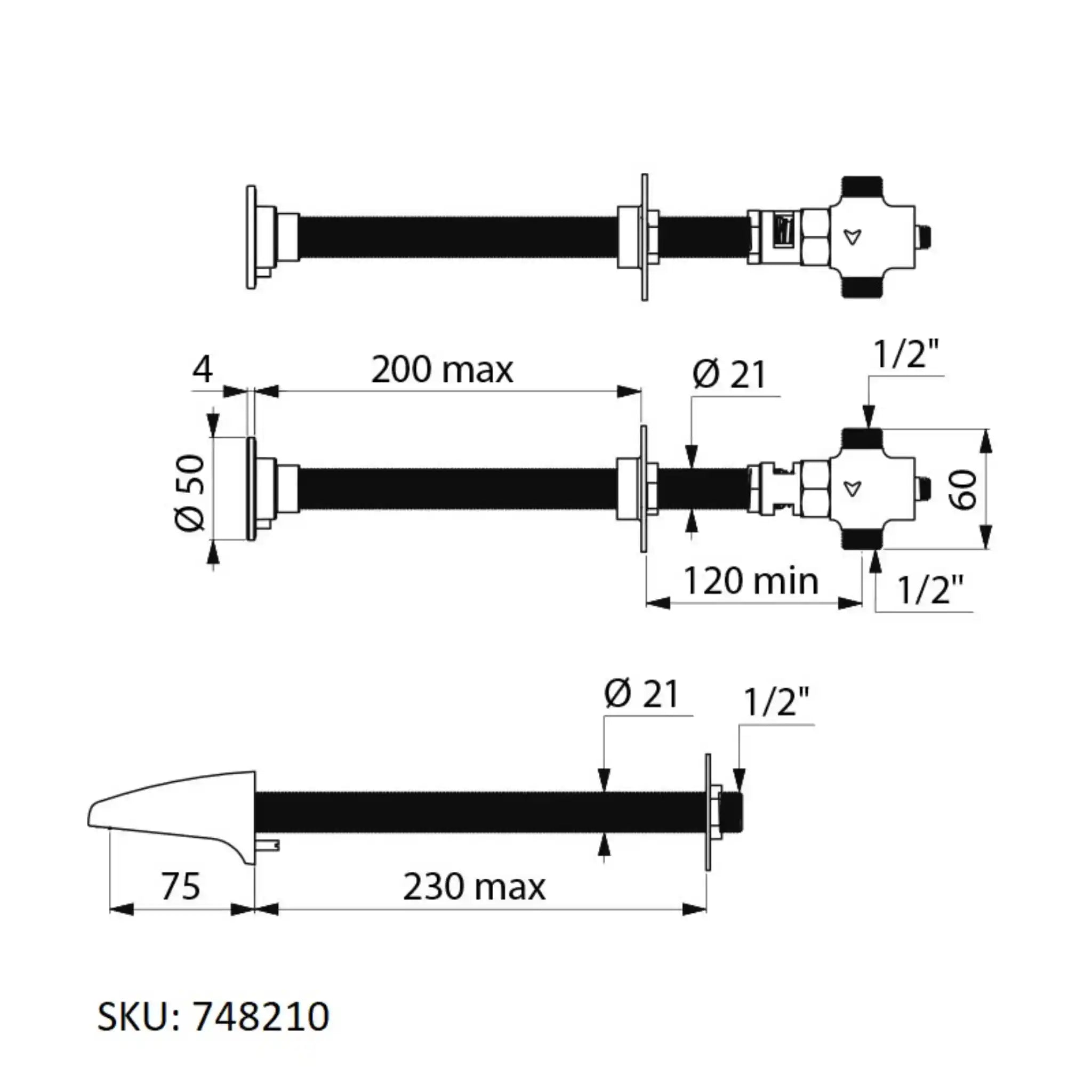

748210 2 controls Standard backing nut

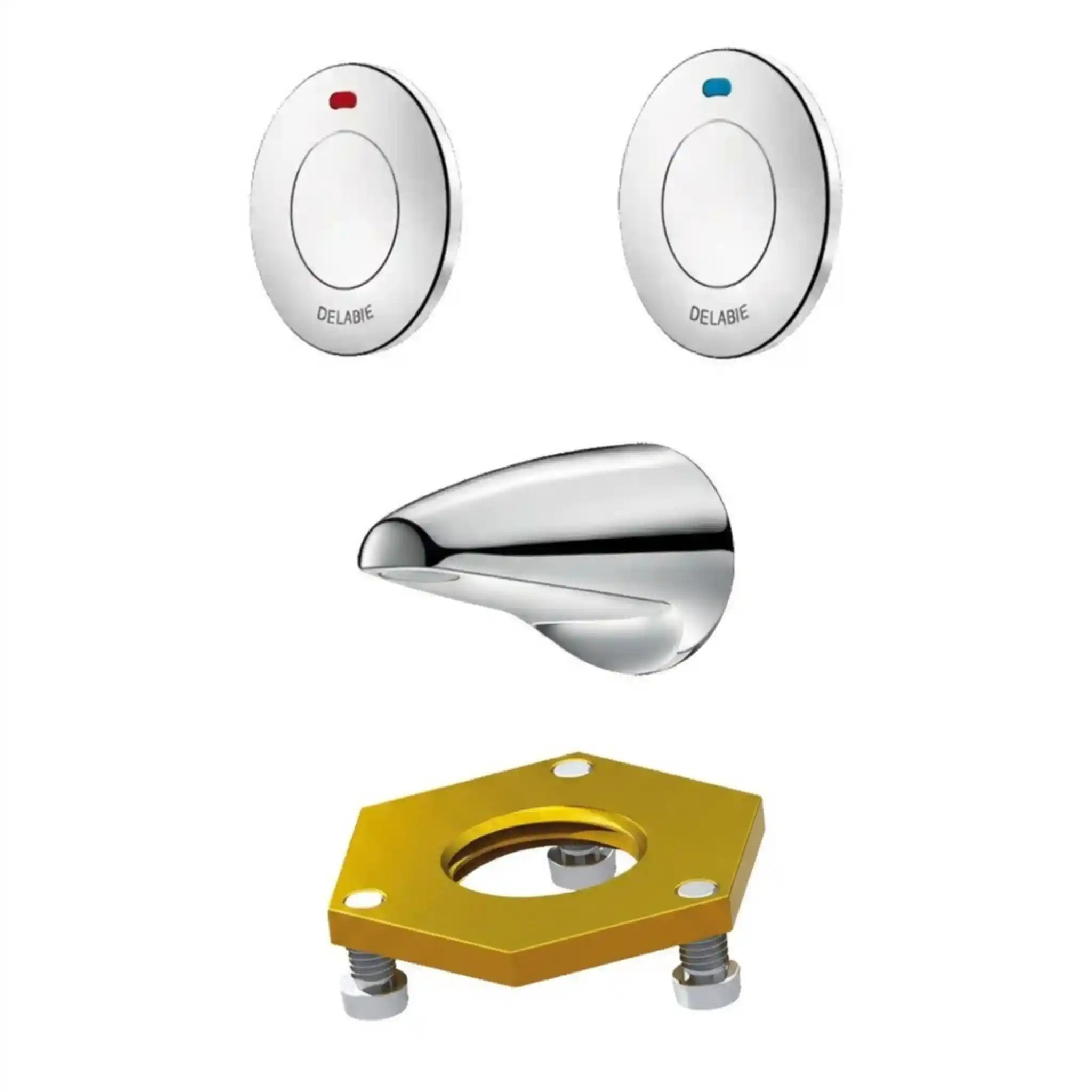

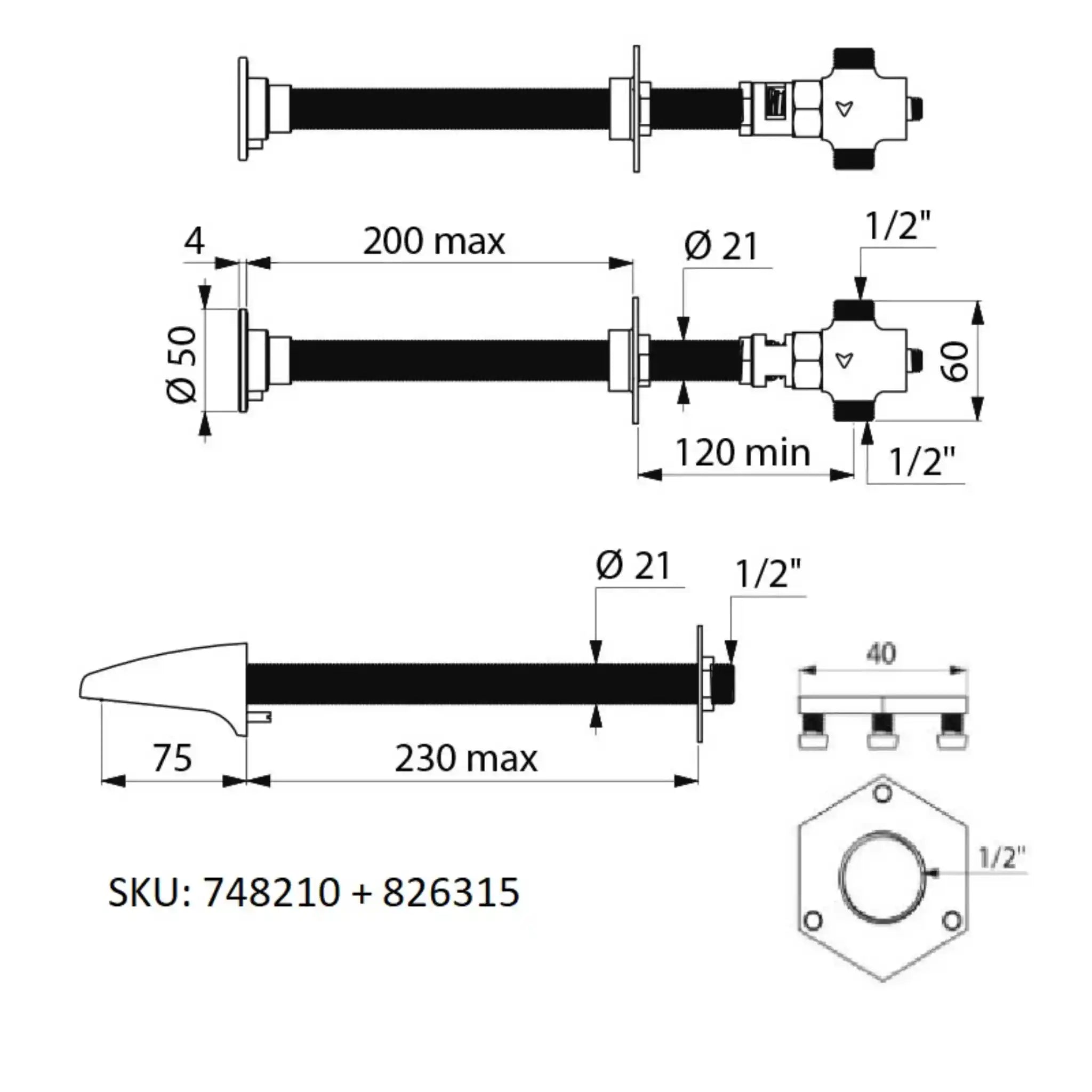

748210 + 826315 2 controls Reinforced back nut with screws
