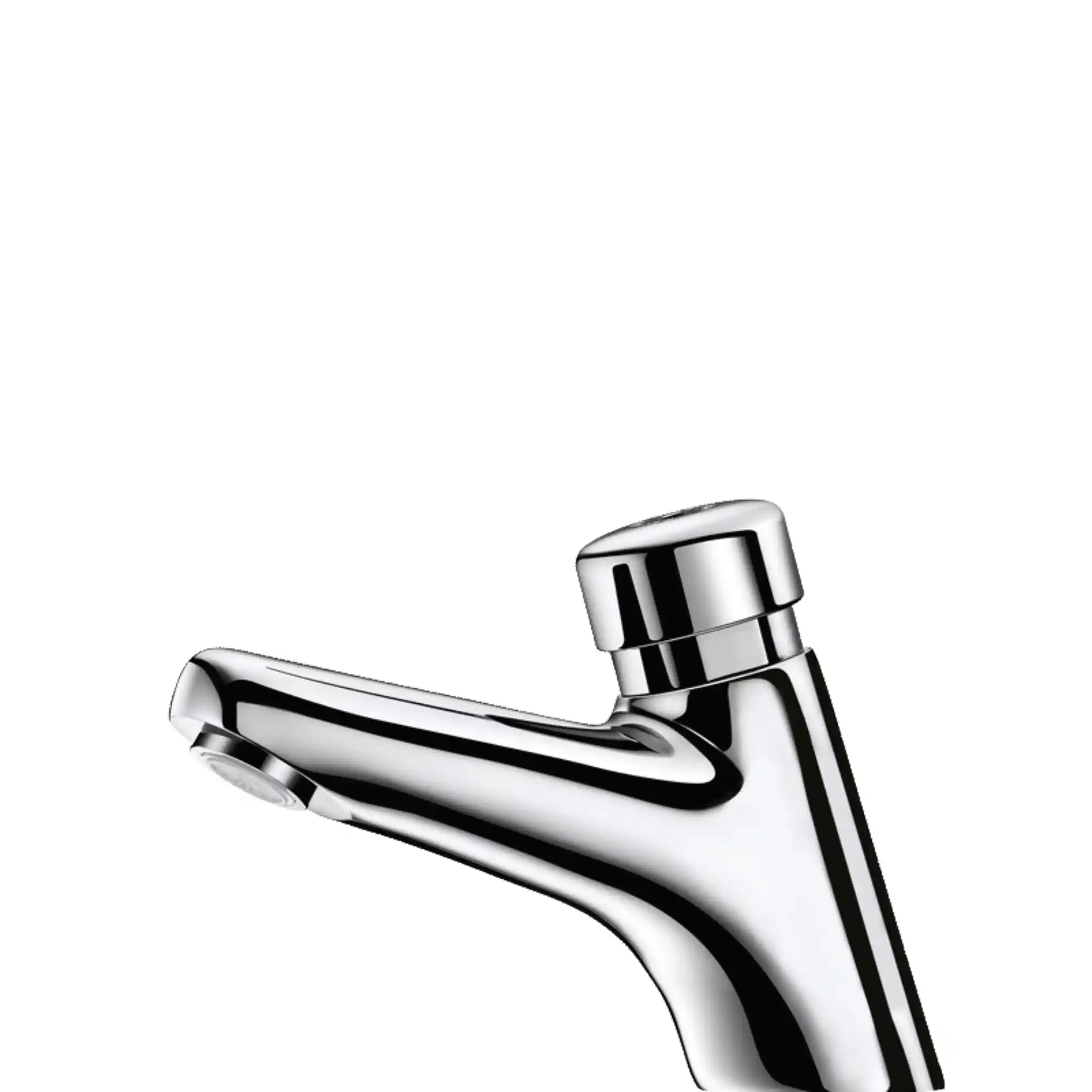

TEMPOSTOP 2 Time Flow Tap
The TEMPOSTOP 2 is a deck mounted time flow basin tap that activates on press or lever operation and delivers water for approximately 7 seconds before shutting off automatically. The body is chrome plated solid brass, fitted with a scale resistant flow straightener.
It connects via PEX supply connections with a 115mm spout length and a 60mm drop height. Flow rate is factory set at 3 lpm at 3 bar and adjustable from 1.4 to 6 lpm. Certified to ACS, DoP, and PZH standards and backed by a 30 year warranty.
Key Features

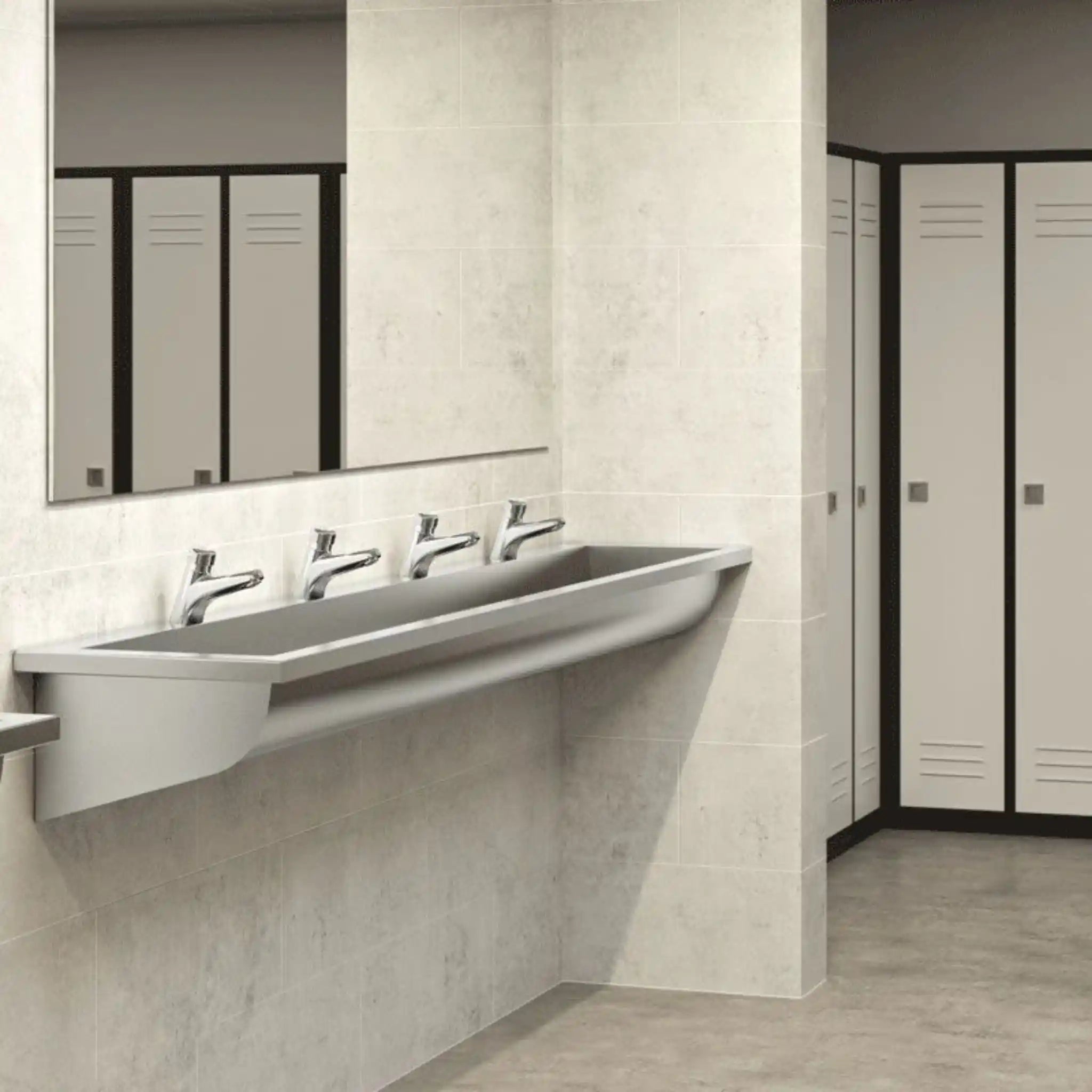

- Body construction: Chrome plated solid brass body throughout, suited to high use commercial washroom installations.
- Time flow mechanism: Delivers water for approximately 7 seconds per activation then closes automatically, with no possibility of continuous uncontrolled flow.
- Adjustable flow rate: Set to 3 lpm at 3 bar from the factory; adjustable from 1.4 to 6 lpm to match site requirements.
- Scale resistant flow straightener: Fitted as standard to maintain consistent water delivery and resist mineral deposit build-up.
- Front access servicing: Internal components are accessible from the front without removing the tap from the basin.
- Warranty: Backed by a 30 year warranty.
Delabie Tempostop 2 Specifications
| Technology | Time flow |
|---|---|
| Water Connection | PEX |
| Flow rate | 3 lpm (factory set at 3 bar) |
| Installation | Deck mounted |
| Warranty | 30 Year |
Delabie Tempostop 2 Manuals & Downloads
Frequently Asked Questions
How does the time flow mechanism work?
Operating the control opens the cartridge valve, which delivers water for approximately 7 seconds then closes automatically regardless of whether the user remains at the basin.
What does the anti blocking system do?
The AB anti blocking system allows water to flow only when the push button is released rather than held depressed, preventing objects from being wedged against the button to cause uncontrolled continuous flow.
Is there a variant suited to accessible washroom facilities?
One variant features lever operation with a soft touch action and is confirmed by Delabie as suitable for people with reduced mobility.
Can the cartridge be replaced without removing the tap?
Yes, all variants are designed for front access maintenance, so the cartridge can be serviced without removing the tap from the basin.
Available Variants
| SKU | Operation | Fixing |
|---|---|---|

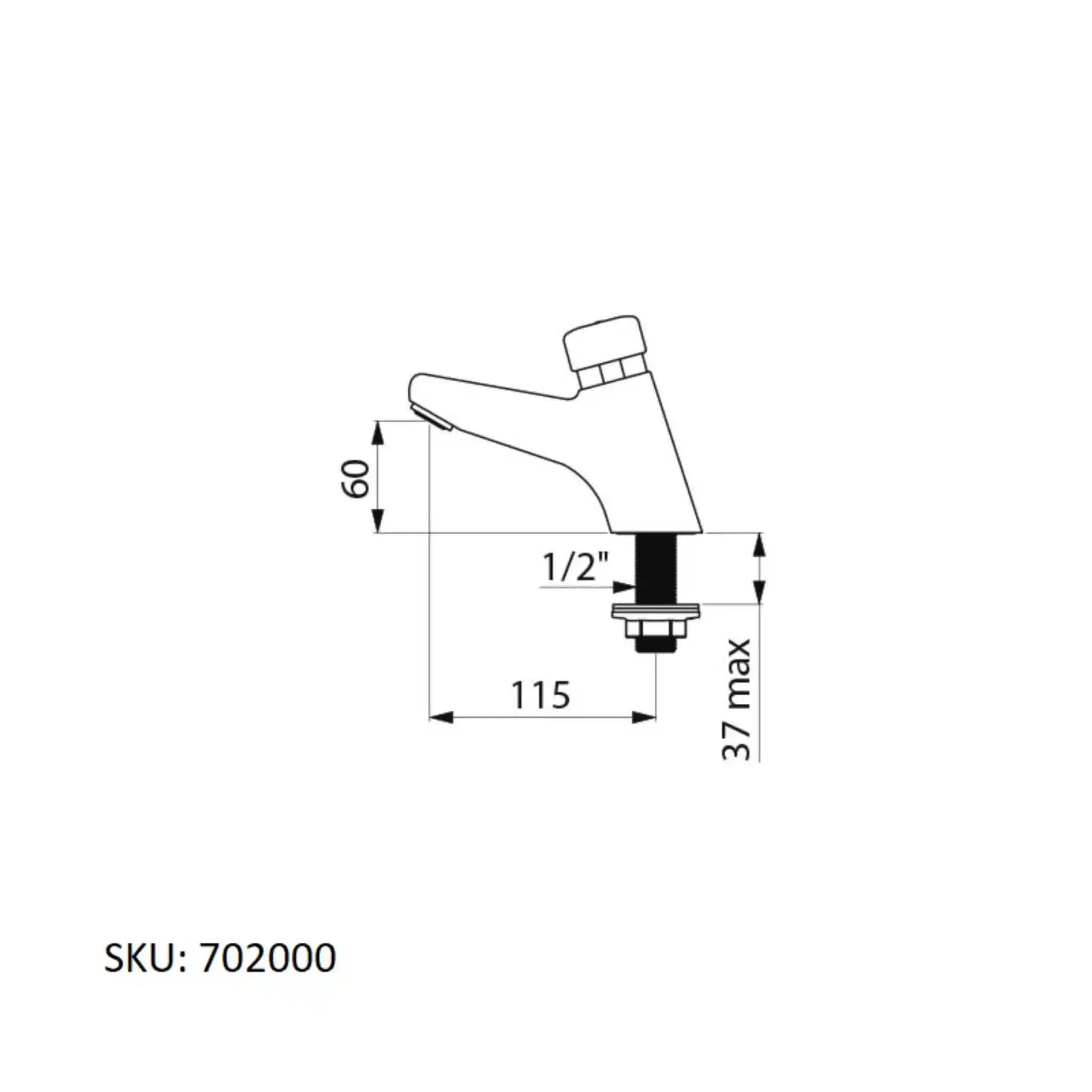

| 702000 | Push button | Standard back nut |

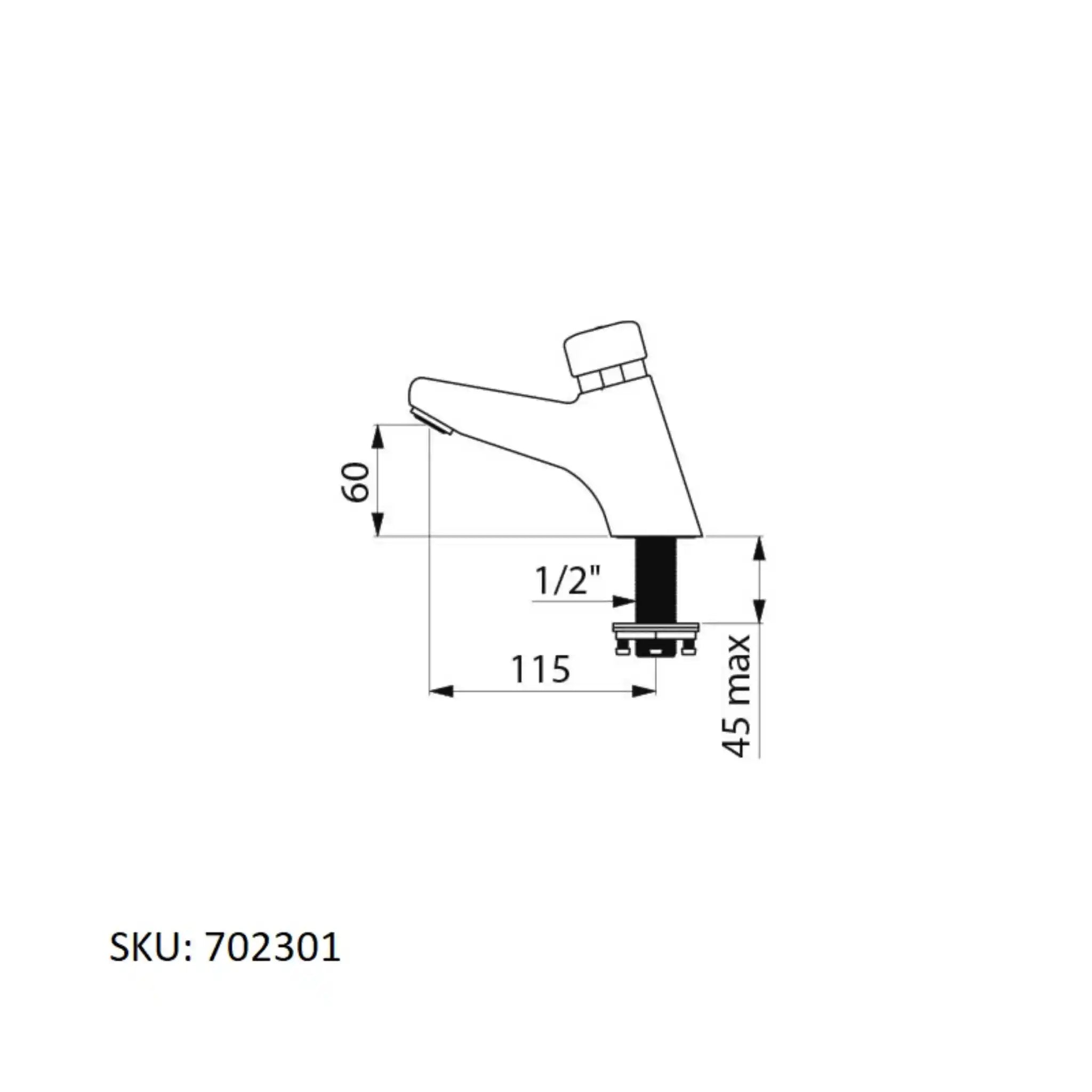

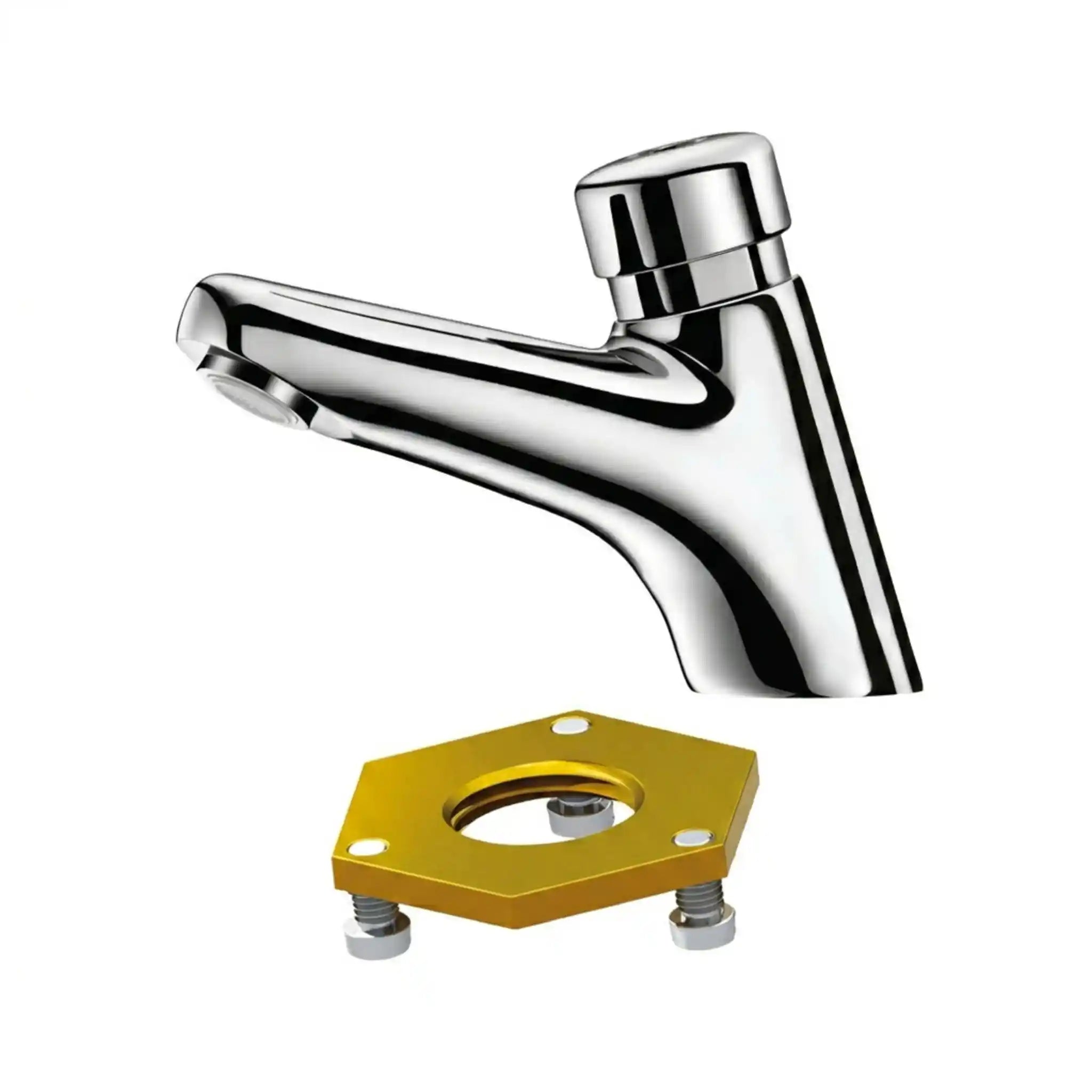

| 702301 | Push button | Reinforced back nut with 3 stainless steel screws + AB anti blocking system |

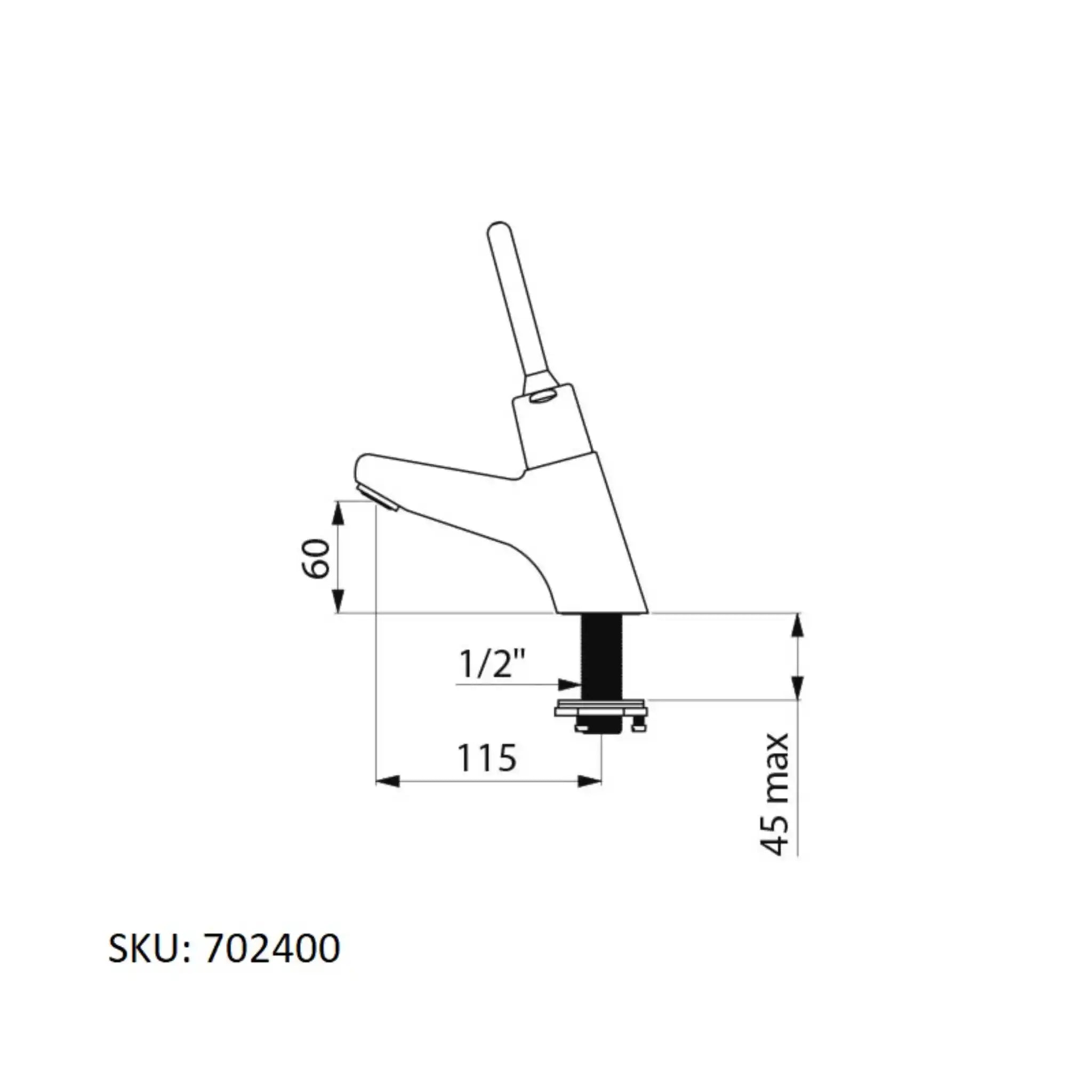

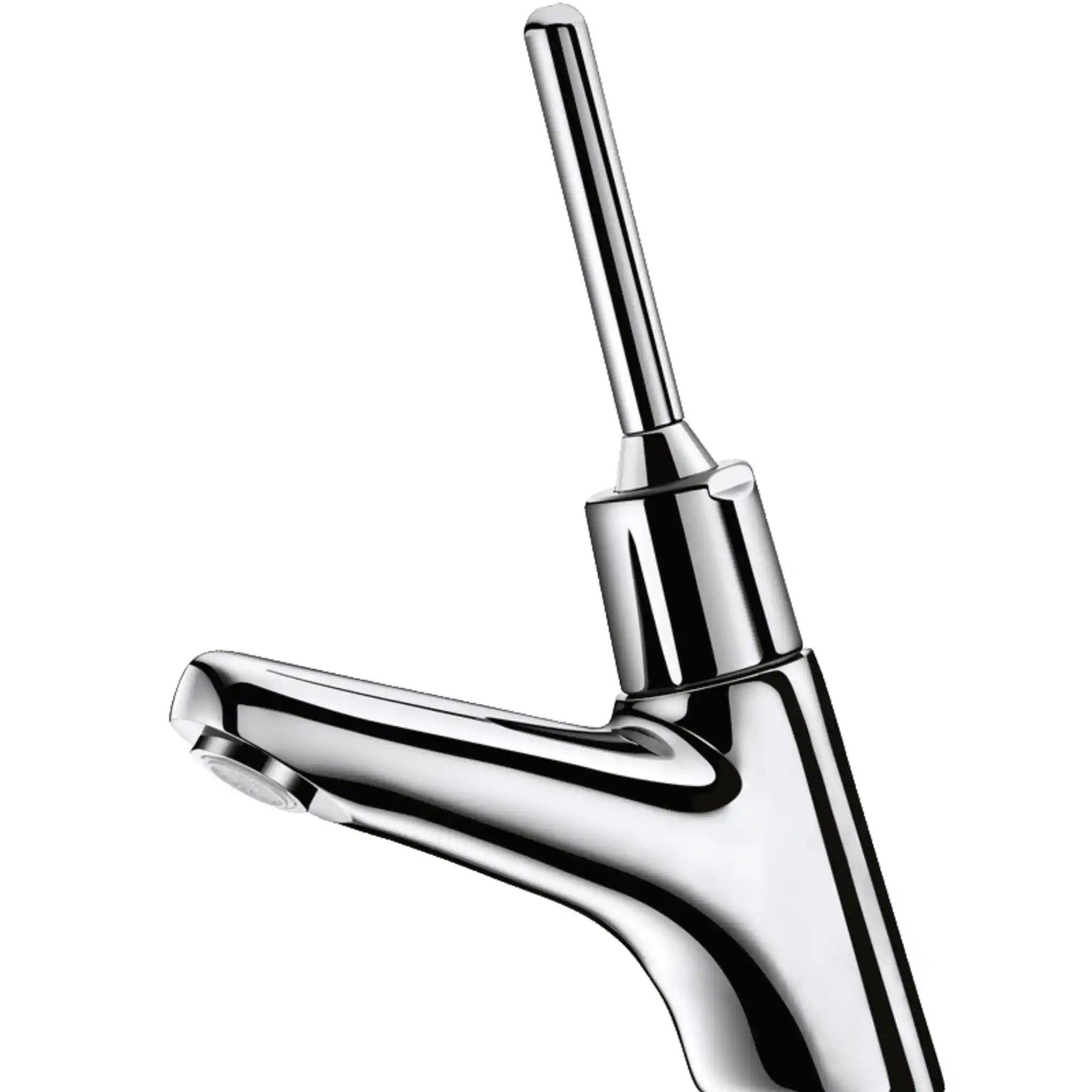

| 702400 | Lever operated | Reinforced back nut with 3 stainless steel screws |
