TEMPOSOFT MIX 2 time flow mixer

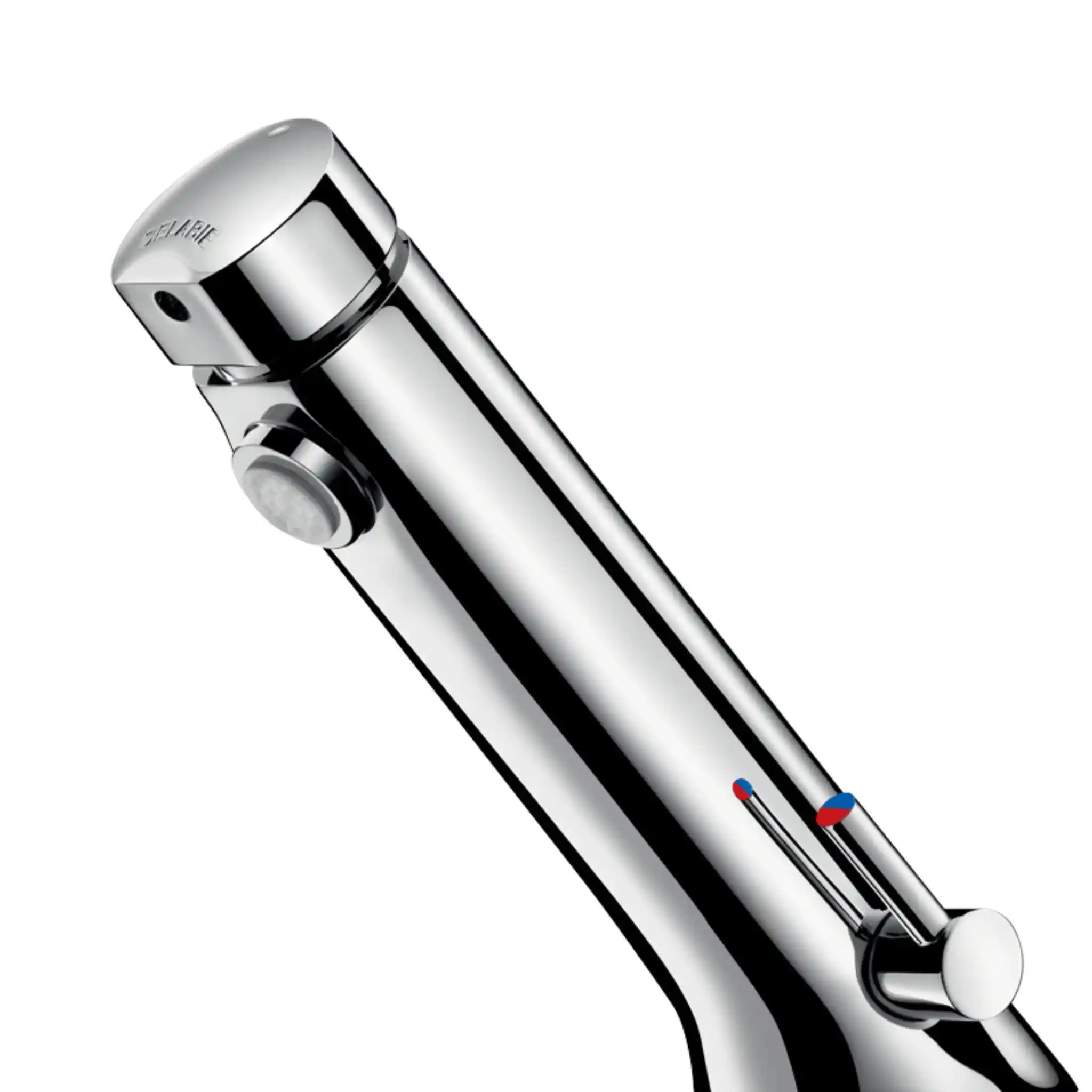

The TEMPOSOFT MIX 2 is a deck mounted time flow basin mixer with soft touch lever operation. The body is chrome plated solid brass, delivering durability suited to high use commercial washrooms.
The mixer connects via M½" Ø 15mm inlets and delivers a fixed flow rate of 3 lpm. It requires separate hot and cold supply connections. The time flow mechanism automatically stops water flow after a set period, producing up to 85% water savings compared to conventional fittings. The product carries WRAS approval and a 30 year warranty.
Key Features
- Body construction: Chrome plated solid brass body provides robust performance in commercial and public washroom environments.
- Time flow operation: Pressing the lever releases water for a timed period before the flow stops automatically, requiring no user action to shut off.
- Water savings: The fixed 3 lpm flow rate and automatic shut off deliver up to 85% water savings compared to standard basin taps.
- Soft touch actuation: The lever requires minimal pressure to operate, reducing wear and improving usability in high traffic installations.
- Supply connections: The mixer accepts separate hot and cold supplies via M½" Ø 15mm inlets with built in stopcocks for in situ isolation.
- Compliance and warranty: WRAS approved and backed by a 30 year warranty.
Delabie Temposoft Mix 2 Specifications
| Technology | Time flow |
|---|---|
| Installation | Deck mounted |
| Connector | M½" Ø 15mm |
| Flow rate | 3 lpm |
| Warranty | 30 Year |
Delabie Temposoft Mix 2 Manuals & Downloads
Frequently Asked Questions
How does the time flow mechanism work?
Pressing the lever opens the internal time flow cartridge, which releases water for a preset duration before automatically closing. No further user interaction is required to stop the flow.
Are spare parts available for the TEMPOSOFT MIX 2?
Yes. Spare parts including the time flow cartridge, mixing key, flow straightener, non return valve, conical filter, in line STOP union, and stainless steel flexibles are all available separately.
Available Variants
All variants are deck mounted with Ø 15mm stopcocks, M½" Ø 15mm connectors, 3 lpm flow rate, and a 30 year warranty.
| SKU | Lever | Tails |
|---|---|---|

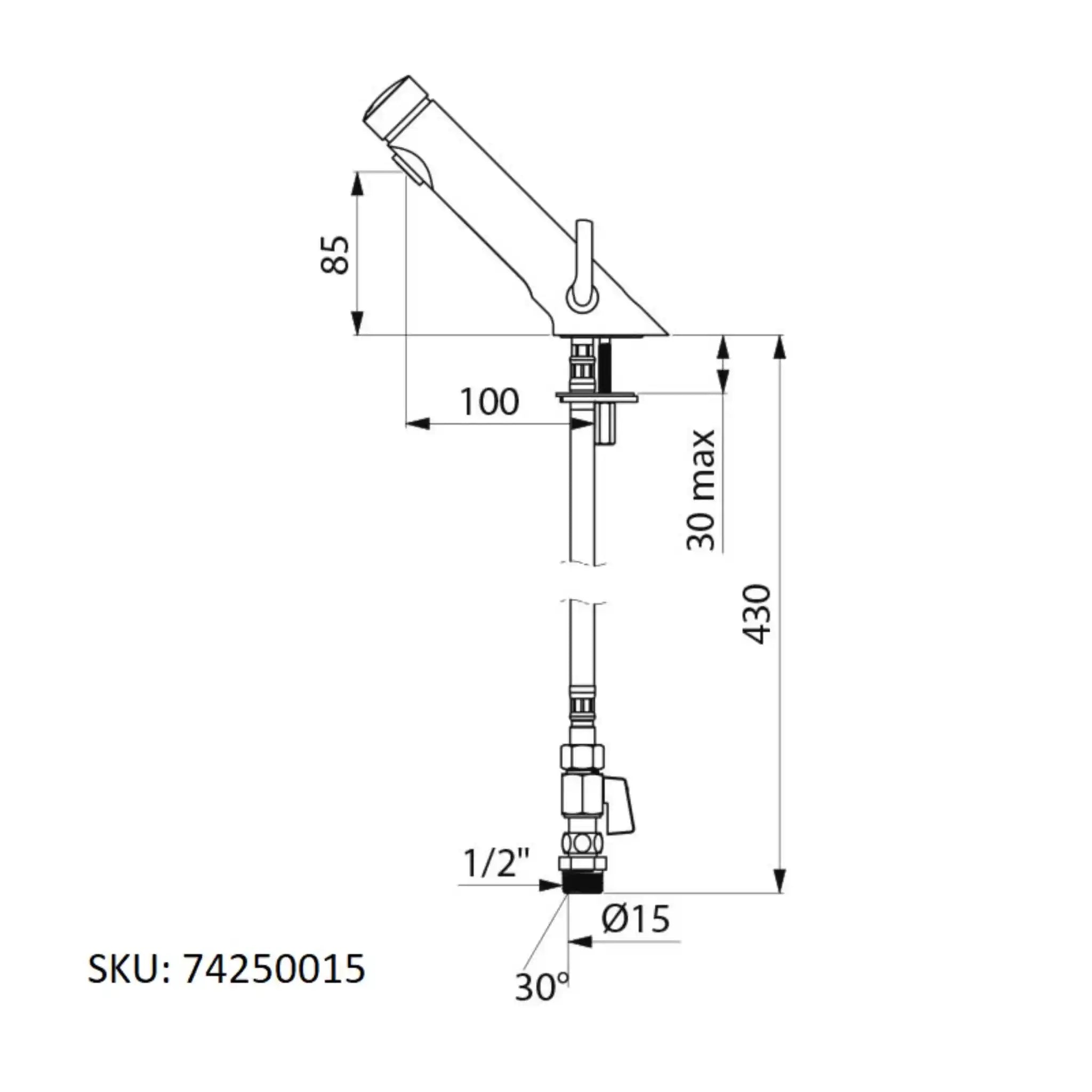

| 74250015 | Standard | PEX |
| 74250015LH | Long | PEX |

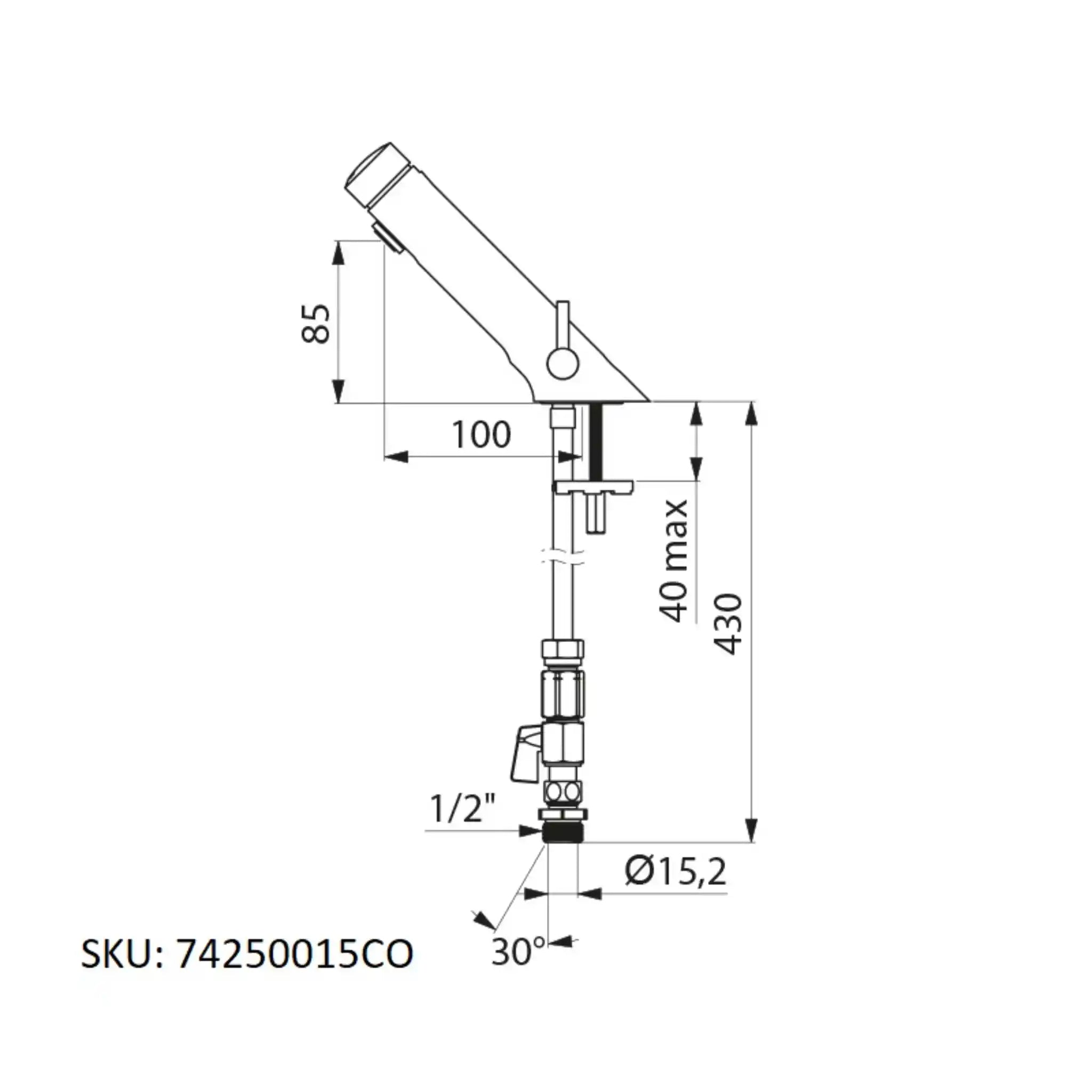

| 74250015CO | Standard | Copper |
| 74250015COLH | Long | Copper |
