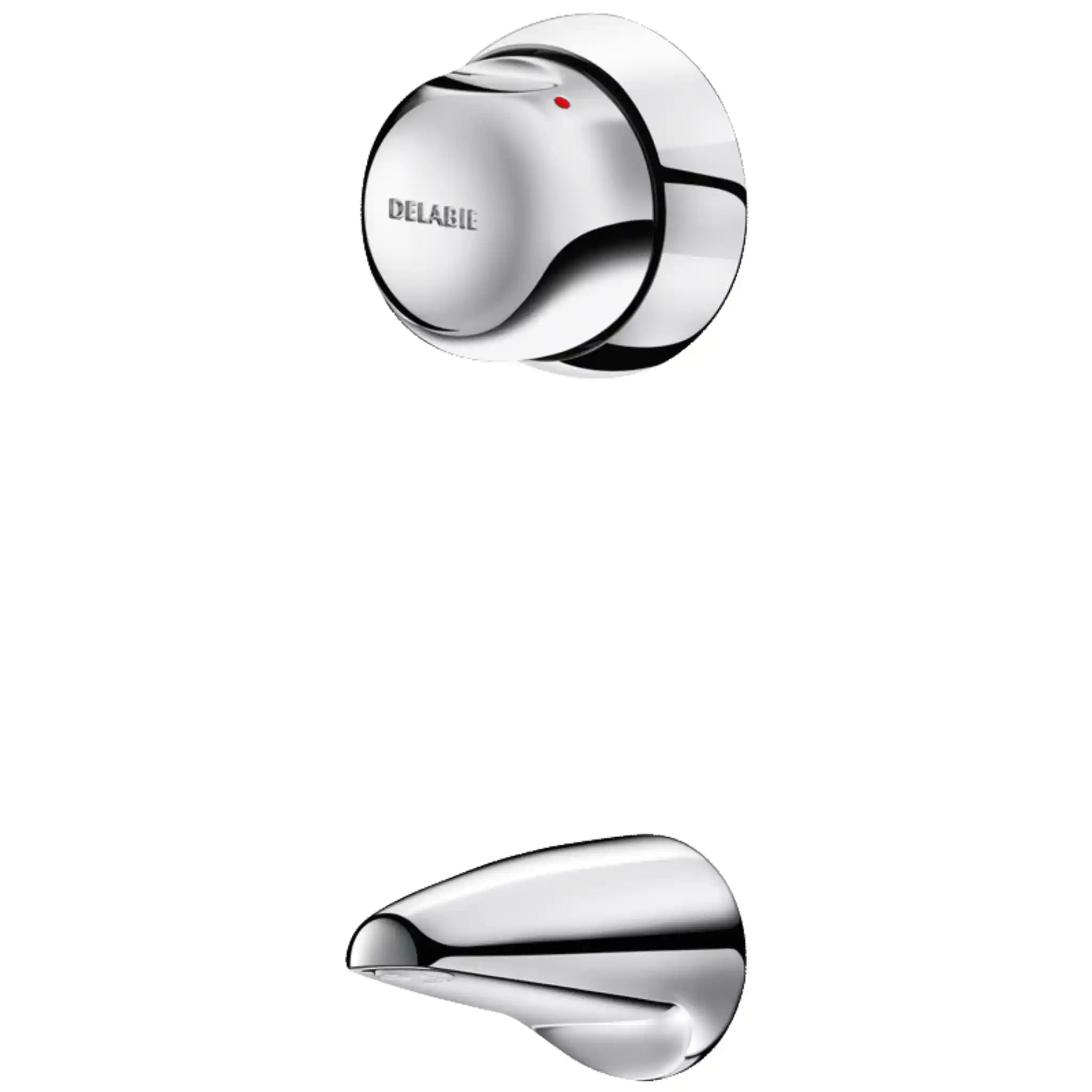

An image of Delabie Tempomix Cross Wall Vandal Proof Mixer, chrome-plated solid brass basin mixer with single metal control, cross wall alignment, polished chrome surface

Delabie Tempomix Cross Wall Vandal Proof Mixer

by Delabie

£494.95 ex VAT

£593.94 inc VAT

SKU: 795209

Fixing
Need help with this product? Give us a call and we will get you sorted.
020 4571 5856

Tempomix Vandal Proof Mixer

The TEMPOMIX is a cross wall single control time flow basin mixer for high use public and commercial washrooms. The body is constructed from solid brass and installs behind the partition, leaving only the control and spout exposed on the front face.

The mixer connects via an M¾" inlet and delivers a controlled flow rate of 3 lpm through a 75mm spout over a 230mm overall length. It carries ACS, PZH, and DoP certifications and is backed by a 30 year warranty.

An overview image of Delabie Tempomix Cross Wall Vandal Proof Mixer

Key Features

  • Time flow mechanism: Pressing the control delivers water for a preset duration then shuts off automatically, reducing water consumption by up to 85% compared to a conventional mixer.
  • Cross wall installation: The body mounts behind the partition with only the handle and spout visible, preventing access to internal components in public or high risk environments.
  • Temperature selection: The mixer accepts separate hot and cold supply connections, with outlet temperature set during installation.
  • Soft touch operation: The control requires minimal actuation force, suited to high throughput public facilities.
  • Solid brass body: Manufactured from solid brass throughout for durability in demanding installations.
  • 30 year warranty: Covered by Delabie's 30 year warranty.

Delabie Tempomix Cross Wall Vandal Proof Mixer Specifications

Technology Time flow
Flow rate 3 lpm
Length 230mm
Warranty 30 years

Delabie Tempomix Cross Wall Vandal Proof Mixer Manuals & Downloads

Frequently Asked Questions

How does the time flow mechanism work?

Pressing the control opens the valve and delivers water for a preset duration before shutting off automatically, preventing the mixer being left running and reducing water consumption by up to 85%.

What makes this mixer suitable for vandal resistant installations?

The cross wall design positions the body behind the partition, so only the control and spout are accessible from the front face. Internal components cannot be reached without removing the fitting from the wall.

Does the TEMPOMIX require separate hot and cold supply connections?

Yes. As a mixer, it requires separate hot and cold supply connections.

Available Variants

All variants share the same technology (time flow), connector (M¾"), flow rate (3 lpm), and overall length (230mm).

SKU Fixing

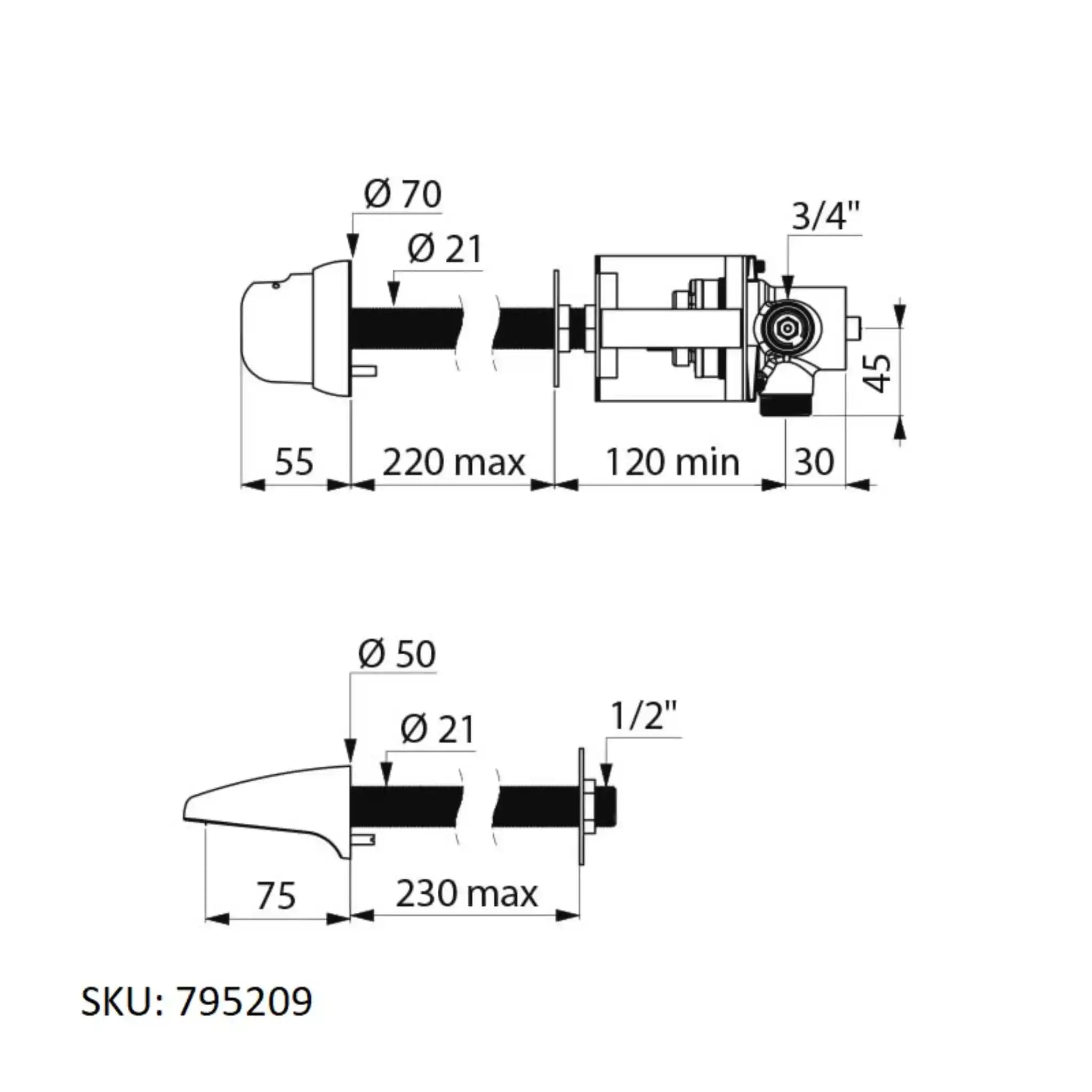

795209 Standard Back Nut

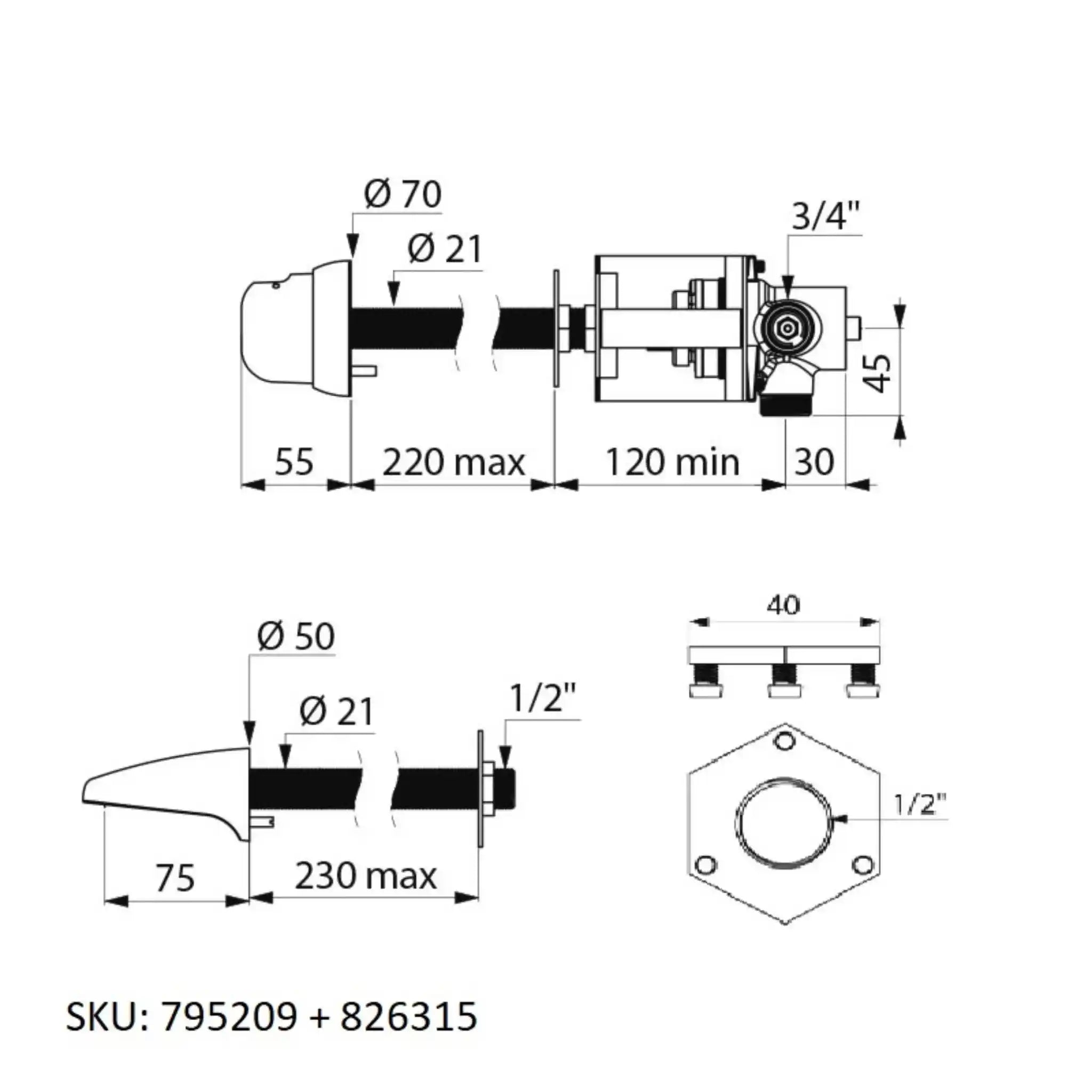

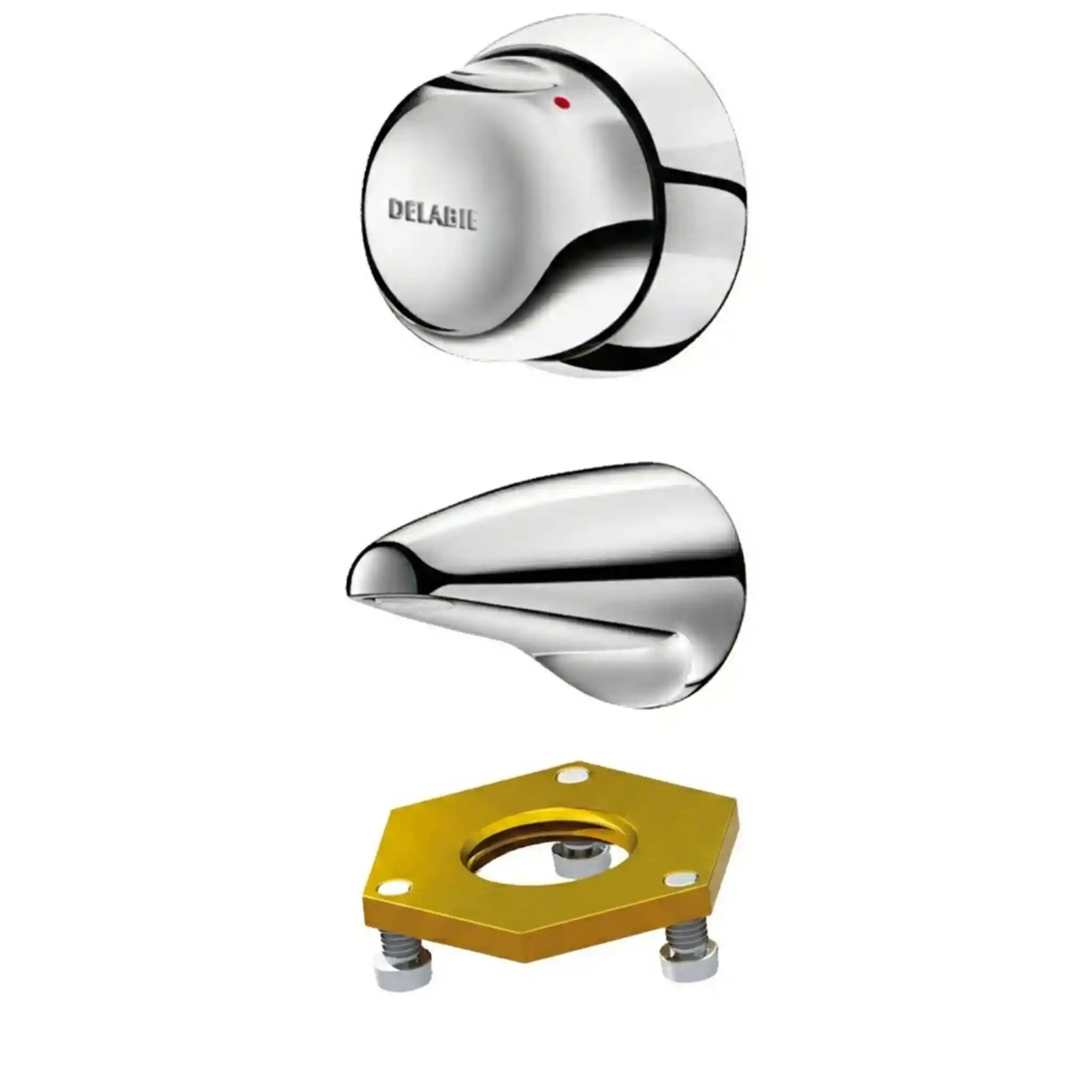

795209 + 826315 Reinforced Back Nut With Screws
