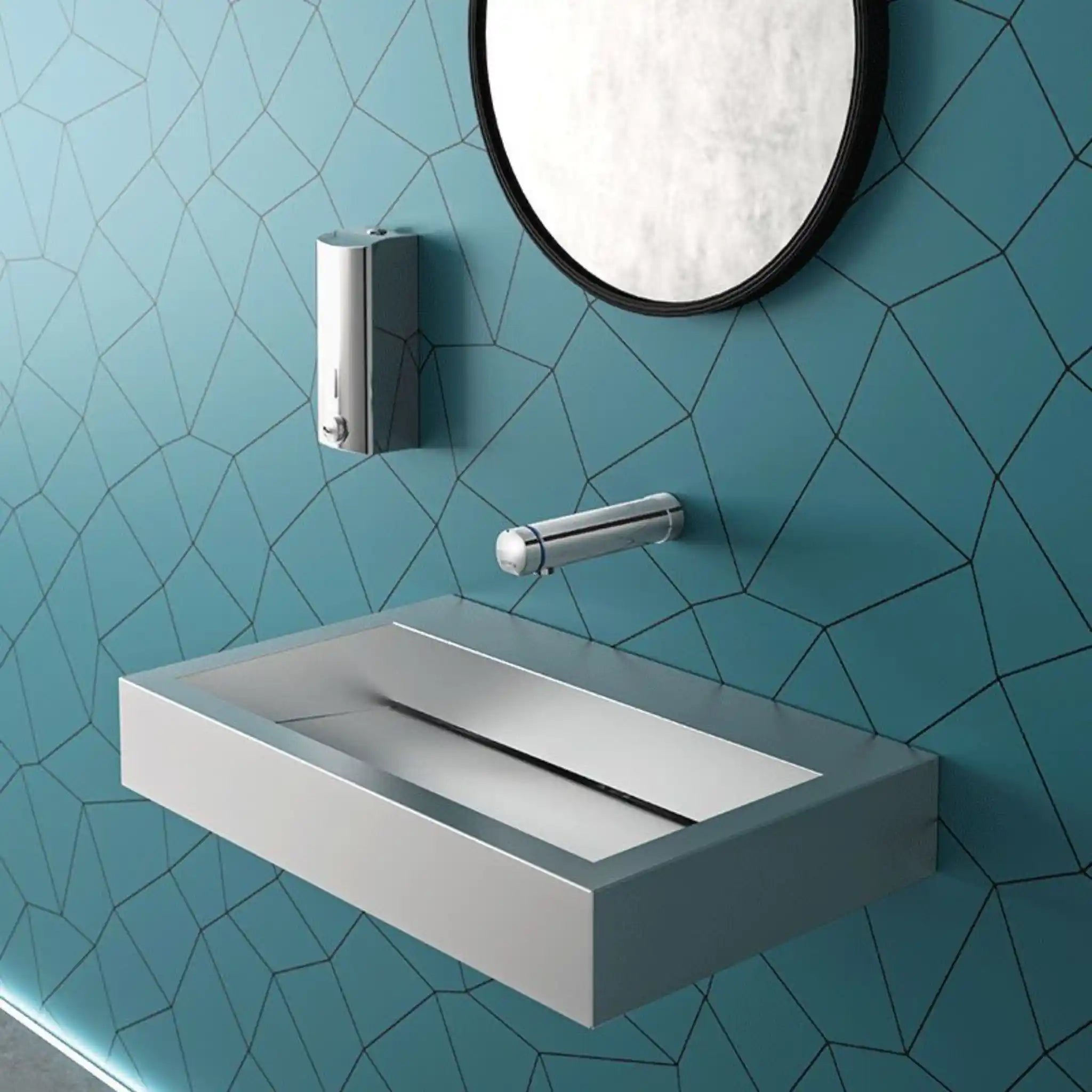

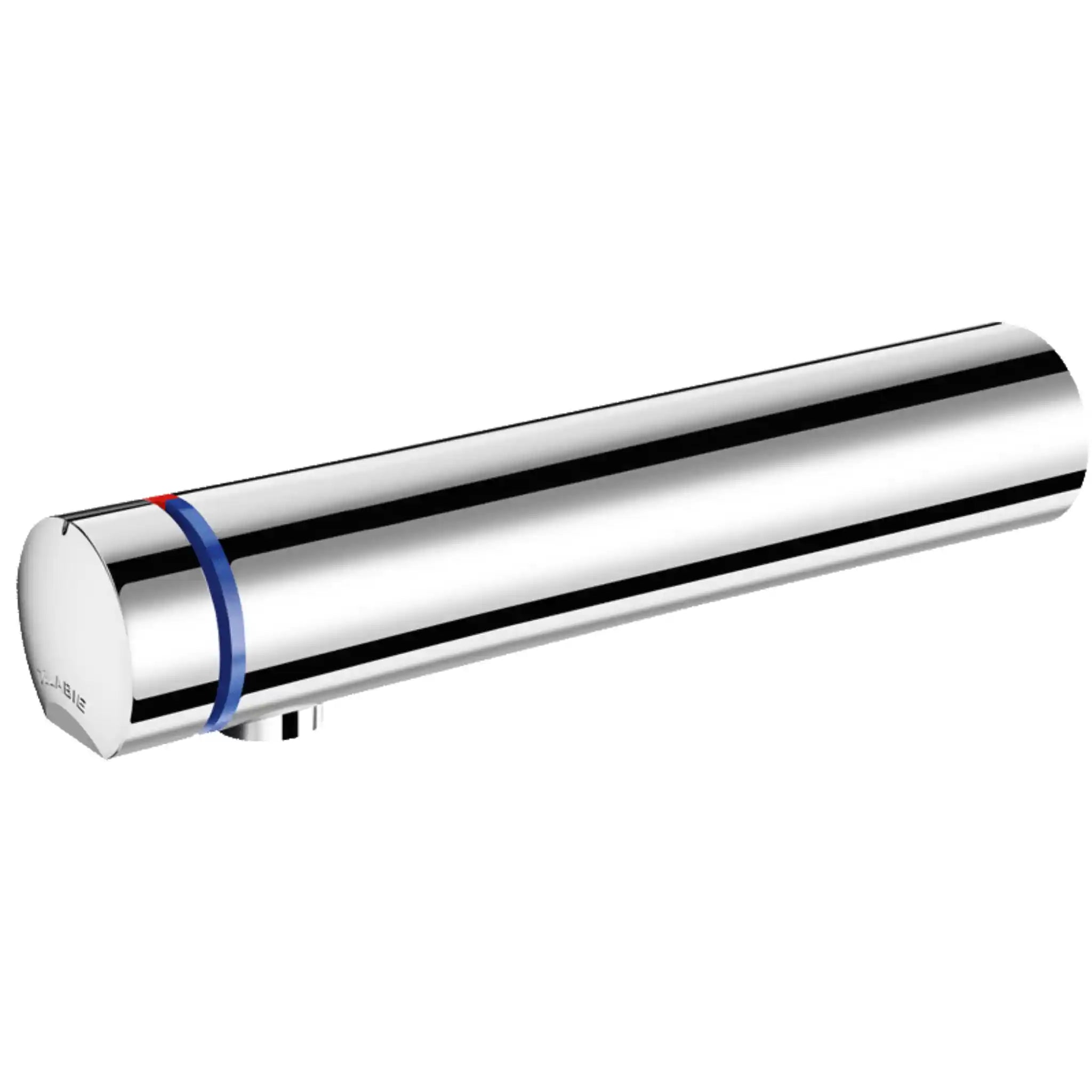

Tempomix 3 Wall Mounted Tap

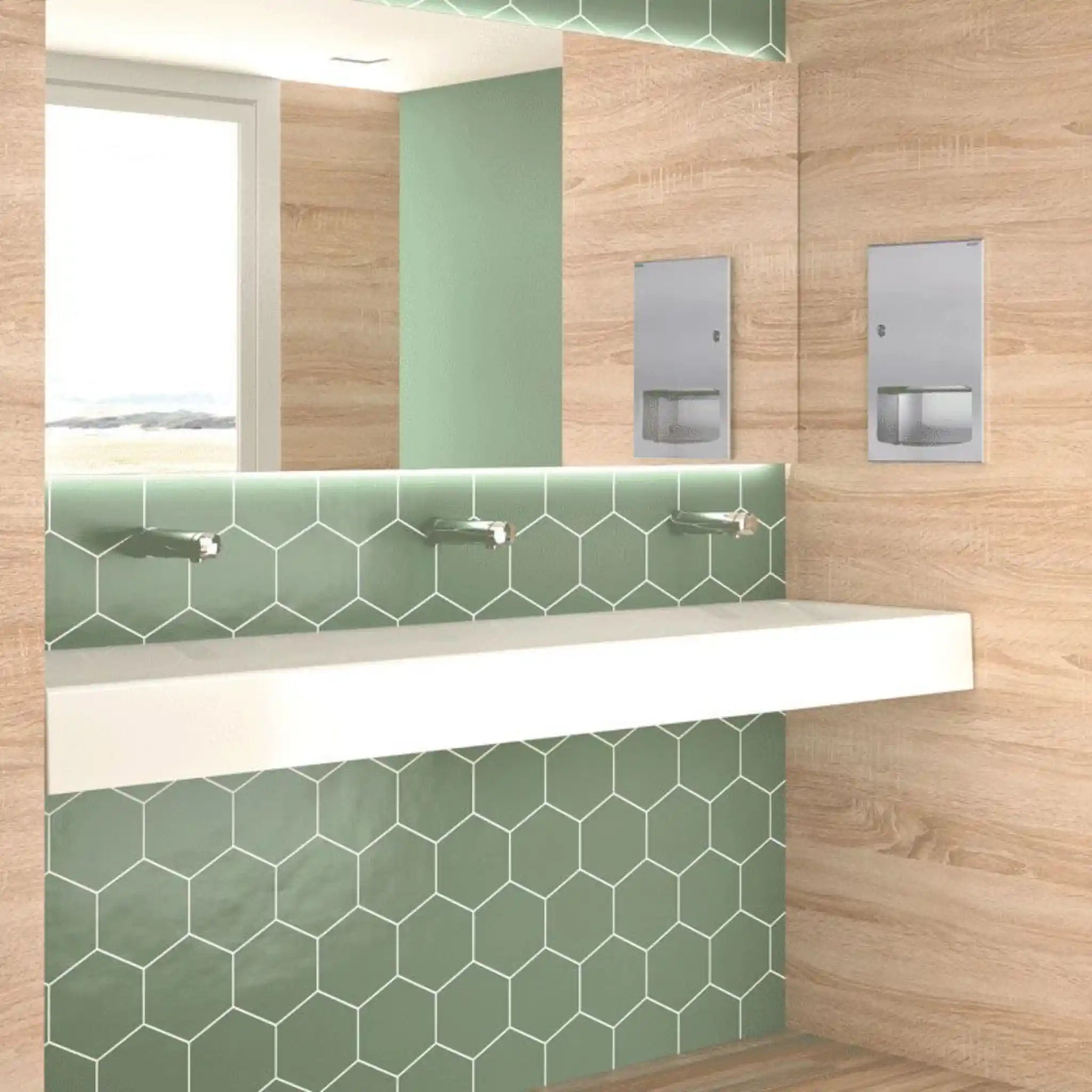

The Tempomix 3 is a wall mounted single control time flow basin mixer designed for public and commercial washrooms. A single push of the soft touch button opens the valve, delivering mixed water at a controlled flow rate before the valve closes automatically without further user input.
The mixer requires separate hot and cold supply connections and delivers water at 3 lpm. It carries ACS certification and is backed by a 30 year warranty.
Product Video
Key Features
- Time flow operation: A single push opens the valve for a pre set timed duration before it closes automatically, eliminating any need for a second user action to stop the flow.
- Soft touch button: The push button requires light pressure to activate, making it suitable for high use public washroom environments.
- Solid brass body: The mixer body is constructed from solid brass, providing durability in demanding commercial installations.
- Controlled flow rate: Water is delivered at 3 lpm, with Delabie stating up to 85% water savings compared with a conventional basin tap.
- ACS certified: Holds ACS certification confirming suitability for contact with drinking water.
- 30 year warranty: Covered by a 30 year manufacturer warranty.
Tempomix 3 Wall Mounted Tap Specifications
| Technology | Time flow |
|---|---|
| Flow rate | 3 lpm |
| Connector | M½" / F3/8" |
| Spout length | 110mm / 190mm |
| Warranty | 30 Year |
Tempomix 3 Wall Mounted Tap Manuals & Downloads
Frequently Asked Questions
How does the time flow mechanism work?
Pressing the push button opens the internal valve, which remains open for a factory pre set duration before closing automatically. The flow stops without any second action from the user.
What is the difference between the wall mounted and cross wall installation methods?

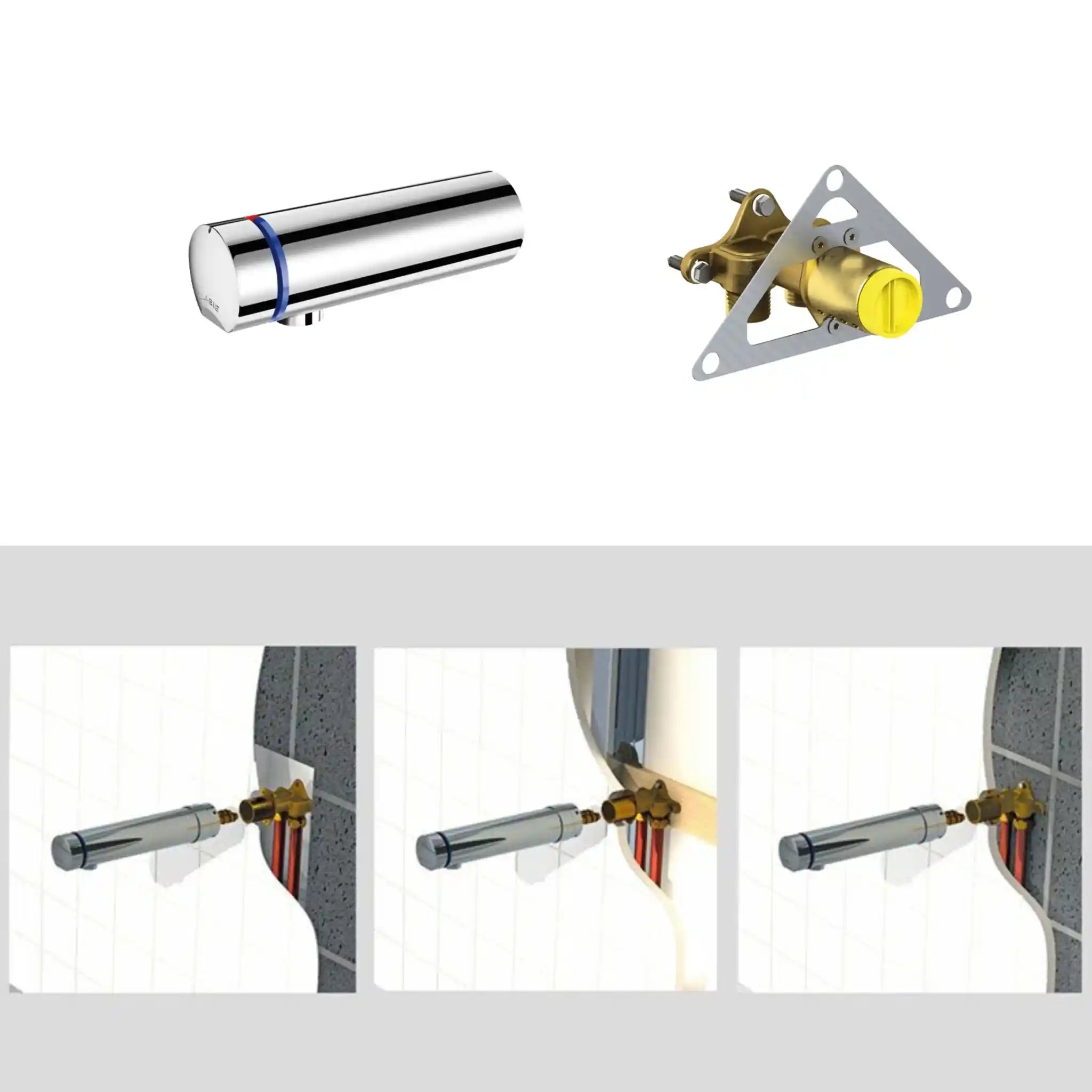

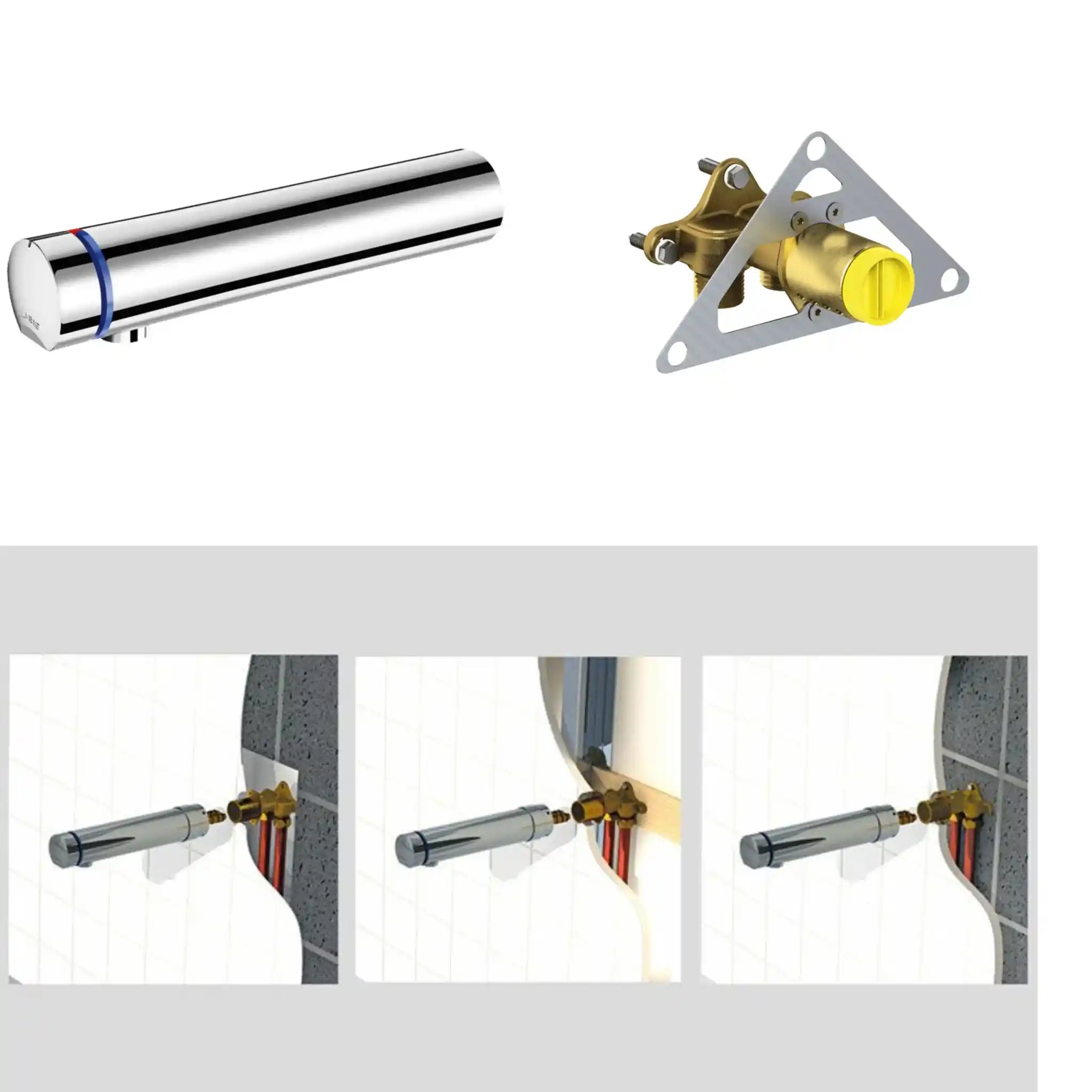

The wall mounted (recessed inlet) variants connect via recessed inlets concealed within the wall. The cross wall variants pass through the partition and include integral stopcocks, making them self contained for a single product installation.
Available Variants
| SKU | Installation | Spout Length | Connector |
|---|---|---|---|

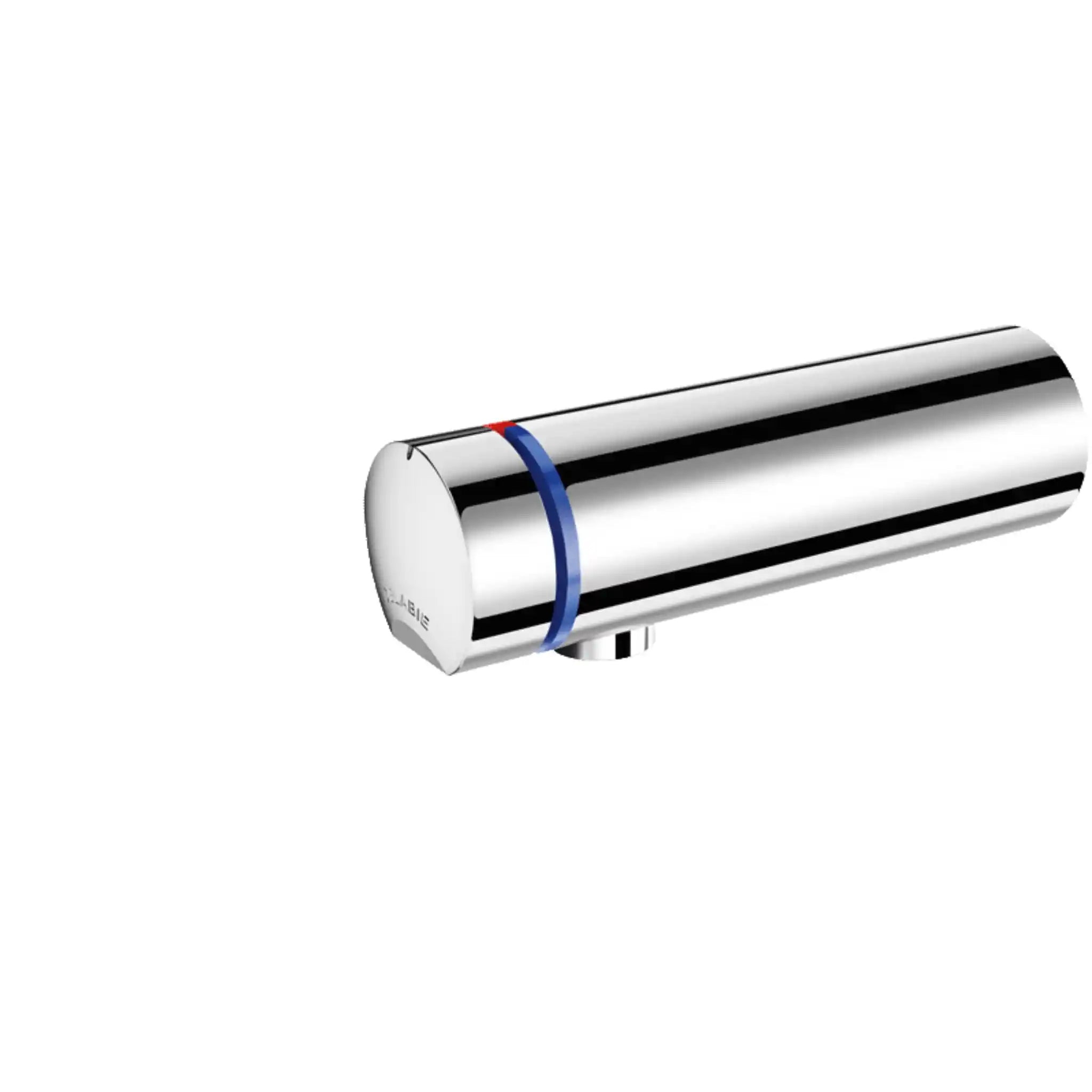

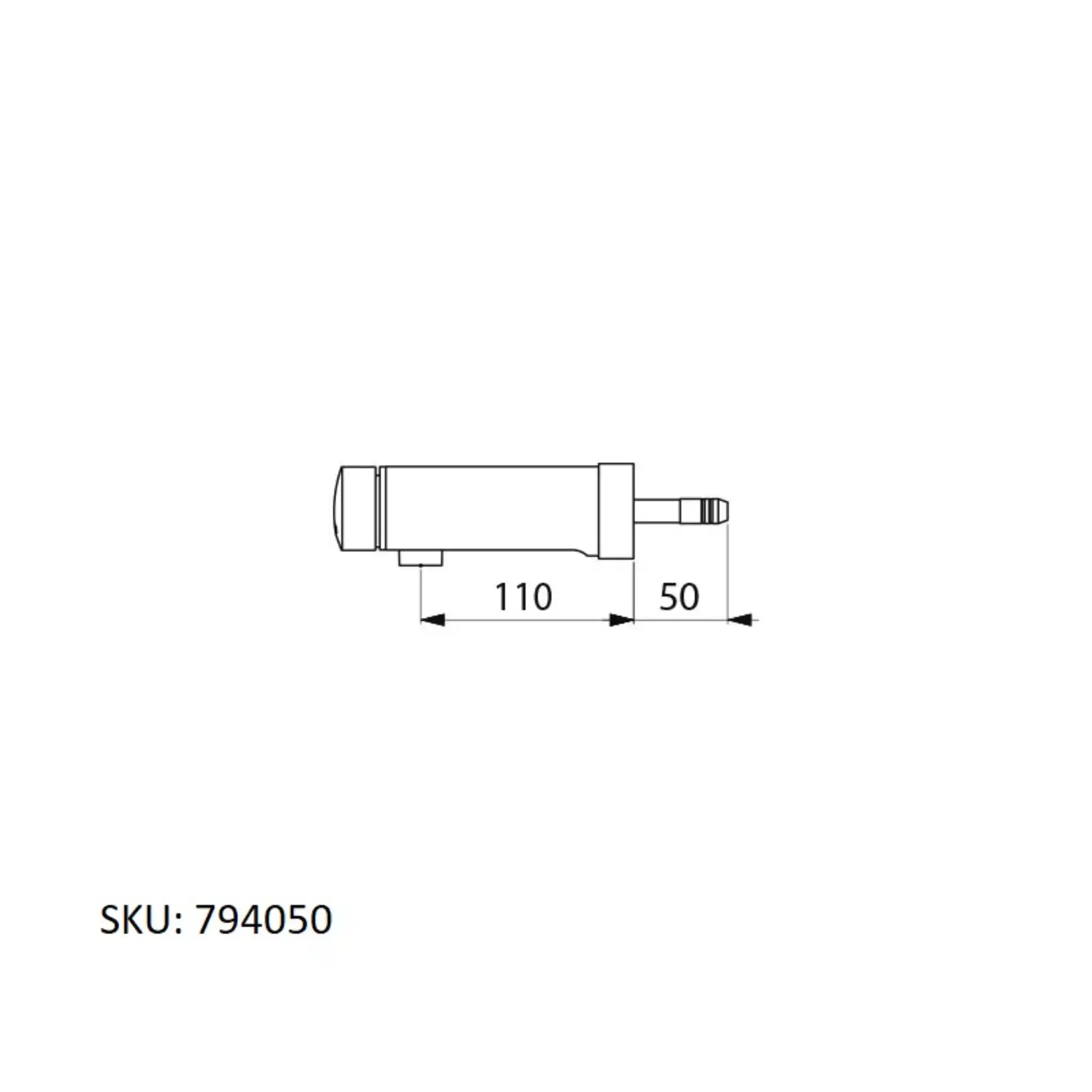

| 794050 | Wall mounted, recessed inlets (Kit 2/2) | 110mm | M½" |

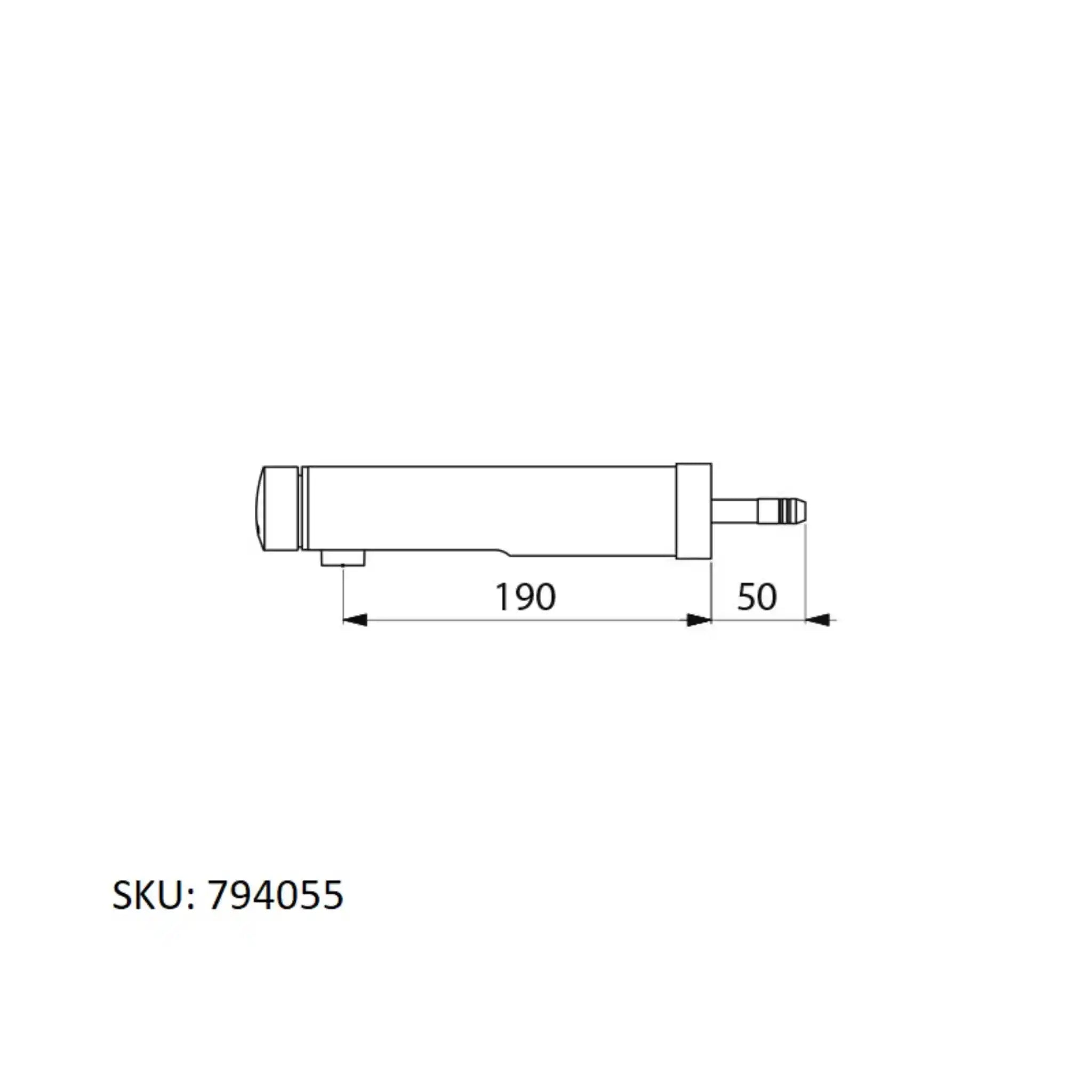

| 794055 | Wall mounted, recessed inlets (Kit 2/2) | 190mm | M½" |

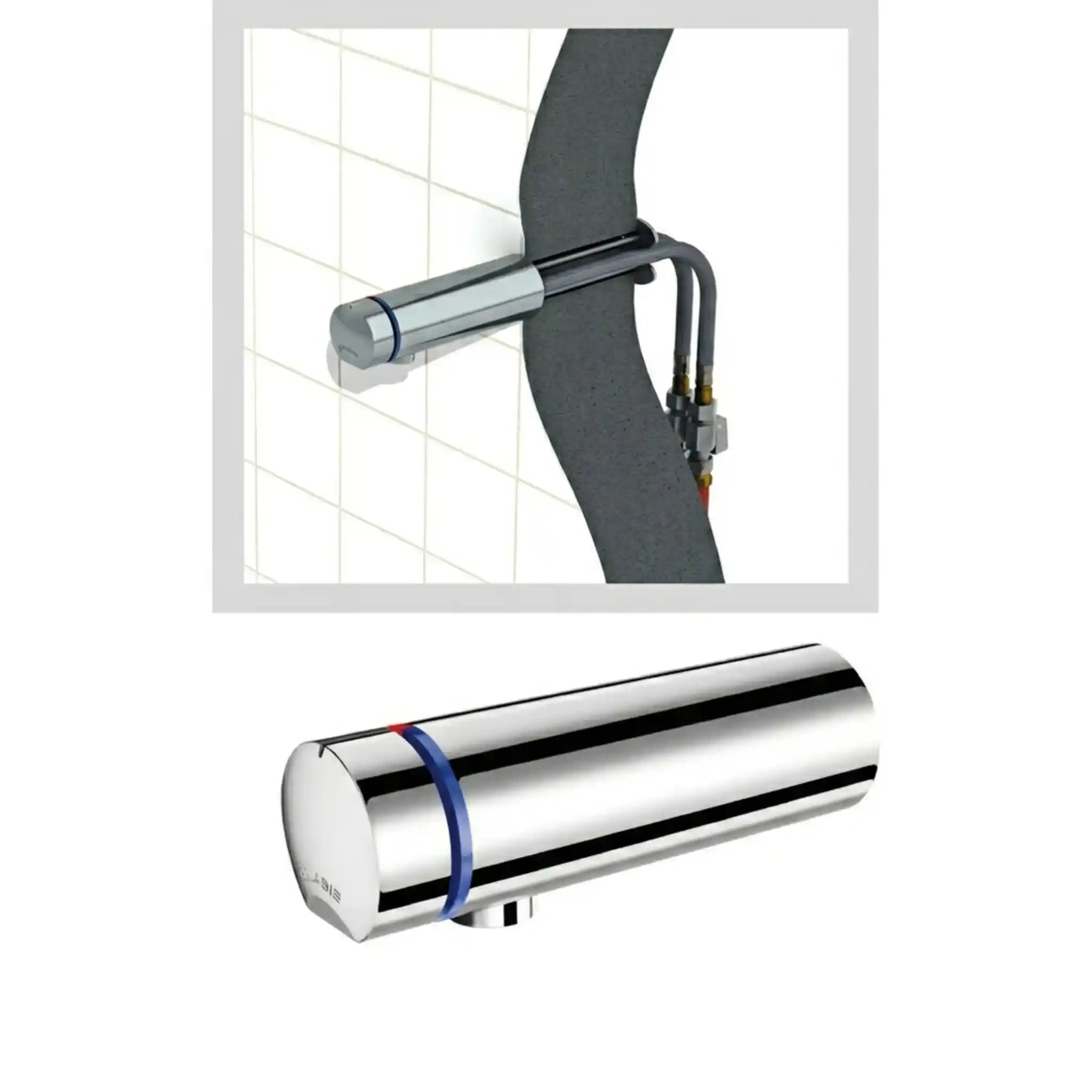

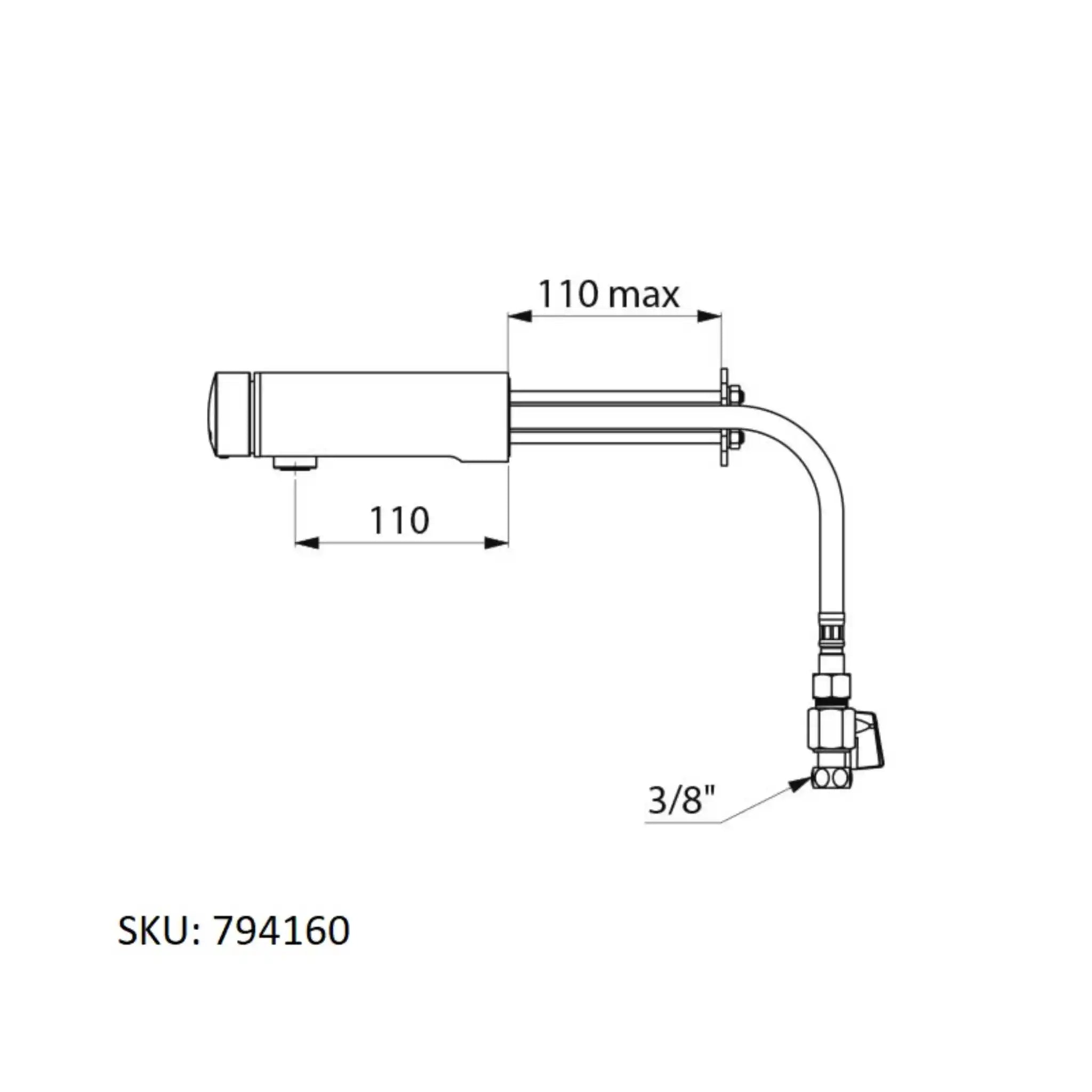

| 794160 | Cross wall | 110mm | F3/8" |

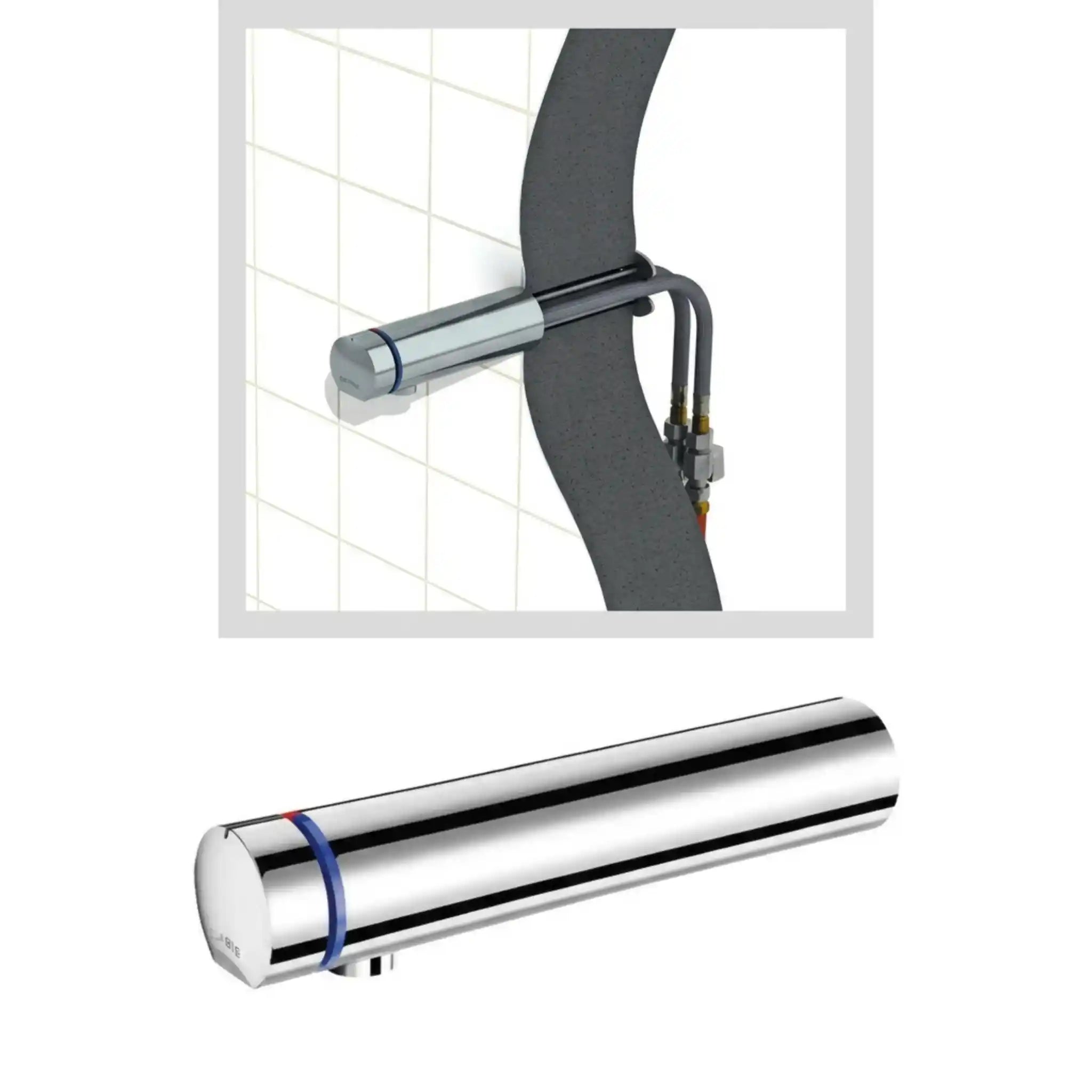

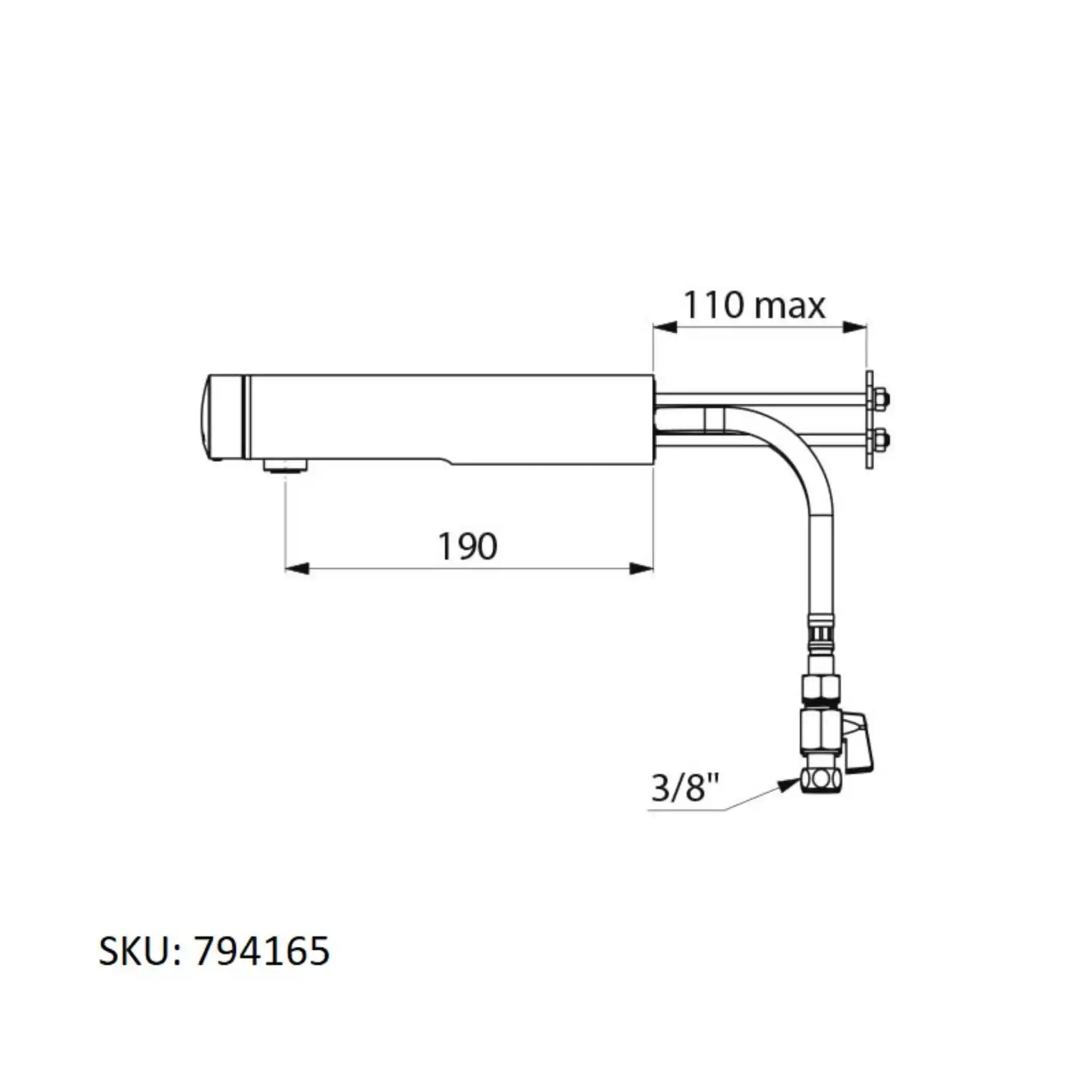

| 794165 | Cross wall | 190mm | F3/8" |
