Tempomatic 4 Mix Tap

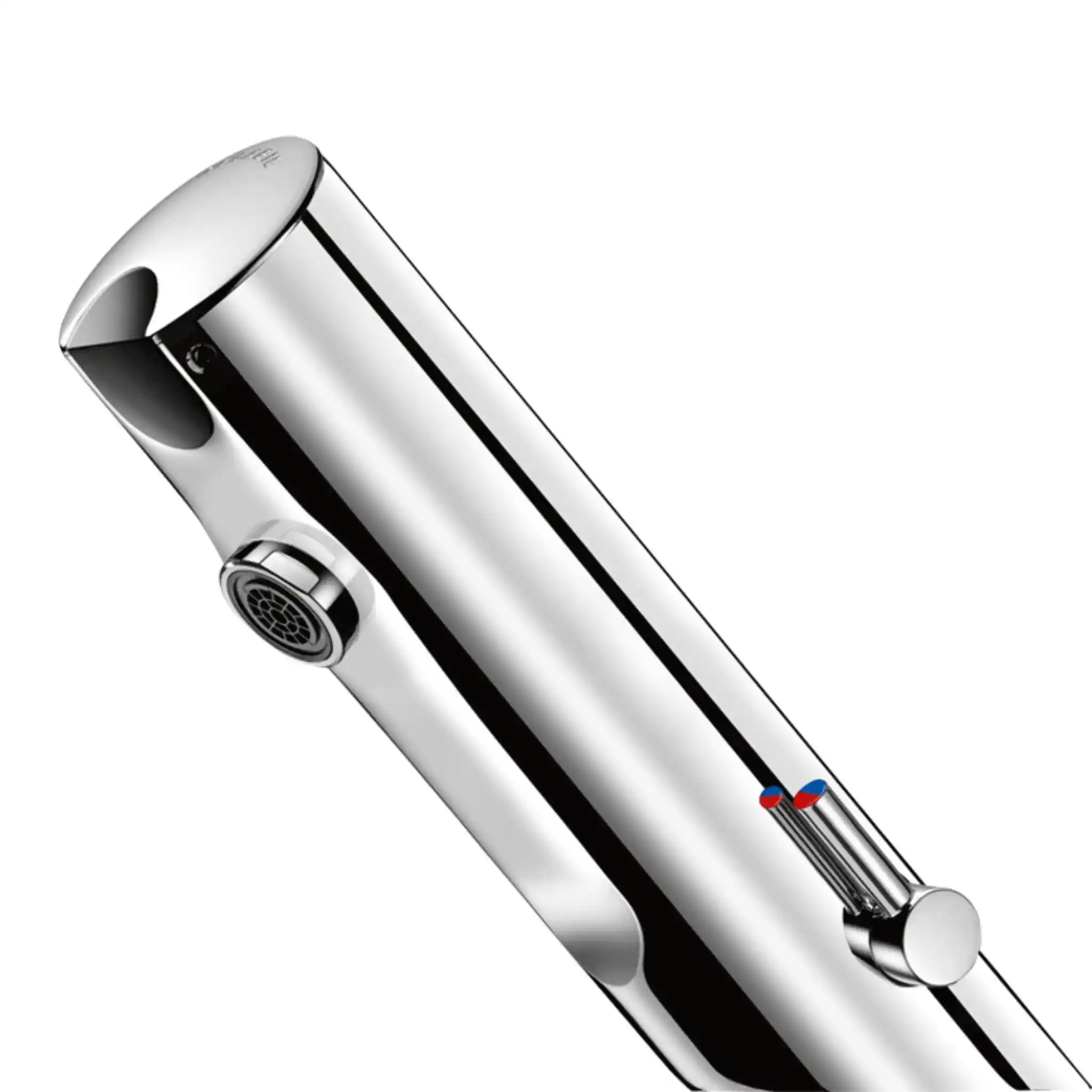

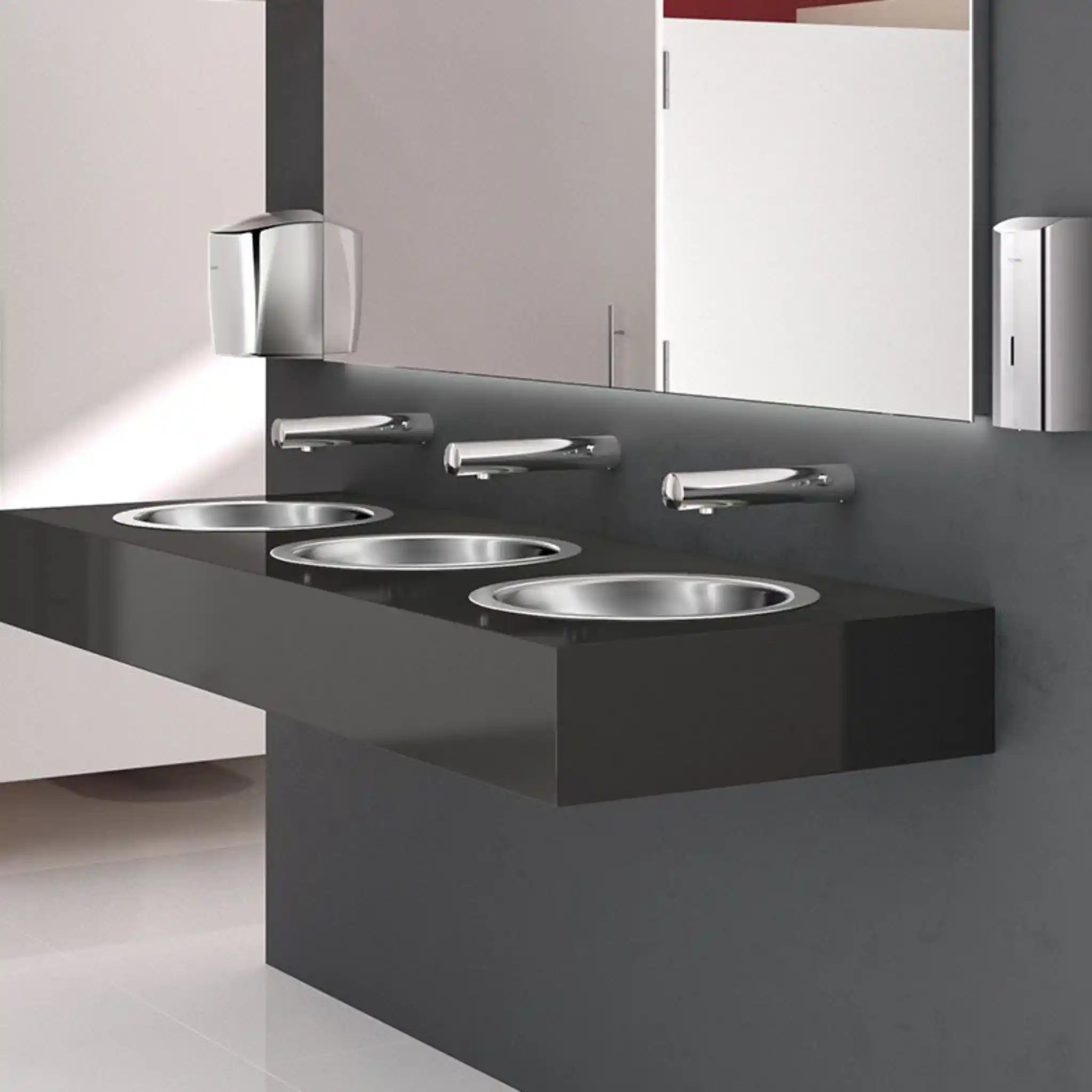

The Delabie TEMPOMATIC MIX 4 is a sensor operated electronic basin mixer designed for commercial washroom installations. It is available in deck mounted, wall mounted, and cross wall configurations, with both mains and battery power options across all three.

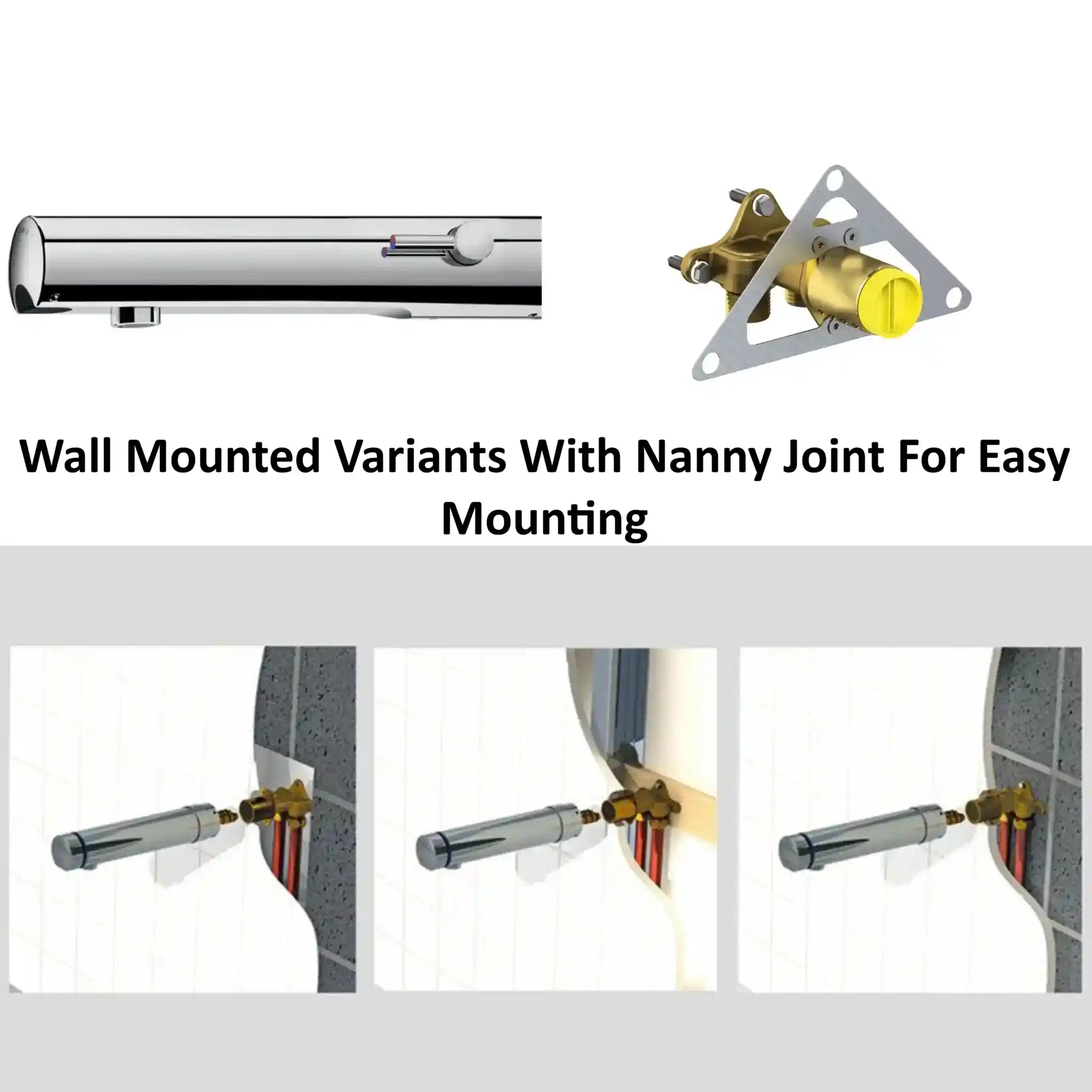

Deck mounted variants use M½" Ø 15mm connections with stopcocks included. Wall mounted and cross wall variants use F3/8" connections and are available with spout lengths of 160mm, 190mm, or 220mm depending on the installation. Flow rate is 3 lpm across all variants. CE and WRAS approved variants are available. Backed by Delabie's 30 year warranty.
Product Video
Key Features
- Sensor operated: No manual contact required with the tap body, eliminating a source of cross contamination in commercial washrooms.
- Integrated solenoid valve: The solenoid valve is housed within the mixer body, reducing external components and available as an individually documented spare part.
- Fixed 3 lpm flow rate: Delivered via an integrated flow straightener on all variants with no field adjustment required.
- Mains or battery power: Both power options are available across all installation types, deck mounted, wall mounted, and cross wall, allowing power choice without compromising installation position.
- Three installation configurations: Deck mounted, wall mounted, and cross wall variants available with spout lengths from 105mm to 220mm to suit different basin and installation setups.
- 30 year warranty: Applies across the range.
Tempomatic Mix 4 Specifications
| Technology | Electronic |
|---|---|
| Flow rate | 3 lpm |
| Power supply | 230/6V mains or 6V battery (varies by variant) |
| Installation | Deck mounted, wall mounted, cross wall |
| Warranty | 30 year |
Tempomatic Mix 4 Manuals & Downloads
Frequently Asked Questions
What power supply options are available?
Deck mounted variants are available with 230/6V mains supply (recessed unit), mains supply via UK plug, or 6V integrated batteries. Wall mounted and cross wall variants are also available in both mains and battery configurations.
What installation configurations are available?

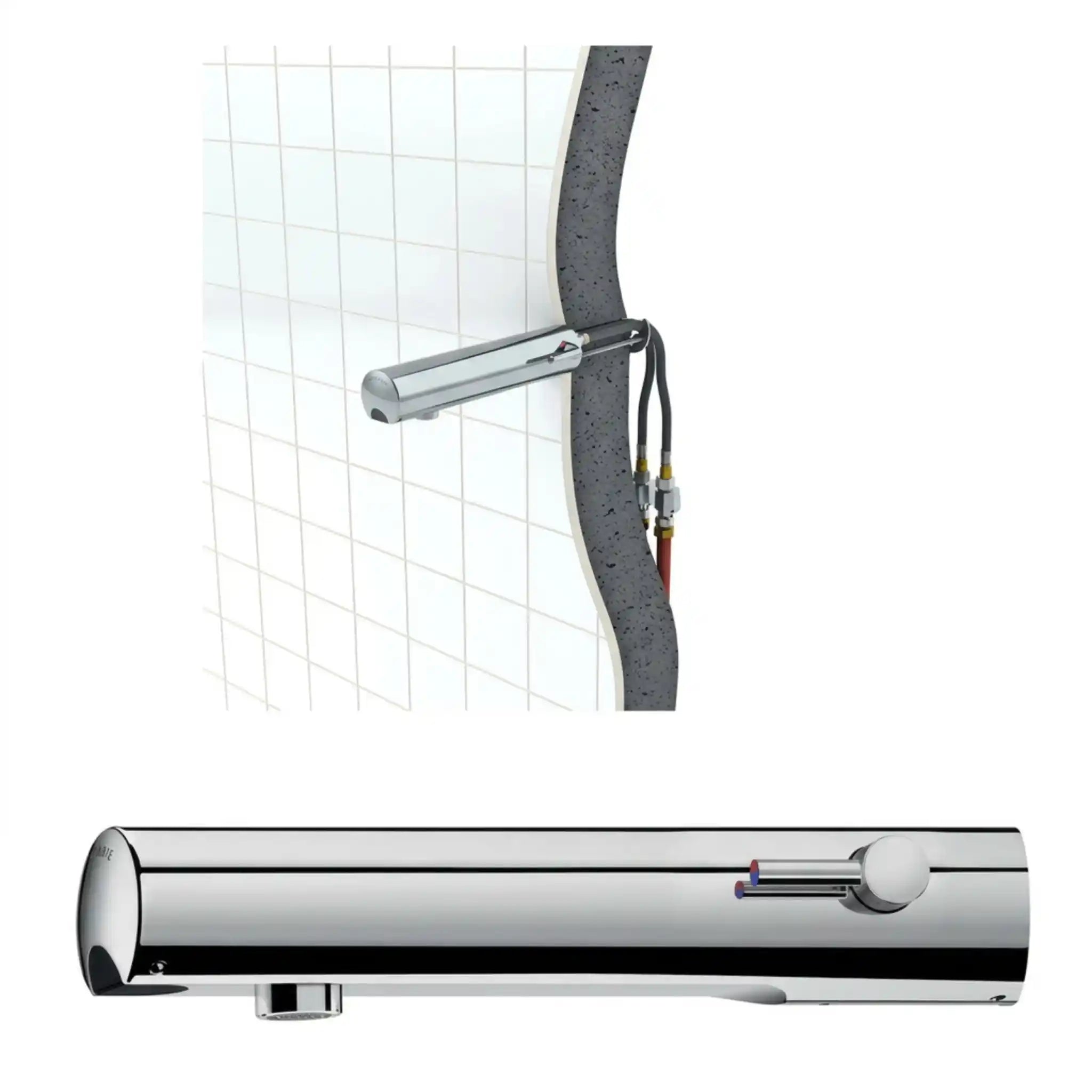

The TEMPOMATIC MIX 4 is available as deck mounted (105mm spout length), wall mounted (160mm or 220mm spout length), and cross wall (190mm spout length).
Are spare parts available?

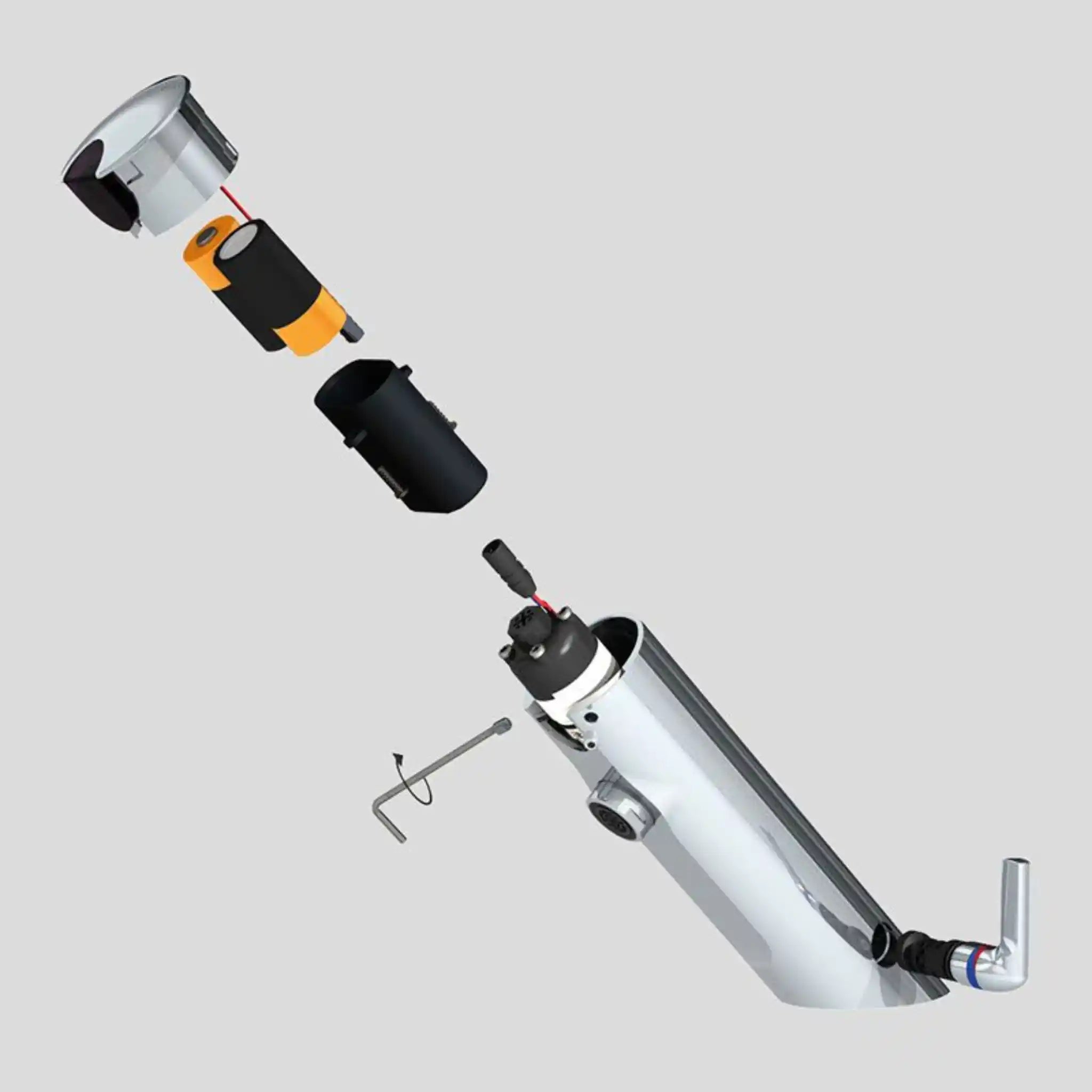

Yes. Documented spare parts include the electronic control unit, solenoid valve, flow straightener, non return valve, filter with mesh screen, and in line STOP union.
Available Variants
| SKU | Power | Installation | Spout Length |
|---|---|---|---|

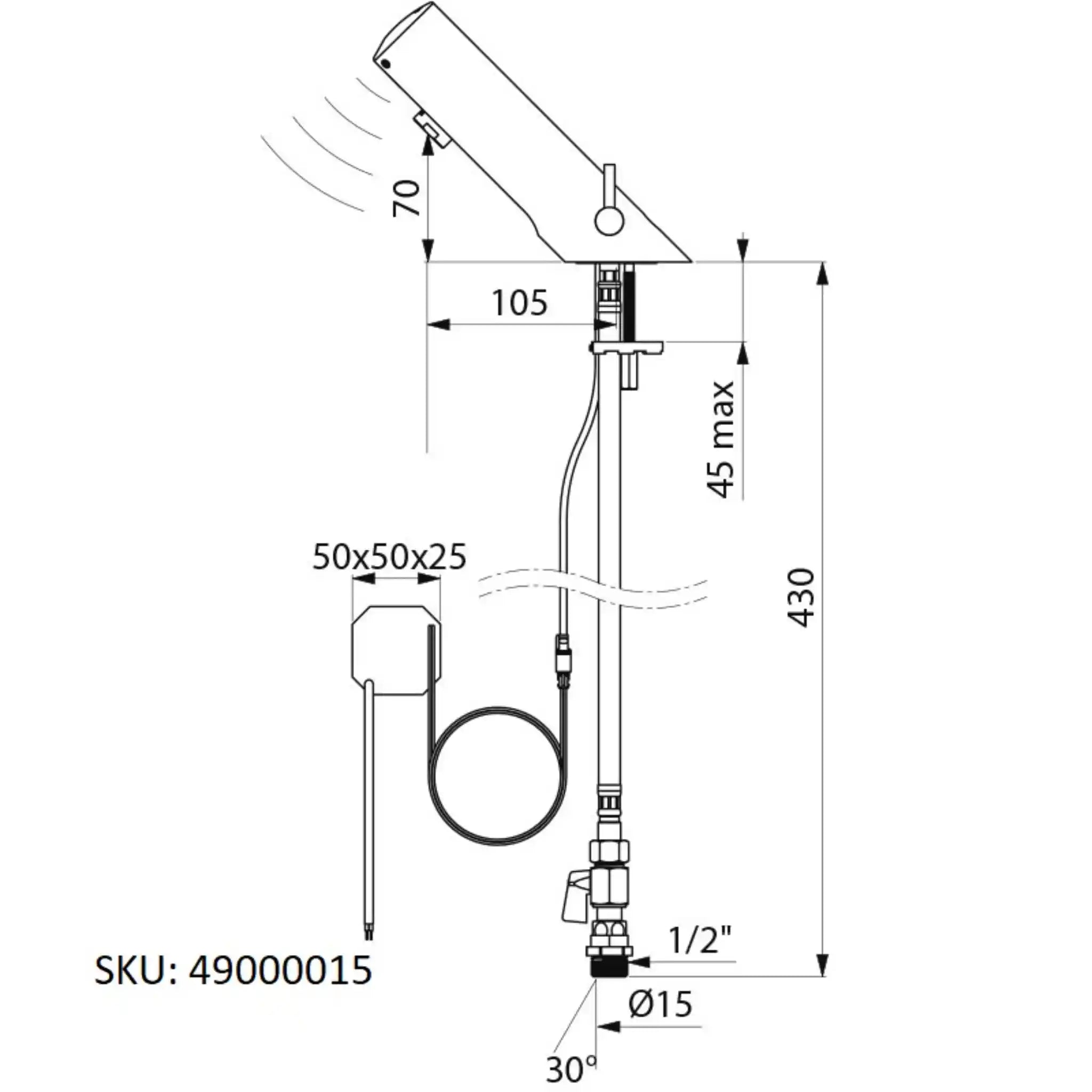

| 49000015 | Mains | Deck mounted | Standard |

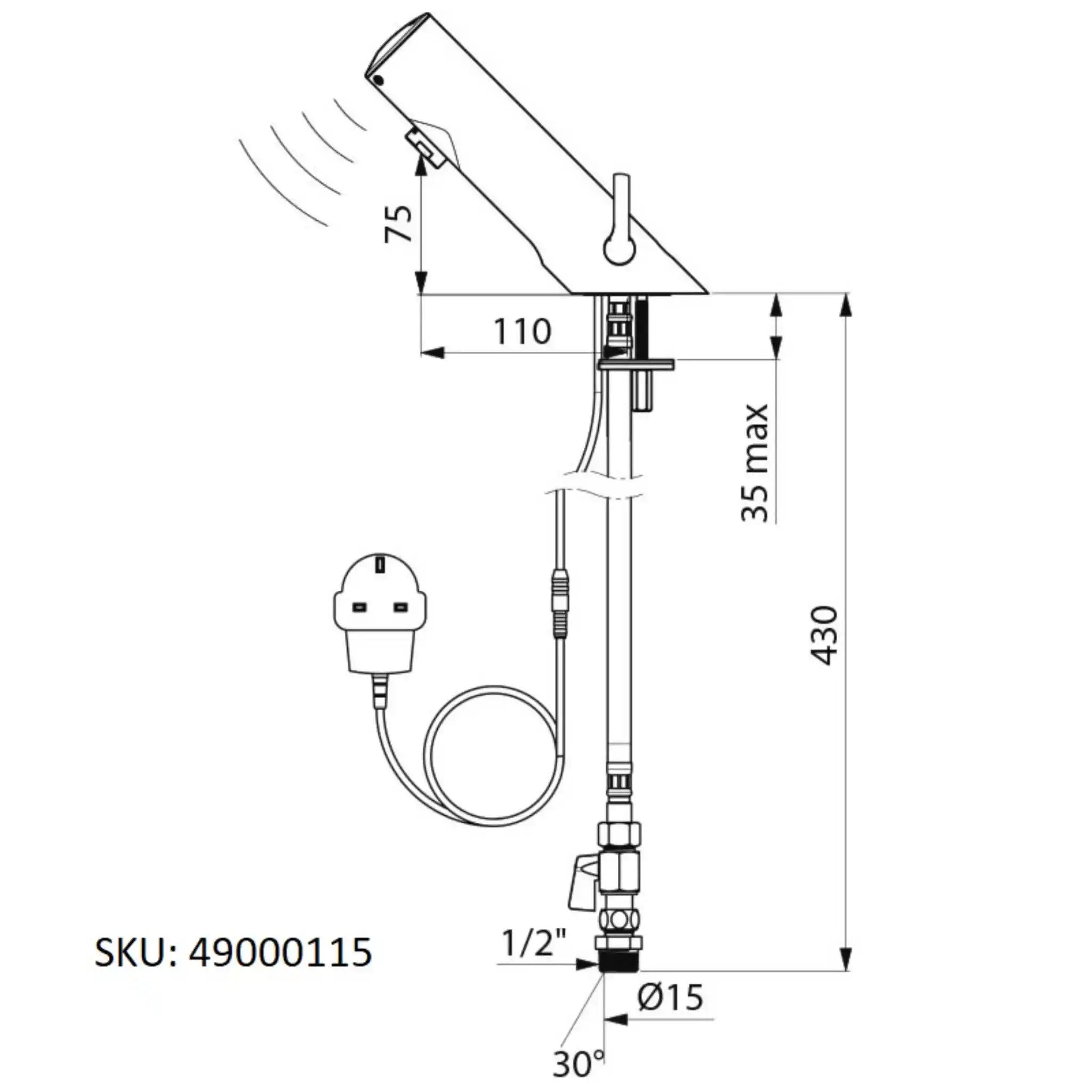

| 49000115 | Mains plug in | Deck mounted | Standard |

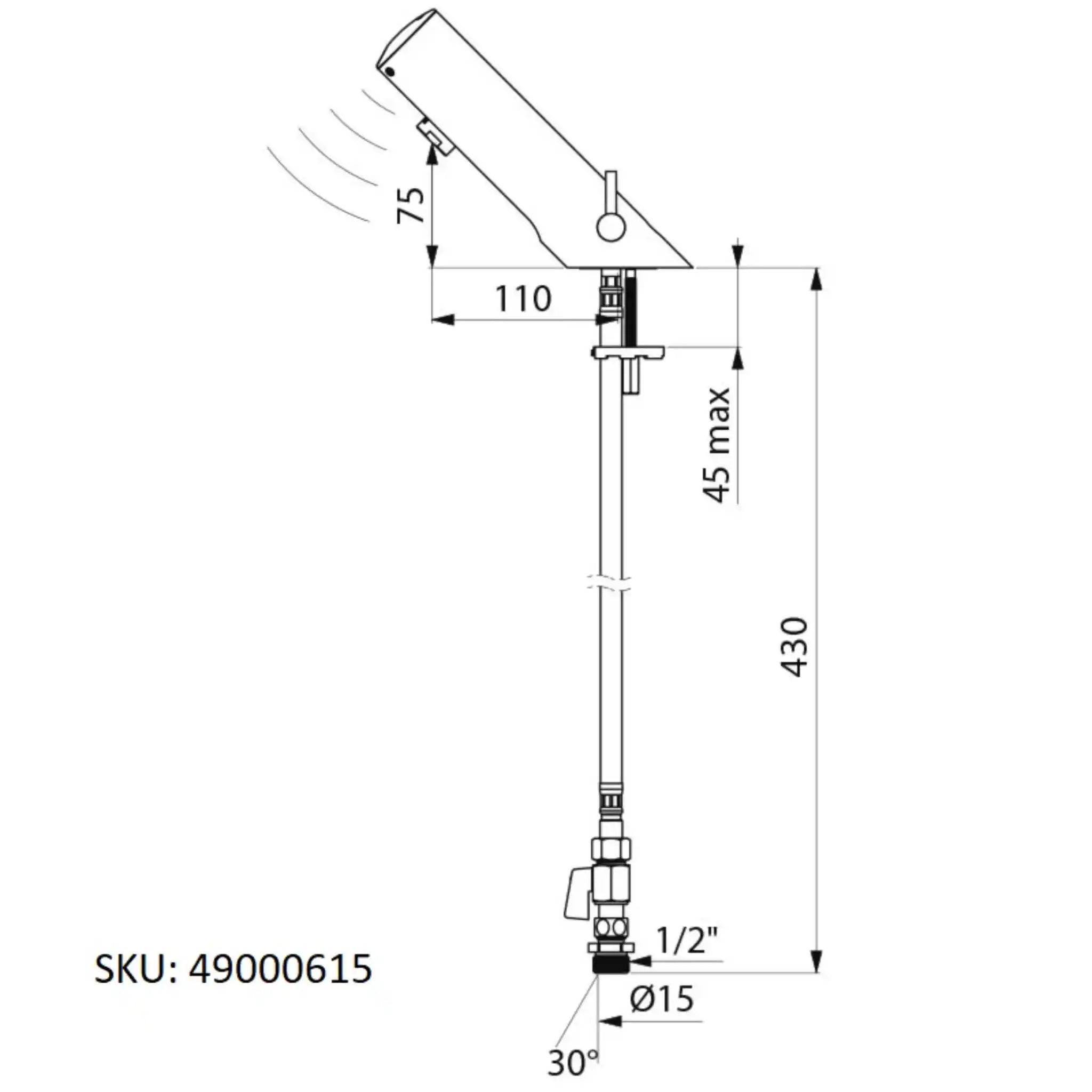

| 49000615 | Battery | Deck mounted | Standard |

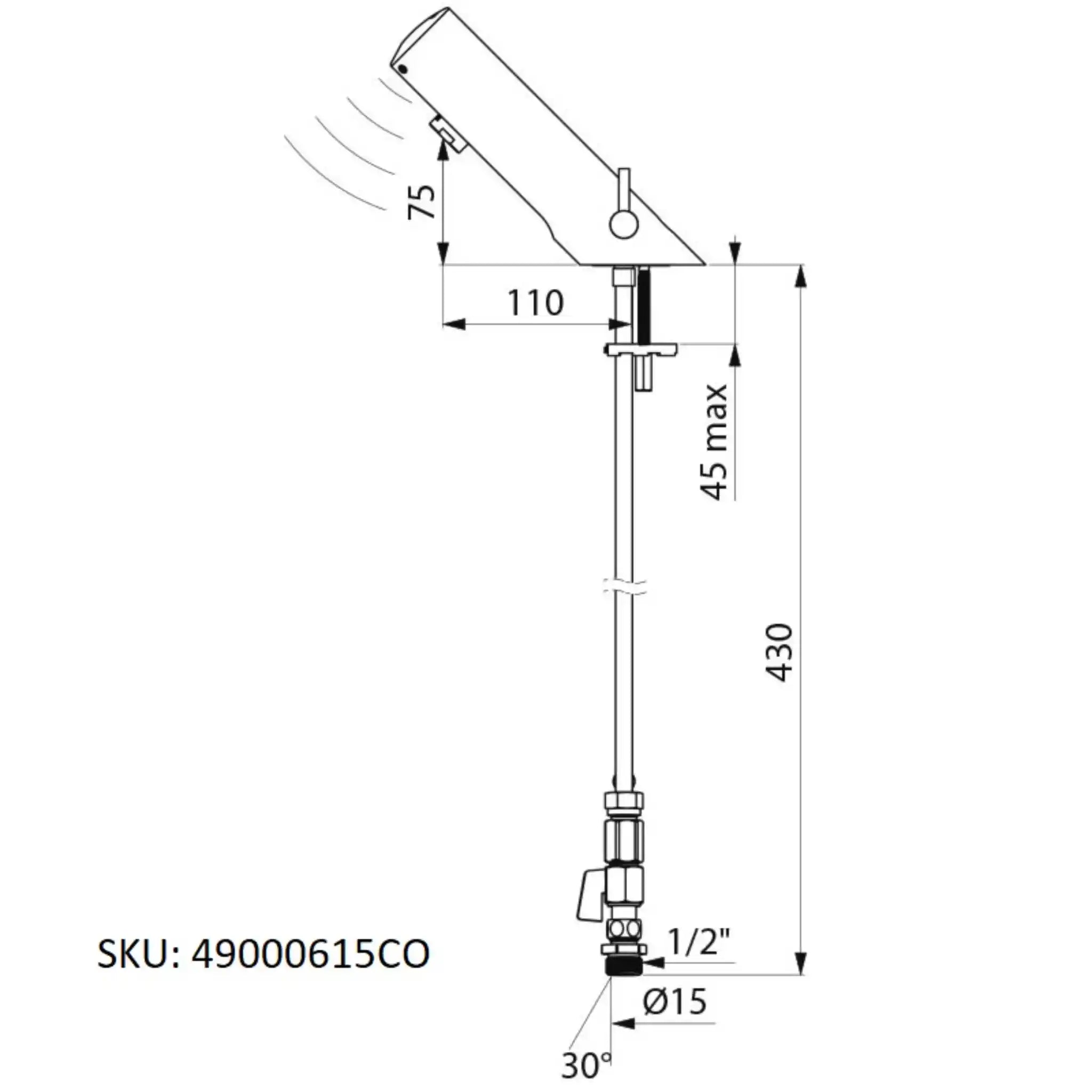

| 49000615CO | Battery (with copper tails) | Deck mounted | Standard |
| 484012+493400 | Mains | Wall mounted | 160mm |
| 484012+493500 | Mains | Wall mounted | 220mm |

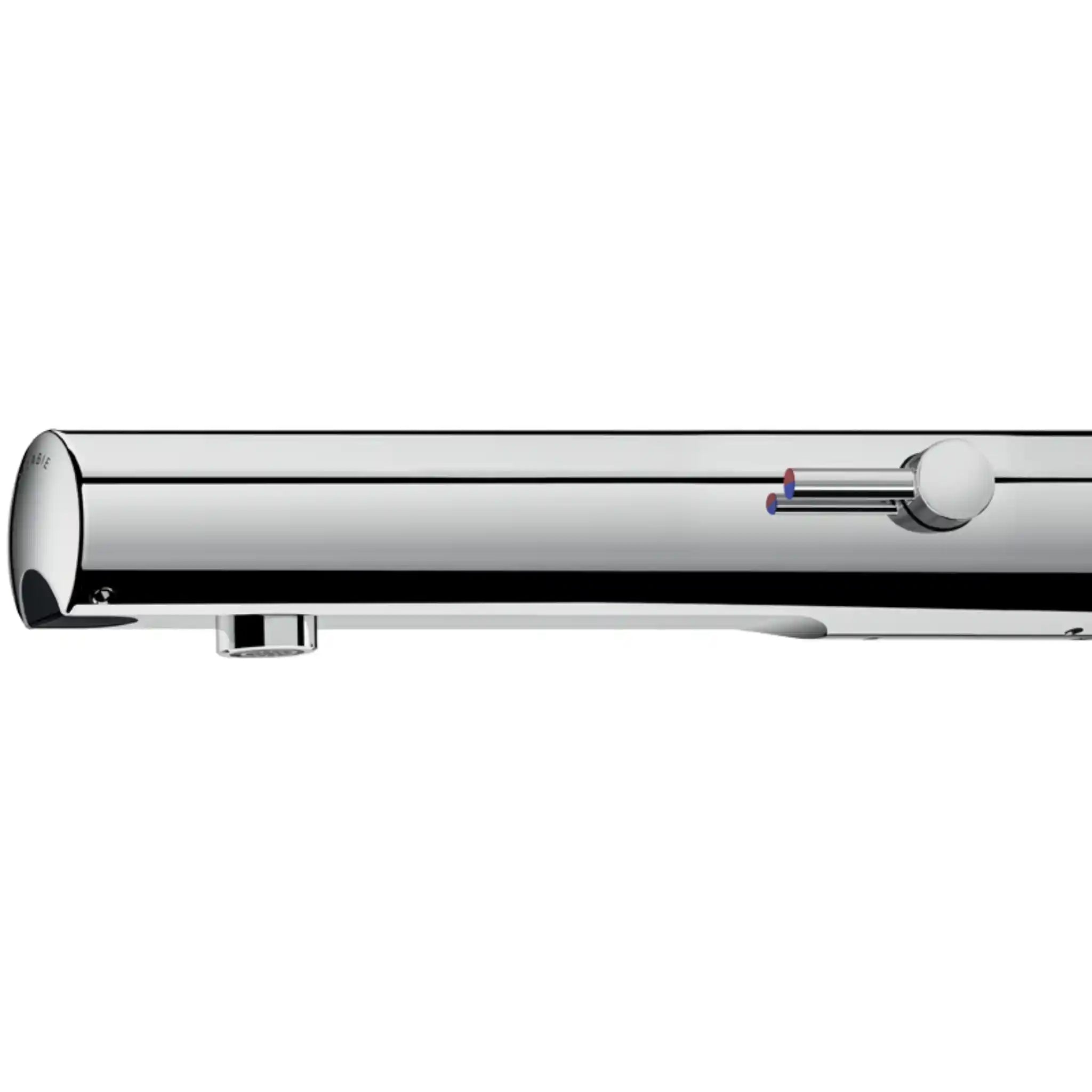

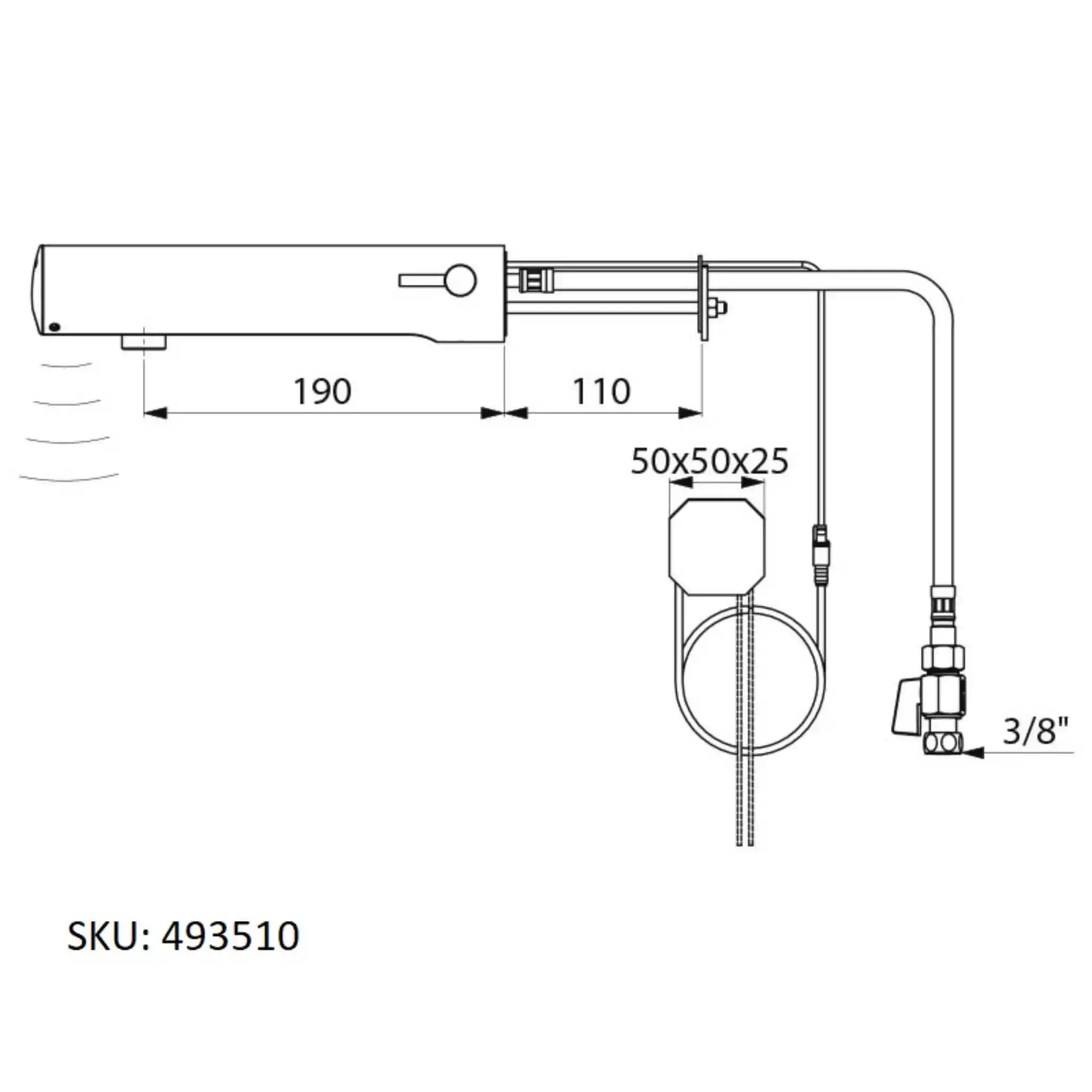

| 493510 | Mains | Cross wall | 190mm |
| 484612+493406 | Battery | Wall mounted | 160mm |
| 484612+493506 | Battery | Wall mounted | 220mm |

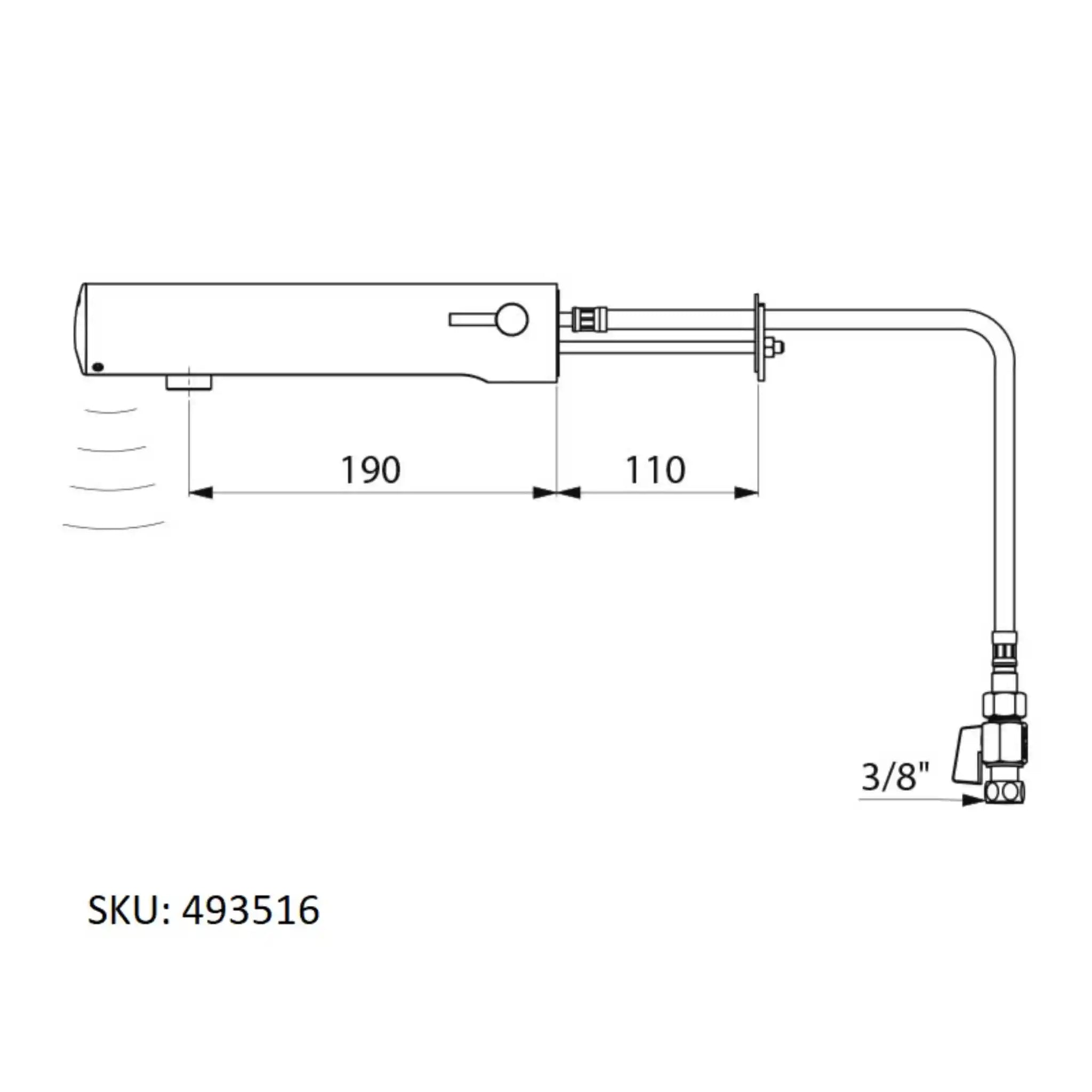

| 493516 | Battery | Cross wall | 190mm |
