Tempomatic 4 Tap

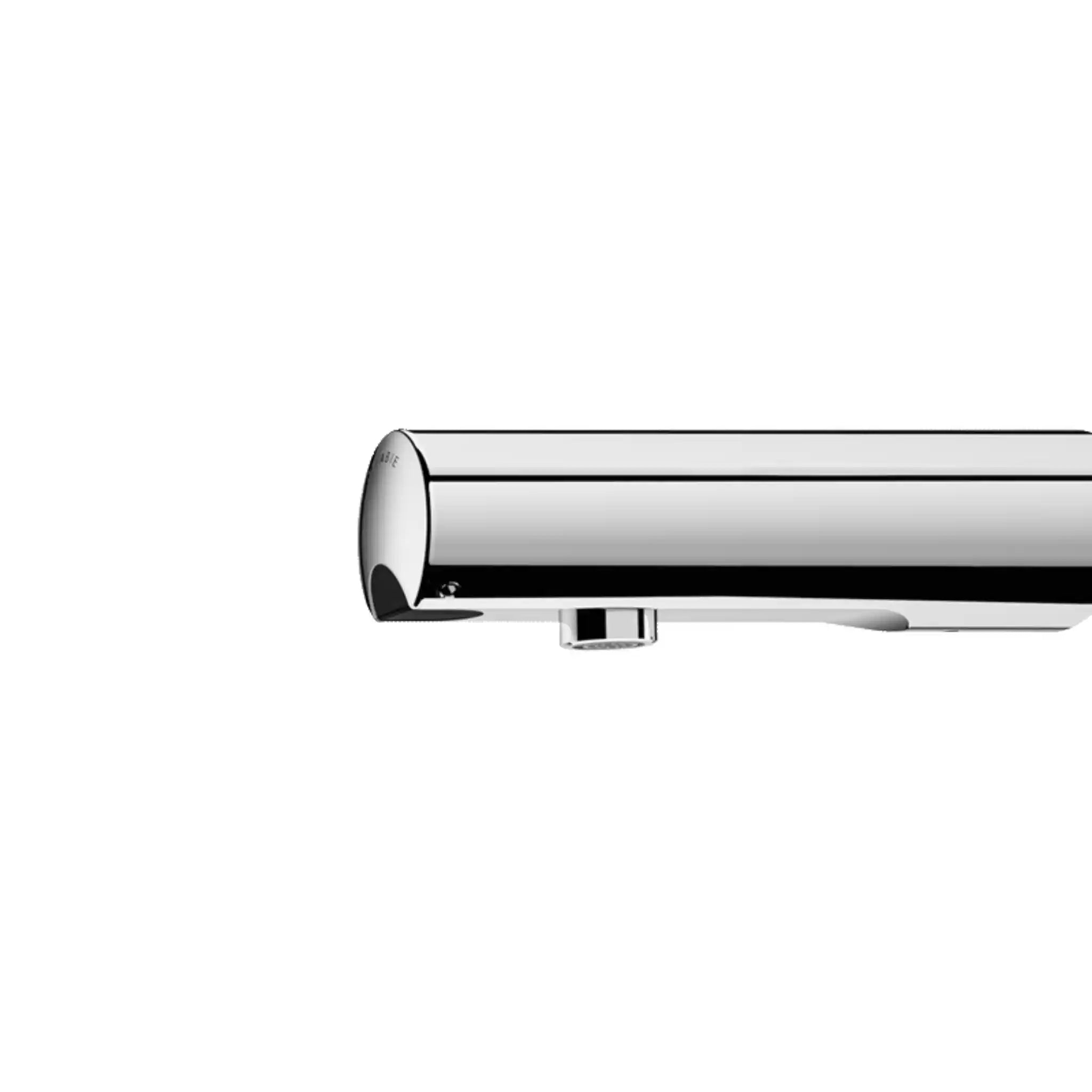

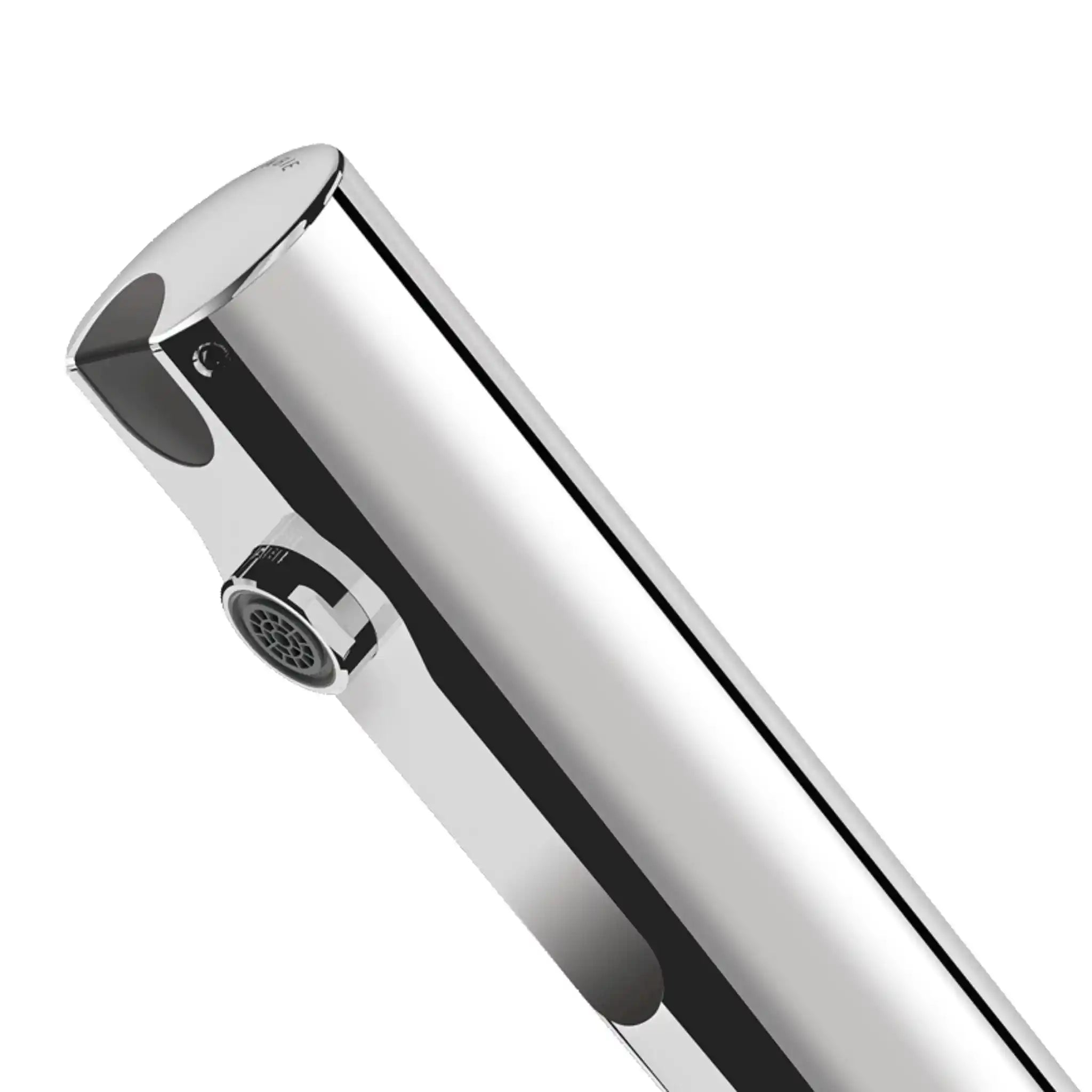

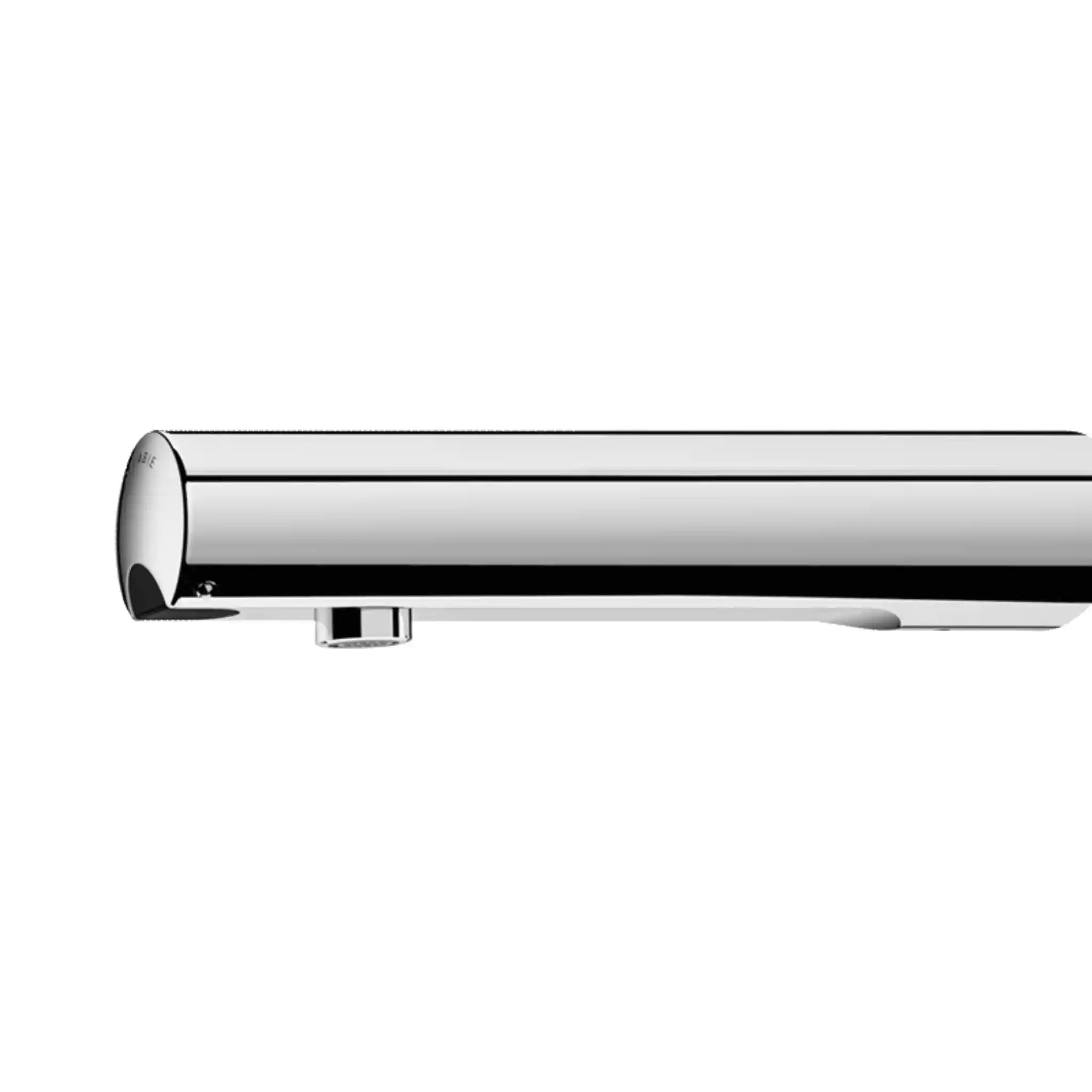

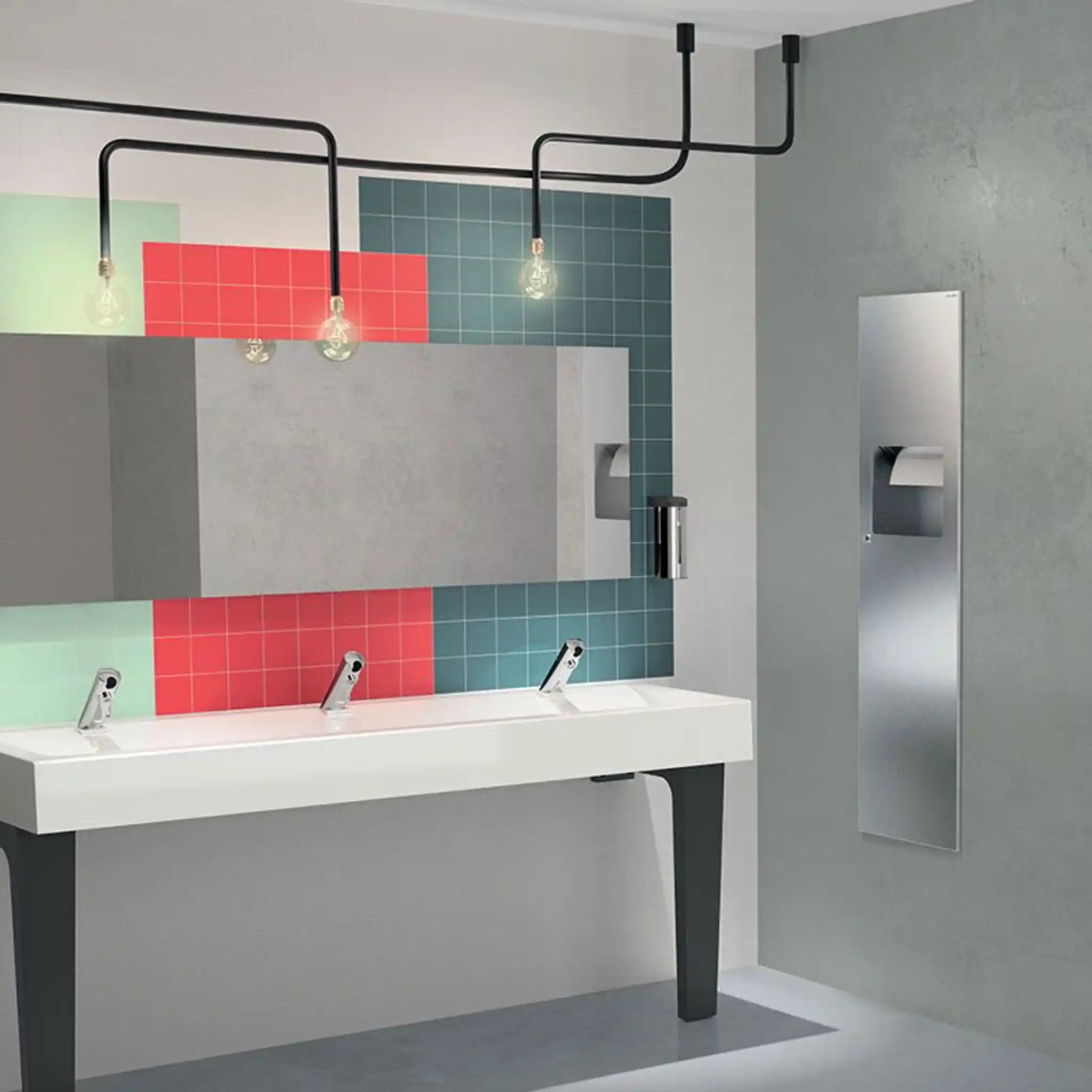

The Delabie TEMPOMATIC 4 is a deck mounted or wall mounted infrared electronic basin tap designed for high traffic commercial washrooms. An integrated infrared sensor detects hand presence and opens the built in solenoid valve automatically, delivering water without any manual contact with the fitting.
The tap is available with either 230/6V recessed mains supply or 6V batteries integrated within the tap body, making it suitable for installations where a mains connection is not accessible. Wall mounted versions include an automatic anti bacterial duty flush to prevent bacterial proliferation in standing water. Flow rate is set at 3 lpm across all variants. All versions carry CE marking and a 30 year warranty, with WRAS approved options available.
Product Video
Key Features
- No manual contact: Infrared electronic detection activates water flow without the user touching the tap, supporting hygiene in high traffic commercial washrooms.
- Integrated solenoid valve: Factory fitted solenoid valve included in all versions; no separate component required.
- Mains or battery power: Available with 230/6V recessed mains supply or 6V integrated batteries, allowing installation where mains access is not possible or practical.
- Anti bacterial duty flush: Includes a automatic periodic flush function to prevent bacterial proliferation in standing water.
- Multiple wall mounted inlet configurations: Wall mounted versions are available with wall mounted recessed inlets, cross wall supply, installation for panels from 1 to 24mm thickness, and a retrofit configuration.
- 3 lpm restricted flow rate: Consistent 3 lpm flow rate across all variants.
- 30 year warranty: All variants carry Delabie's 30 year warranty.
TEMPOMATIC 4 Specifications
| Technology | Electronic |
|---|---|
| Installation | Deck mounted or wall mounted |
| Supply | Mains 230/6V recessed or 6V integrated batteries |
| Flow rate | 3 lpm |
TEMPOMATIC 4 Manuals & Downloads
Frequently Asked Questions
What power supply options are available for the TEMPOMATIC 4?
The TEMPOMATIC 4 is available with 230/6V recessed mains supply or 6V integrated batteries. Battery variants include the batteries within the tap body and do not require a separate power connection.
Is a WRAS approved version available?
Yes. WRAS approval is held by the battery operated deck mounted variant with Ø15mm compression fittings. The wall mounted battery variants also carry WRAS certification alongside ACS, PZH, DVGW CERT, SVGW and CE.
What inlet configurations are available for wall mounted installation?
Wall mounted variants cover four configurations: wall mounted recessed inlets, cross wall supply, installation for panels from 1 to 24mm thickness, and a retrofit version for repair and replacement installations.
Available Variants
Common across all variants: Electronic technology, 3 lpm flow rate, 30 year warranty.
| SKU | Installation | Supply | Spout Length | Inlet / Configuration |
|---|---|---|---|---|

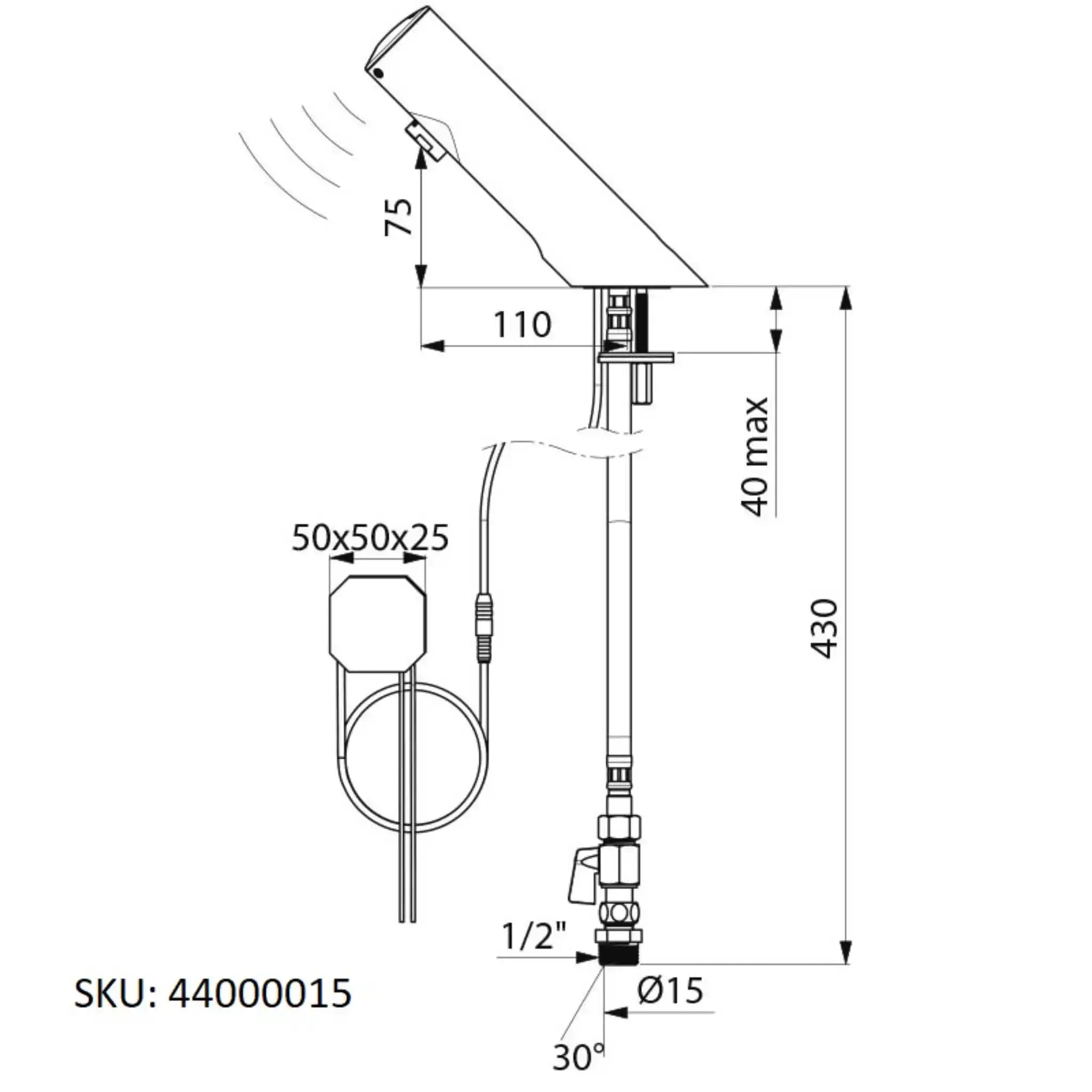

| 44000015 | Deck mounted | Mains 230/6V recessed | 105mm | Ø15mm compression fittings with stopcocks |

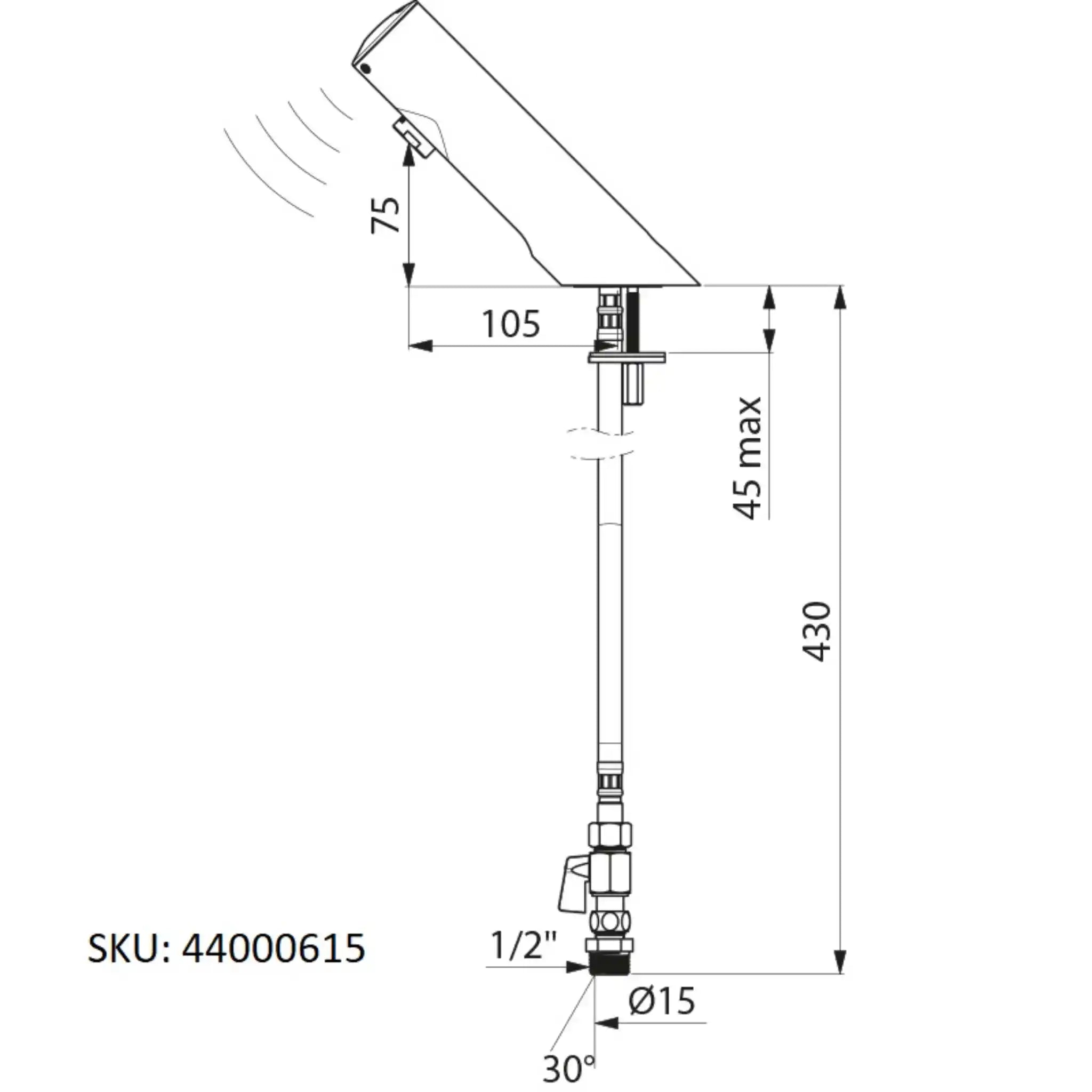

| 44000615 | Deck mounted | Battery 6V | 105mm | Ø15mm compression fittings with stopcocks |

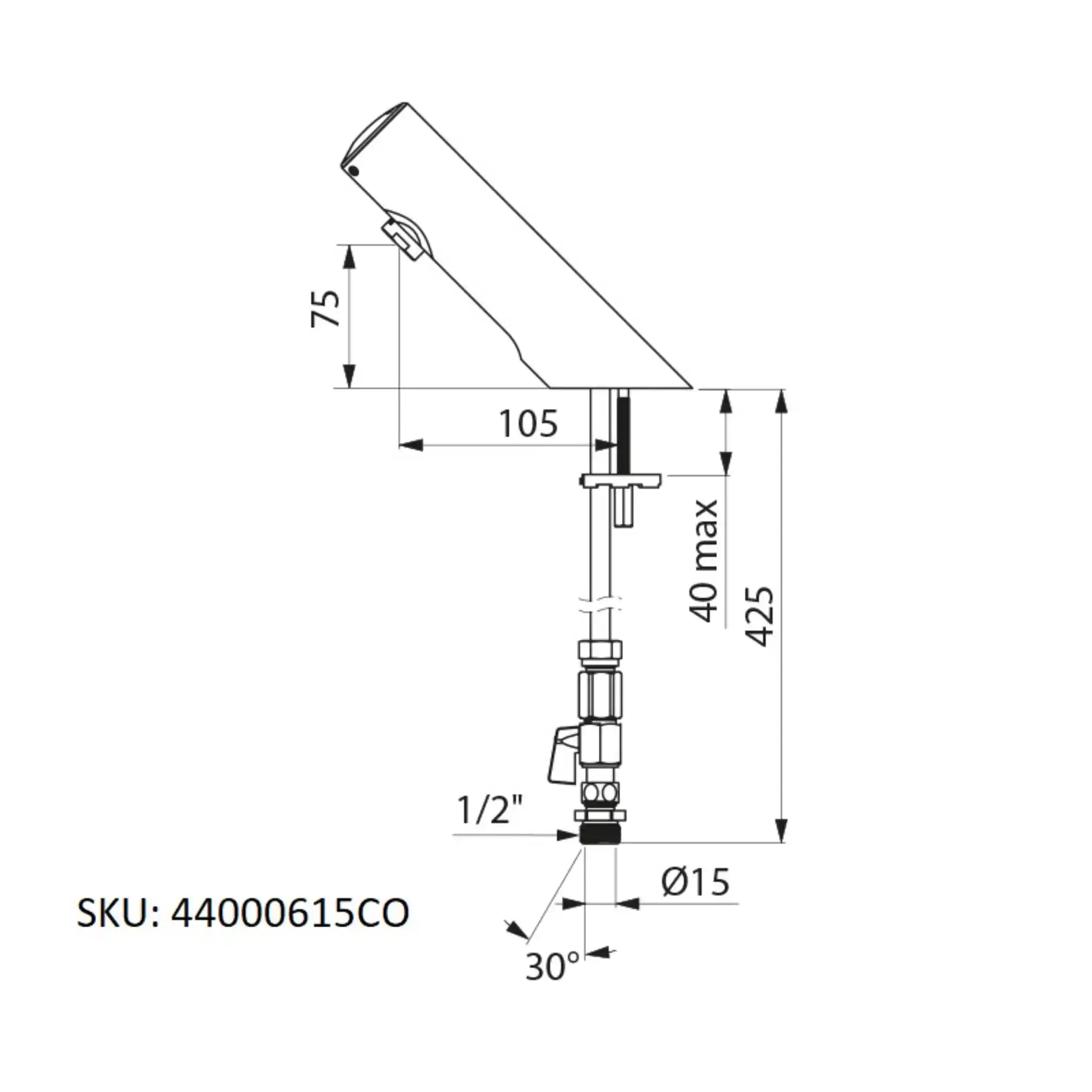

| 44000615CO | Deck mounted | Battery 6V | 105mm | Copper tails with stopcocks |

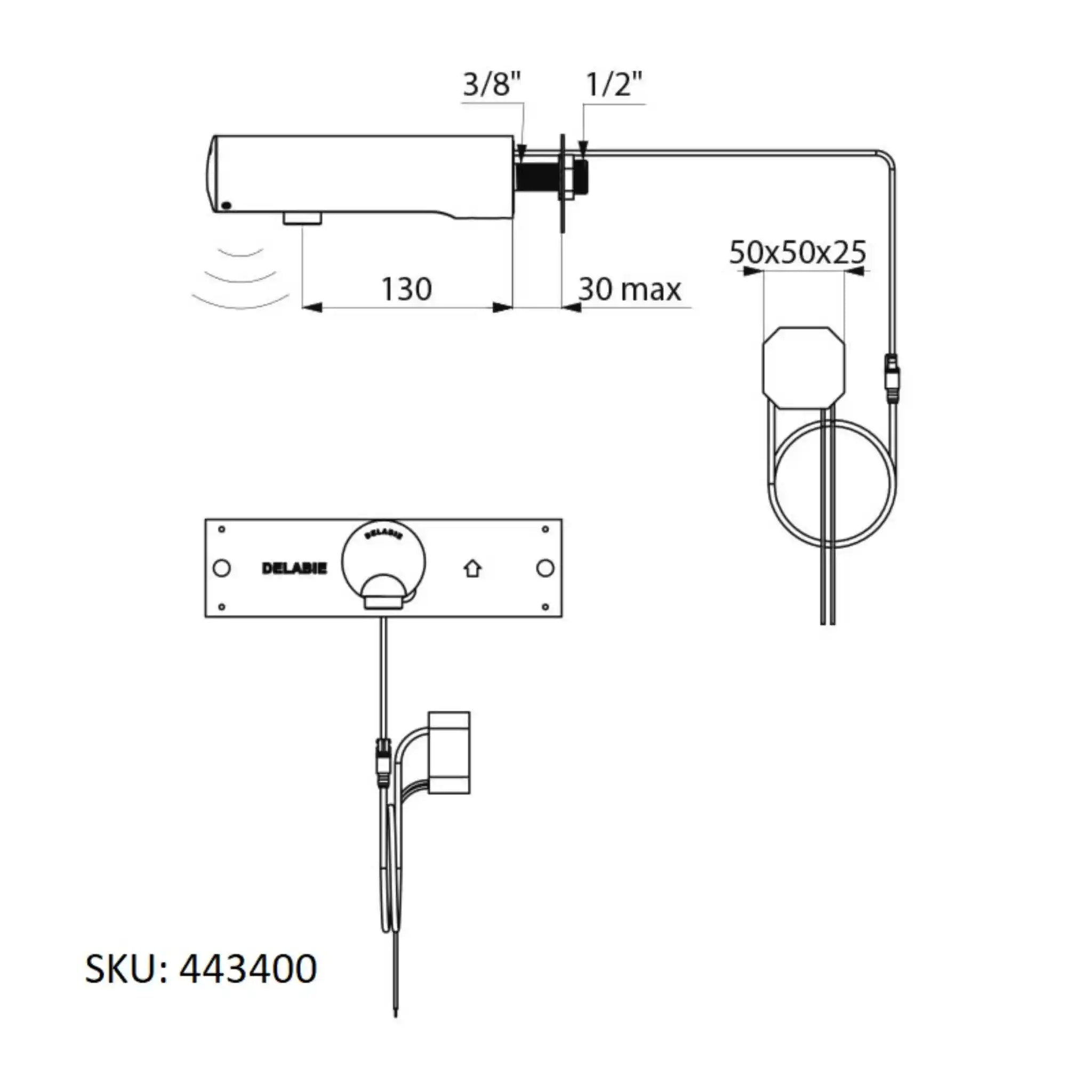

| 443400 | Wall mounted | Mains 230/6V recessed | 130mm | Wall mounted recessed inlets |

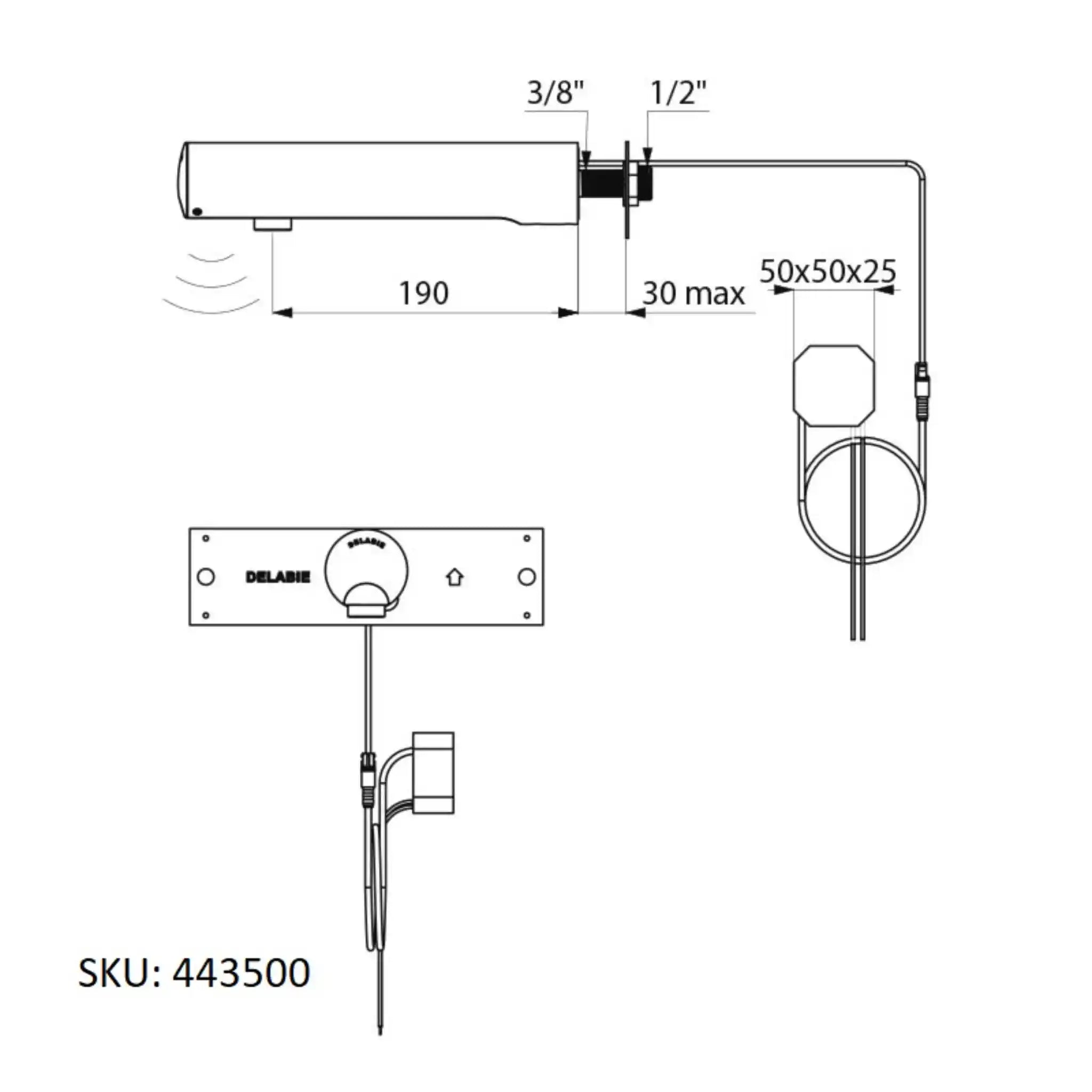

| 443500 | Wall mounted | Mains 230/6V recessed | 190mm | Wall mounted recessed inlets |

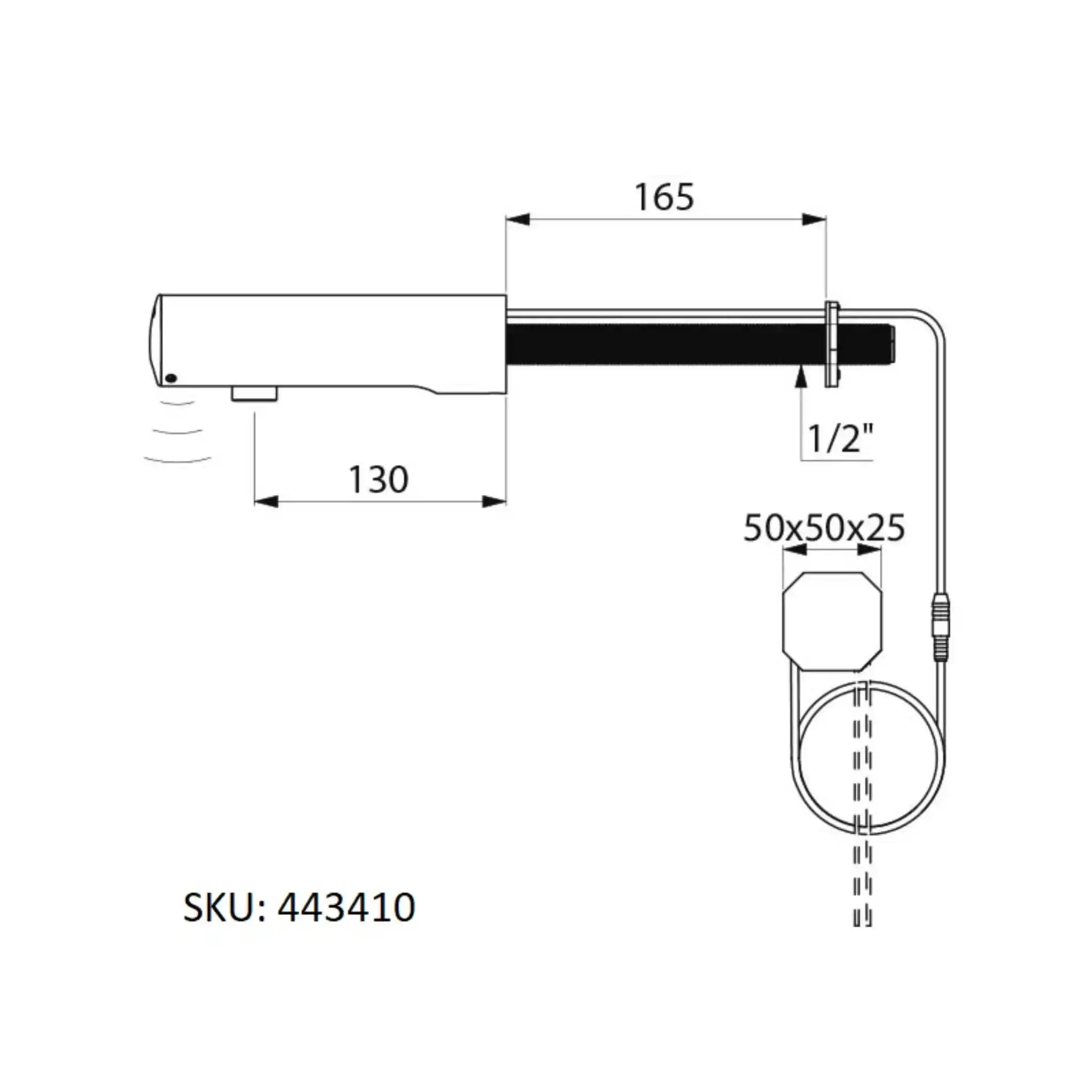

| 443410 | Wall mounted | Mains 230/6V recessed | 130mm | Cross wall |

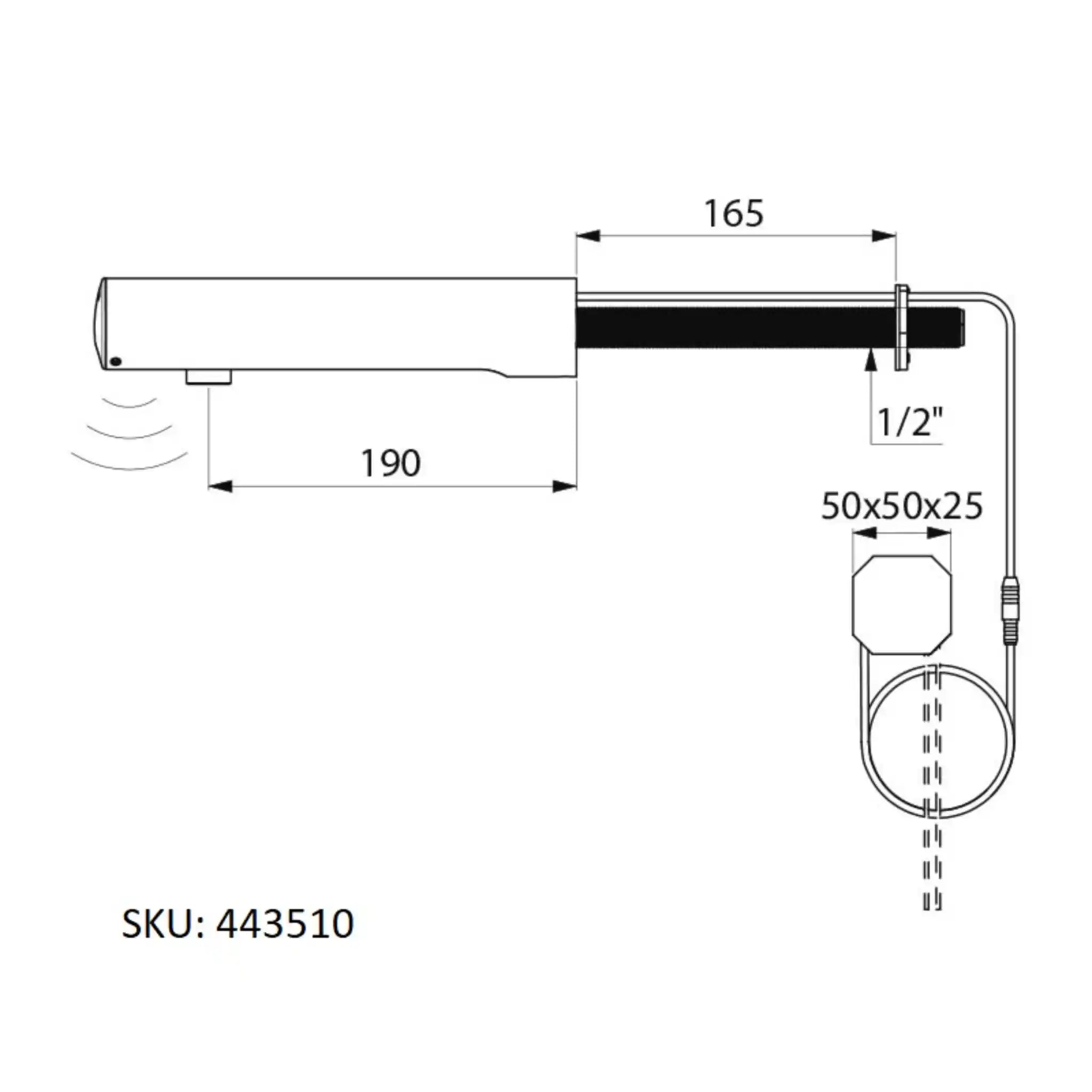

| 443510 | Wall mounted | Mains 230/6V recessed | 190mm | Cross wall |

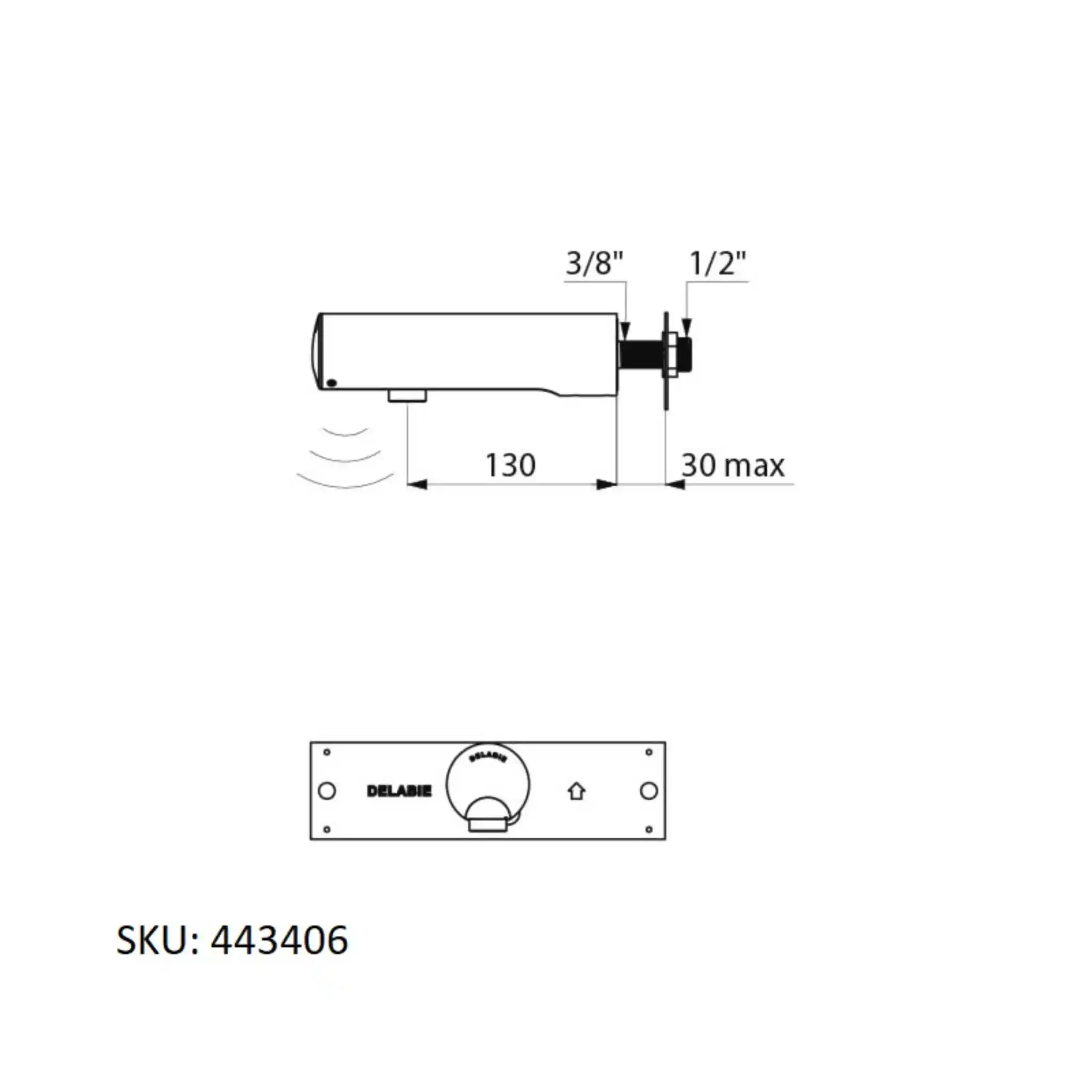

| 443406 | Wall mounted | Battery 6V | 130mm | Wall mounted recessed inlet |

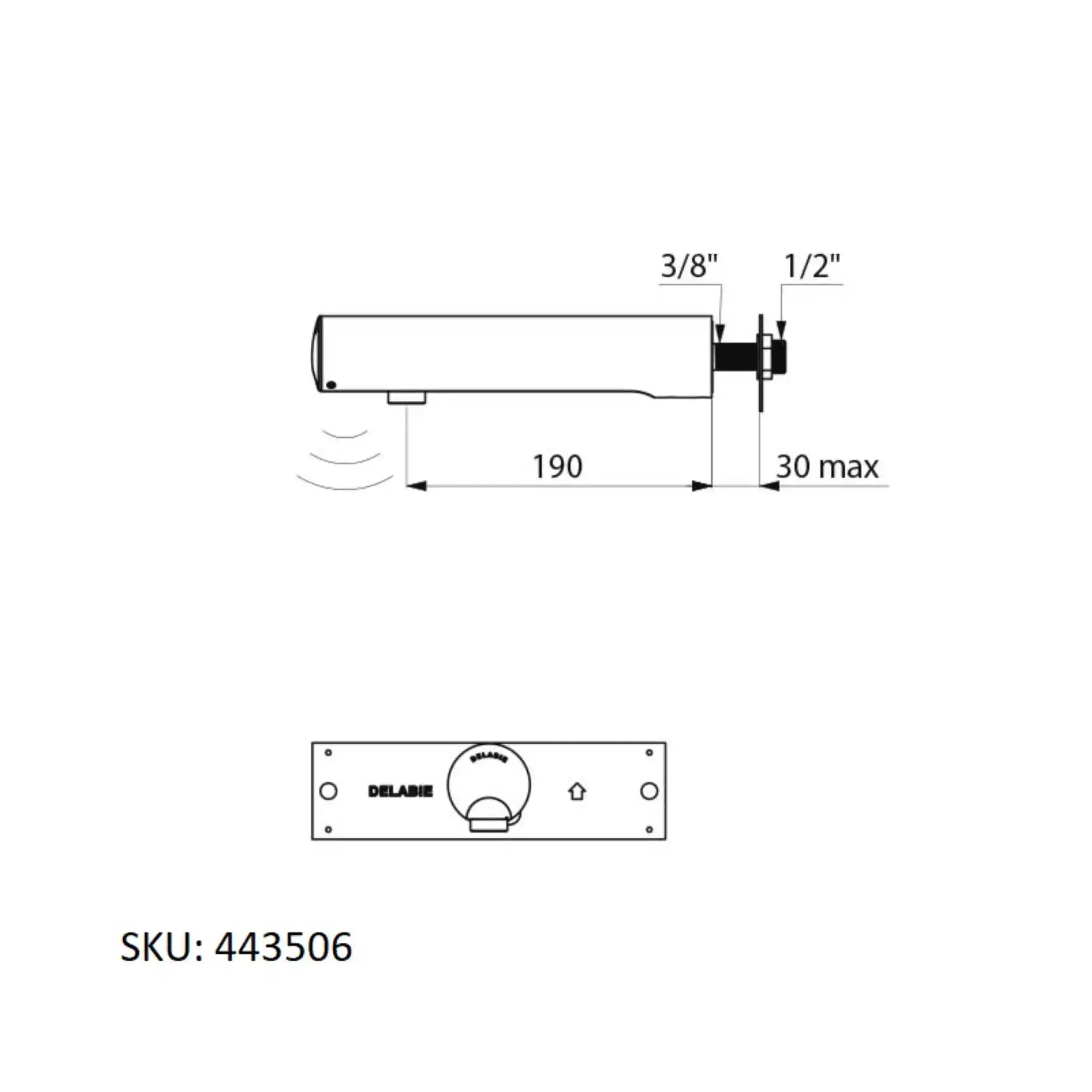

| 443506 | Wall mounted | Battery 6V | 190mm | Wall mounted recessed inlets |

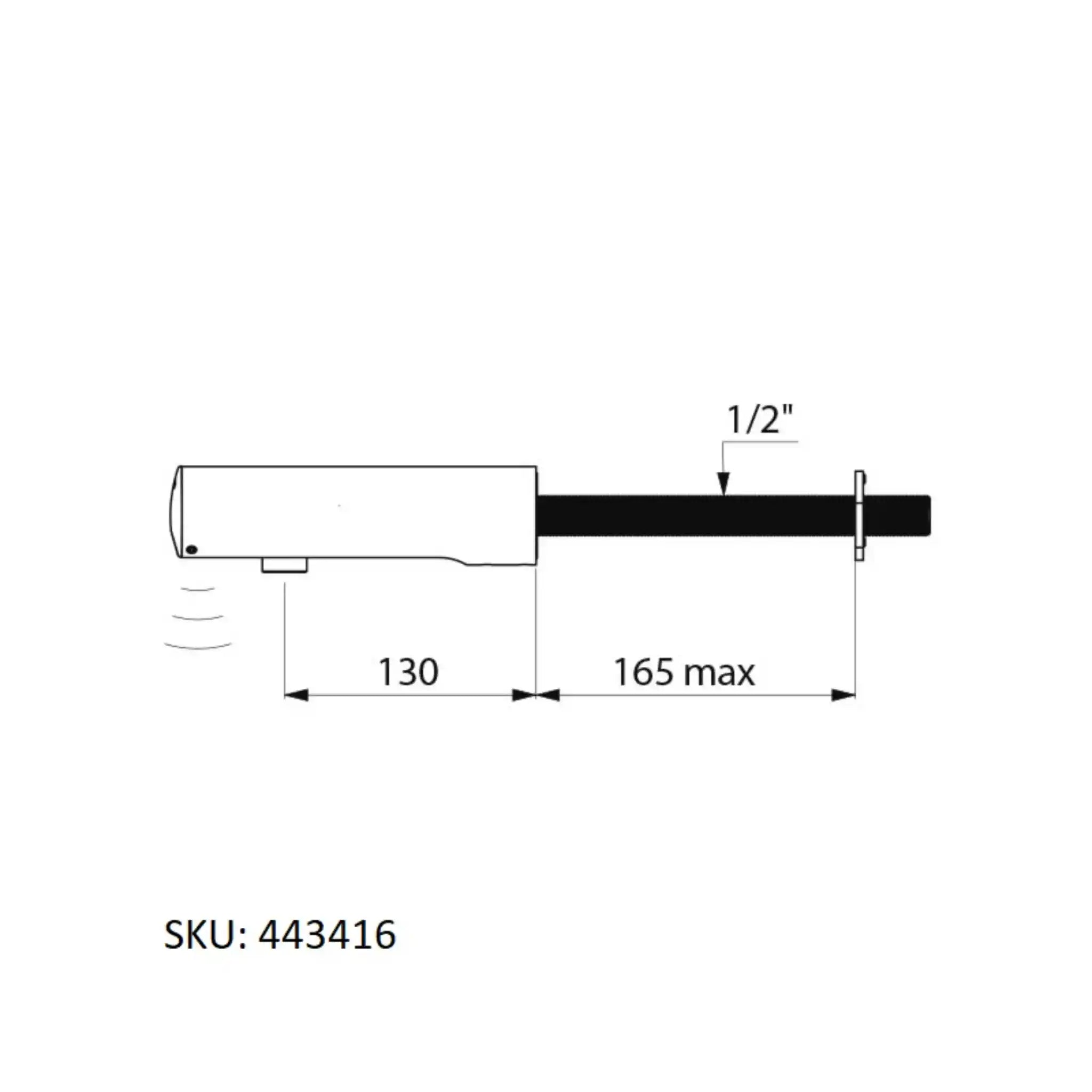

| 443416 | Wall mounted | Battery 6V | 130mm | Cross wall |

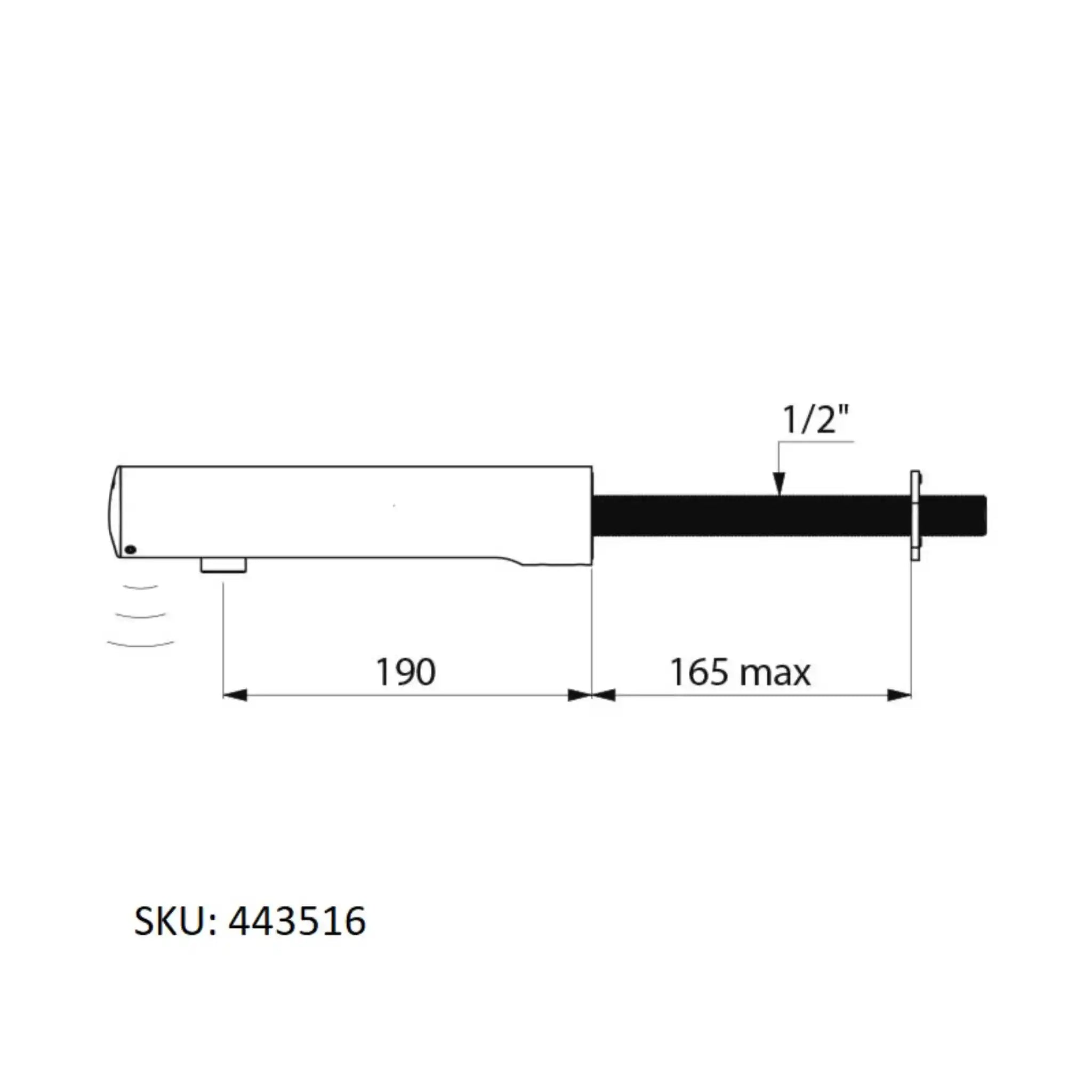

| 443516 | Wall mounted | Battery 6V | 190mm | Cross wall |

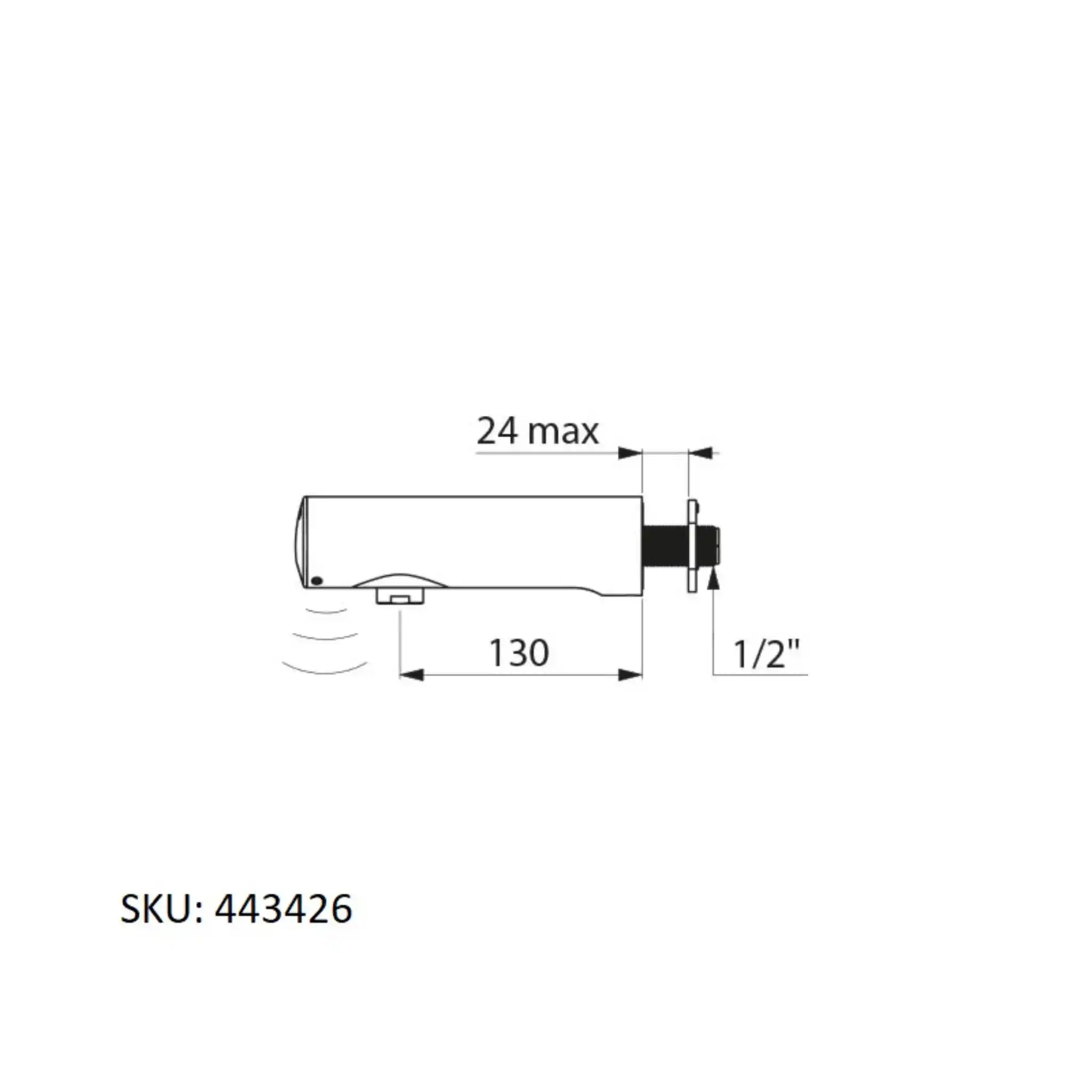

| 443426 | Wall mounted | Battery 6V | 130mm | For panels from 1 to 24mm |

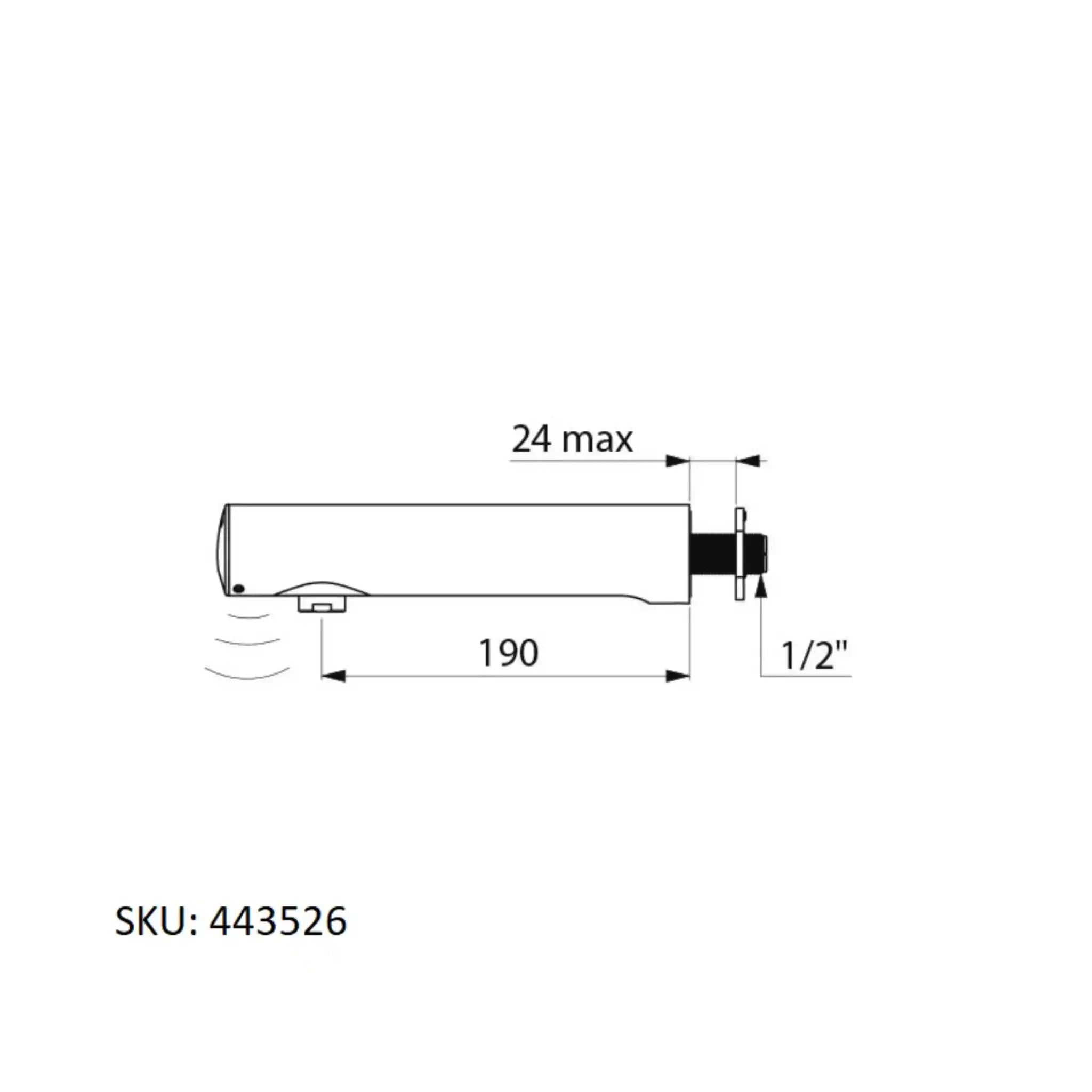

| 443526 | Wall mounted | Battery 6V | 190mm | For panels from 1 to 24mm |

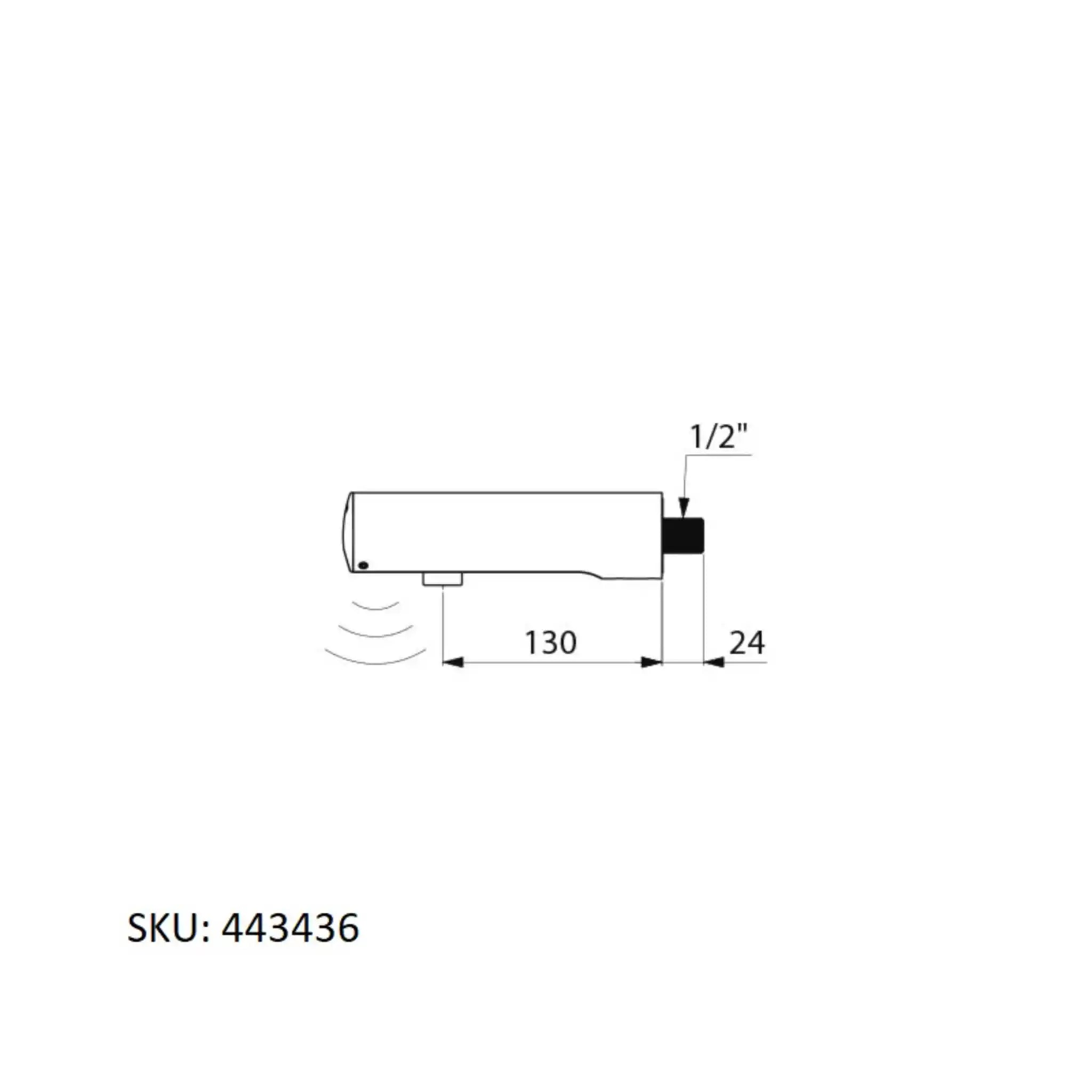

| 443436 | Wall mounted | Battery 6V | 130mm | For repairs |

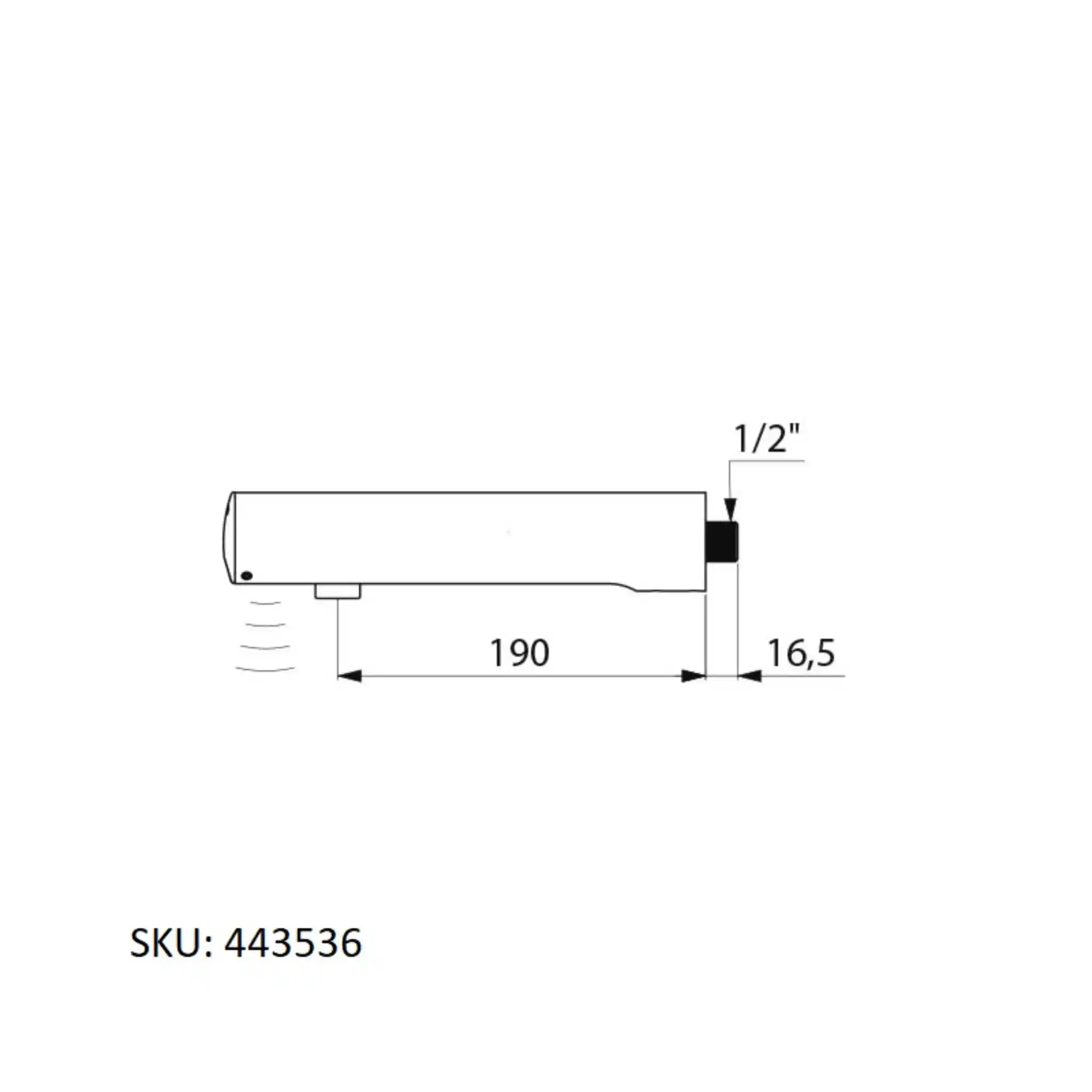

| 443536 | Wall mounted | Battery 6V | 190mm | For repairs |
