Monofoot Foot Operated Valve
The MONOFOOT is a foot operated basin valve with an instant shut off mechanism. Water flows only while the pedal is held down and stops the moment it is released, with no timed flow cycle and no manual contact with the fitting at any point during operation.
The valve accepts a pre mixed water supply and measures 280mm in length. It carries a 30 year warranty.
Key Features
- Instant shut off foot operation: Water flows while the pedal is depressed and stops immediately on release, with no timed flow cycle or delayed shut off.
- No manual contact: The foot pedal mechanism means the user never touches the tap body or handle during operation.
- Pre mixed supply: The valve accepts a single pre mixed water supply inlet, typically fed from a thermostatic mixing valve upstream.
- 30 year warranty: Covered by Delabie's 30 year warranty.
Delabie Monofoot Foot Operated Valve Specifications
| Technology | Instant |
|---|---|
| Length | 280mm |
| Connector | Ø 14mm / M½" |
| Warranty | 30 Year |
Delabie Monofoot Foot Operated Valve Manuals & Downloads
Frequently Asked Questions
How does instant shut off operation differ from a time flow tap?
A time flow tap delivers water for a pre set duration after the control is activated. The MONOFOOT delivers water only while the foot pedal is held down and stops immediately on release, giving the user direct control over flow duration.
Does the MONOFOOT require a thermostatic mixing valve?
The valve accepts a single pre mixed supply inlet. A thermostatic mixing valve installed upstream is recommended to control water temperature before it reaches the valve.
Available Variants
| SKU | Mounting | Connection |
|---|---|---|

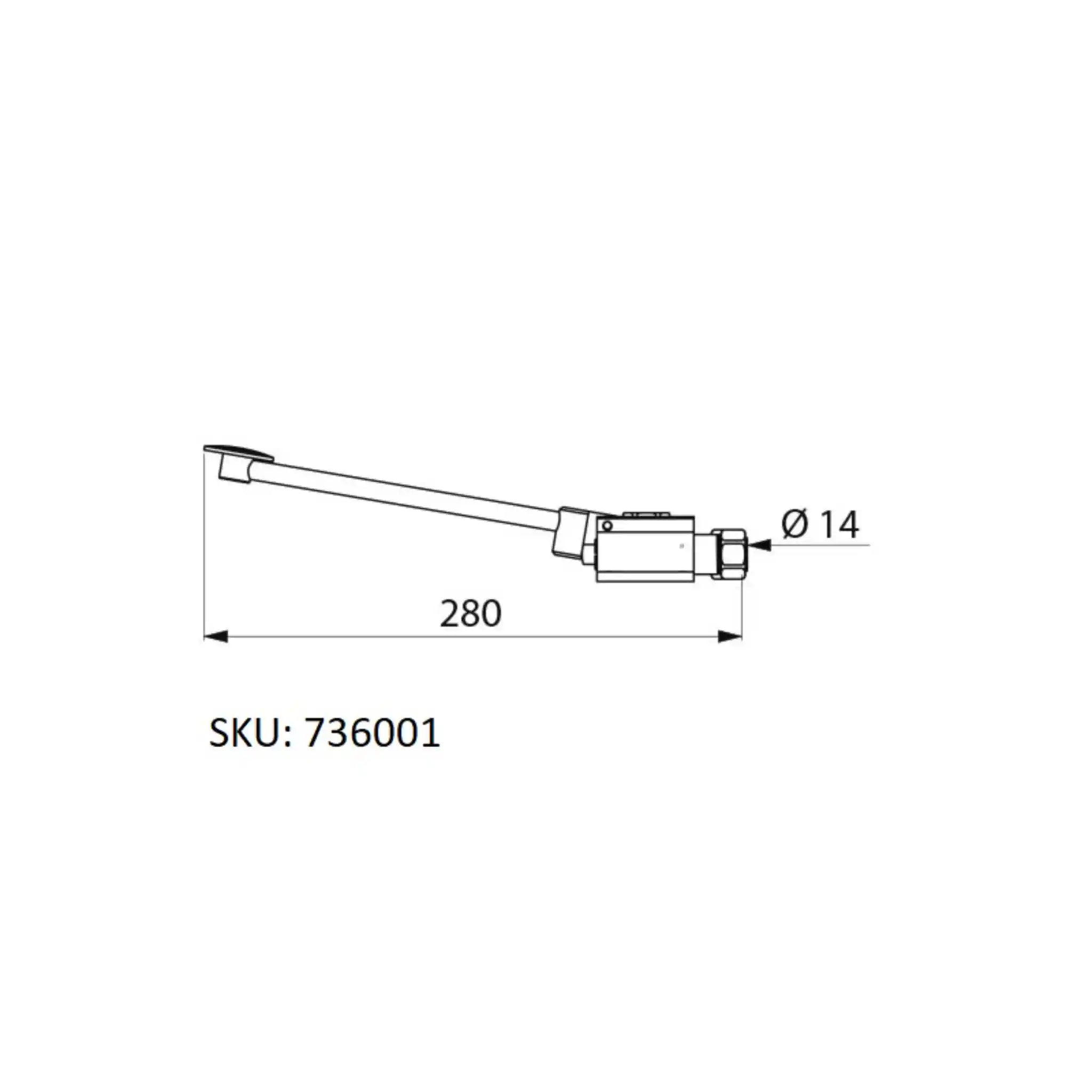

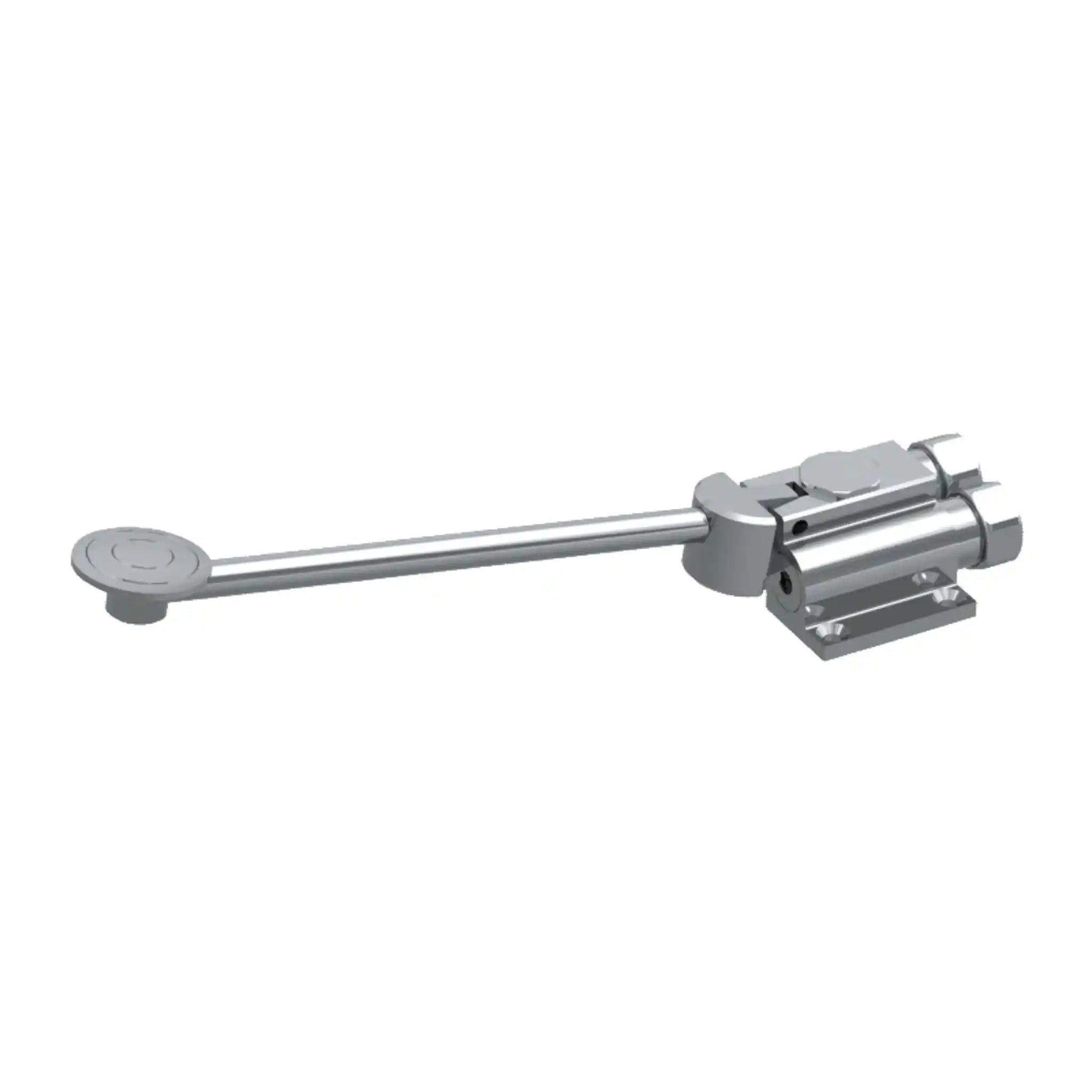

| 736001 | Floor Mounted | Stud Nut Ø 14mm |

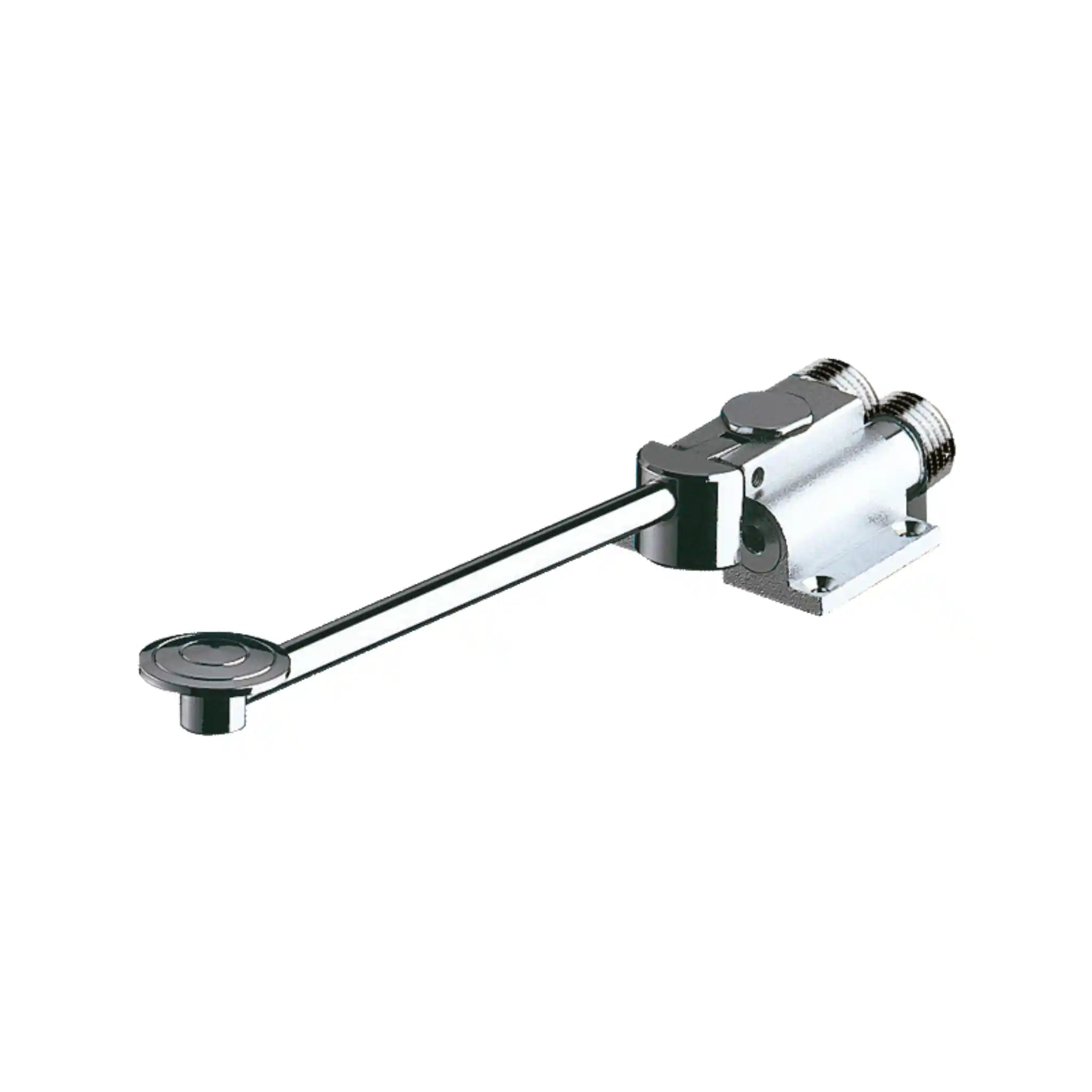

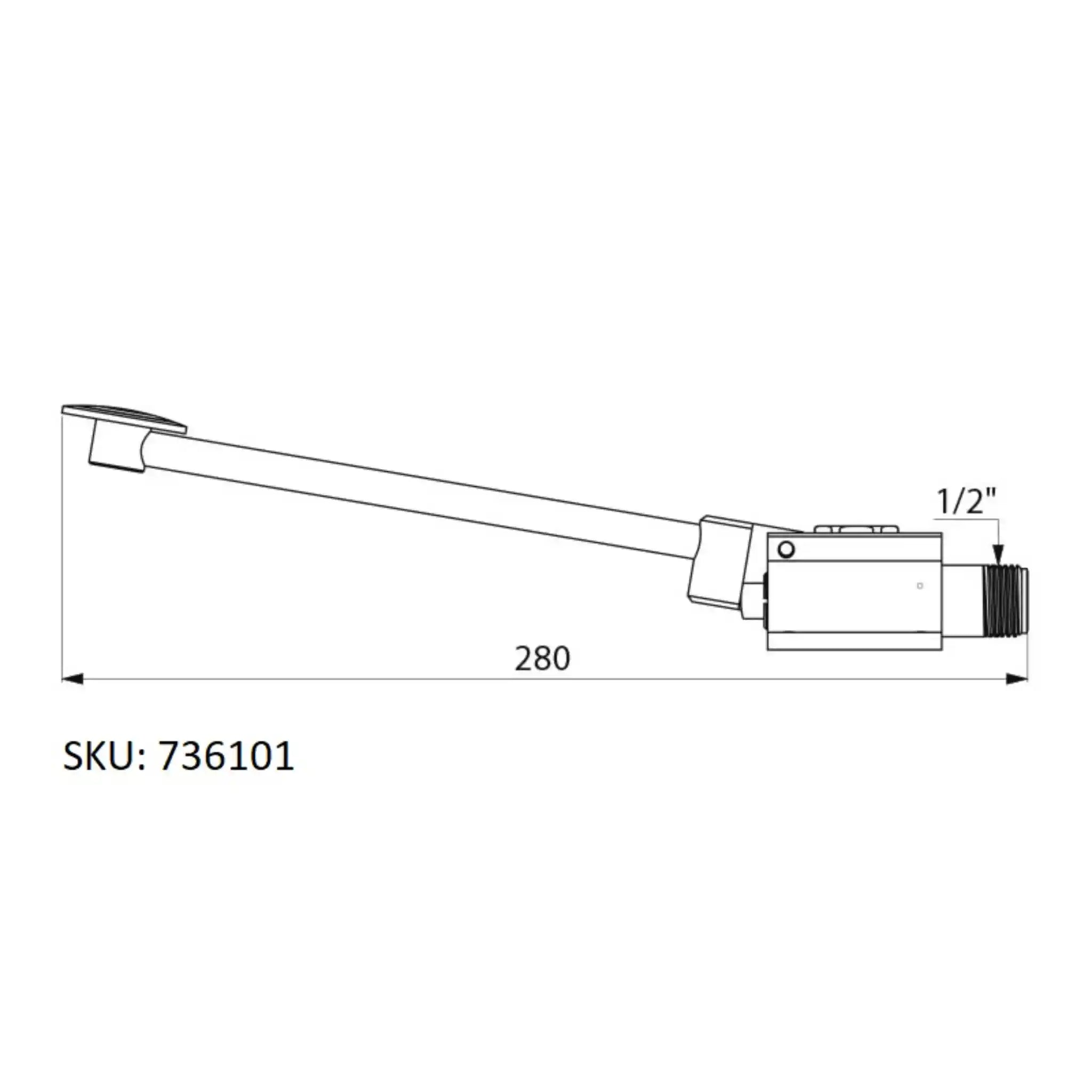

| 736101 | Floor Mounted | M½" |
| 736102 | Wall Mounted | M½" |
