Mixfoot Foot Operated Mixer Valve
The MIXFOOT is a foot operated basin mixer with instant flow, designed for commercial and public washroom installations where hands free operation is required. It connects to separate hot and cold supplies and features a pre set mixing adjustment: with the pedal half open, cold water only flows; with the pedal fully depressed against the floor, mixed water flows. Water stops immediately when the pedal is released.
Available in floor mounted and wall mounted configurations, the MIXFOOT connects via a M½" connector and carries a 30 year warranty.
Key Features
- Foot operated instant flow: Water flows continuously while the foot pedal is held down and stops the moment it is released, giving the user direct control over water use at all times.
- No manual contact: Pedal operation eliminates any need to touch the fitting, supporting hygiene in high traffic washroom environments.
- Pre set mixing adjustment: Pedal half open delivers cold water only; pedal fully depressed against the floor delivers mixed water. The mixing ratio is configured at installation and does not require manual adjustment at the tap.
- Hot and cold supply connections: The MIXFOOT connects to separate hot and cold supplies, with water temperature controlled through pedal travel and the pre set mixing adjustment.
- 85% water savings: Delabie states the MIXFOOT delivers up to 85% water savings compared to a conventional tap.
- 30 year warranty: Covered by Delabie's 30 year product warranty.
Delabie MIXFOOT Foot Operated Mixer Valve Specifications
| Technology | Instant |
|---|---|
| Connector | M½" |
| Length | 280mm / 300mm |
| Warranty | 30 Year |
Delabie MIXFOOT Foot Operated Mixer Valve Manuals & Downloads
Frequently Asked Questions
How does the instant flow mechanism work?
The MIXFOOT delivers water continuously for as long as the foot pedal is held down. Flow stops immediately when the pedal is released, so water use is directly controlled by the user at all times.
How does the pre set mixing adjustment work?
The MIXFOOT connects to separate hot and cold supplies. The mixing ratio is controlled by pedal travel: with the pedal half open, cold water only flows; with the pedal fully depressed against the floor, mixed water flows. The mixing ratio is set at installation and does not require manual adjustment at the valve during use.
How much water can the MIXFOOT save?
Delabie states the MIXFOOT delivers up to 85% water savings compared to a conventional tap. This is achieved through the instant flow mechanism, which only runs water while the pedal is actively held down.
Available Variants
| SKU | Mounting | Length |
|---|---|---|

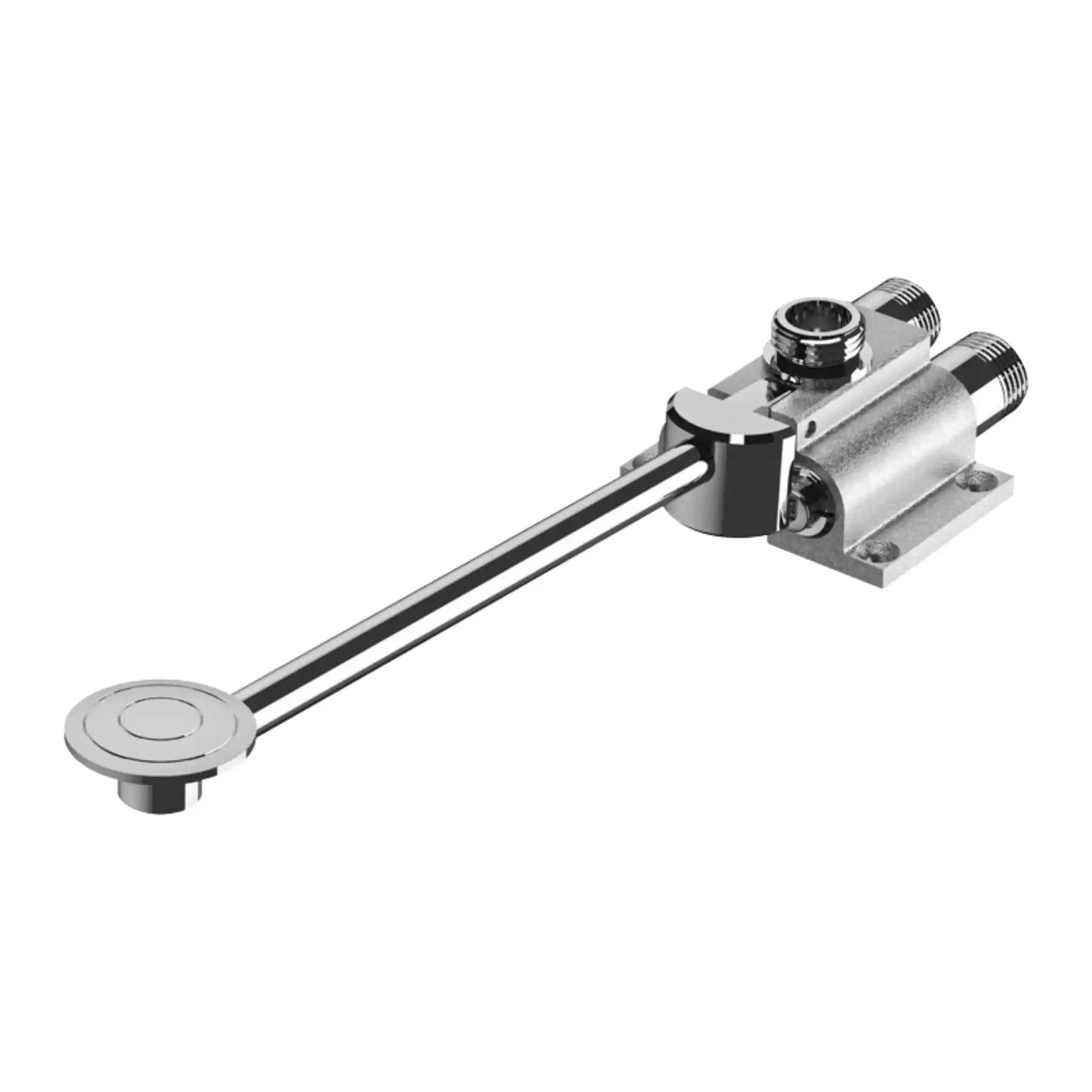

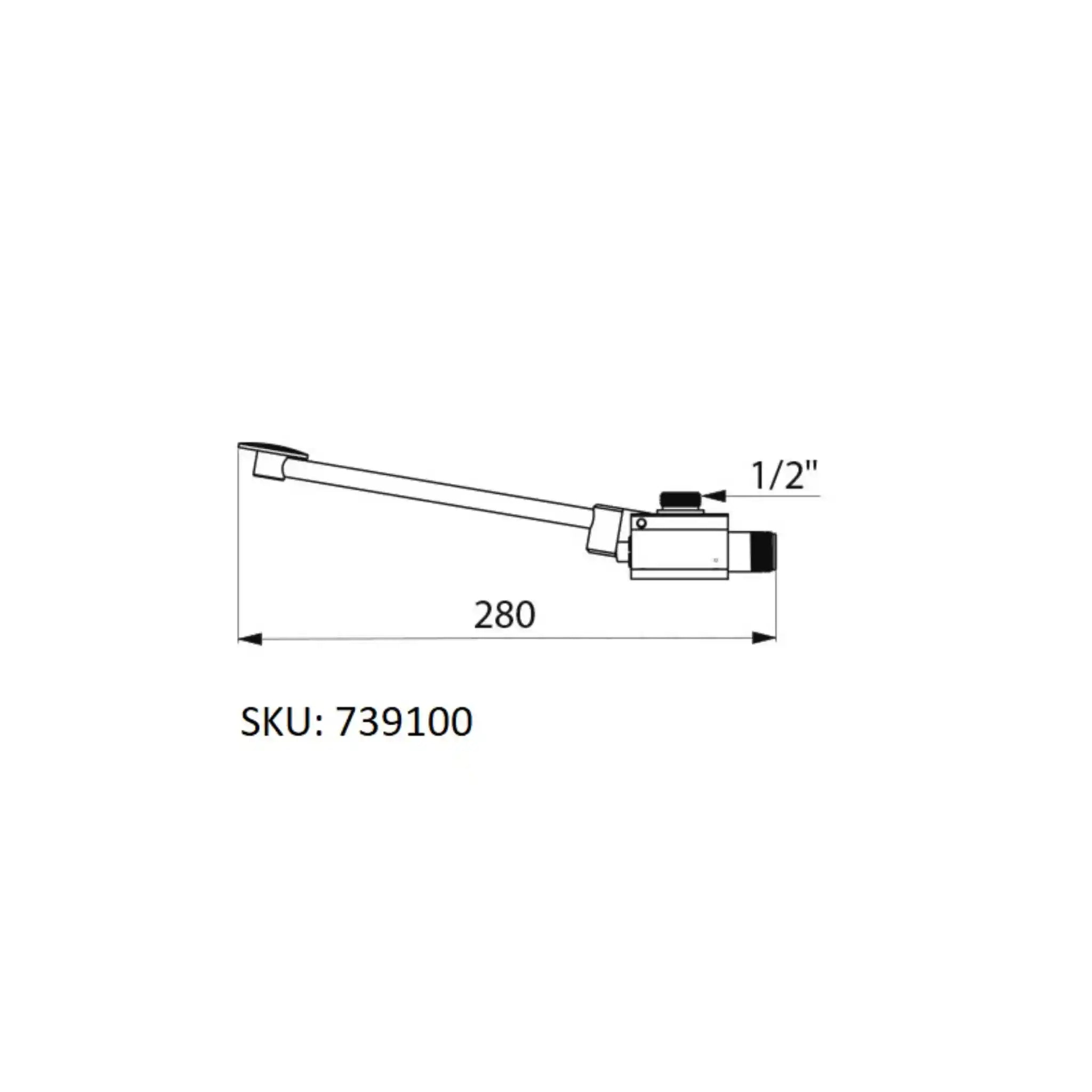

| 739100 | Floor mounted | 280mm |

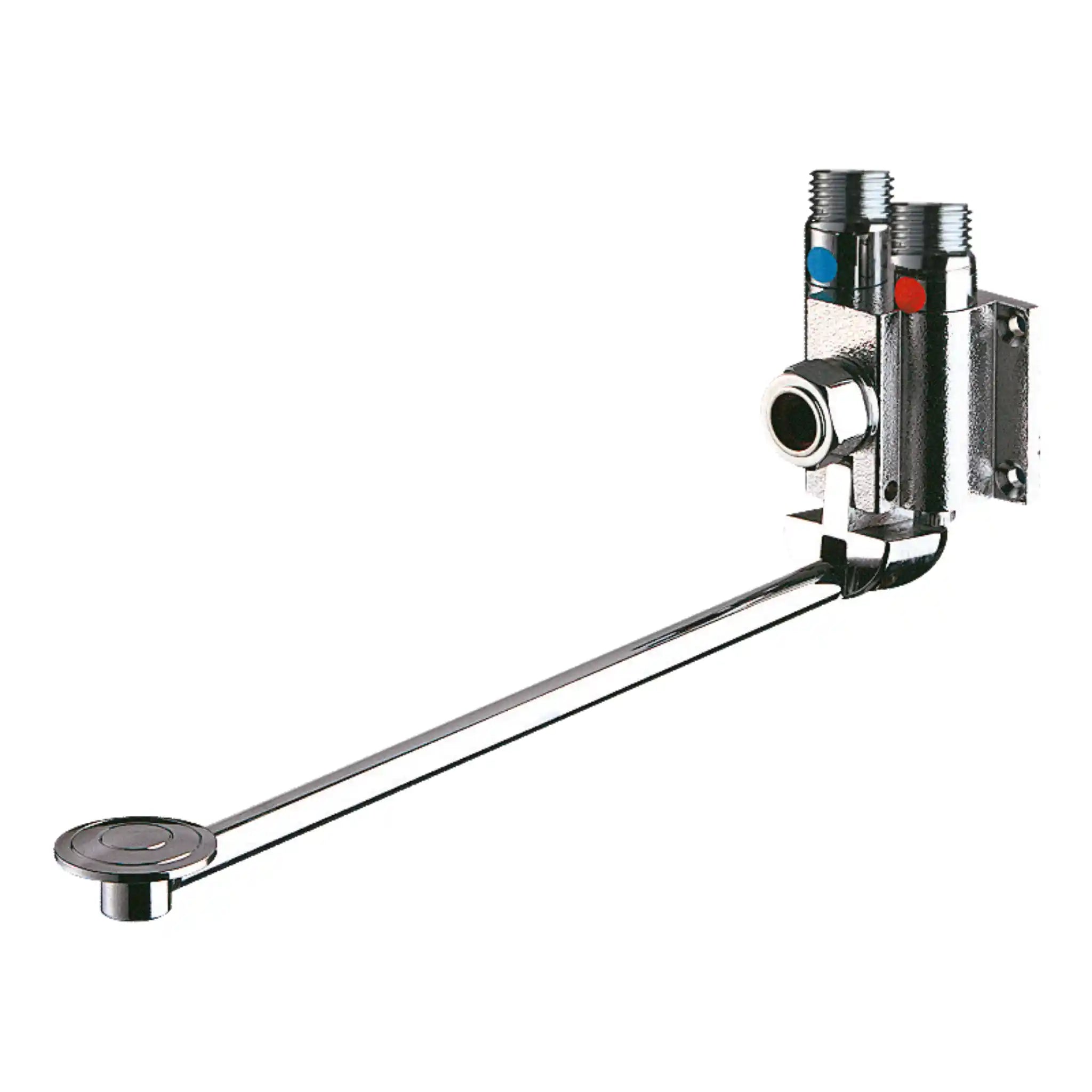

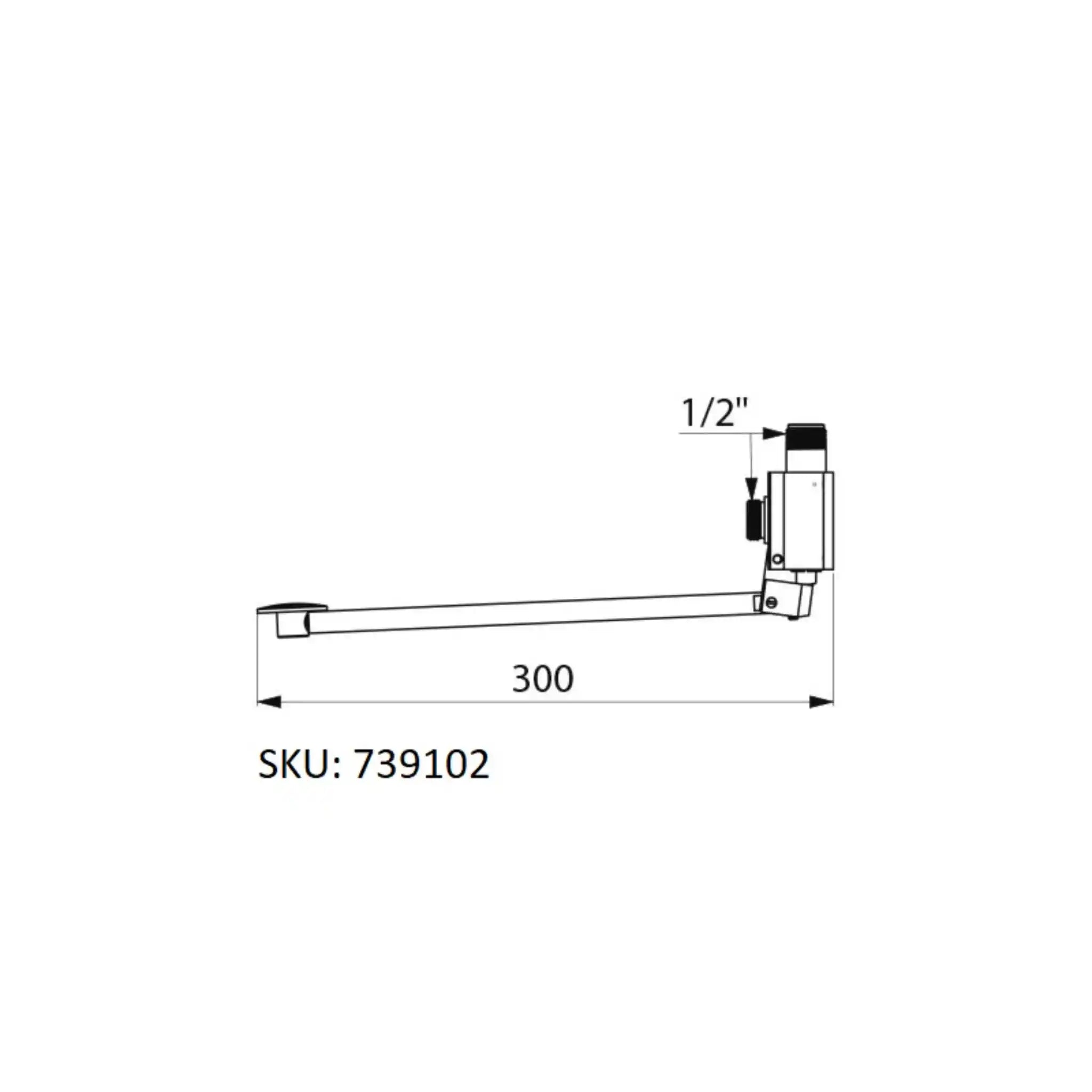

| 739102 | Wall mounted | 300mm |
