Delabie Mirror Cabinet With 4 Functions

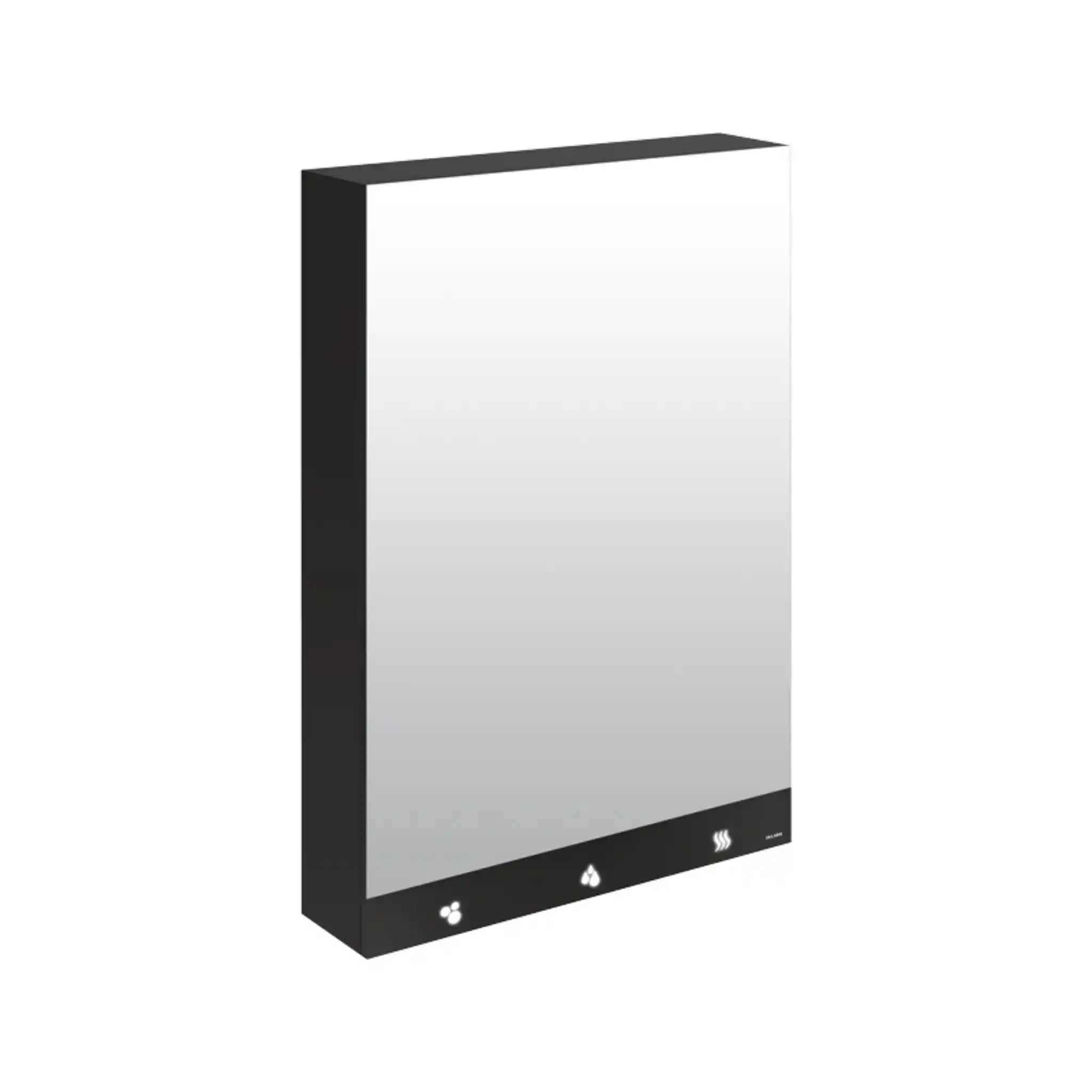

The Delabie Mirror cabinet with 4 functions is a wall mounted commercial washroom unit combining a mirror, electronic sensor tap, soap dispenser, and choice of hand dryer or paper towel dispenser in a single cabinet. The cabinet body is constructed from 304 stainless steel with a matte black melamine finish, standing 1,000mm high and 223mm deep, with a 4mm glass mirror.
All four functions are served by a single 230V mains electrical supply. The electronic tap connects via M3/8" and delivers a flow rate pre set at 3 lpm at 3 bar, adjustable from 1.4 to 6 lpm. Available in 600mm and 800mm widths. ACS certified. Backed by Delabie's 30 year warranty.
Key Features
- Four functions, single cabinet: Mirror, electronic tap, soap dispenser, and hand dryer or paper towel dispenser housed in one wall mounted unit, reducing the number of separately installed and maintained items.
- Single mains electrical supply: All electronic functions within the cabinet are powered from one 230V / 50 60Hz connection, simplifying installation wiring.
- Touch free tap operation: The electronic sensor tap requires no manual contact, supporting hygiene in commercial and public washroom environments.
- Adjustable flow rate: Tap flow rate is pre set at 3 lpm at 3 bar but can be adjusted between 1.4 and 6 lpm without removing the cabinet.
- 304 stainless steel construction with matte black melamine finish: Cabinet body combines 304 stainless steel with matte black melamine panelling and a 4mm glass mirror.
- Documented spare parts: Solenoid valve, electronic control unit, service key, and lock with key are individually available as spare parts.
- 30 year warranty: Applies across the range.
Delabie Mirror Cabinet 4 in 1 Specifications
| Technology | Electronic |
|---|---|
| Supply | Mains 230V / 50 60Hz |
| Connector | M3/8" |

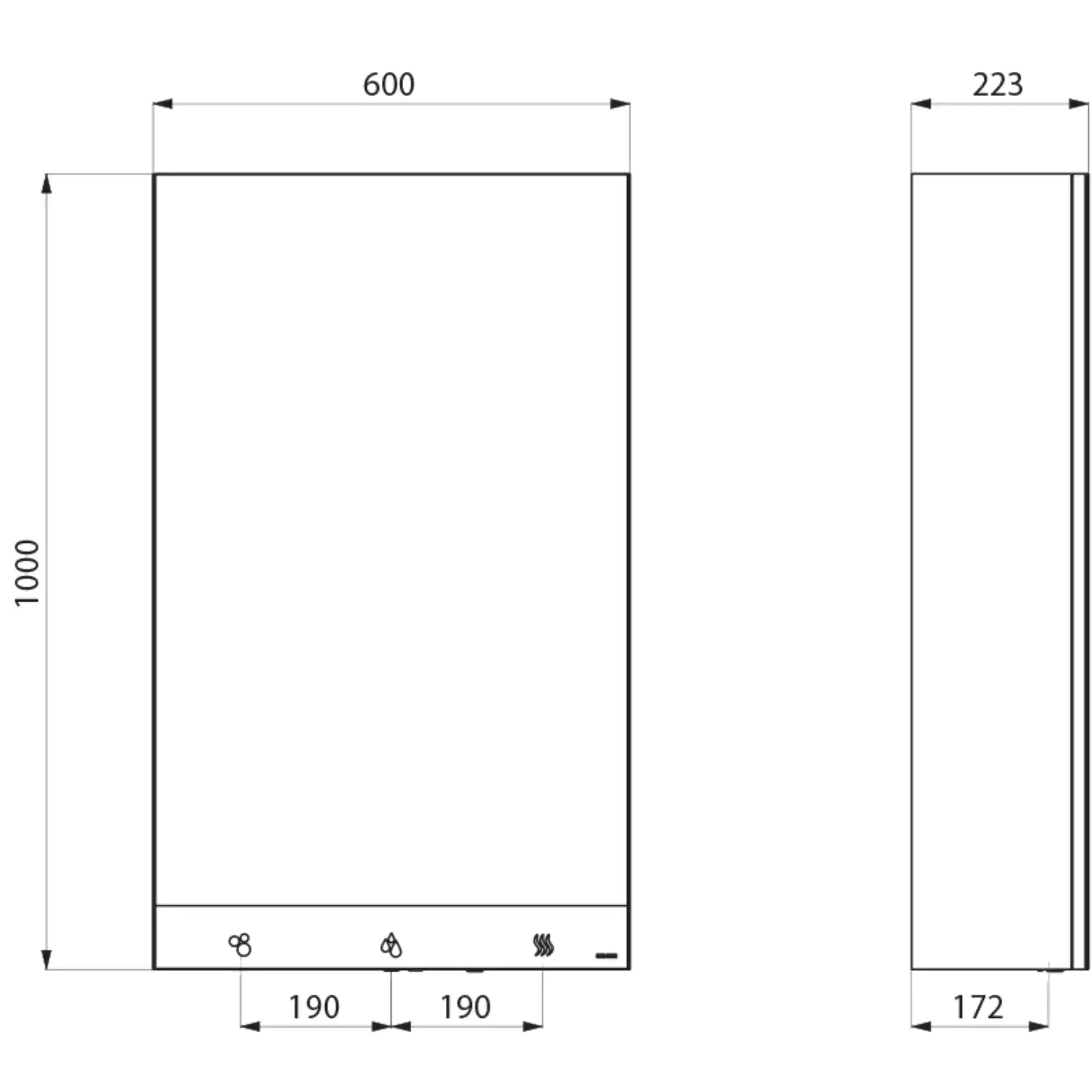

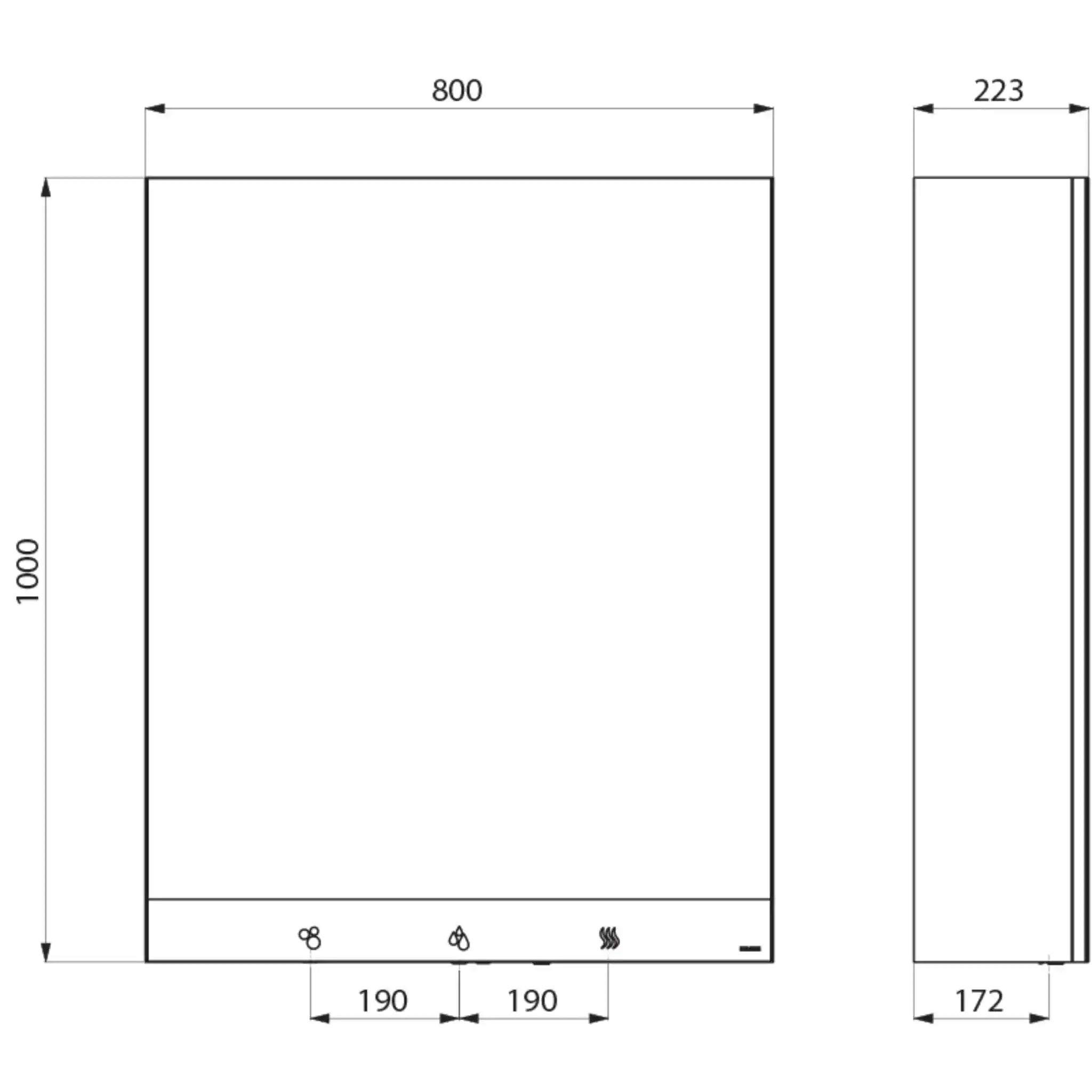

| Height | 1,000mm |
| Depth | 223mm |
Delabie Mirror Cabinet 4 in 1 Manuals & Downloads
Frequently Asked Questions
What electrical supply is required?
All variants require a single 230V / 50 60Hz mains connection. All four functions within the cabinet are powered from this one supply.
Can the tap flow rate be adjusted?
Yes. The flow rate is pre set at 3 lpm at 3 bar but can be adjusted between 1.4 and 6 lpm.
What hand drying options are available?
The cabinet is available with either an integrated electrical hand dryer or a paper towel dispenser. Both options are available in 600mm and 800mm widths.
Available Variants
| SKU | Width | Hand Drying |
|---|---|---|
| 510203 | 600mm | Hand dryer |
| 510205 | 600mm | Paper towel dispenser |
| 510204 | 800mm | Hand dryer |
| 510206 | 800mm | Paper towel dispenser |
