Washbasin And WC Combination Unit

The Delabie KOMPACT commercial washbasin and WC combination unit integrates a stainless steel washbasin and WC pan within a single 1000mm high enclosure, available in two installation configurations.

Both are constructed from 2mm thick bacteriostatic 304 polished satin stainless steel with a recessed toilet roll holder included. These combination units are suited for secure sector environments. Backed by Delabie's 30 year manufacturer warranty.

An overview image of Delabie Kompact Combi Washbasin And WC

Key Features

Bacteriostatic 304 stainless steel: Inhibits bacterial growth on contact surfaces, suitable for high hygiene secure environments
2mm steel thickness: Provides structural resistance to vandalism and heavy daily use
Dual installation configurations: TC variant uses cross wall service duct installation; standard KOMPACT uses wall mounted installation with front access panels
Integrated recessed toilet roll holder: Built into the unit body, reducing exposed fixings and potential ligature points
Wall hung or floor standing WC options: Both WC mounting types available within each series to suit structural requirements
Left, right, and centred WC pan positions: Three pan positions available per series for flexible layout planning
30 year manufacturer warranty: Covers all variants across both series

Delabie Kompact Combi Specifications

Material	304 bacteriostatic stainless steel
Finish	Polished satin
Unit Height	1000mm
Unit Width	400mm
Steel Thickness	2mm
Washbasin Water Inlet	M½"
WC Water Inlet	M¾" (flush valve variants) / M⅜" (cistern variants)
Water Outlet	Ø 100mm horizontal recessed
Tap Type	Tamperproof push button with anti-blocking system
Tap Time Flow	7 seconds
Flush Type	Time flow flush valve 7 second (160xxx, 161xxx, 166xxx) / 6 litre cistern (162xxx)
Access Panels	3 panels (standard wall mounted only)
Security Screws	TORX anti-theft (standard wall mounted only)
Toilet Roll Holder	Recessed, integrated
Weight	36kg (standard wall mounted) / 30kg (TC combi)
Warranty	30 years

Delabie Kompact Combi Manuals & Downloads

Frequently Asked Questions

What is the difference between the KOMPACT TC and the KOMPACT series?

The KOMPACT TC is designed for cross wall installation via service ducts. The standard KOMPACT uses wall mounted installation with access panels and is available with a flush valve or 6 litre cistern.

Are wall hung and floor standing WC options available?

Yes. Both the KOMPACT TC and KOMPACT series offer wall hung WC and floor standing WC pan variants, with the pan positioned on the right, left, or centred, giving six configurations per series.

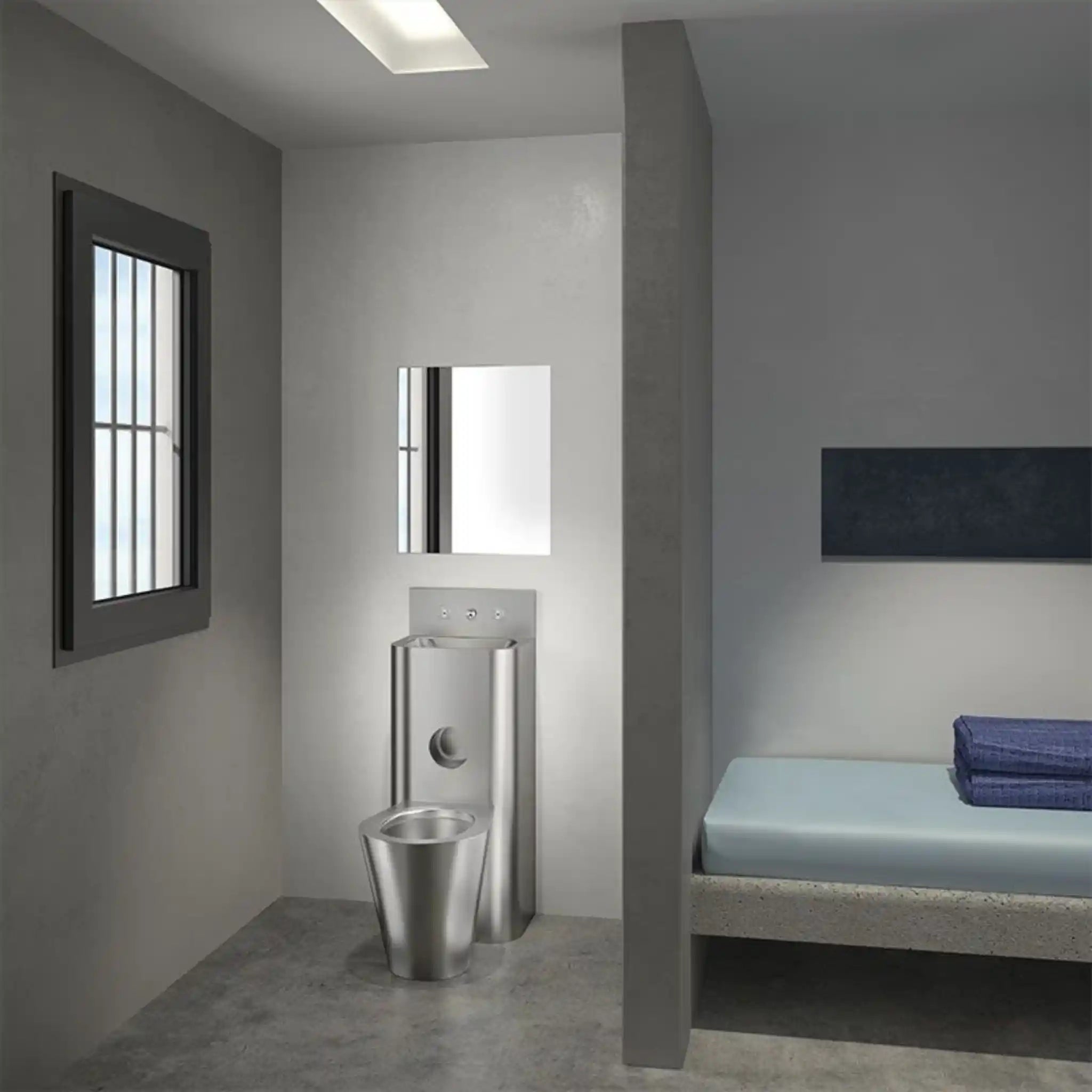

Are these units suitable for secure sector installations such as custody or correctional facilities?

Yes, both series are suitable for the secure sector.

Available Variants

SKU	Installation	Flush & Tap Control	WC Type & Position

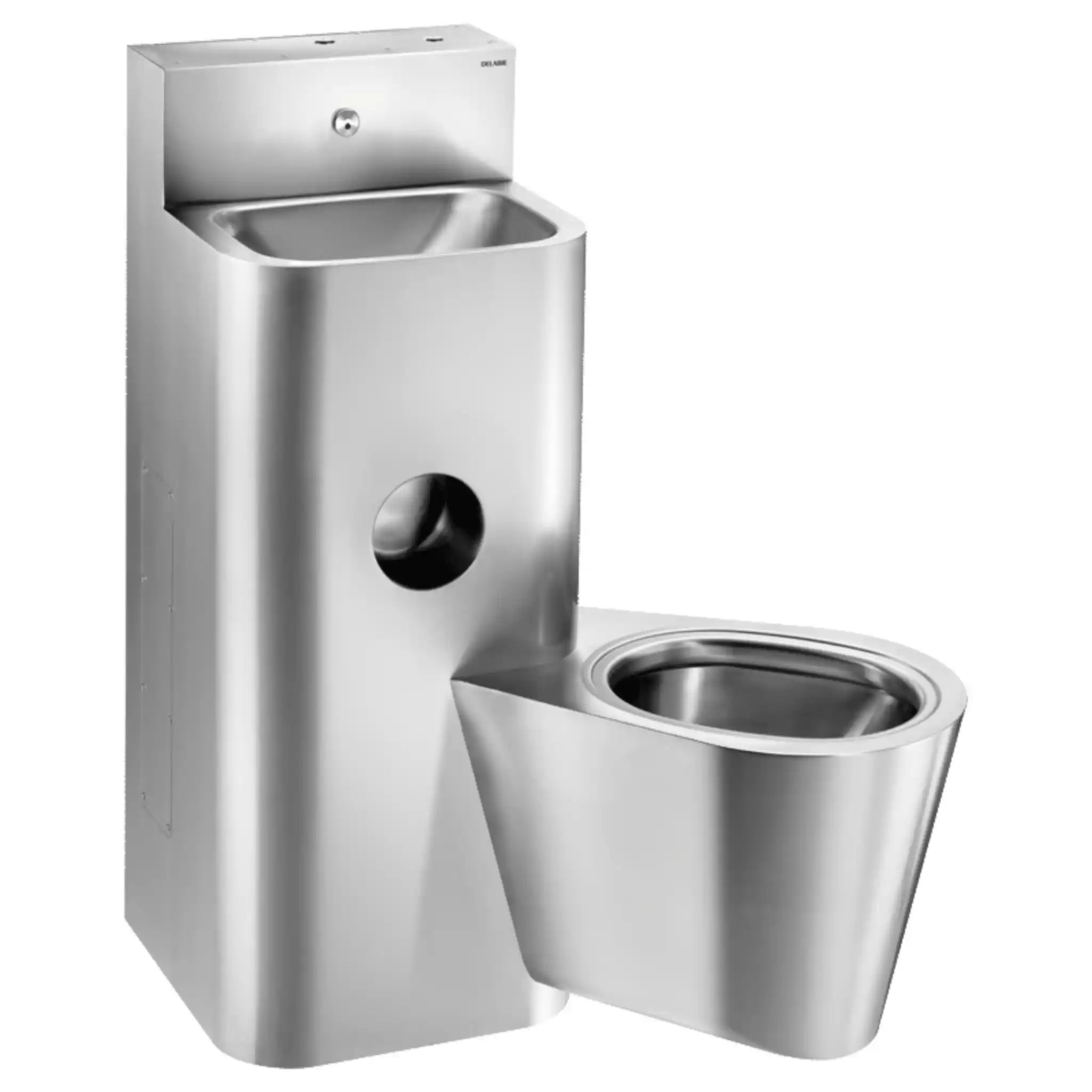

160300	Standard Wall Mounted	No Cistern + Single Tap Control	Wall Hung + Right

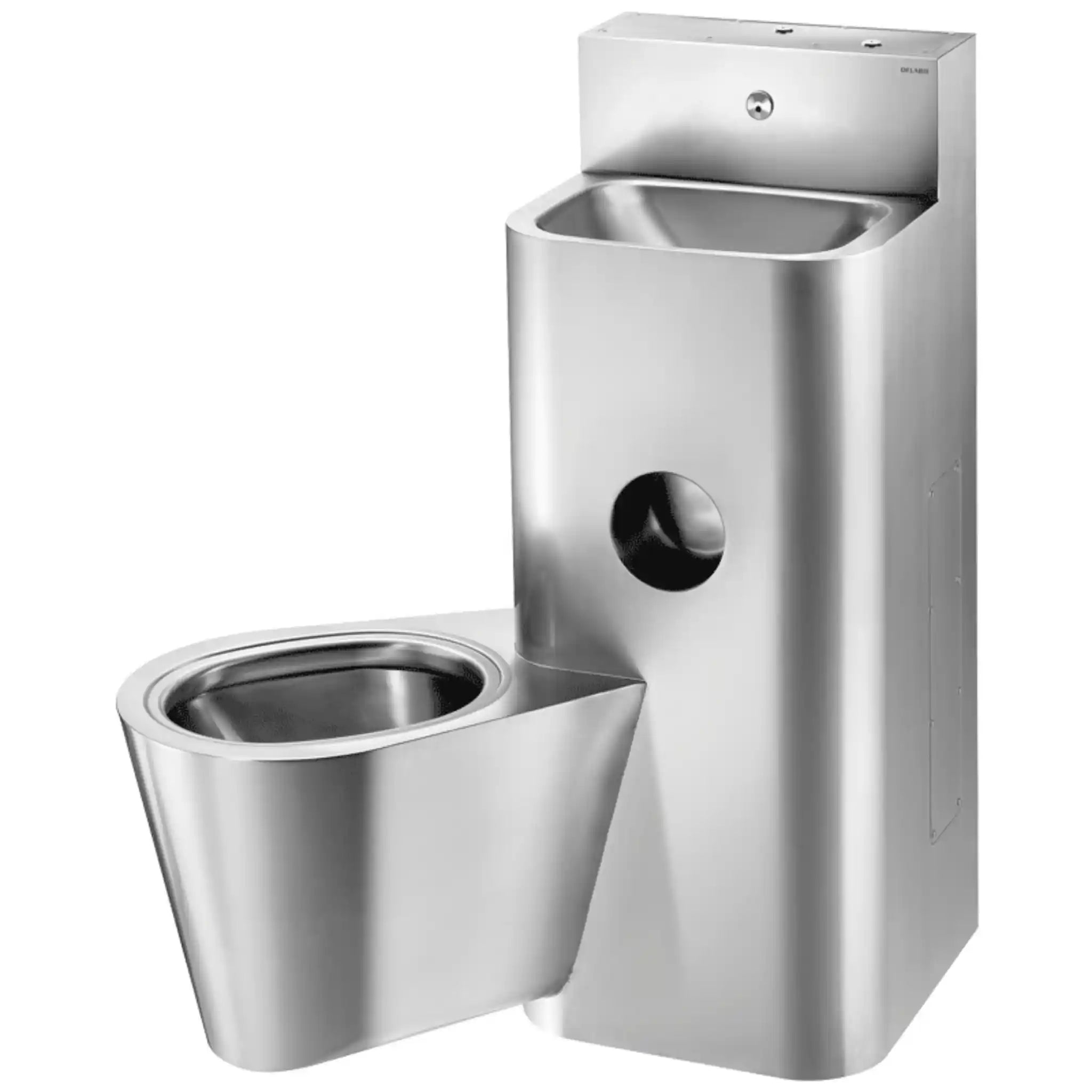

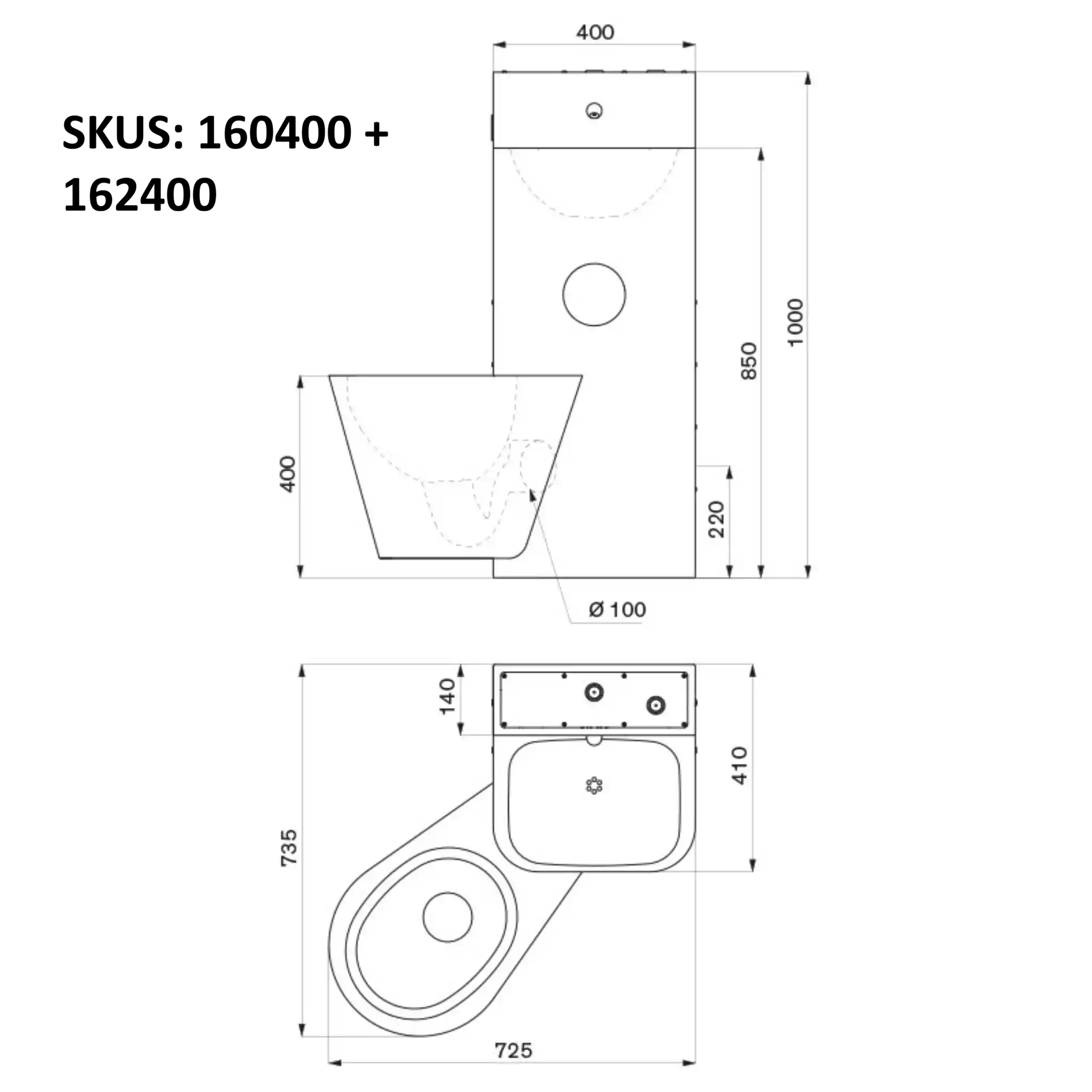

160400	Standard Wall Mounted	No Cistern + Single Tap Control	Wall Hung + Left

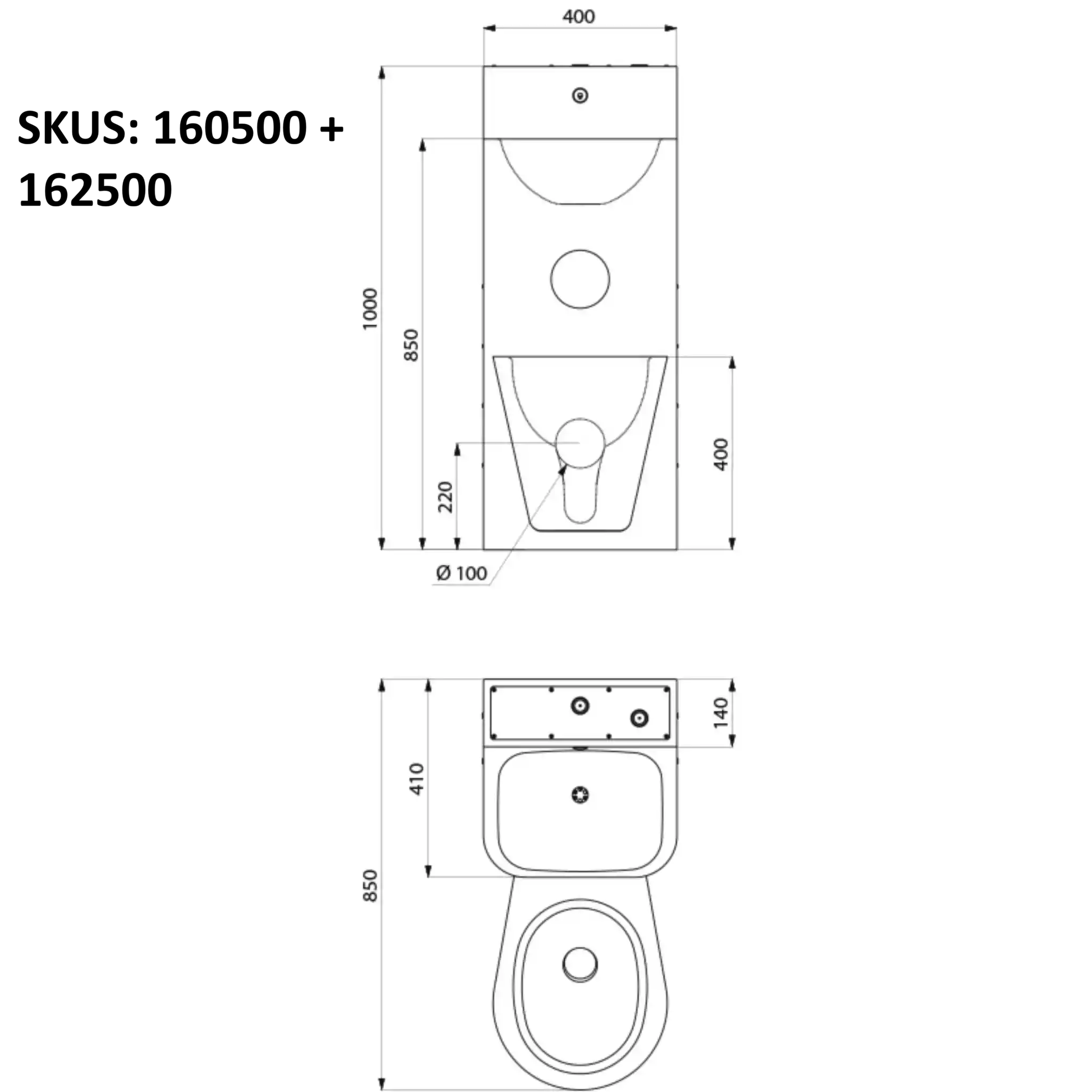

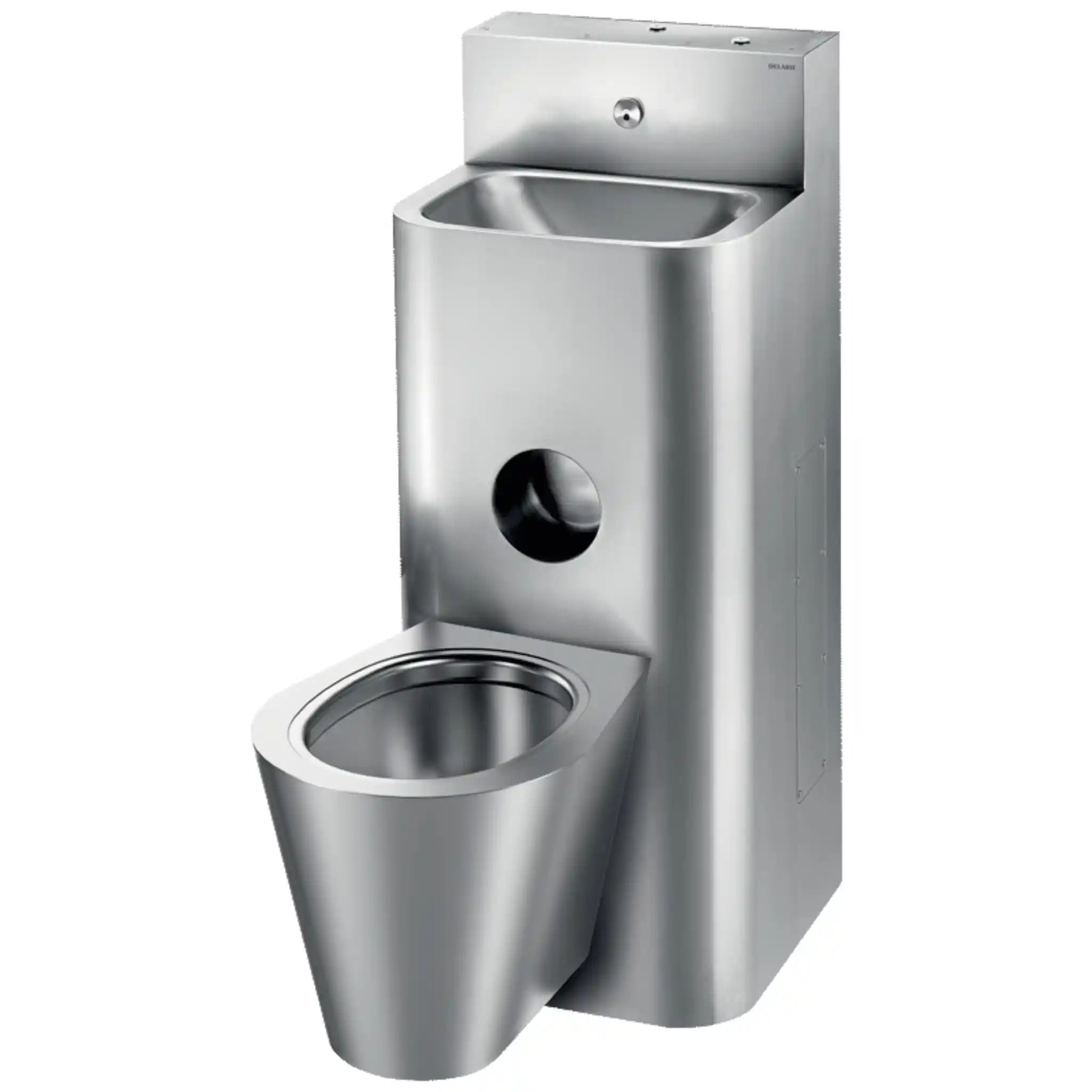

160500	Standard Wall Mounted	No Cistern + Single Tap Control	Wall Hung + Centre

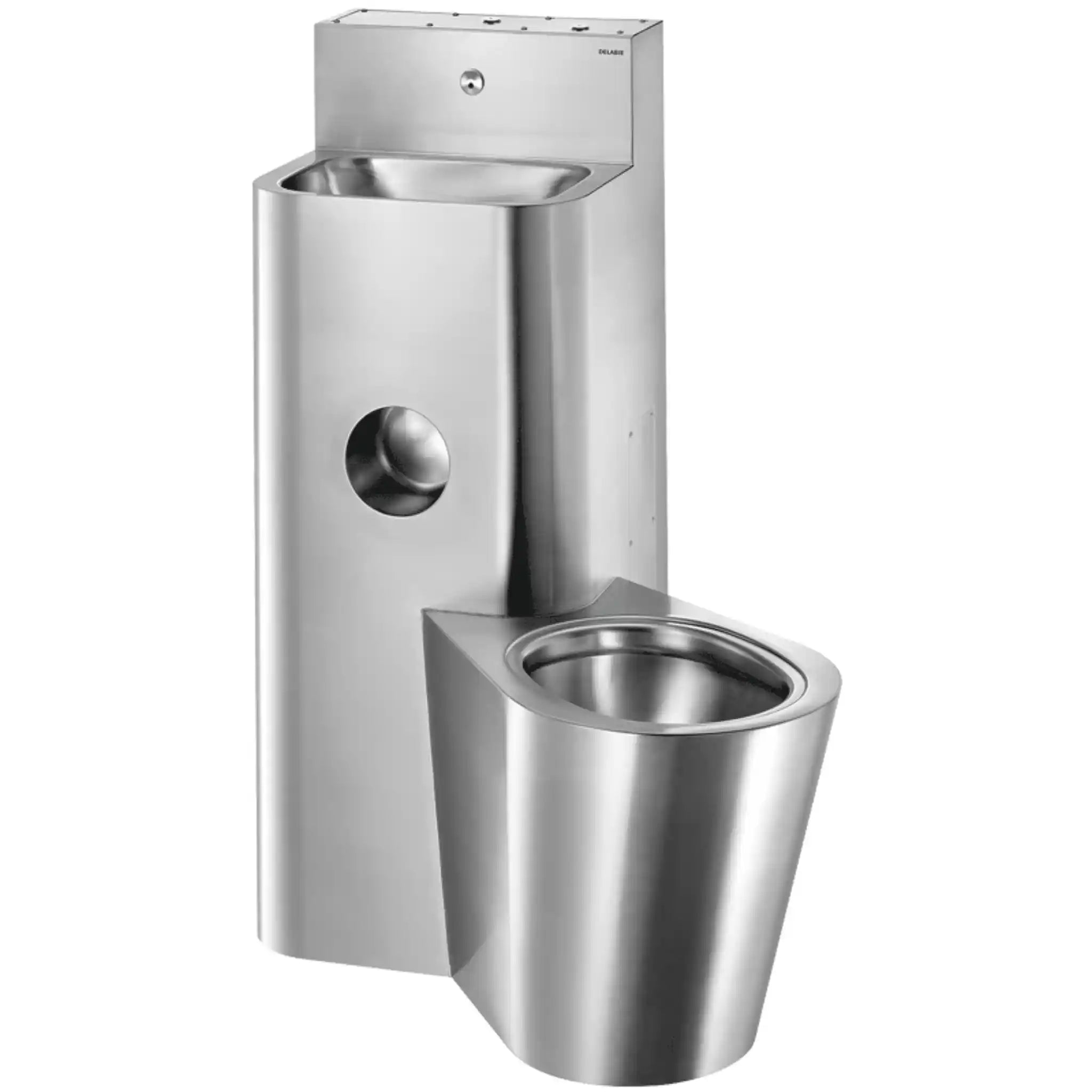

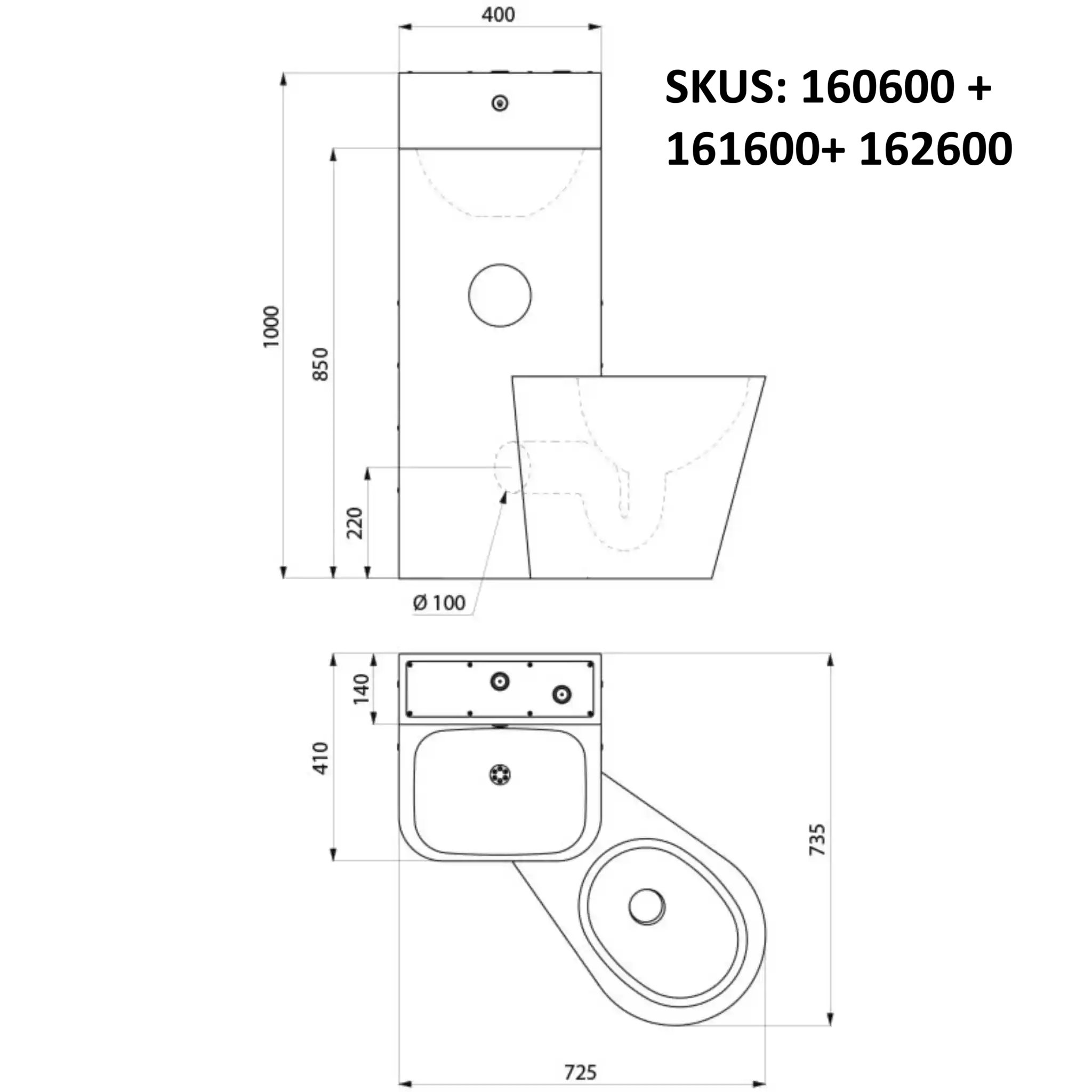

160600	Standard Wall Mounted	No Cistern + Single Tap Control	Floor Standing + Right

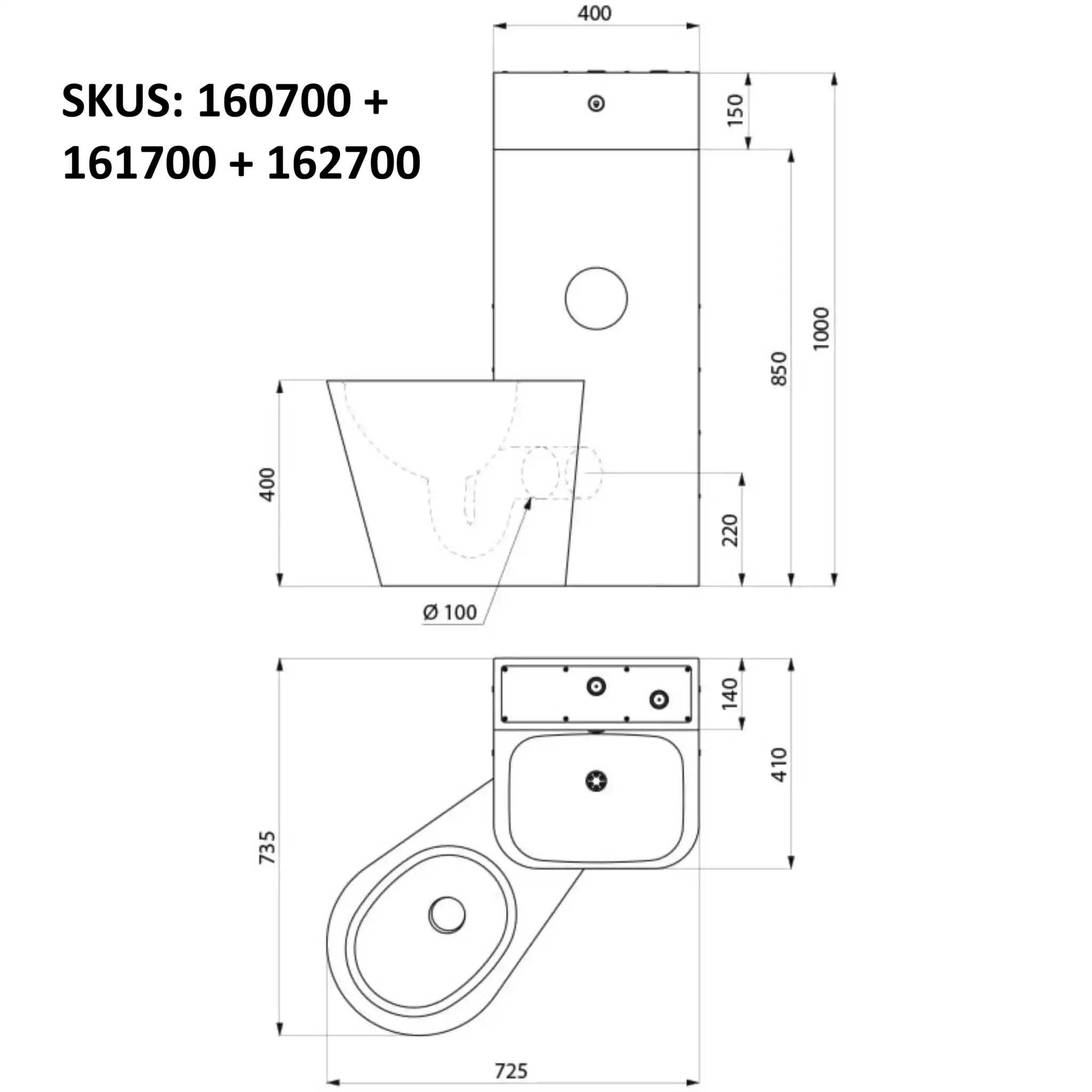

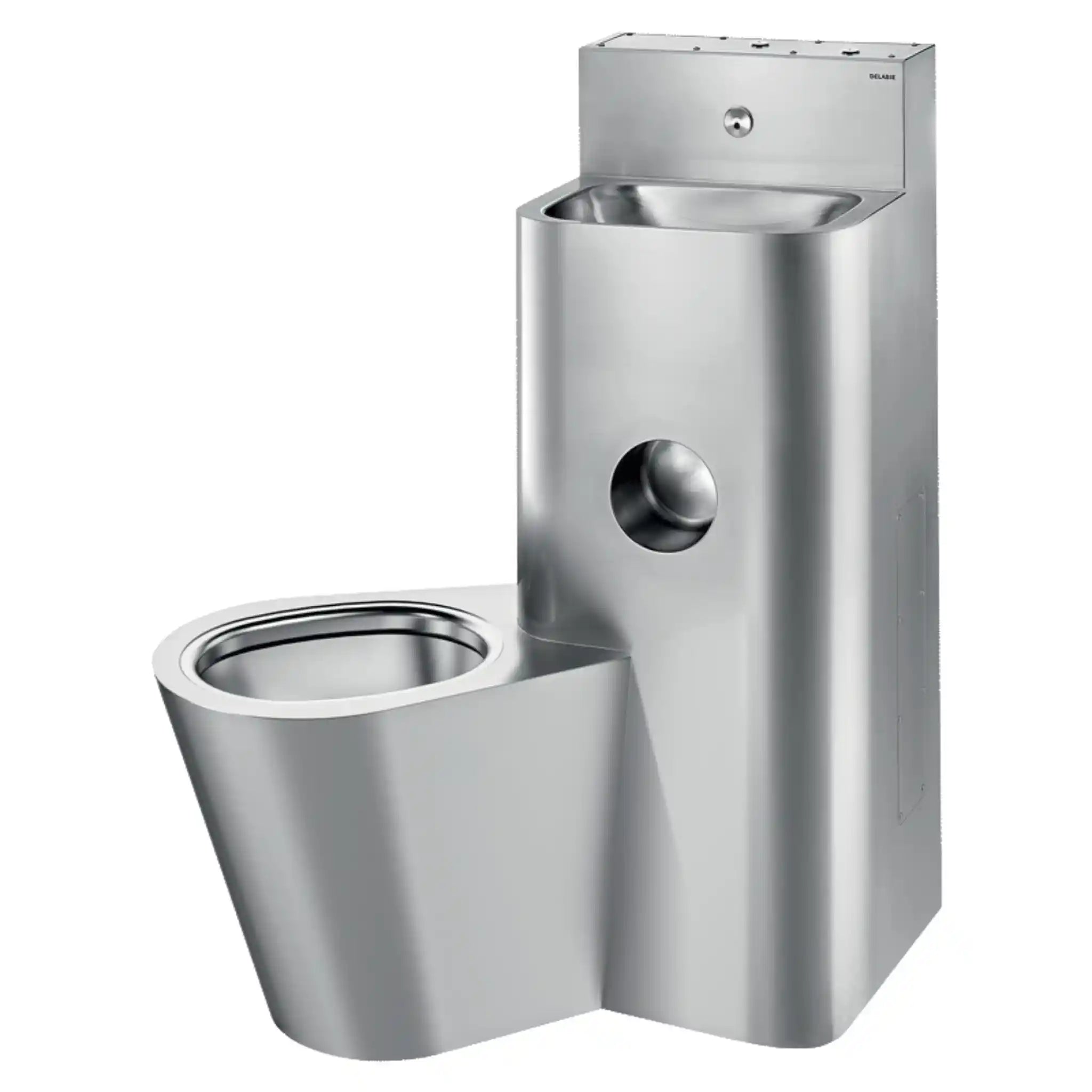

160700	Standard Wall Mounted	No Cistern + Single Tap Control	Floor Standing + Left

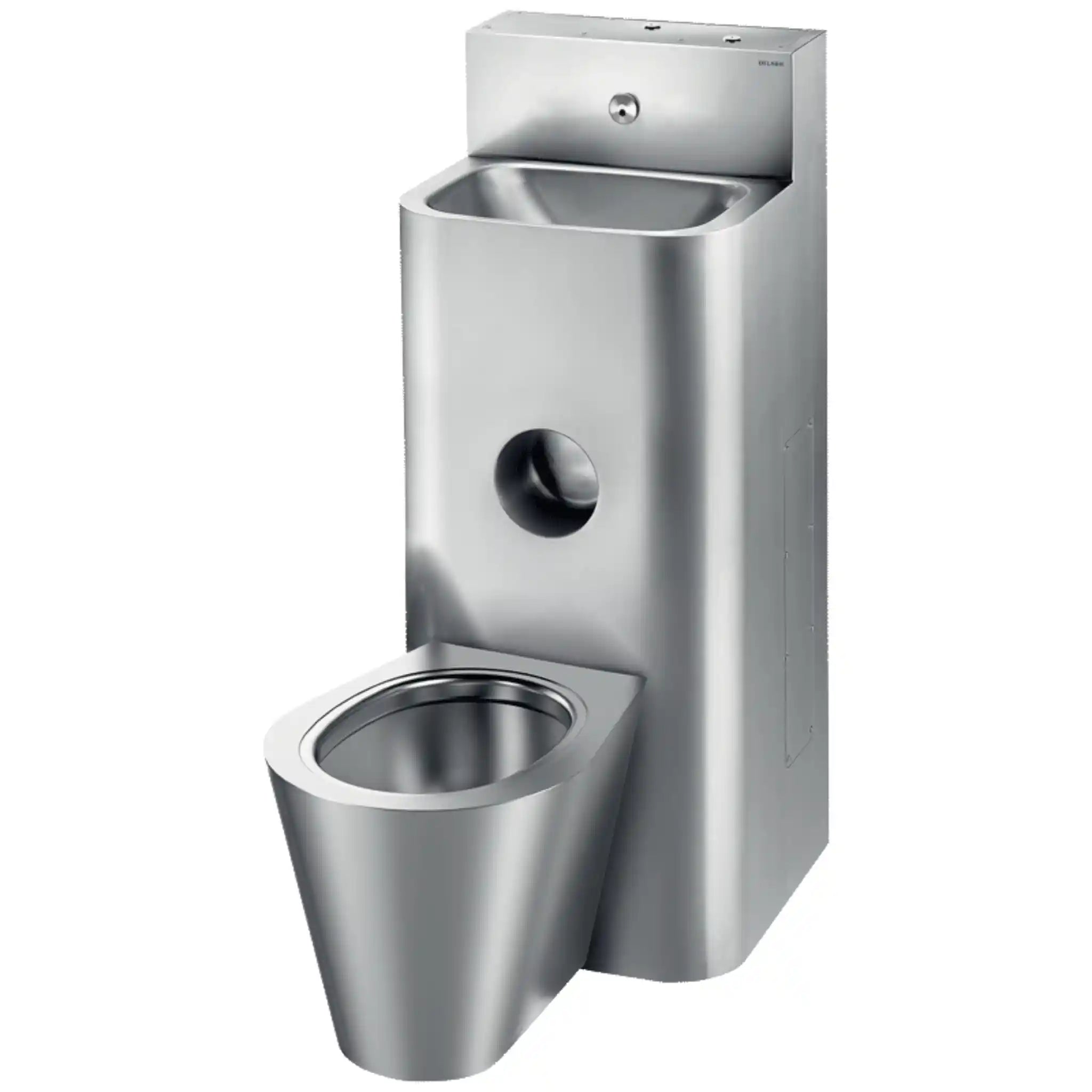

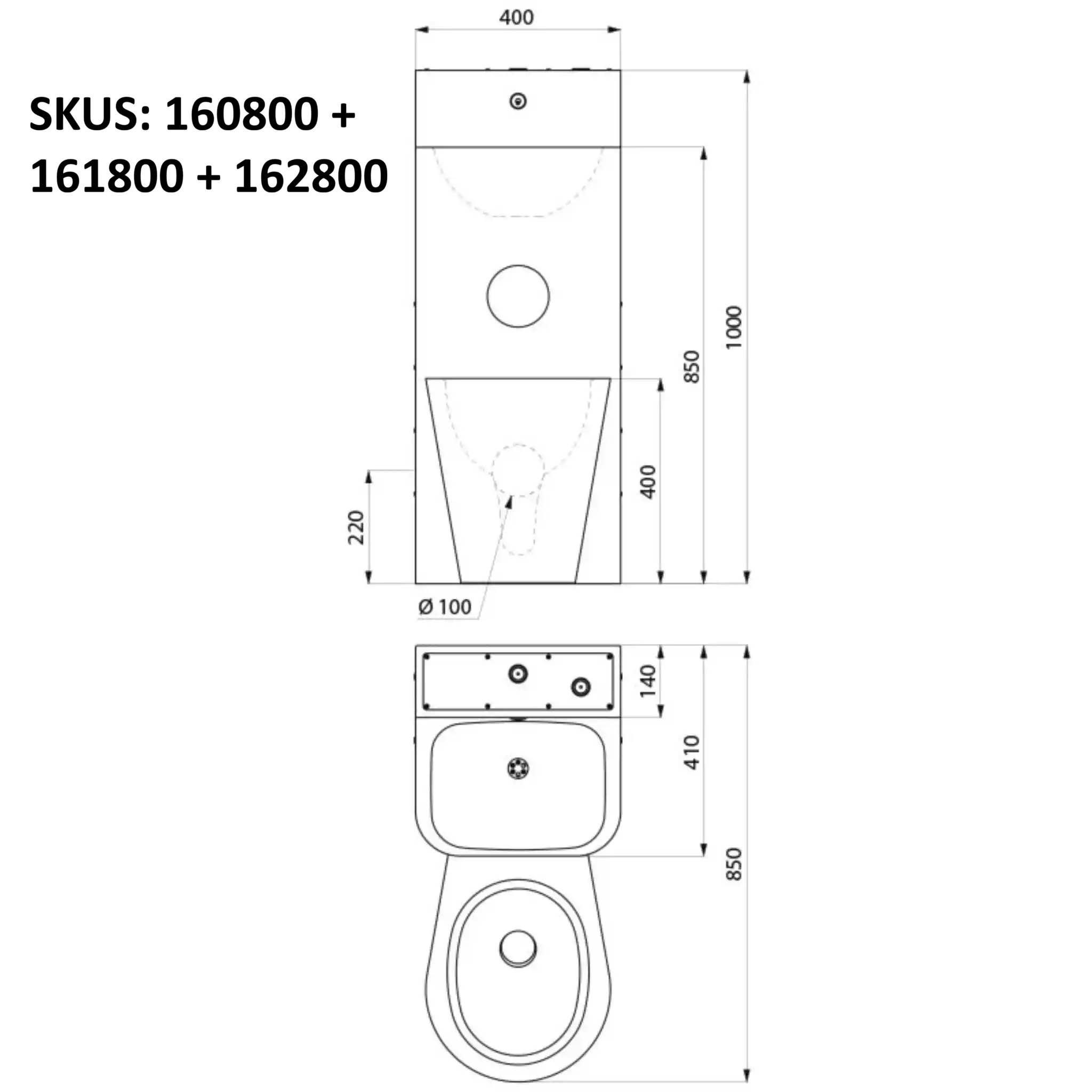

160800	Standard Wall Mounted	No Cistern + Single Tap Control	Floor Standing + Centre
161600	Standard Wall Mounted	No Cistern + Hot & Cold Tap Control	Floor Standing + Right
161700	Standard Wall Mounted	No Cistern + Hot & Cold Tap Control	Floor Standing + Left
161800	Standard Wall Mounted	No Cistern + Hot & Cold Tap Control	Floor Standing + Centre
162300	Standard Wall Mounted	Cistern + Single Tap Control	Wall Hung + Right
162400	Standard Wall Mounted	Cistern + Single Tap Control	Wall Hung + Left
162500	Standard Wall Mounted	Cistern + Single Tap Control	Wall Hung + Centre
162600	Standard Wall Mounted	Cistern + Single Tap Control	Floor Standing + Right
162700	Standard Wall Mounted	Cistern + Single Tap Control	Floor Standing + Left
162800	Standard Wall Mounted	Cistern + Single Tap Control	Floor Standing + Centre

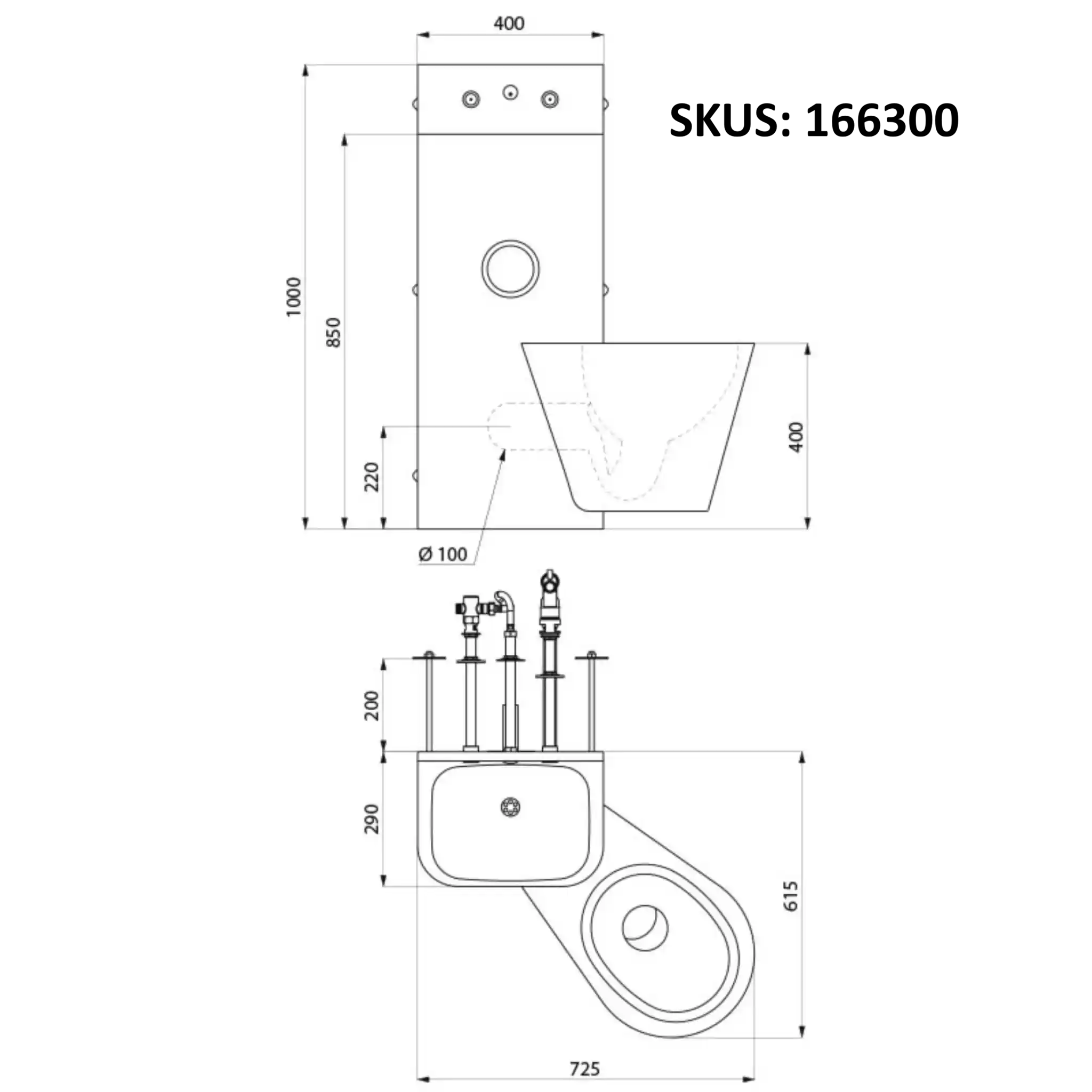

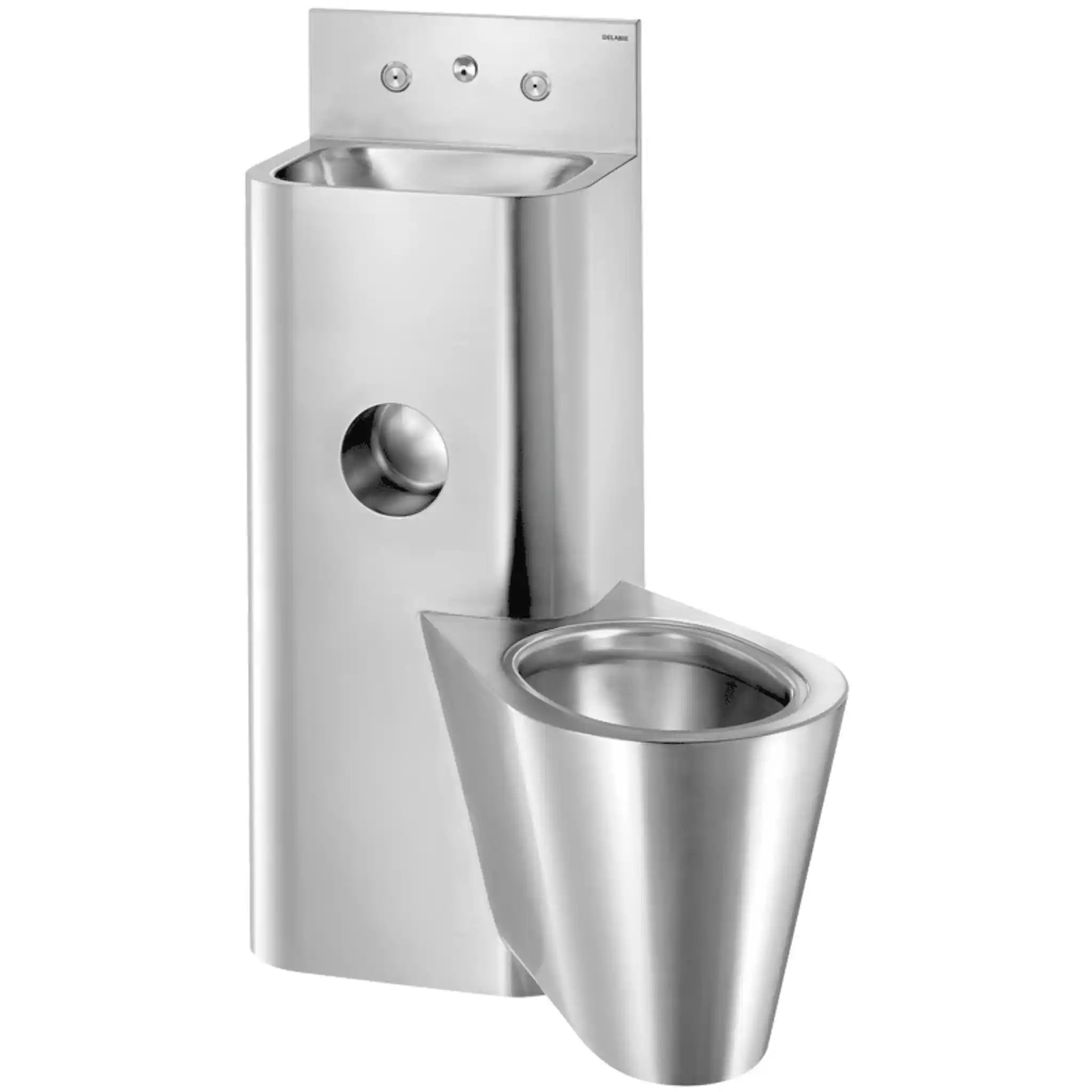

166300	Service Duct (cross wall)	No Cistern + Single Tap Control	Wall Hung + Right

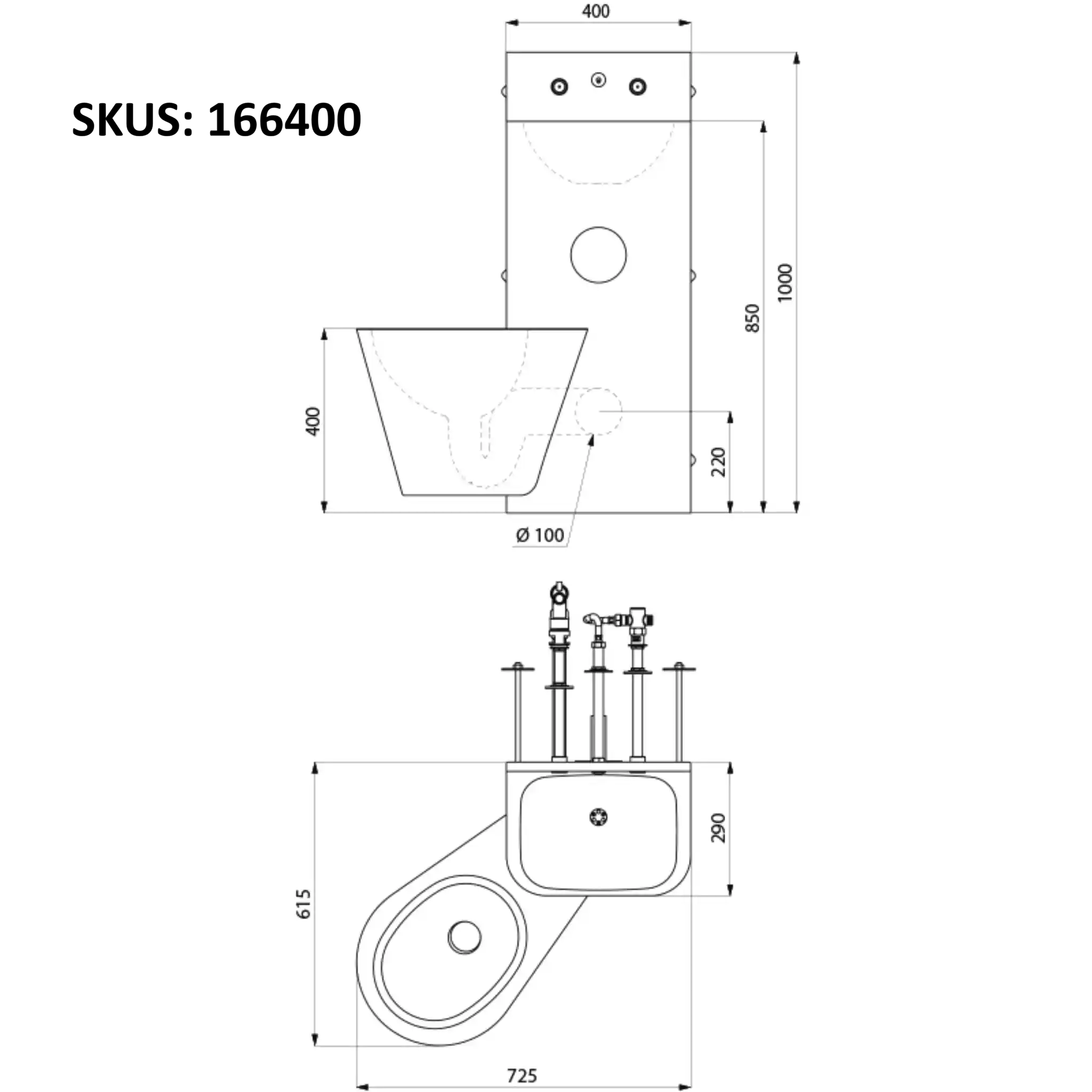

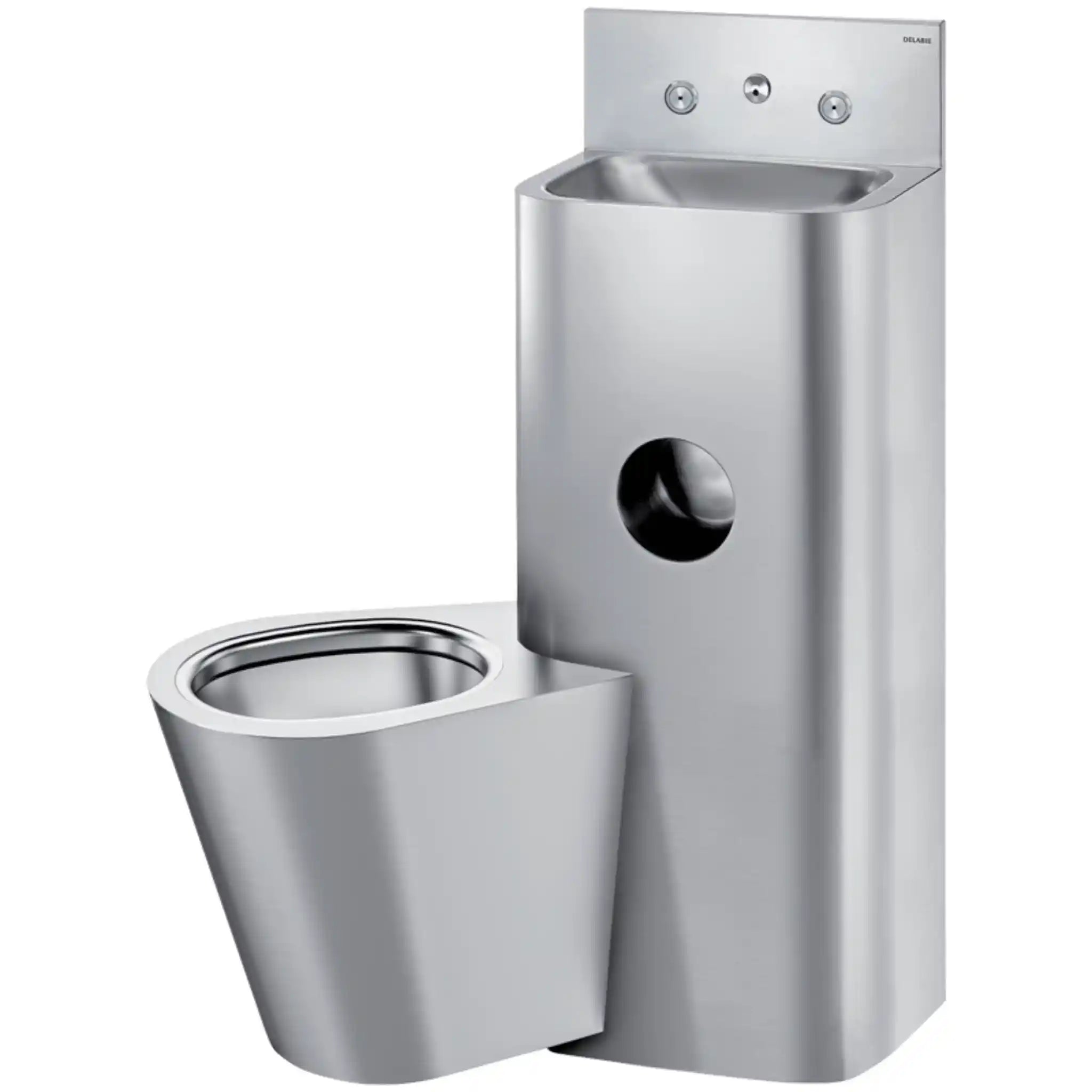

166400	Service Duct (cross wall)	No Cistern + Single Tap Control	Wall Hung + Left

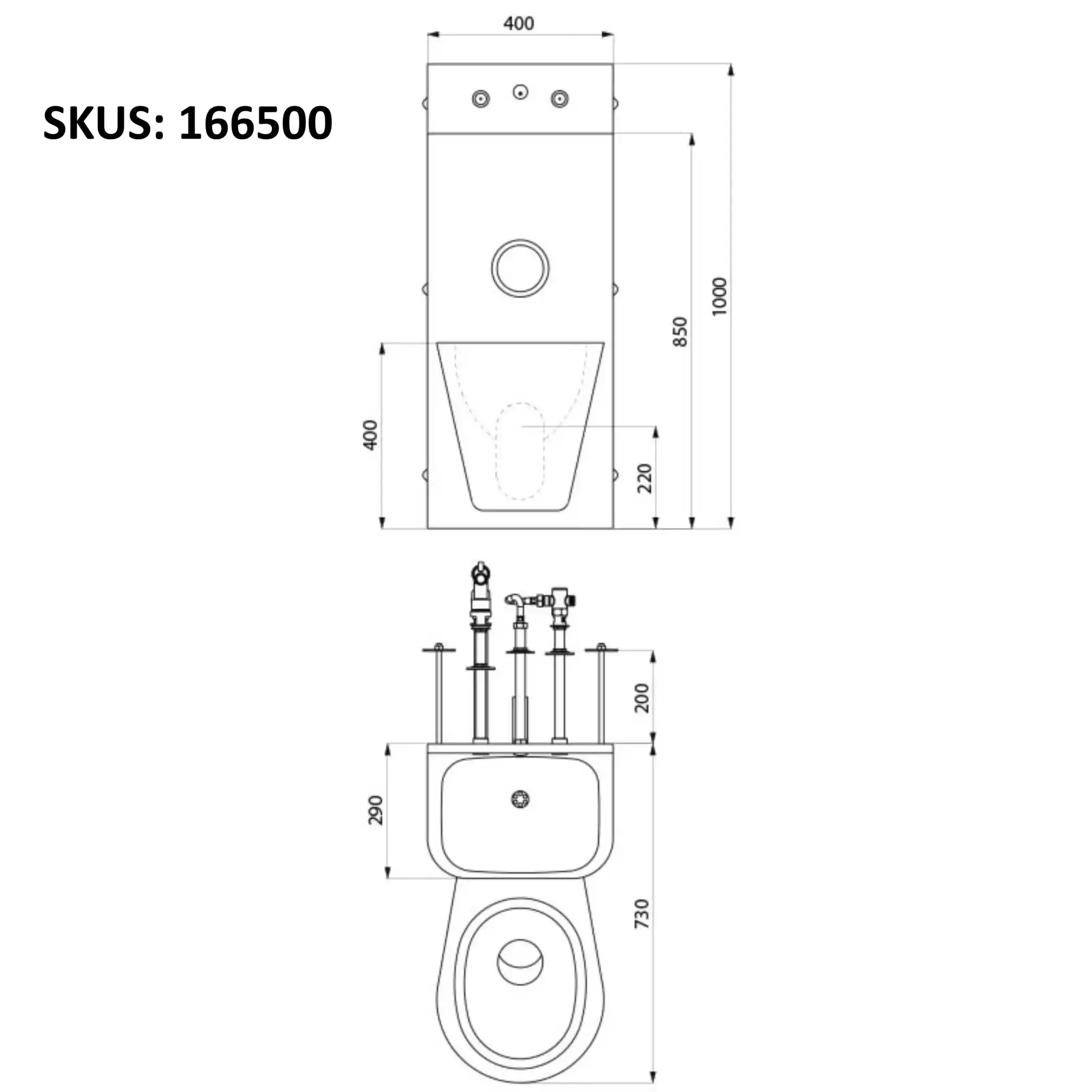

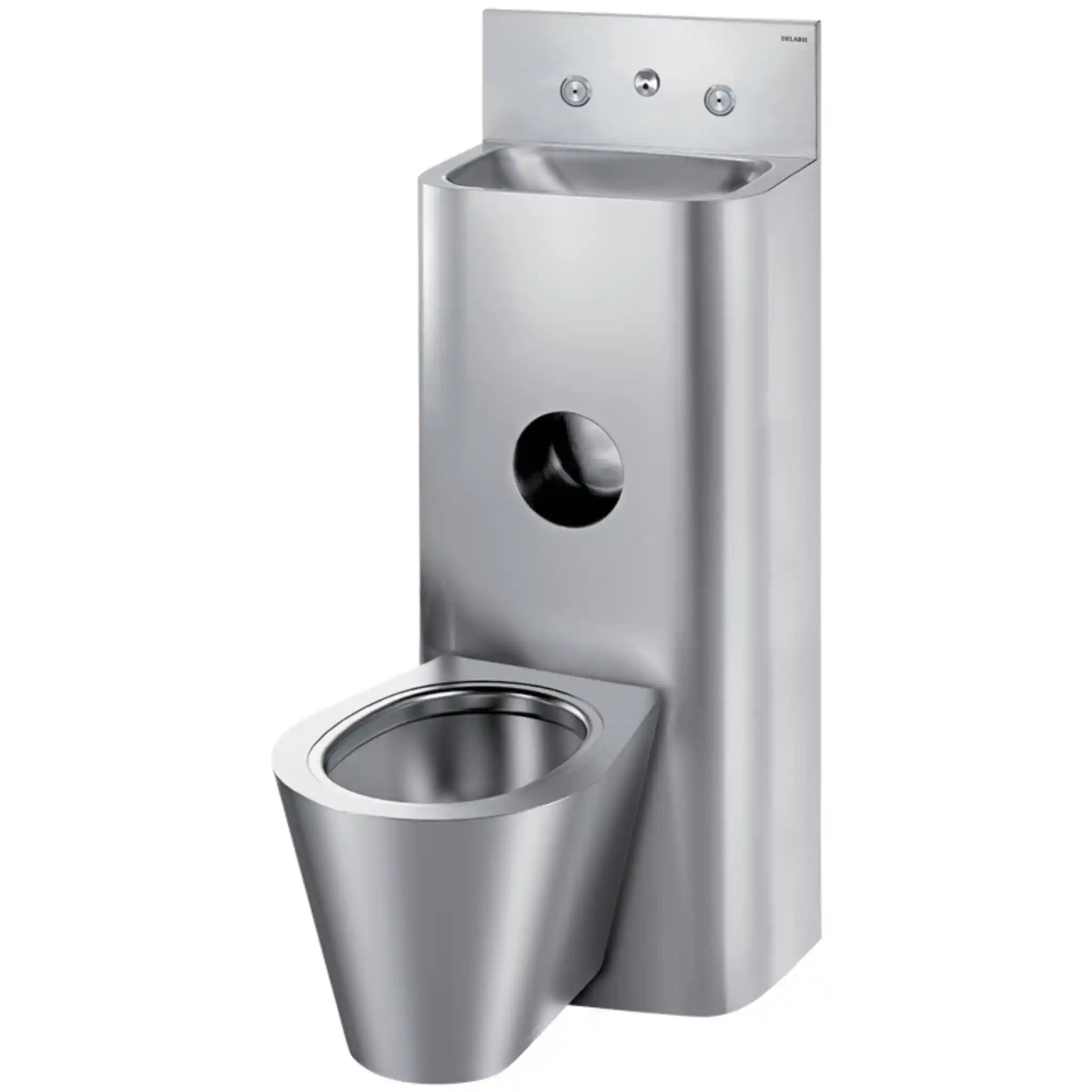

166500	Service Duct (cross wall)	No Cistern + Single Tap Control	Wall Hung + Centre

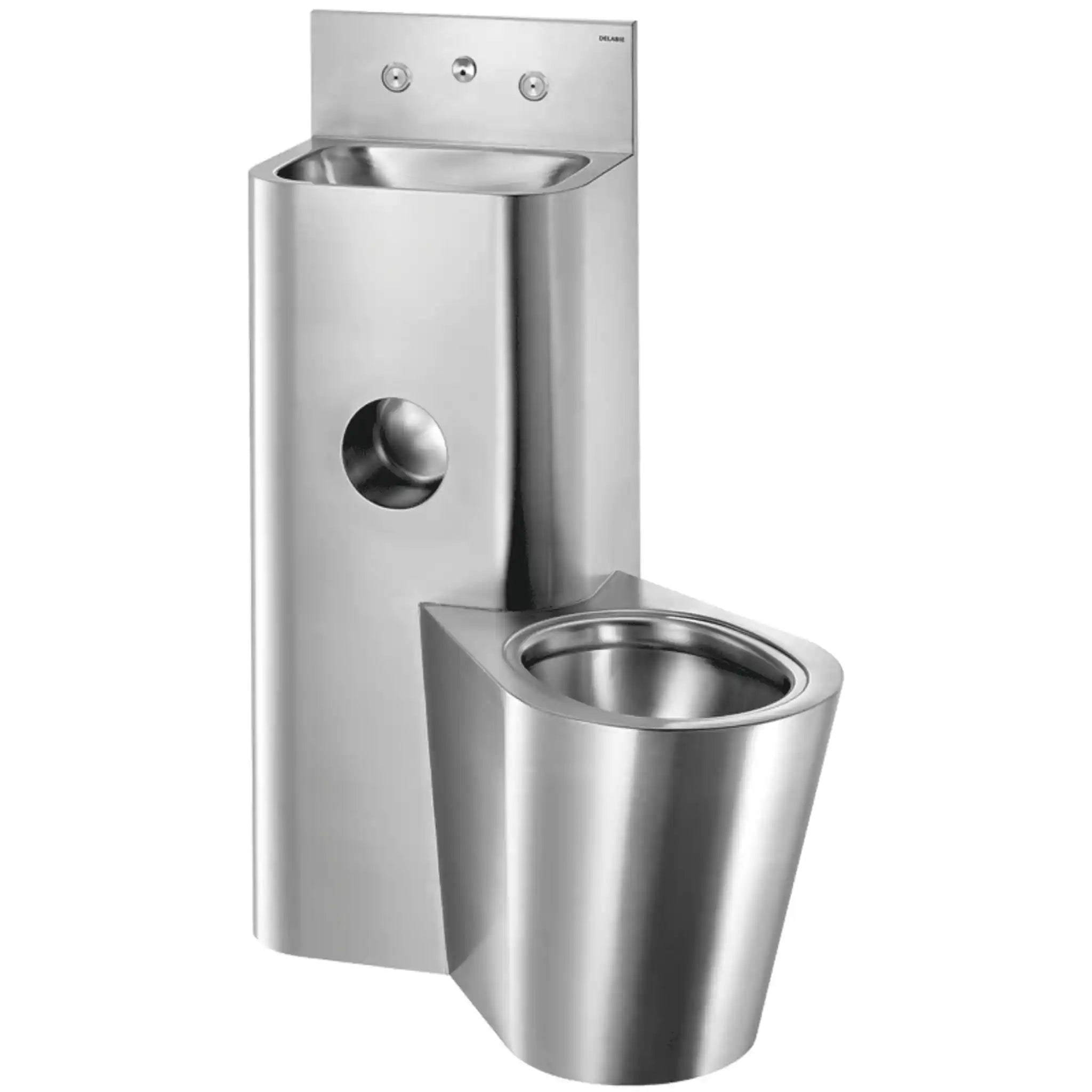

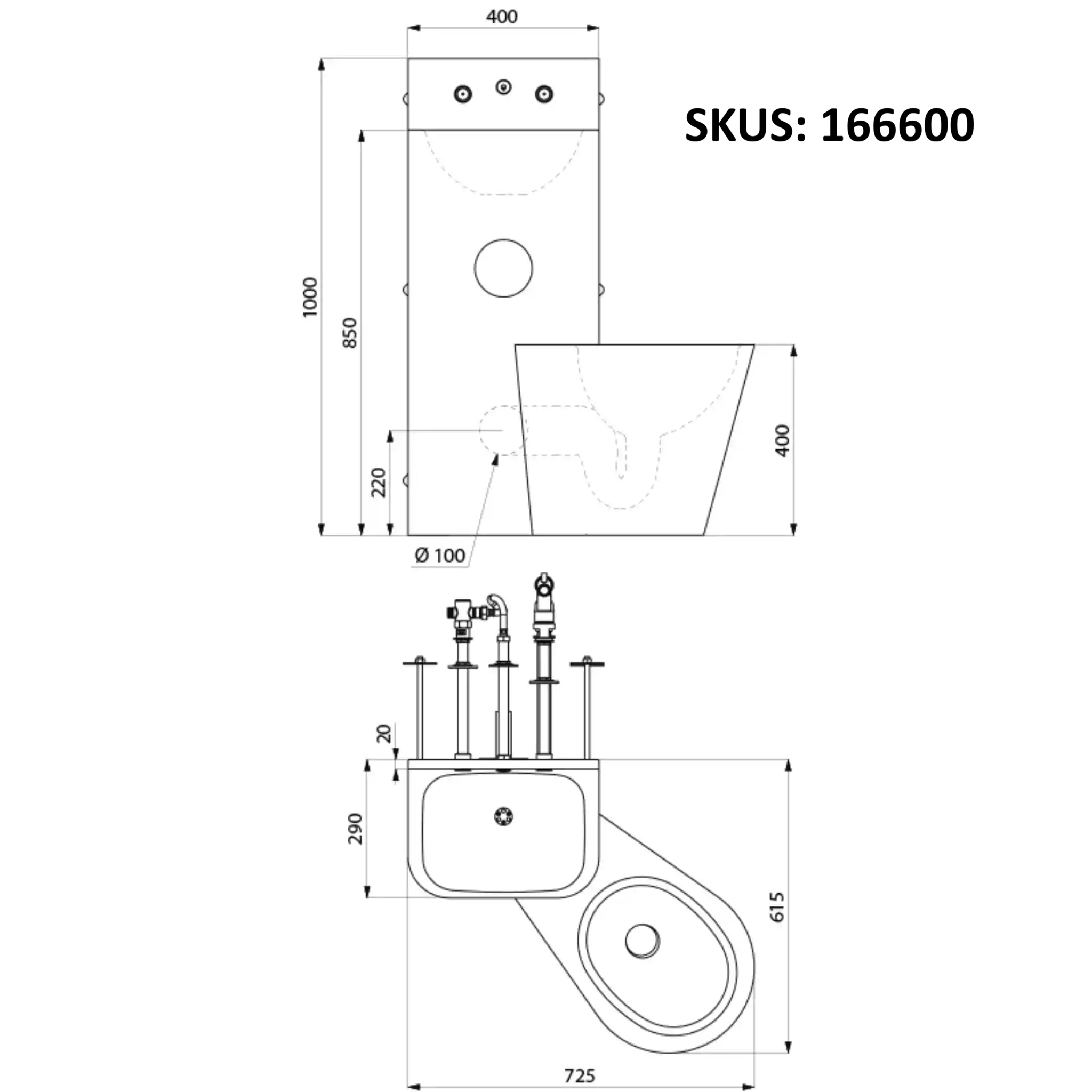

166600	Service Duct (cross wall)	No Cistern + Single Tap Control	Floor Standing + Right

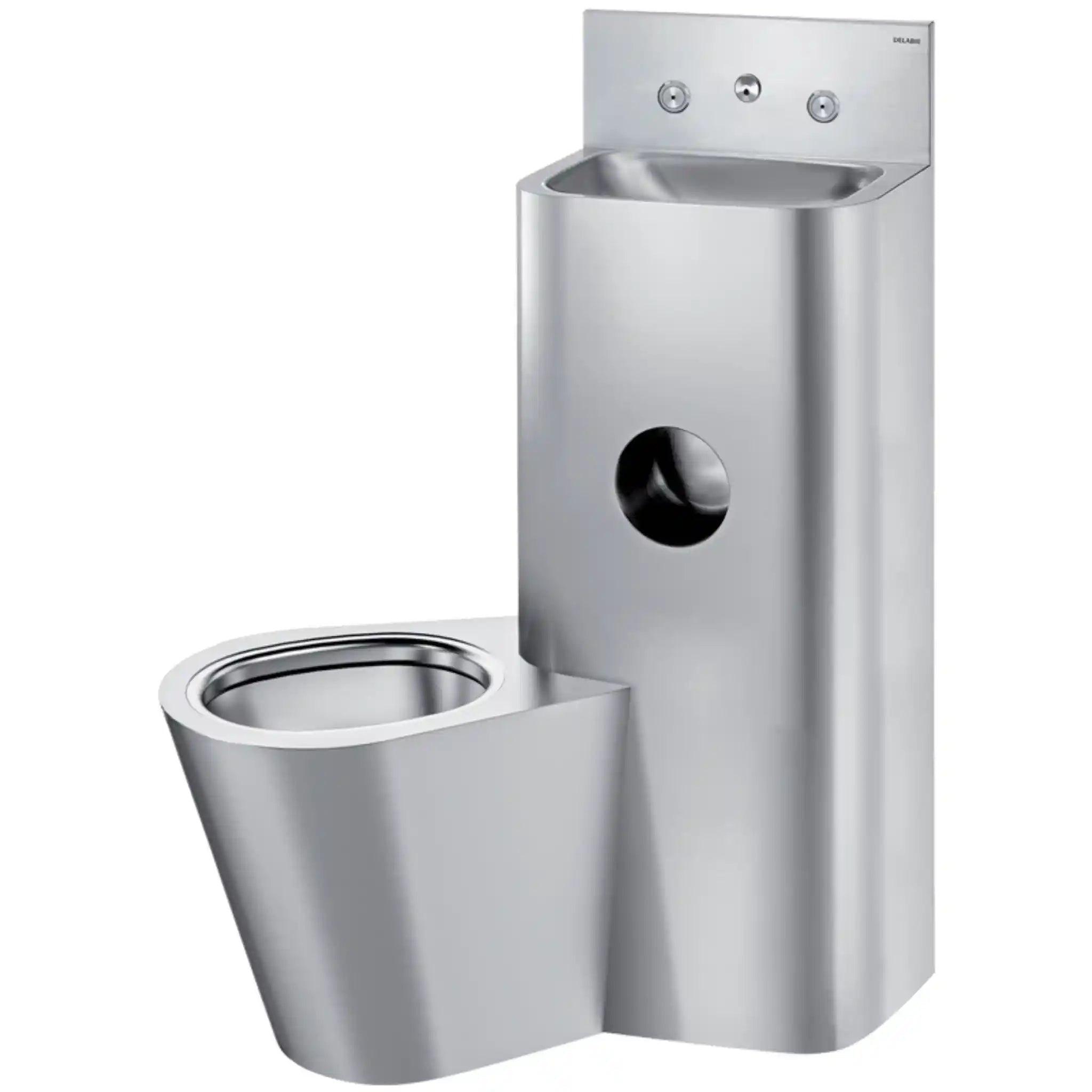

166700	Service Duct (cross wall)	No Cistern + Single Tap Control	Floor Standing + Left

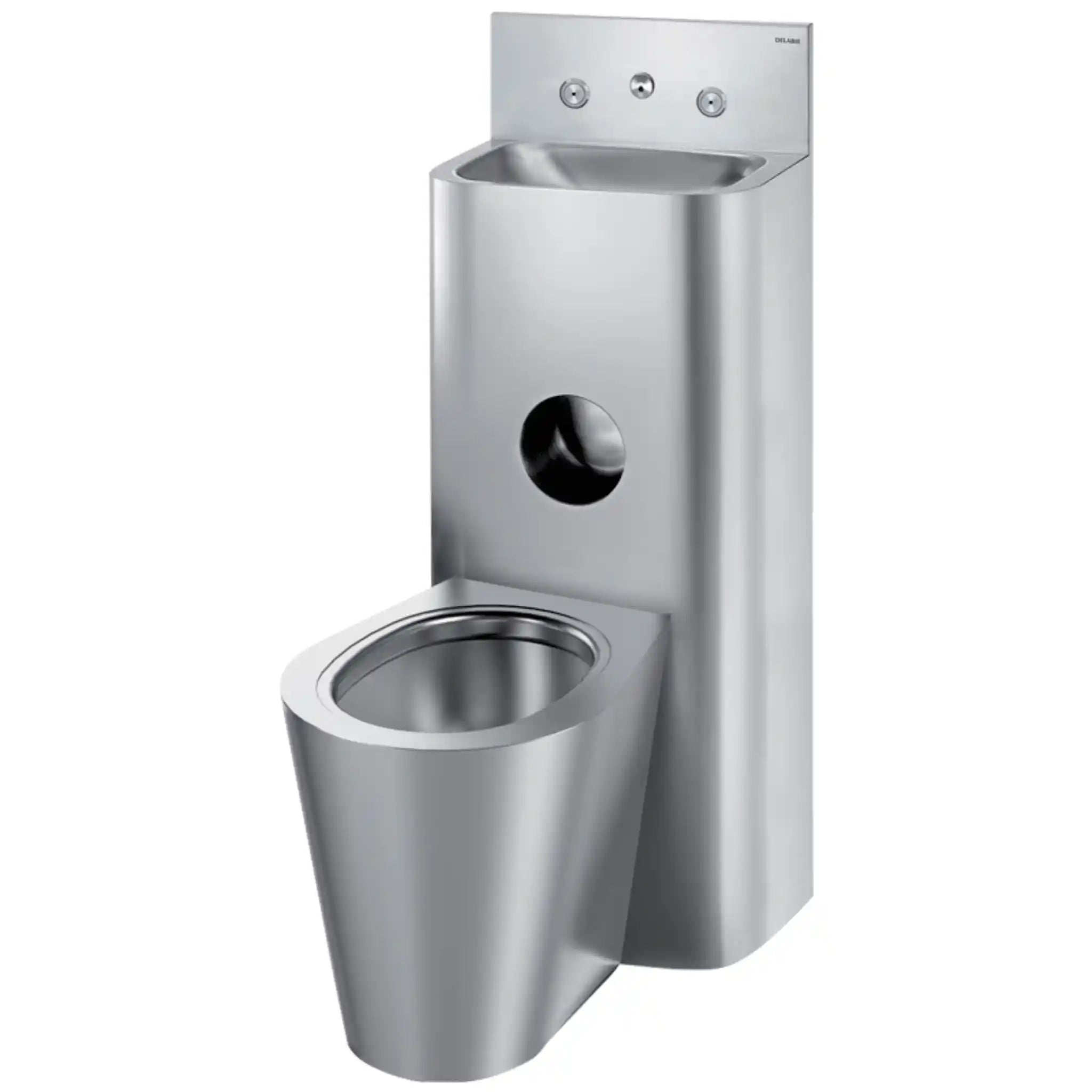

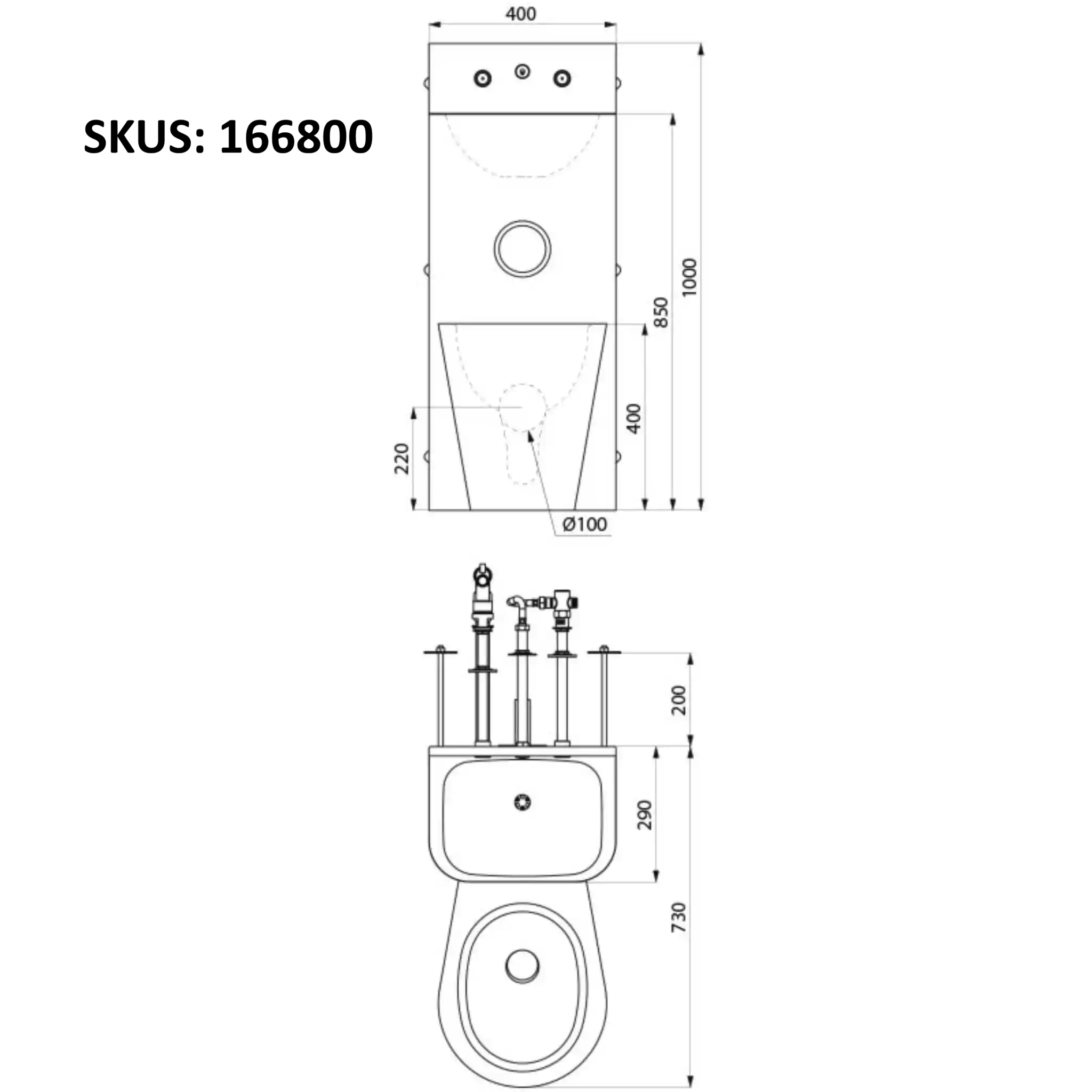

166800	Service Duct (cross wall)	No Cistern + Single Tap Control	Floor Standing + Centre
