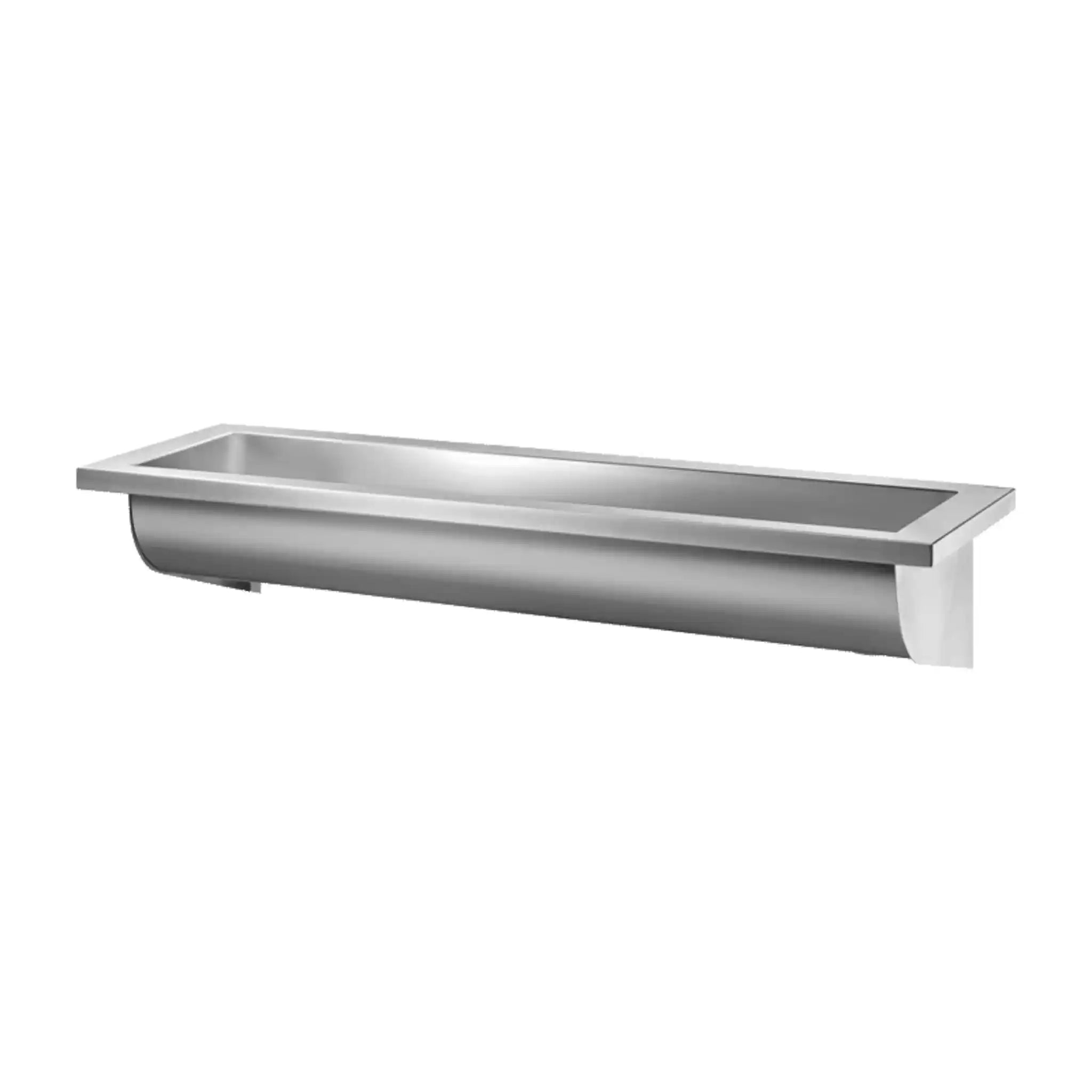

Canal Wall Mounted Wash Trough

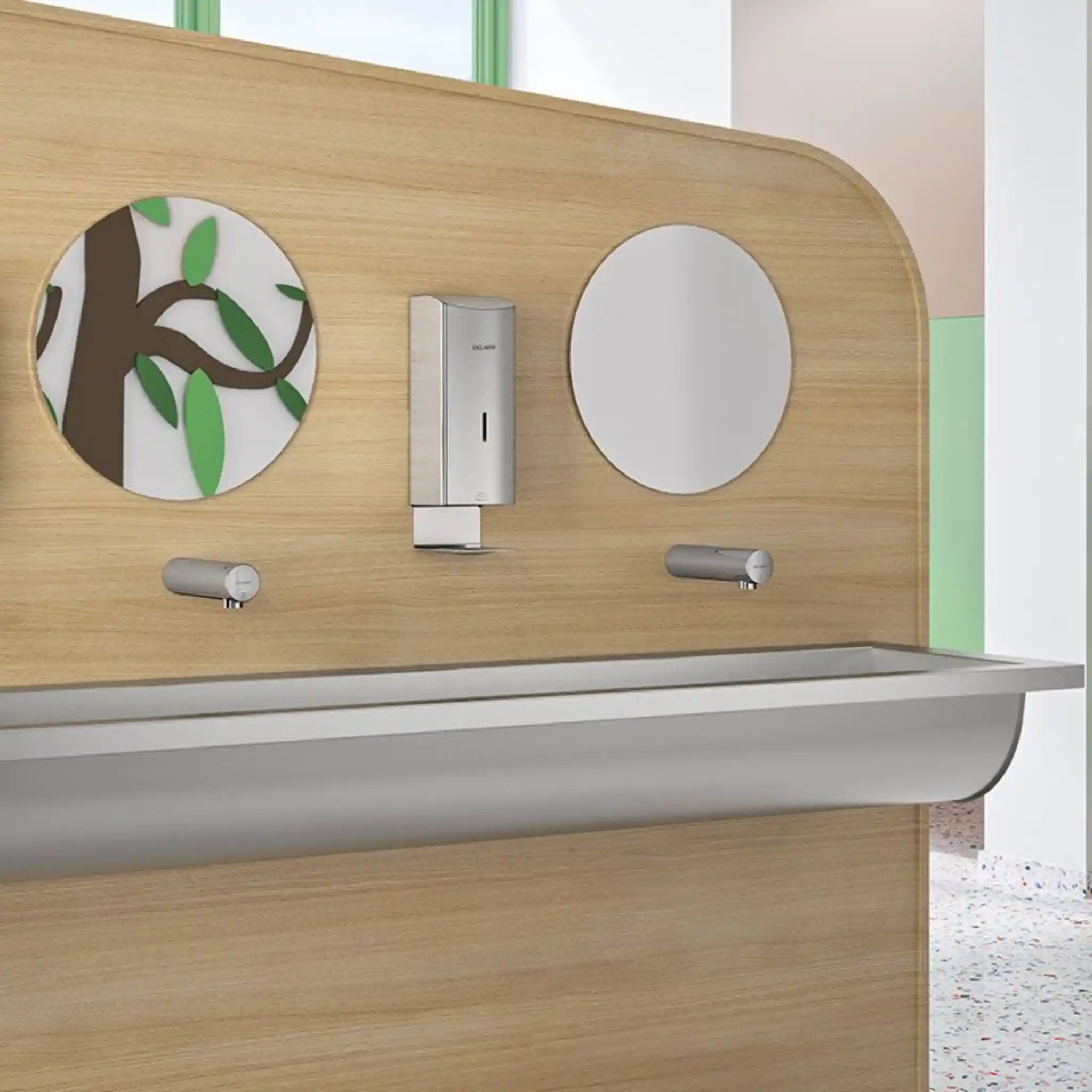

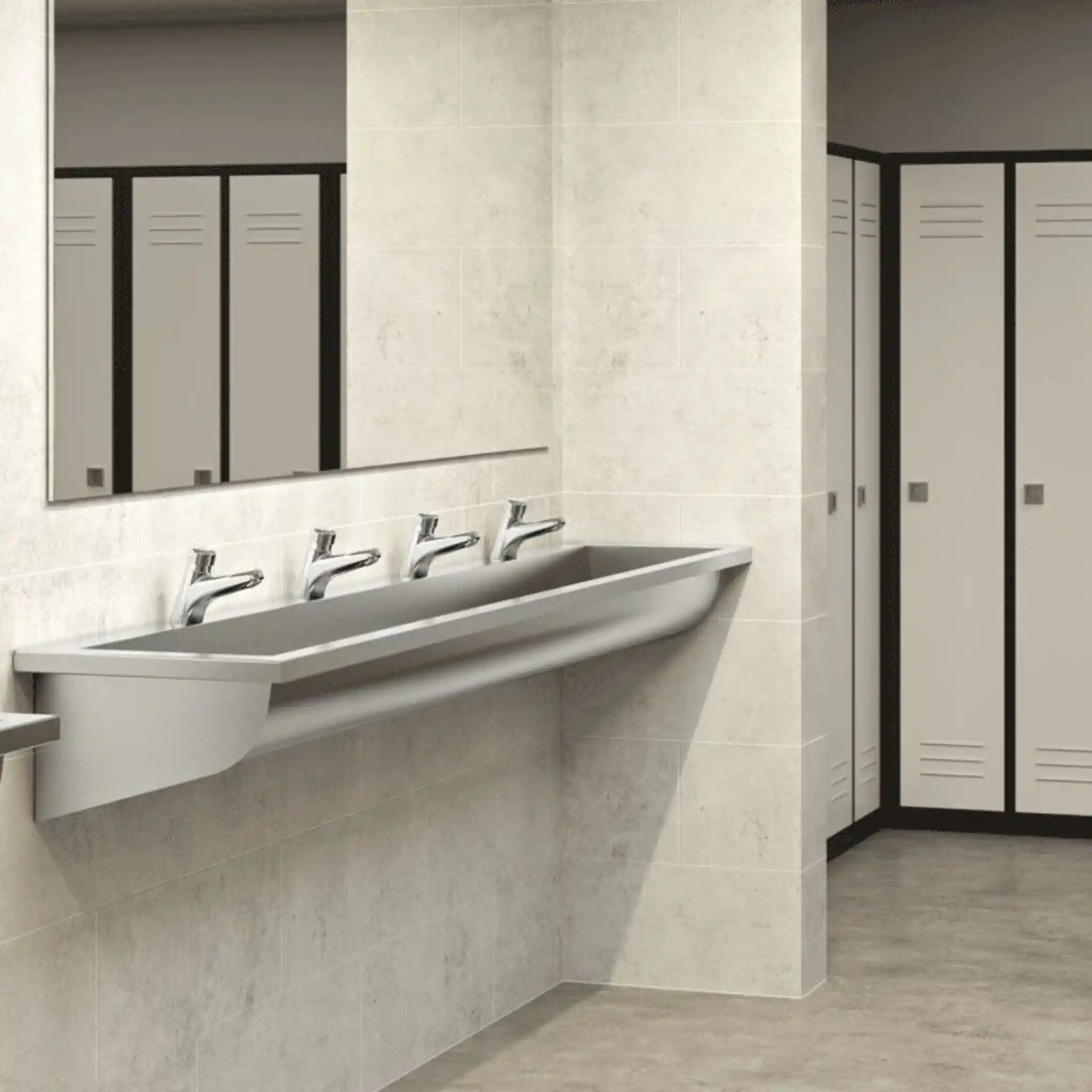

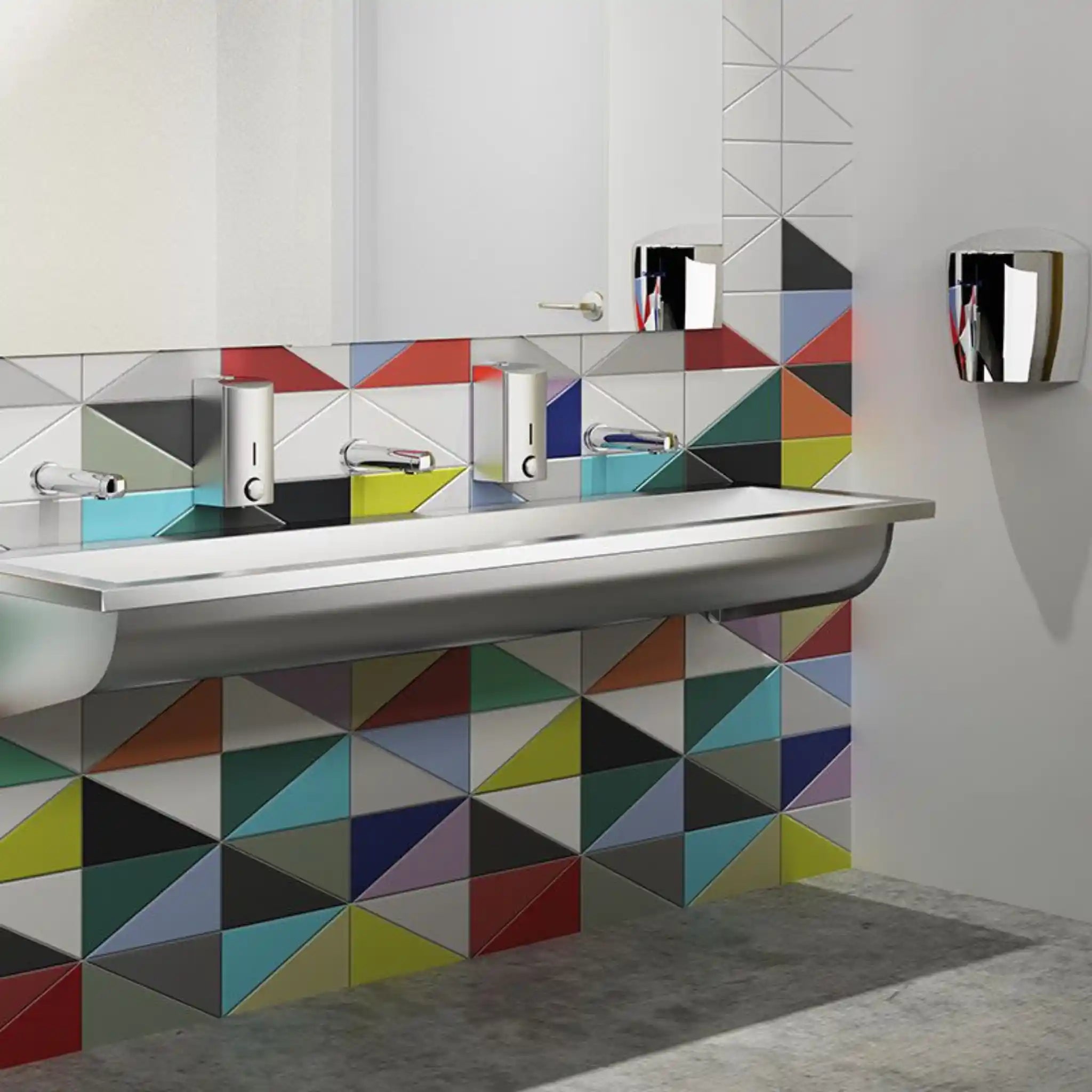

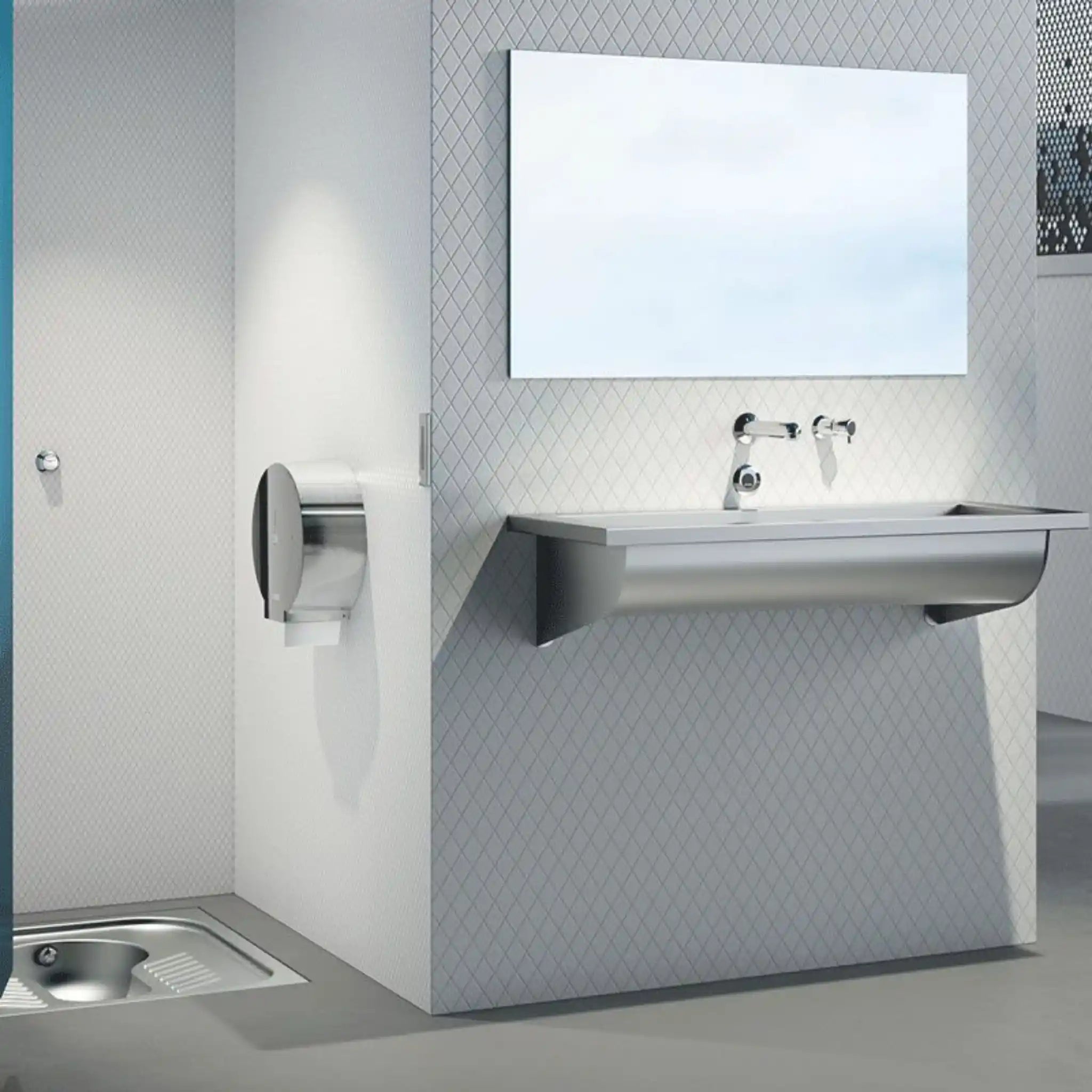

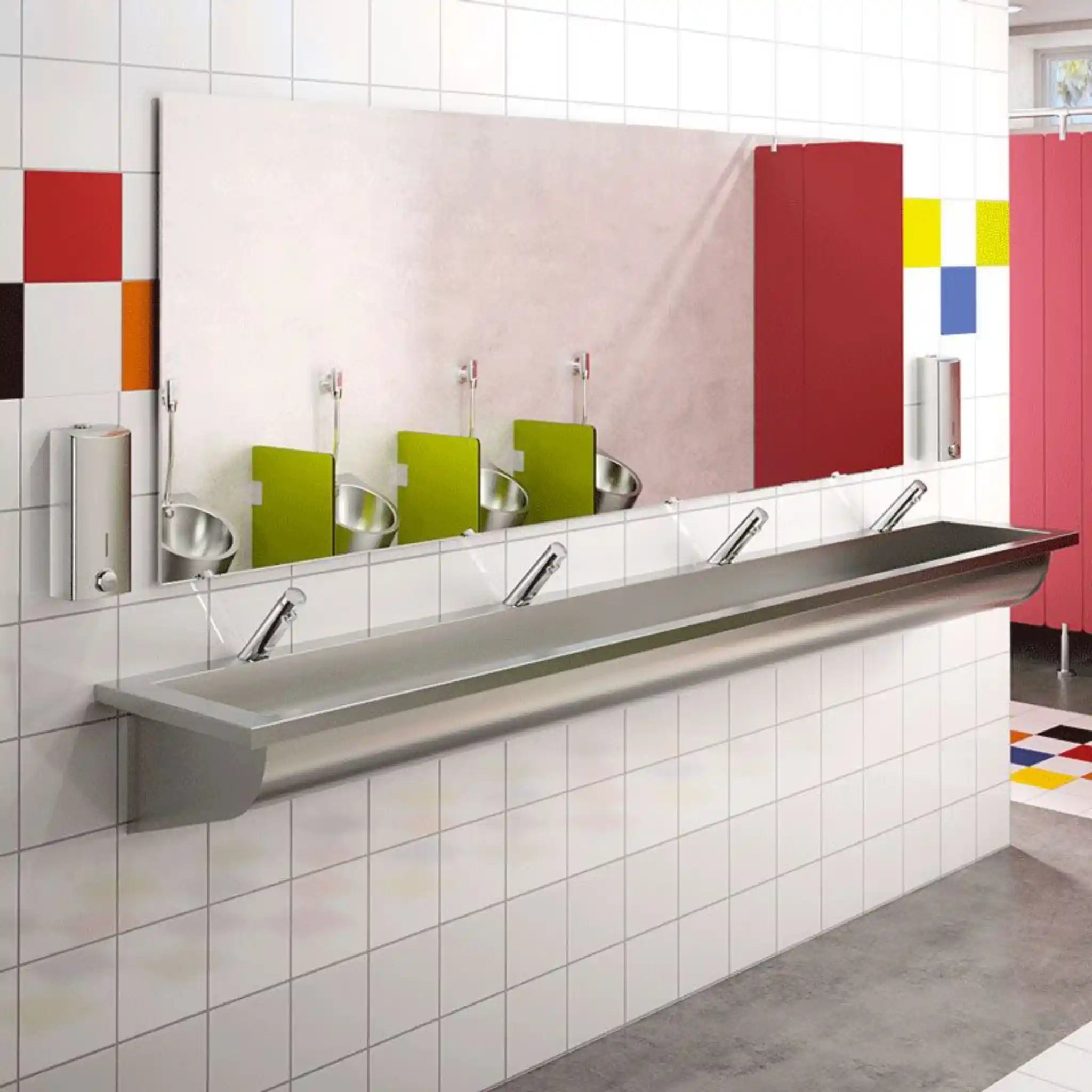

The Delabie Canal is a wall mounted stainless steel wash trough for multi user handwashing. The polished satin finish is easy to clean and resistant to corrosion. Available in lengths from 600mm to 3000mm, it suits everything from small washrooms to high traffic facilities. Custom sizes are available on request.
The trough is straightforward to install: it is lightweight, requires no joint concealers, and comes supplied with the waste and all fixings needed for wall mounting. Taps can be wall mounted or deck mounted depending on what suits the installation. A matching stainless steel splashback is available separately. Backed by a 30 year warranty.
Product Video
Key Features
- Easy to install: Lightweight and supplied complete with waste and all fixings. No joint concealers needed.
- Tap flexibility: Taps can be wall mounted or deck mounted, giving you options depending on the site layout.
- Stainless steel construction: Polished satin 304 stainless steel. Easy to clean, built to last, and resistant to corrosion.
- Keeps the floor clear: Wall mounted on integral fixing brackets, leaving the floor beneath completely clear.
- End drain: The waste outlet sits at one end of the trough, not in the centre.
- No overflow: Does not include an overflow.
- CE certified: Carries CE certification and complies with EN 14296.
- 30 year warranty: Backed by a 30 year manufacturer's warranty.
Delabie Canal Wash Trough Specifications
| Material | 304 stainless steel |
|---|---|
| Finish | Polished satin |
| Height | 250mm |
| Width | 400mm |
| Thickness | 0.8mm (bowl) and 1.5mm (surround and fixing brackets) |
Delabie Canal Wash Trough Manuals & Downloads
Frequently Asked Questions
Is a matching splashback available for the Canal wash trough?
Delabie produce matching stainless steel splashbacks for the Canal wash trough in corresponding lengths, sold separately as an accessory. Contact us for availability.
Are taps included with the Canal wash trough?
Taps are not included and are sold separately. Delabie's TEMPOSOFT 2 time flow tap is listed as a compatible associated product for this trough.
Can taps be wall mounted or deck mounted on the Canal trough?
Water controls can be positioned either wall mounted or deck mounted depending on the installation requirements and the tap variant selected. Variants with pre-drilled 22mm tap holes are available for deck mounted controls.
Does the Canal wash trough include a waste and fixings?
Yes. Each Canal wash trough is supplied complete with a waste and all fixing elements required for wall mounting.
Are custom sizes available for the Canal wash trough?
Yes. Custom sizes are available on request in addition to the standard lengths of 600mm to 3000mm.
Available Variants
| SKU | Length | Tap Holes | Drain Position |
|---|---|---|---|

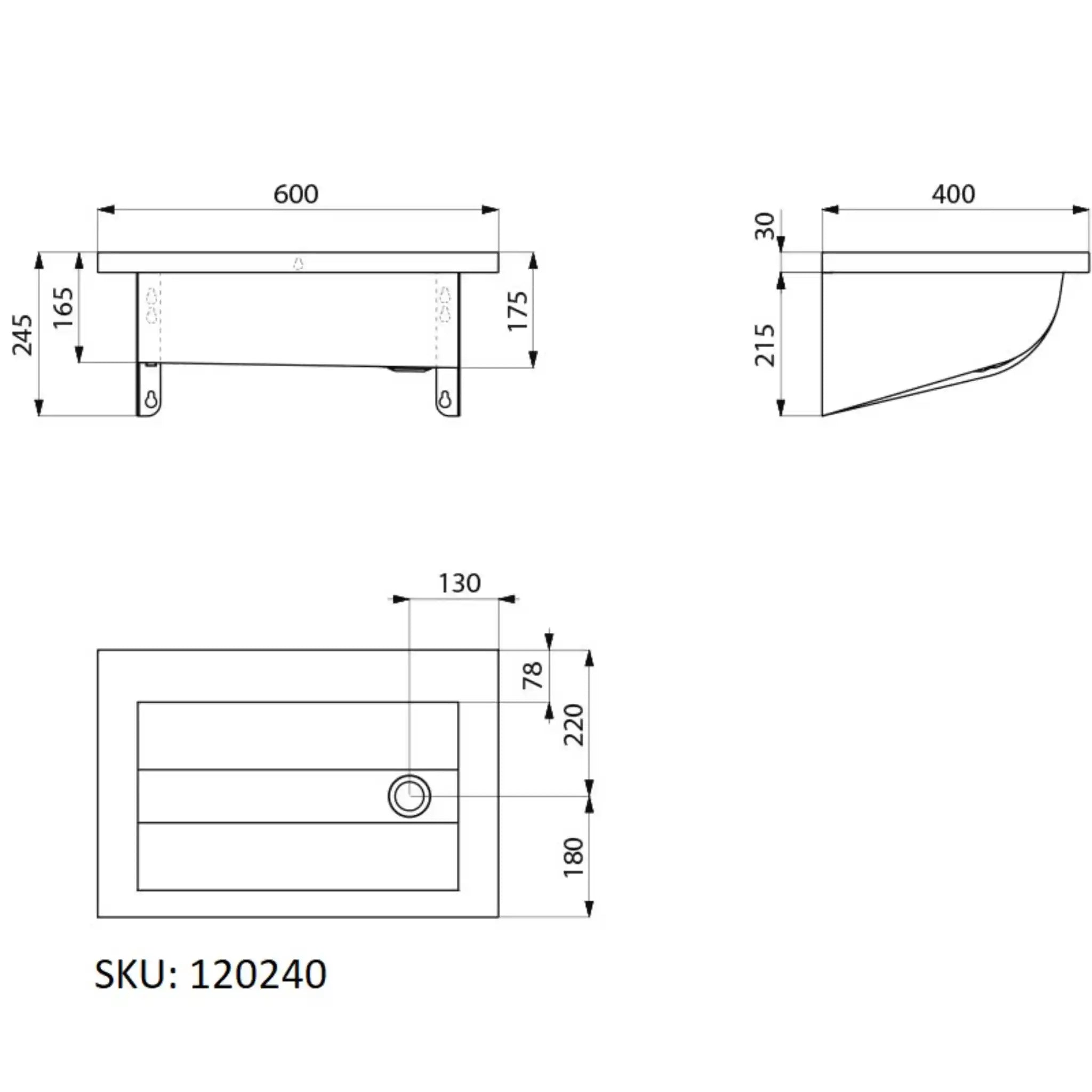

| 120240 | 600mm | Without tap hole | Right |

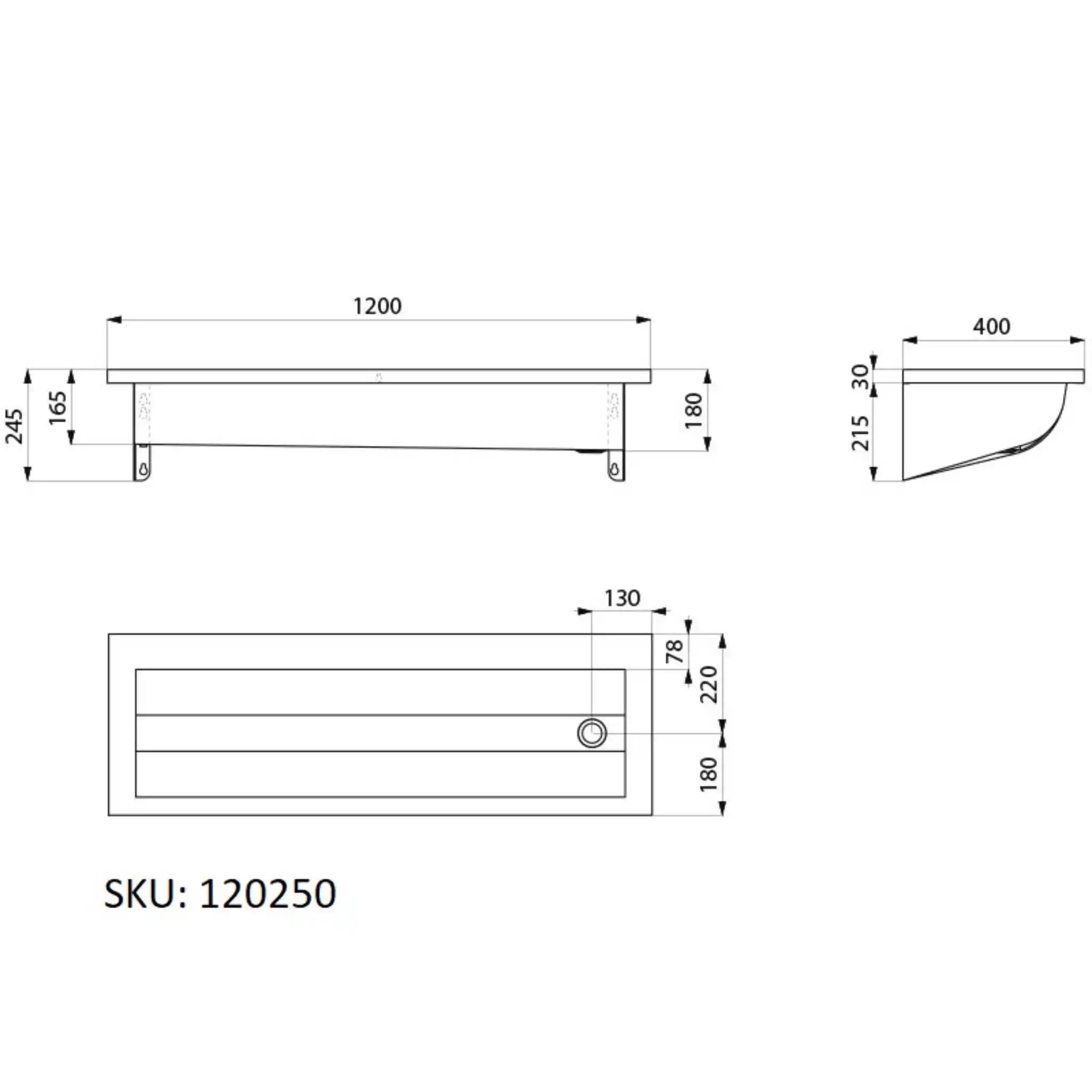

| 120250 | 1200mm | Without tap hole | Right |

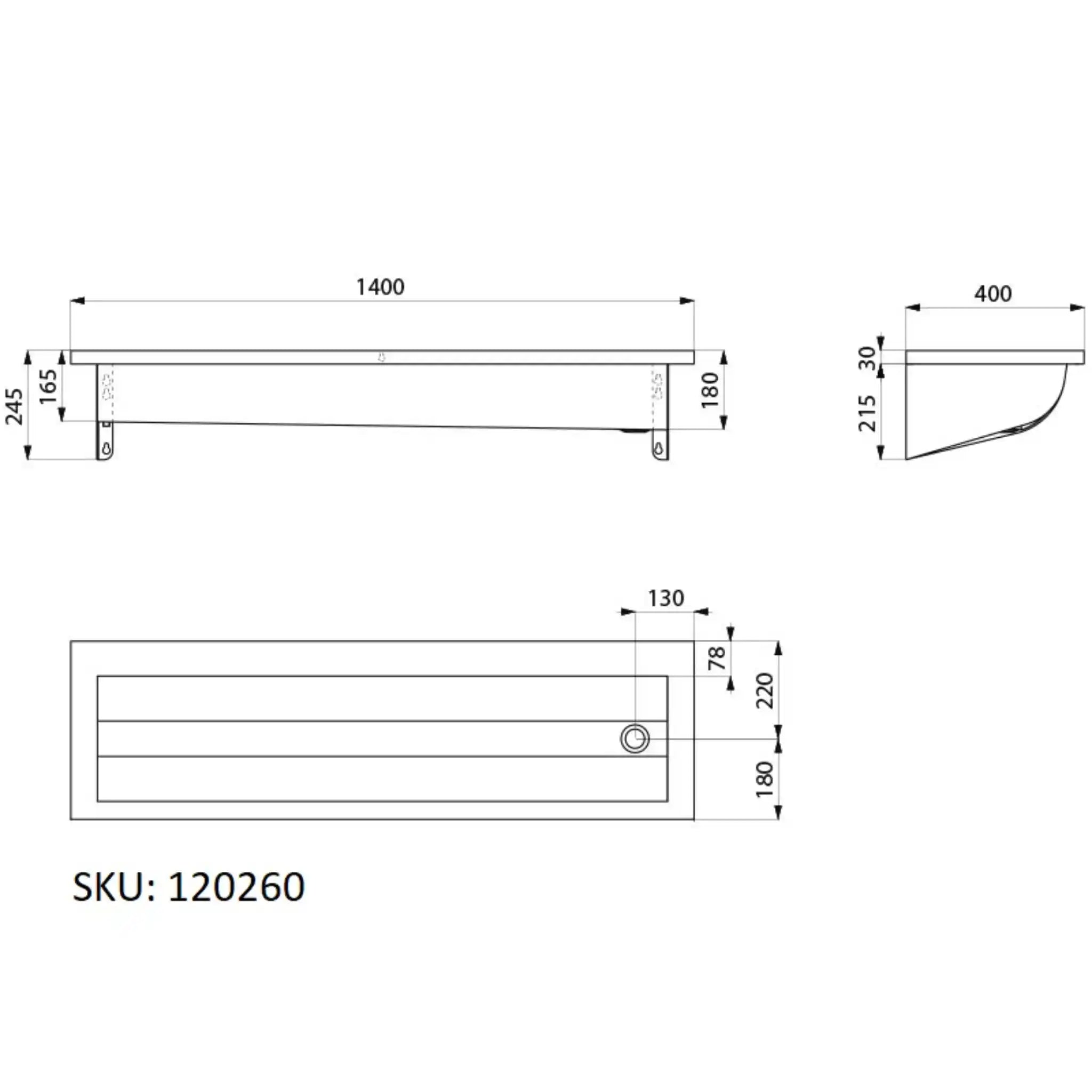

| 120260 | 1400mm | Without tap hole | Right |

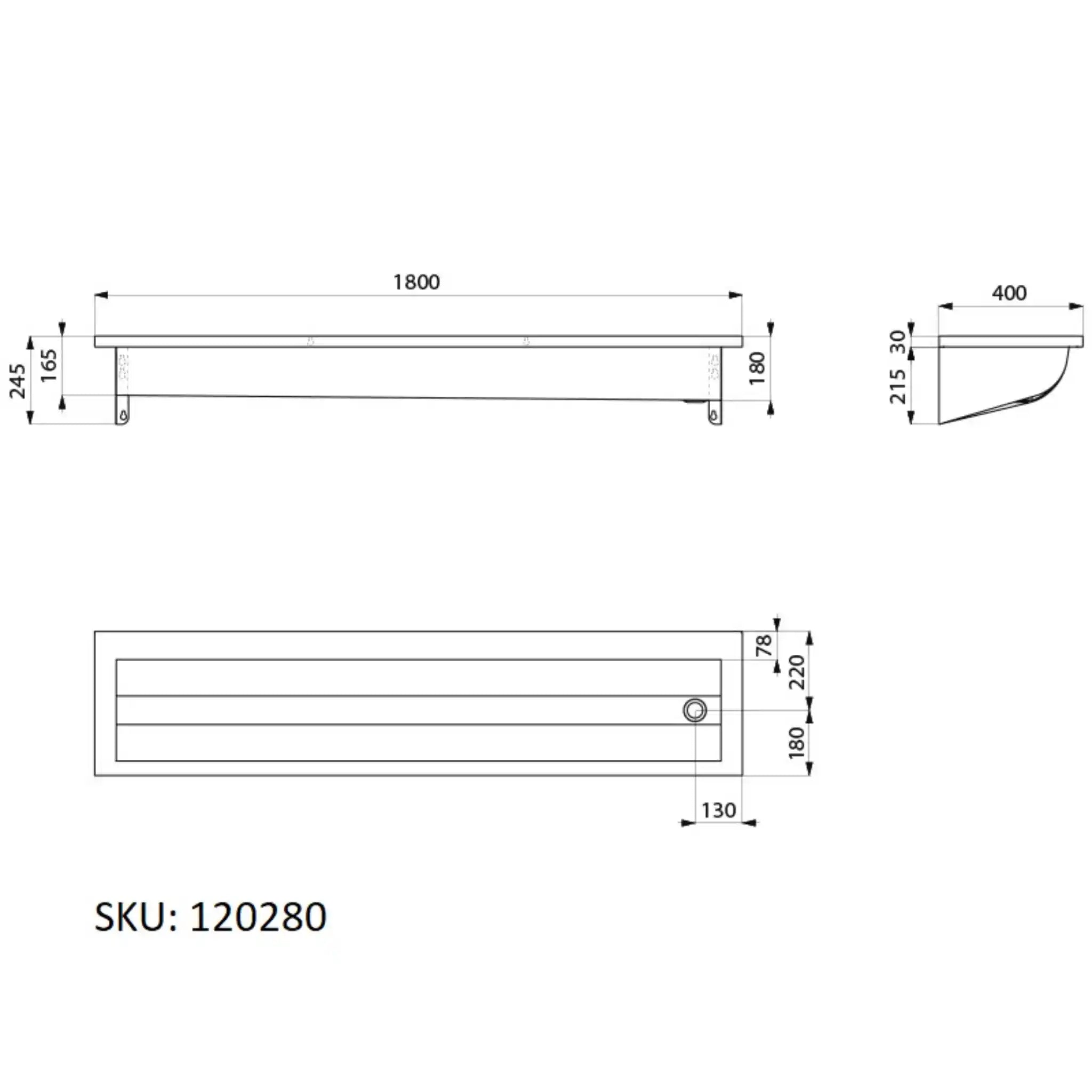

| 120280 | 1800mm | Without tap hole | Right |

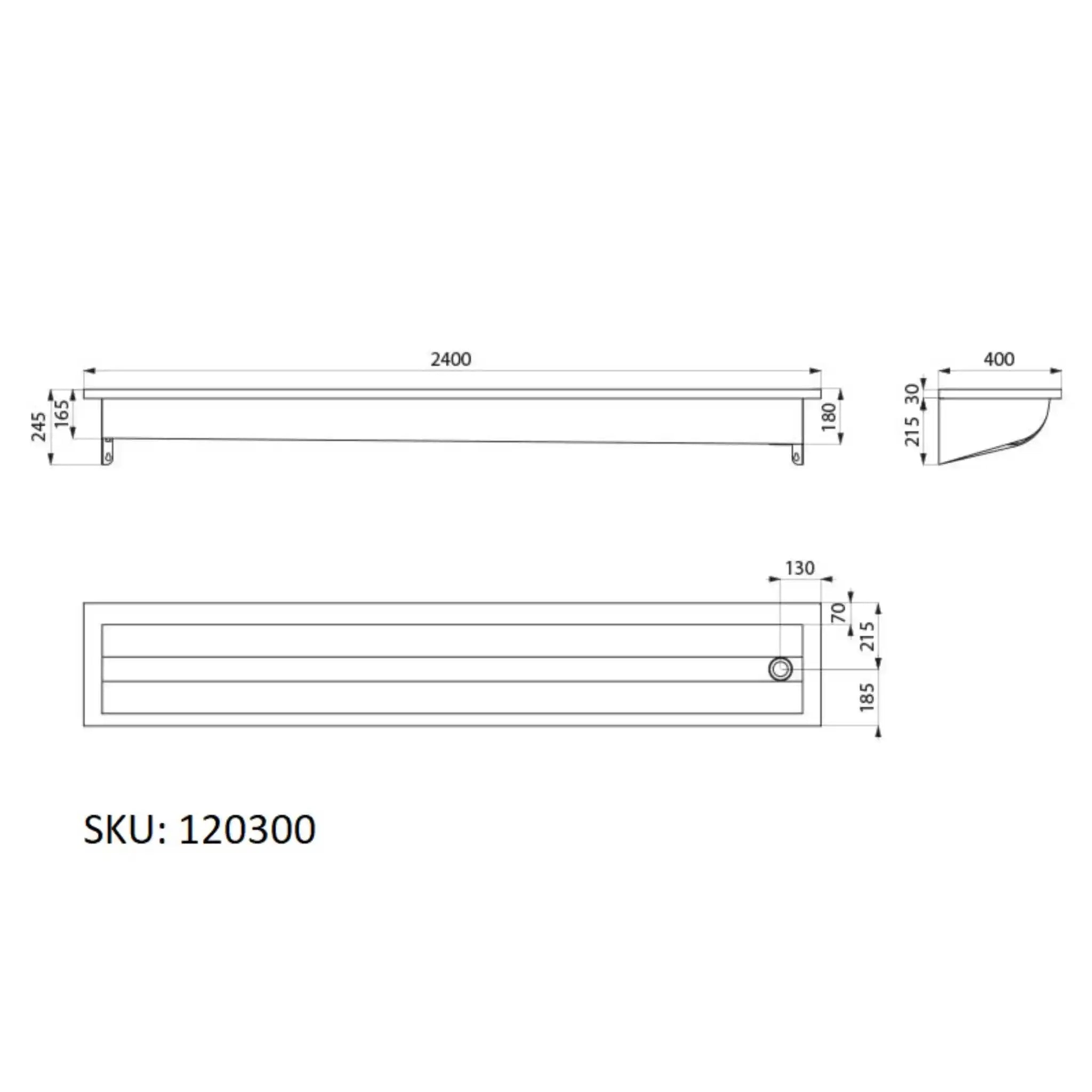

| 120300 | 2400mm | Without tap hole | Right |

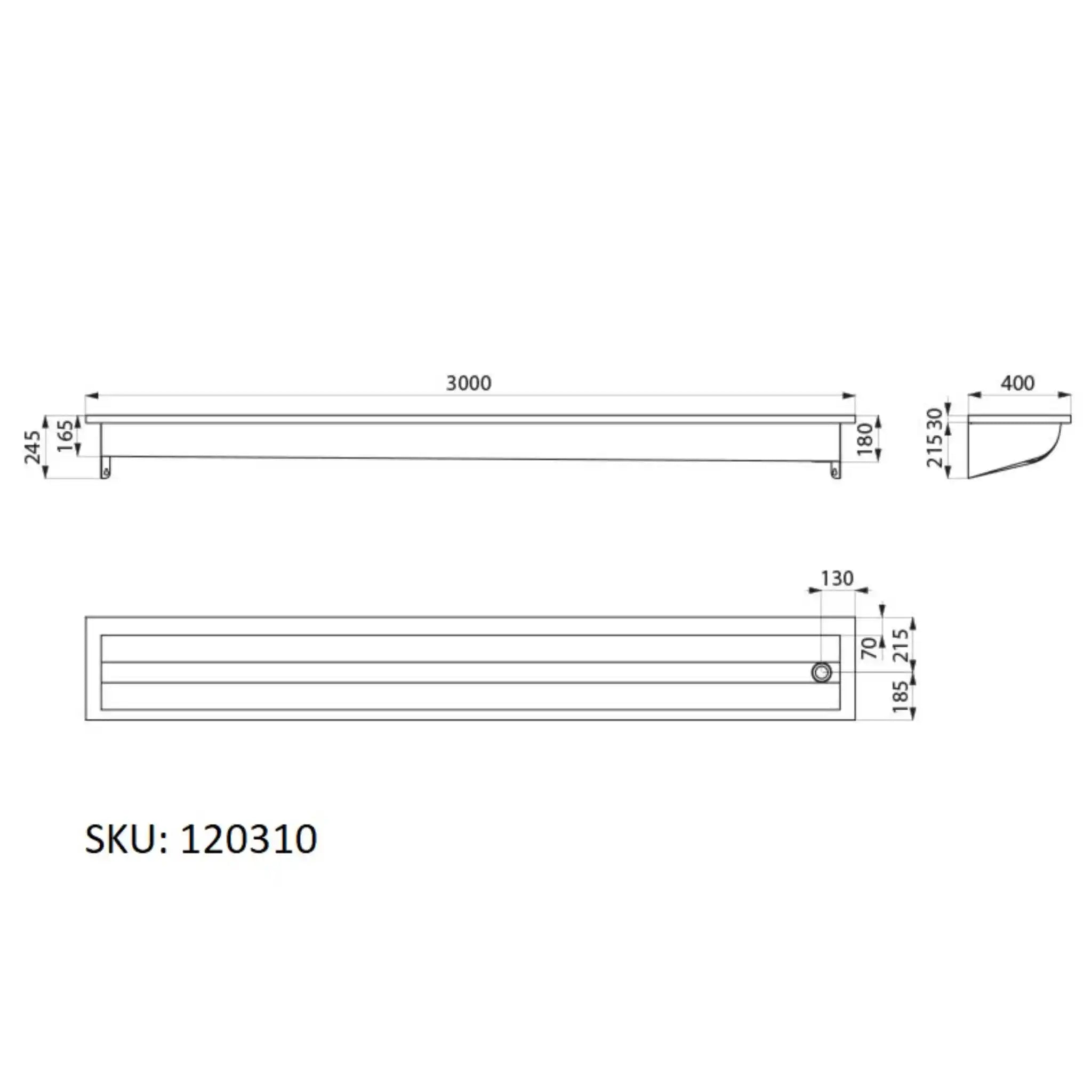

| 120310 | 3000mm | Without tap hole | Right |

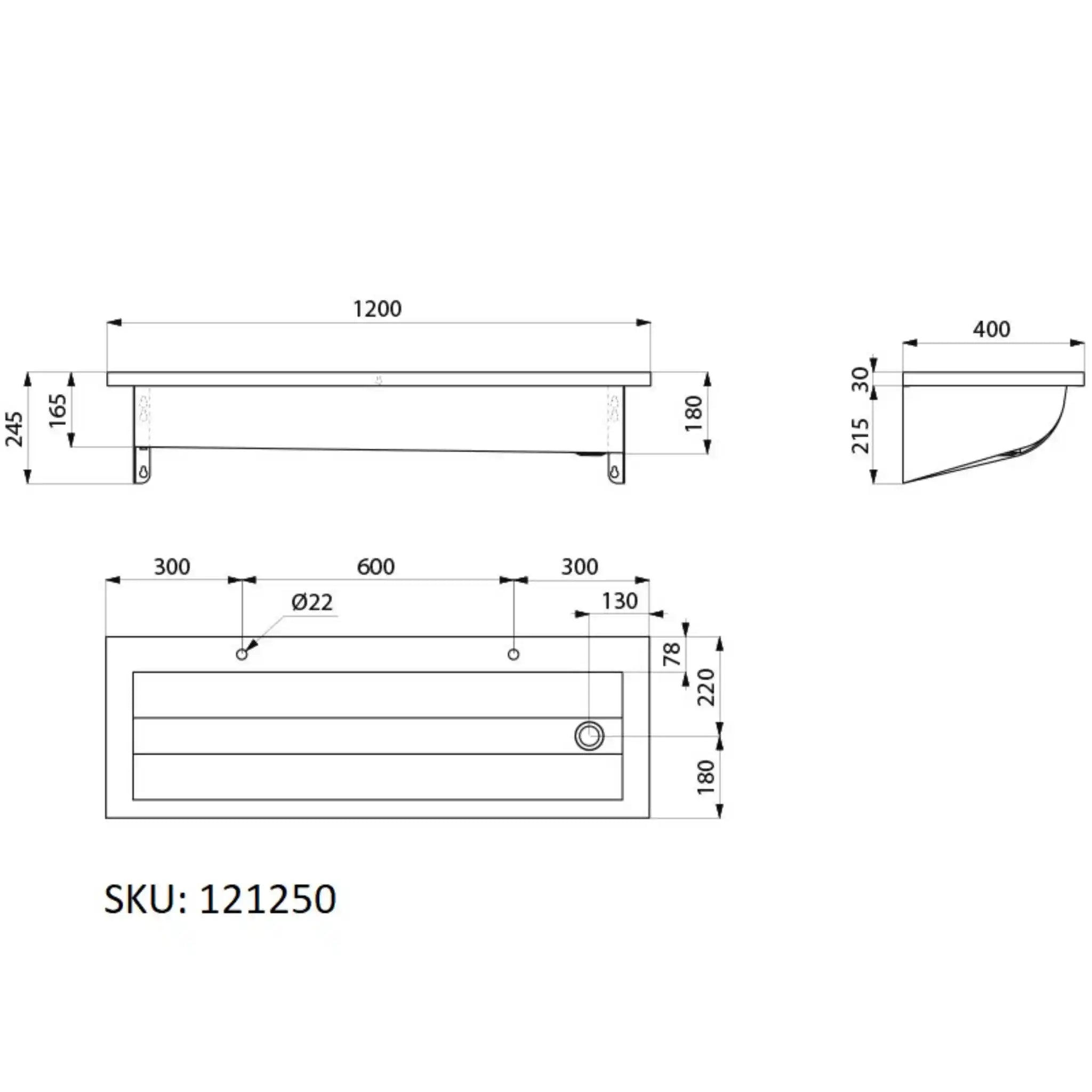

| 121250 | 1200mm | Ø 22mm tap holes | Right |

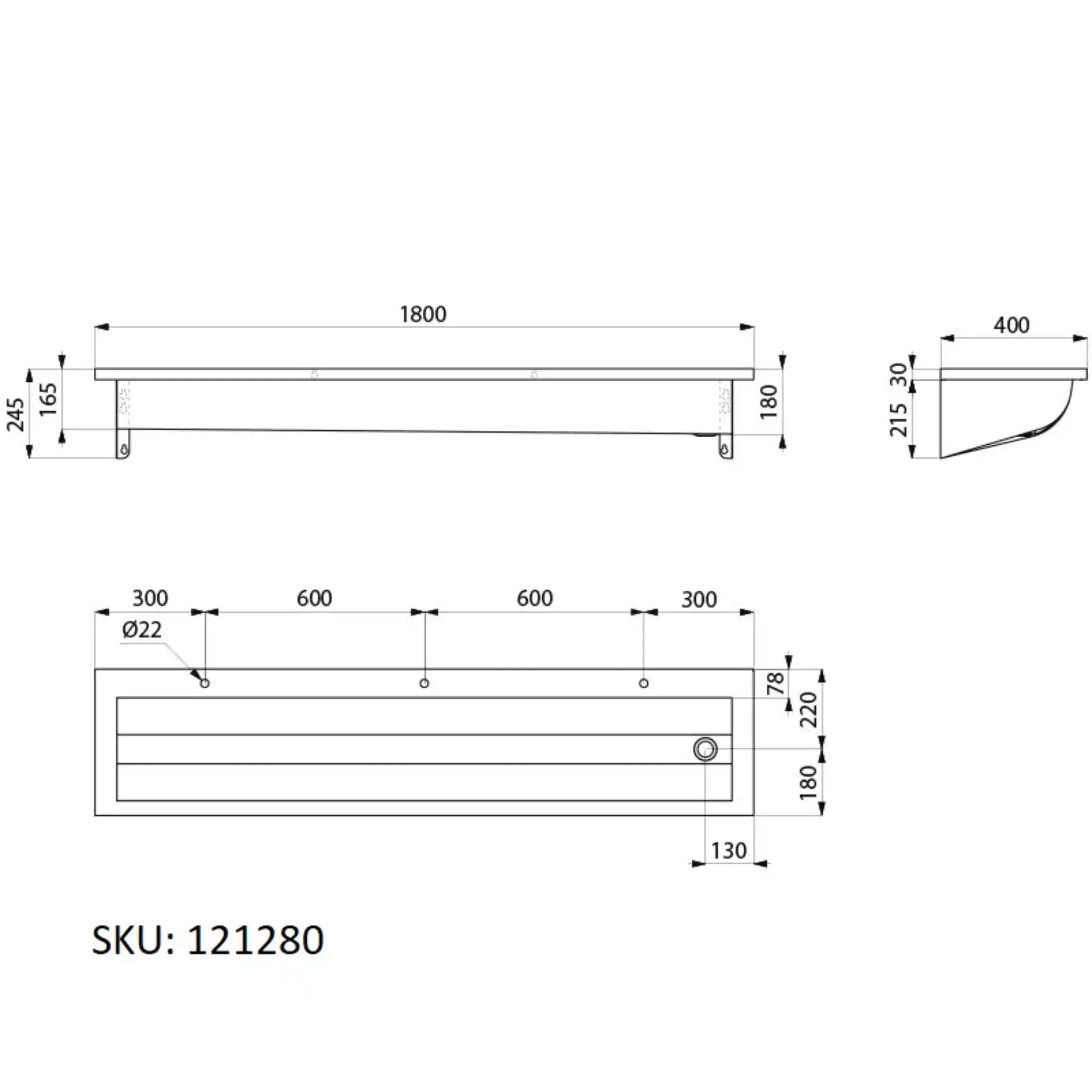

| 121280 | 1800mm | Ø 22mm tap holes | Right |

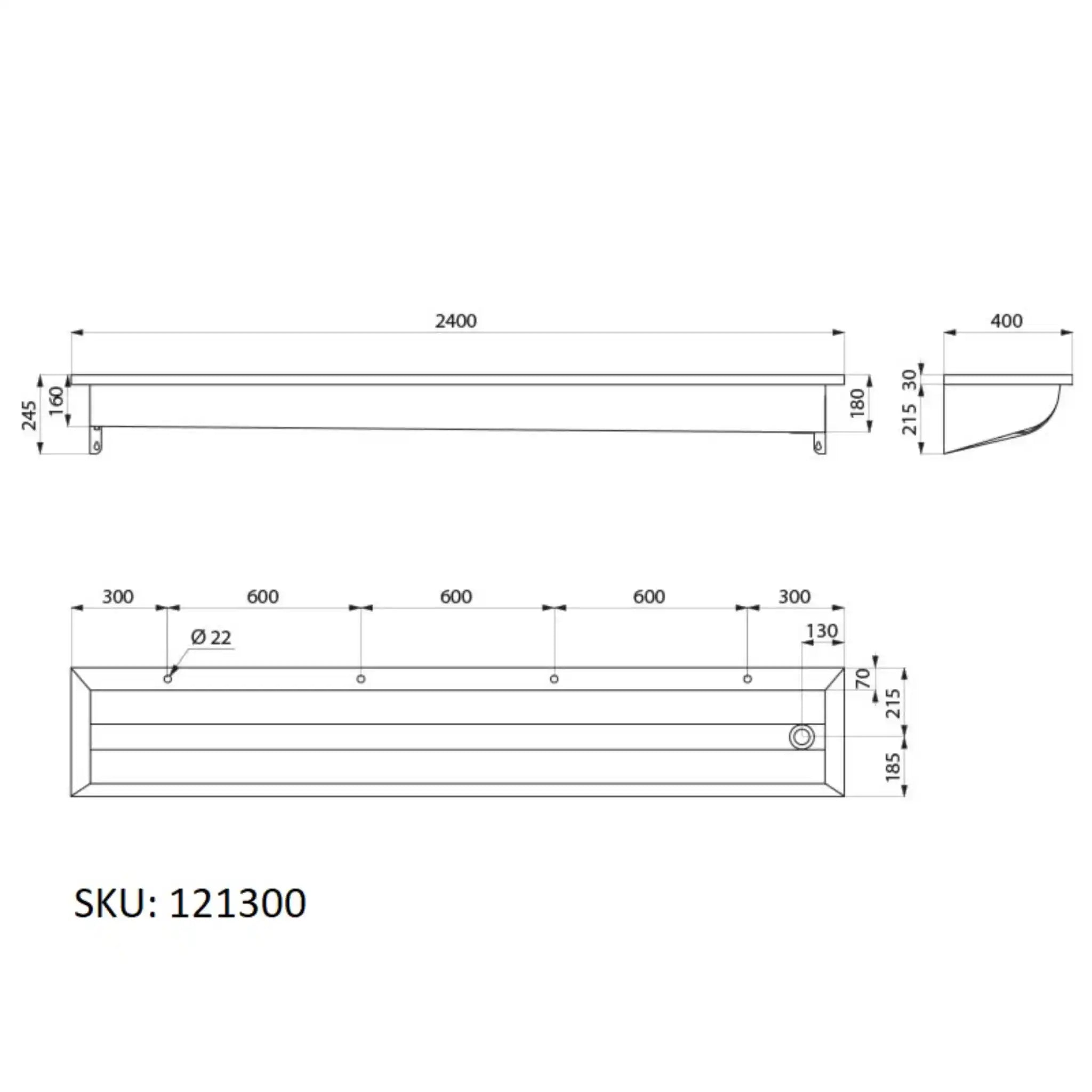

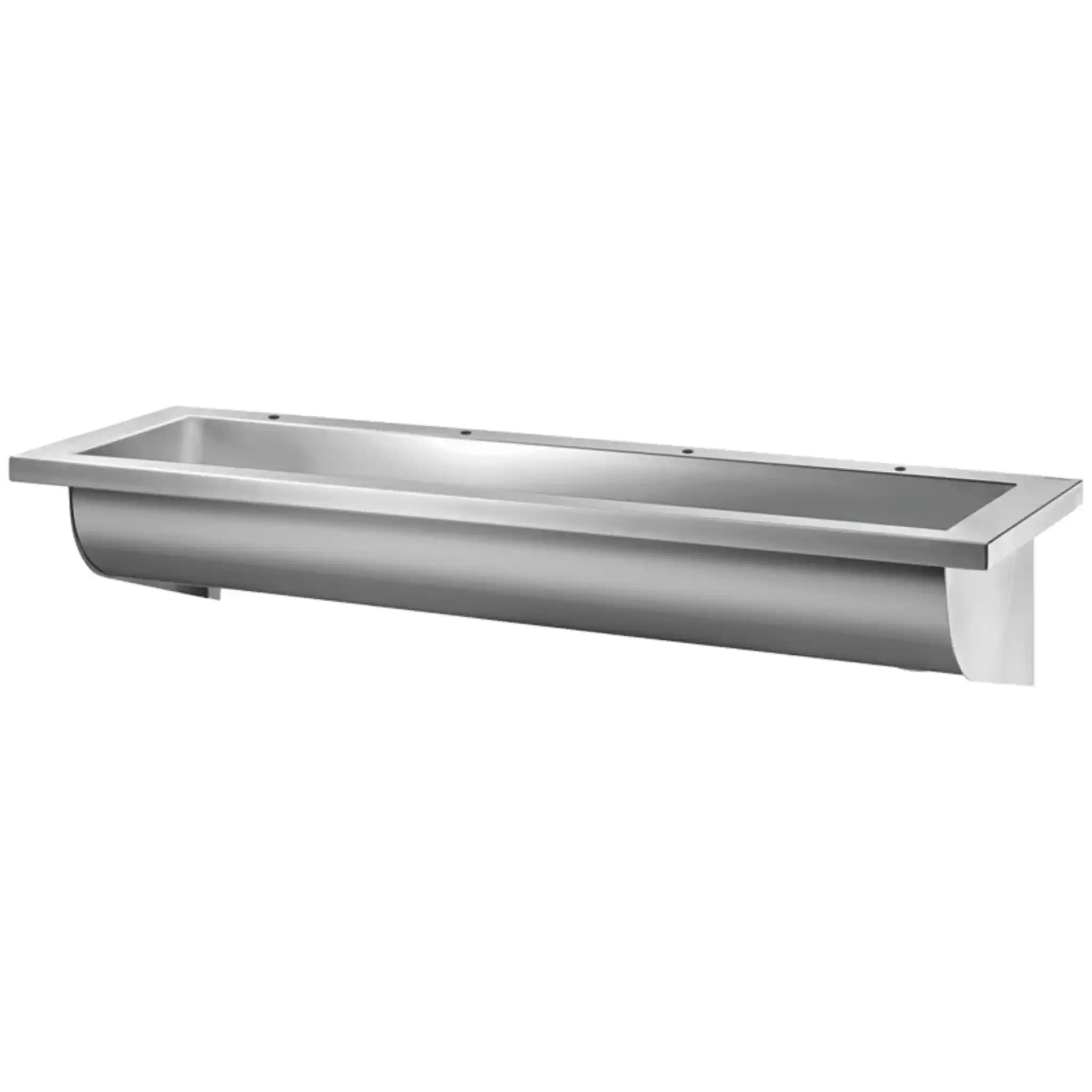

| 121300 | 2400mm | Ø 22mm tap holes | Right |
| 122250 | 1200mm | Without tap hole | Left |

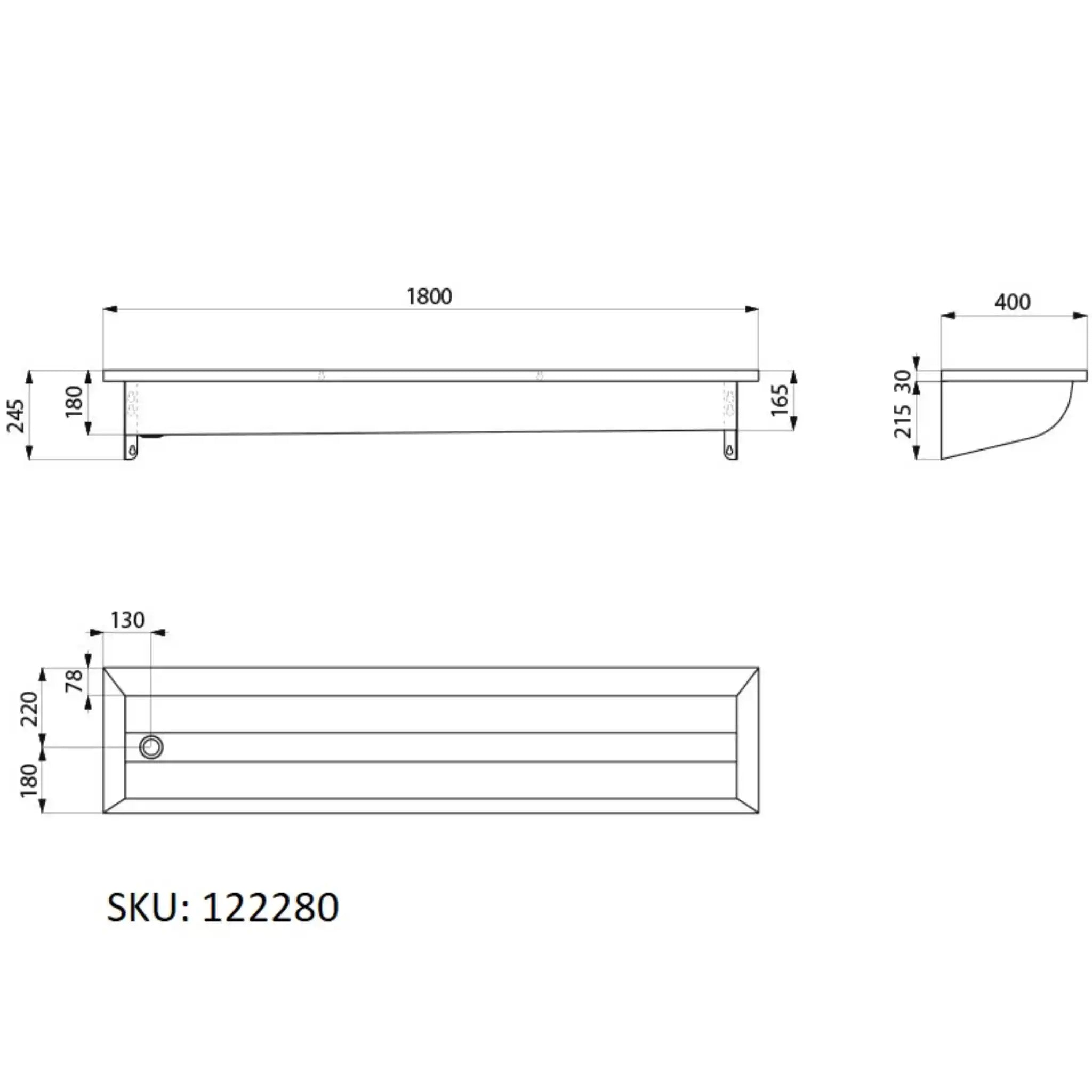

| 122280 | 1800mm | Without tap hole | Left |
